Brand:Schneider PLC Item No.:BMXAMO0410H Product Origin:France Product Dimensions:118 x 116 x 55 mm Product Weight:0.15 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

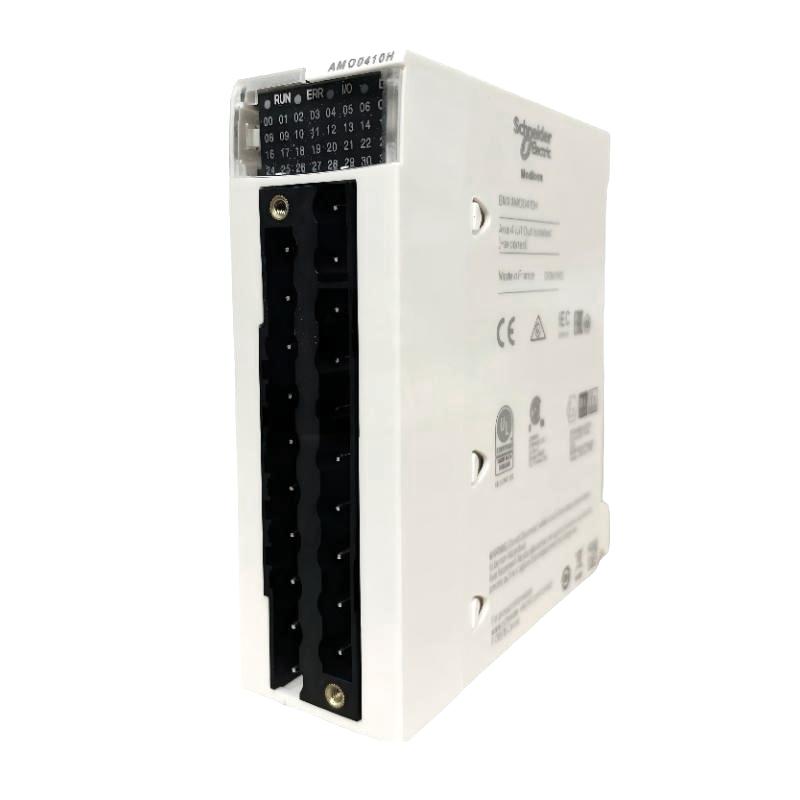

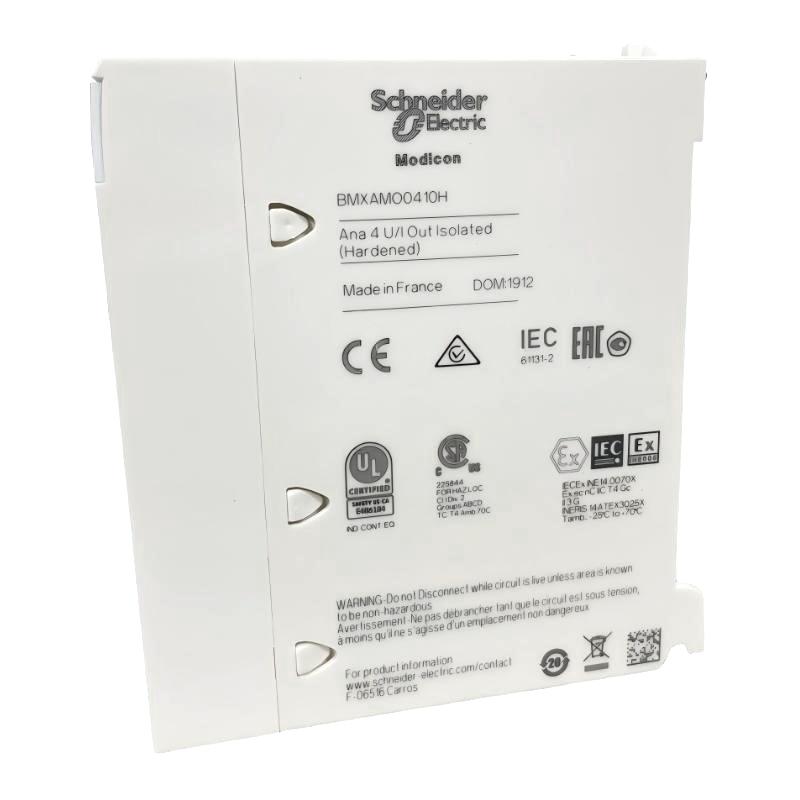

Introduction to Schneider BMXAMO0410H Analog Output Module
The Schneider BMXAMO0410H Analog Output Module is a professional industrial control component designed to provide precise analog signal generation within Modicon X80 automation systems. It serves as an important interface between PLC controllers and analog field equipment, enabling accurate adjustment and regulation of industrial processes.
The module is particularly suitable for applications where reliable analog control is essential, such as motor speed adjustment, valve positioning, pressure regulation, and process flow control. Its isolated outputs, flexible signal ranges, and hardened construction make it a strong choice for demanding industrial automation environments.
For system integrators, OEM manufacturers, and maintenance professionals, the BMXAMO0410H provides a reliable method to expand analog control capability, improve process accuracy, and enhance the long-term performance of Schneider Electric automation systems.
Technical Specifications
Parameter
Specification
Manufacturer
Schneider Electric
Model Number
BMXAMO0410H
Product Type
Analog Output Module
Series
Modicon X80
Module Version
Hardened / Severe Environment Version
Number of Analog Outputs
4 Channels
Output Type
Isolated Analog Output
Supported Output Signals
0–20 mA, 4–20 mA, ±10 V
Voltage Output Range
±10 V
Current Output Range
0–20 mA / 4–20 mA
Analog Resolution
16-bit Voltage / 15-bit Current
Output Isolation
Channel Isolation
Maximum Current Output
21 mA
Voltage Load Impedance
≥1 kΩ
Current Load Impedance
≤500 Ω
Output Response Time
<2 ms
Protection Function
Short-Circuit Protection
Environmental Protection
Conformal Coating
Operating Temperature
-25 to 70 °C
Compatible Platform
Modicon M340 / Modicon M580 / Modicon X80
Dimensions
118 × 116 × 55 mm
Weight
0.15 kg (0.33 lb)
Recommended Related Models
Model
Product Type
Schneider BMXAMO0410
Analog Output Module
Schneider BMXAMI0810H
Hardened Analog Input Module
Schneider BMXART0414H
Hardened Temperature Input Module
Schneider BMEP586040
Modicon M580 Independent Processor
Schneider BMEXBP0800
8-Slot Ethernet Backplane
Popular Related Models
Model
Application Category
Schneider BMXDDI3203
Discrete Input Module
Schneider BMXDDO3202
Discrete Output Module
Schneider BMXCRA31200
Remote I/O Adapter Module
Schneider BMENOP0300
Communication Module
Schneider BMXCPS3522
Redundant Power Supply Module
Applications and Precision Analog Signal Control
The Schneider BMXAMO0410H Analog Output Module is a hardened high-performance analog output module designed for the Modicon X80 automation platform, providing accurate and reliable analog signal generation for industrial control applications. This module enables PLC systems to regulate field devices such as variable speed drives, control valves, actuators, and process instruments through precise voltage and current outputs.
The BMXAMO0410H is widely used in process automation, energy systems, manufacturing equipment, chemical processing, water treatment, and infrastructure control applications where stable analog output performance is required. With four isolated analog output channels, the module supports configurable output ranges including 0–20 mA, 4–20 mA, and ±10 V, allowing flexible integration with different industrial devices.
Designed for severe industrial environments, the BMXAMO0410H features hardened construction with conformal coating protection and extended operating temperature capability. It provides engineers with a dependable solution for applications requiring accurate process control, improved system availability, and long-term operational stability.
Control Performance Advantages and System Integration Features
Hardened Design for Severe Environments
The BMXAMO0410H is developed for demanding industrial conditions, providing enhanced protection against environmental stress. Its rugged design makes it suitable for installations exposed to temperature variations, chemical environments, and challenging operating conditions.
Four Isolated Analog Output Channels
Equipped with four isolated analog outputs, the module allows multiple field devices to be controlled independently from a single PLC rack. Channel isolation improves signal reliability and reduces interference between control loops.
Flexible Voltage and Current Output Configuration
The module supports multiple analog output ranges, including 0–20 mA, 4–20 mA, and ±10 V, enabling compatibility with a wide variety of industrial actuators, drives, and instrumentation equipment.
High-Accuracy Digital Conversion
The BMXAMO0410H provides high-resolution analog conversion, supporting precise output regulation for applications requiring stable process control and accurate equipment adjustment.
Reliable Modicon X80 Platform Integration
As part of the Modicon X80 product family, the module integrates smoothly with Schneider Electric automation architectures, helping users expand control capabilities while maintaining system consistency.
Technical FAQs About Schneider BMXAMO0410H Analog Output Module
1. What is the Schneider BMXAMO0410H used for?
The BMXAMO0410H is an analog output module used to send voltage and current control signals from a PLC system to industrial field devices.
2. How many analog output channels does the BMXAMO0410H provide?
The module provides four isolated analog output channels.
3. Which output signal types are supported by the BMXAMO0410H?
The module supports 0–20 mA, 4–20 mA, and ±10 V output ranges.
4. What is the difference between BMXAMO0410 and BMXAMO0410H?
The BMXAMO0410H is the hardened version designed for severe environments, while BMXAMO0410 is the standard industrial version.
5. Which Schneider automation systems are compatible with this module?
The BMXAMO0410H is designed for Modicon X80 systems used with Modicon M340 and Modicon M580 automation platforms.
6. How can an analog output fault be diagnosed?
Technicians should check module configuration, wiring connections, output channel status, field device conditions, and PLC diagnostic messages.
7. What causes incorrect analog output values?
Common causes include incorrect scaling settings, wrong output range selection, wiring problems, damaged field devices, or configuration errors.
8. Does the BMXAMO0410H support isolated outputs?
Yes. The module provides isolated analog output channels to improve signal stability and reduce electrical interference.
9. How is the output range configured?
The output range is selected through Schneider Electric engineering software during PLC hardware configuration.
10. What maintenance practices improve analog output reliability?
Regular inspection of wiring, grounding, field devices, configuration parameters, and diagnostic information helps maintain stable operation.
