Brand:Schneider PLC Item No.:BMXDAI1604 Product Origin:France Product Dimensions:103.7 x 86 x 32 mm Product Weight:0.115 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

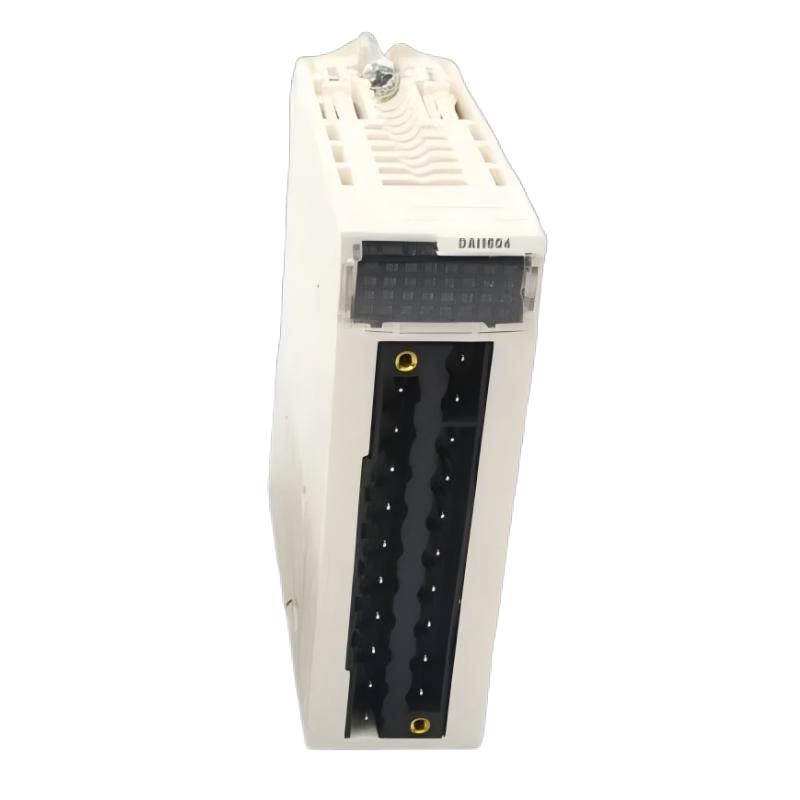

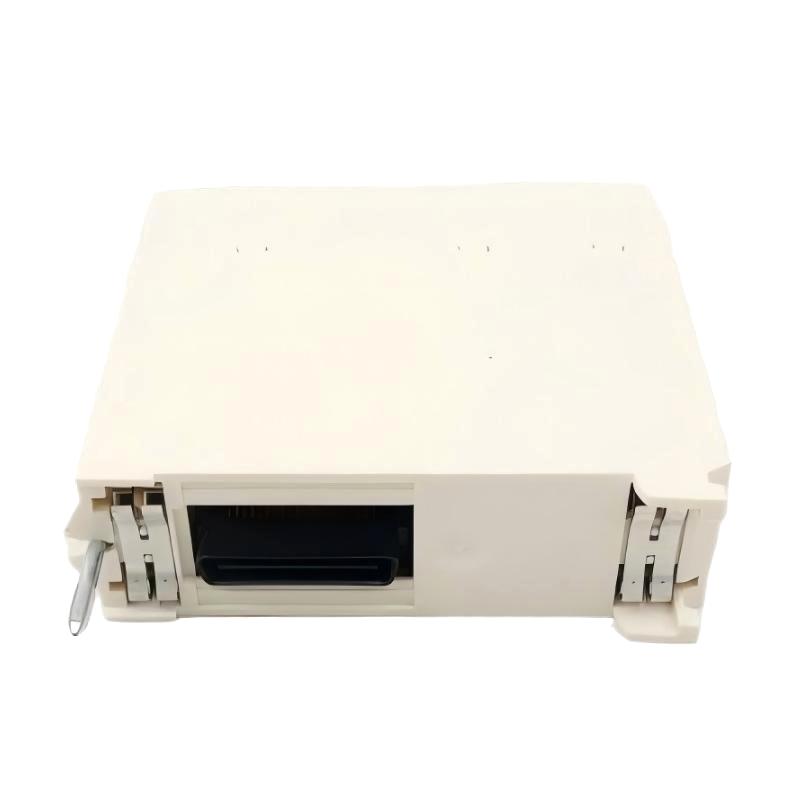

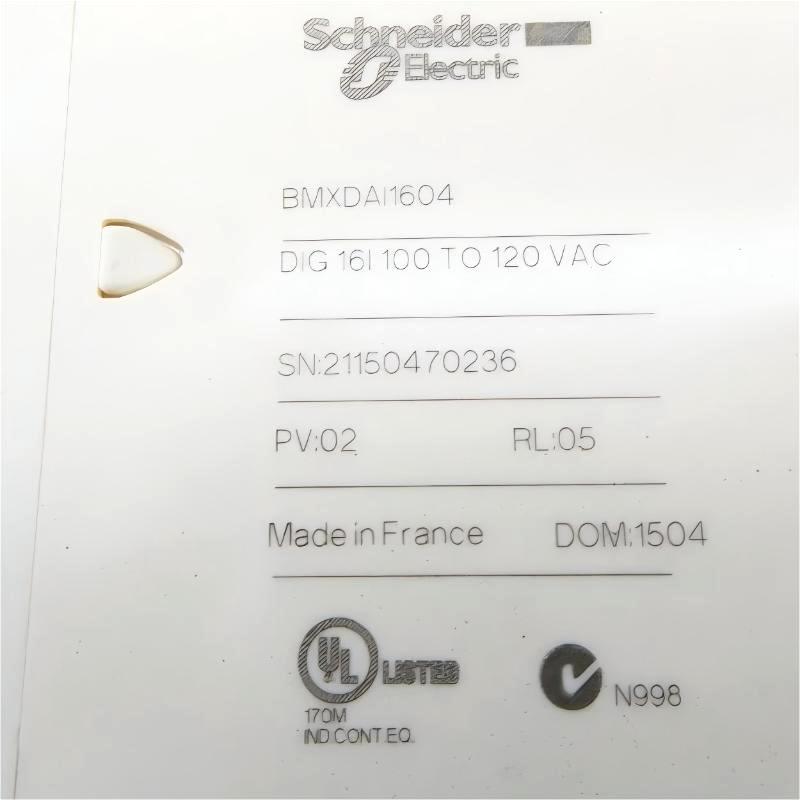

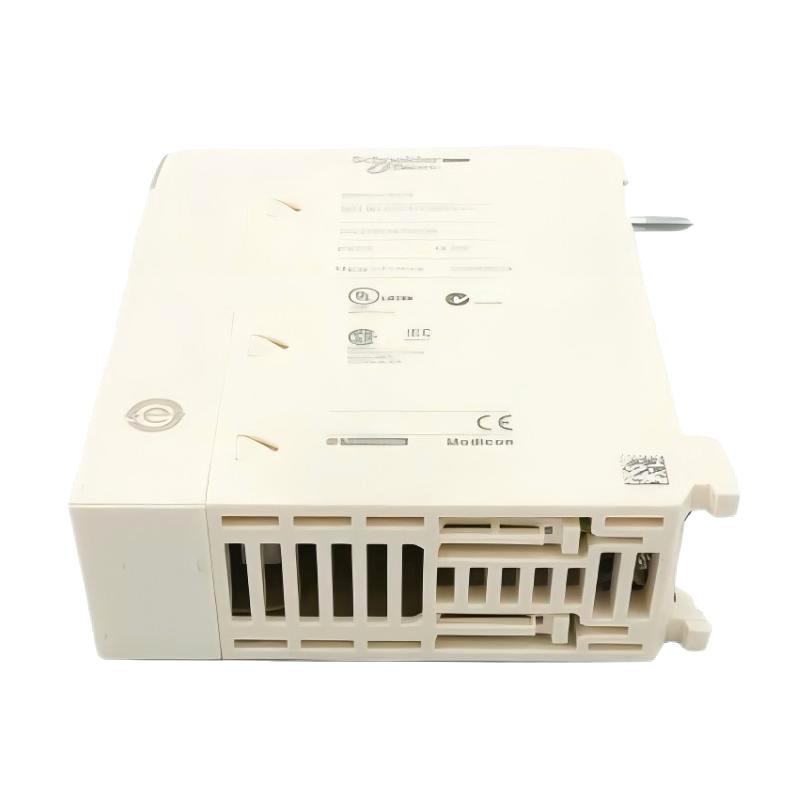

Introduction to Schneider BMXDAI1604 Discrete Input Module
The Schneider BMXDAI1604 Discrete Input Module is an industrial-grade digital input component designed to provide dependable signal monitoring for Modicon X80 automation systems. It acts as a bridge between field devices and PLC controllers, allowing operators and engineers to collect real-time equipment status information for automated control processes.
With 16 isolated AC input channels, the BMXDAI1604 offers a practical solution for applications requiring multiple digital feedback signals within a limited installation space. Its robust signal processing capability makes it suitable for machine automation, production lines, and process control systems where accurate status detection is essential.
The module’s compact design, reliable electrical performance, and compatibility with Schneider Electric automation platforms make it a valuable choice for system integrators, OEM equipment builders, and industrial maintenance professionals looking to enhance PLC system flexibility and reliability.
Technical Specifications
Parameter
Specification
Manufacturer
Schneider Electric
Model Number
BMXDAI1604
Product Type
Discrete Input Module
Series
Modicon X80
Number of Inputs
16 Channels
Input Type
Isolated AC Discrete Input
Input Voltage
100–120 V AC
Input Frequency
50/60 Hz
Input Current
5 mA
Input Compatibility
2-wire / 3-wire Proximity Sensors
Input Type
Capacitive
Input Impedance
13 kΩ
Input Isolation
Channel Isolation
Activation Filtering Time
10 ms
Deactivation Filtering Time
20 ms
Protection Function
External 0.5 A Fast-Blow Fuse Per Channel Group
Diagnostic Indicators
RUN LED, Channel Status LEDs, Fault Indicators
Power Consumption
≤3.8 W
Compatible Platform
Modicon M340 / Modicon M580 / Modicon X80
Connection Type
20-Way Connector
Operating Temperature
0 to 60 °C
Dimensions
103.7 × 86 × 32 mm
Weight
0.12 kg (0.25 lb)
Recommended Related Models
Model
Product Type
Schneider BMXDAI0814
8-Channel AC Discrete Input Module
Schneider BMXDDI3203
32-Channel DC Discrete Input Module
Schneider BMXDDO3202
Discrete Output Module
Schneider BMXAMI0810H
Hardened Analog Input Module
Schneider BMXCPS3522
Redundant Power Supply Module
Popular Related Models
Model
Application Category
Schneider BMXCRA31200
Remote I/O Adapter Module
Schneider BMENOP0300
Communication Module
Schneider BMEP586040
Modicon M580 Independent Processor
Schneider BMEXBP0800
Ethernet Backplane Module
Schneider BMXAMO0410H
Hardened Analog Output Module
Applications and Industrial Digital Signal Monitoring
The Schneider BMXDAI1604 Discrete Input Module is a reliable AC digital input solution designed for the Modicon X80 automation platform, providing accurate acquisition of industrial ON/OFF signals from field devices. This module is mainly used to collect status information from switches, contactors, relays, and proximity sensors, allowing PLC systems to monitor machine operations and process conditions efficiently.
The BMXDAI1604 is widely applied in manufacturing automation, process control, power systems, transportation infrastructure, and industrial equipment where stable digital signal detection is required. Featuring 16 isolated discrete input channels, the module supports 100–120 V AC input signals, making it suitable for direct connection with various industrial control devices.
Integrated into Schneider Electric Modicon M340 and M580 architectures, the BMXDAI1604 helps engineers expand PLC input capacity while maintaining efficient cabinet organization and dependable signal processing performance. Its isolated input design improves system stability by reducing electrical interference between field devices and the controller.
Key Performance Benefits and Automation Integration Advantages
16-Channel AC Digital Input Capability
The BMXDAI1604 provides 16 discrete AC input channels, enabling multiple field devices to be connected within a single compact PLC module. This helps reduce cabinet space requirements while improving automation system scalability.
Reliable Signal Isolation Technology
Each input channel is electrically isolated, helping protect the PLC system from field-side electrical disturbances and improving signal reliability in industrial environments with complex wiring conditions.
Wide Industrial Device Compatibility
The module supports connection with 2-wire and 3-wire proximity sensors as well as standard switching devices, offering flexible integration options for different automation applications.
Stable AC Signal Processing
Designed for 100–120 V AC industrial signals, the BMXDAI1604 provides consistent signal detection and filtering performance, ensuring accurate status feedback from connected equipment.
Modicon X80 Platform Compatibility
The module integrates seamlessly into Modicon X80 racks and supports Schneider Electric PLC architectures, providing a dependable solution for expanding digital input capacity in modern automation systems.
Technical FAQs About Schneider BMXDAI1604 Discrete Input Module
1. What is the Schneider BMXDAI1604 Discrete Input Module used for?
The BMXDAI1604 is used to collect AC digital signals from industrial field devices and transmit their status information to PLC controllers.
2. How many input channels are available on the BMXDAI1604?
The module provides 16 discrete input channels for monitoring multiple AC switching signals.
3. What input voltage does the BMXDAI1604 support?
The module supports 100–120 V AC discrete input signals.
4. Is the BMXDAI1604 compatible with proximity sensors?
Yes. The module supports 2-wire and 3-wire proximity sensors that meet applicable industrial standards.
5. Which Schneider PLC platforms can use the BMXDAI1604?
The module is designed for Modicon X80 systems and can be integrated into Modicon M340 and M580 automation architectures.
6. How should an input channel fault be diagnosed?
Technicians should inspect field wiring, input voltage levels, terminal connections, channel indicators, and PLC diagnostic information.
7. What can cause an input signal to be incorrectly detected?
Possible causes include incorrect wiring, insufficient voltage, damaged field devices, electrical interference, or incorrect hardware configuration.
8. Does the BMXDAI1604 provide input signal filtering?
Yes. The module includes AC signal filtering to improve signal stability and prevent false switching caused by electrical noise.
9. How is the BMXDAI1604 configured in a PLC project?
The module is configured through Schneider Electric engineering software as part of the Modicon X80 hardware configuration.
10. What maintenance practices improve BMXDAI1604 reliability?
Regular inspection of field wiring, sensor conditions, electrical connections, and PLC diagnostics helps maintain stable module operation.
