Brand:Schneider PLC Item No.:BMXDAI1614 Product Origin:France Product Dimensions:134.6 x 86 x 32 mm Product Weight:0.157 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

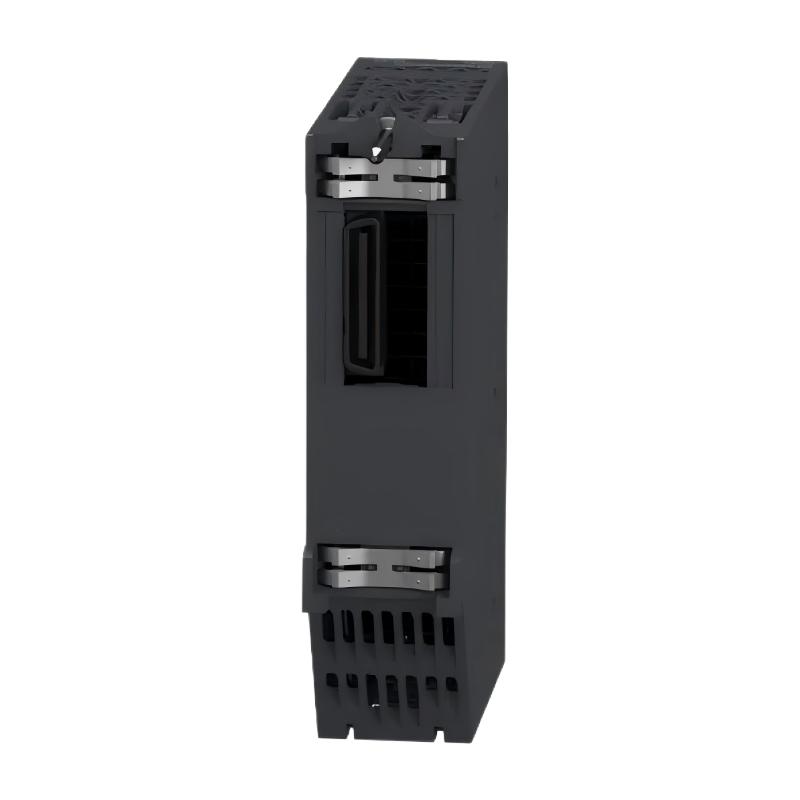

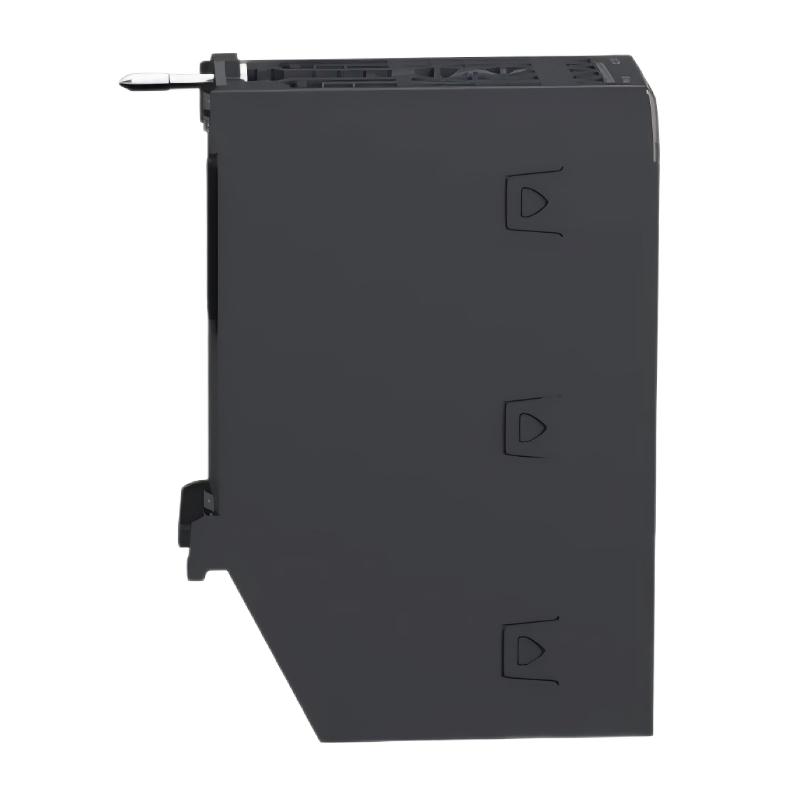

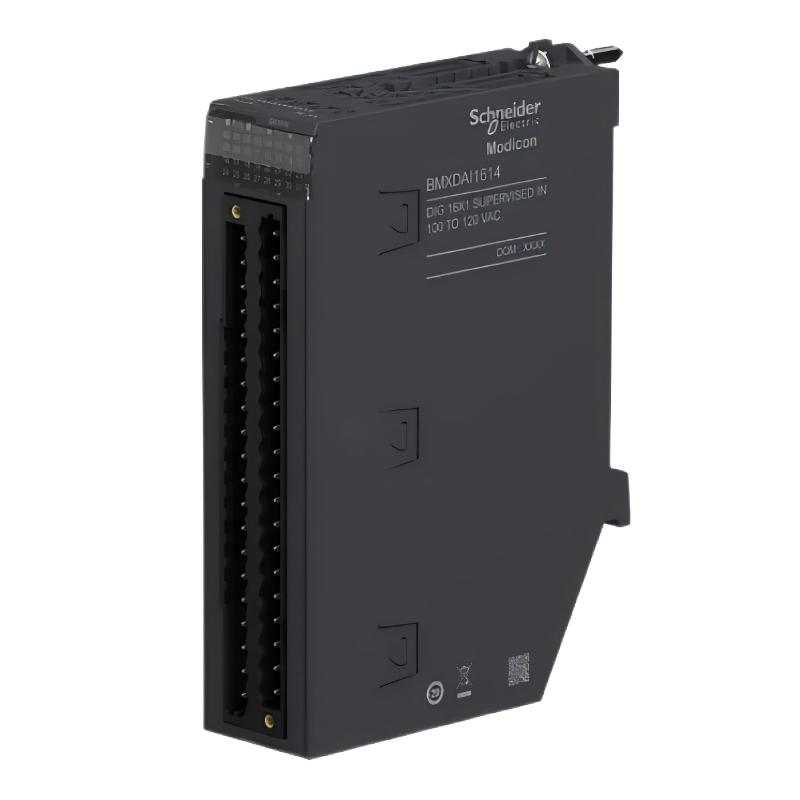

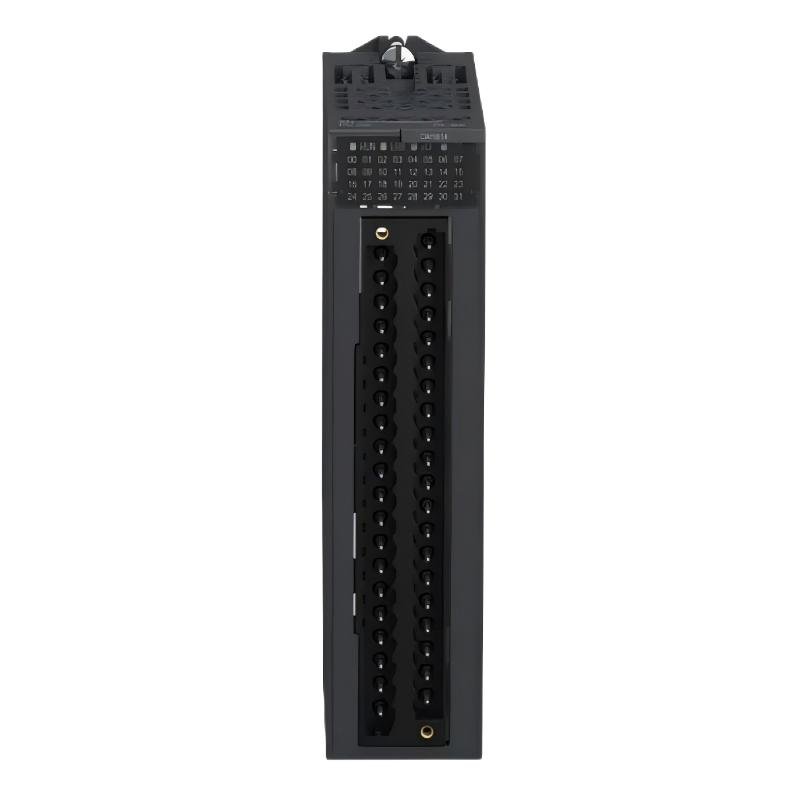

Introduction to Schneider BMXDAI1614 Discrete Input Module
The Schneider BMXDAI1614 Discrete Input Module is a professional industrial I/O component designed to provide accurate and reliable digital signal monitoring within Modicon X80 automation systems. It serves as an important connection point between field-level devices and PLC controllers, enabling real-time equipment status collection and process supervision.
With 16 isolated AC input channels, the BMXDAI1614 delivers an efficient solution for applications requiring a large number of digital signals in a compact installation area. Its supervised input capability and diagnostic functions support faster commissioning, easier maintenance, and improved system availability.
For automation engineers, OEM manufacturers, and industrial system integrators, the BMXDAI1614 offers a dependable method for expanding PLC input capacity while maintaining the performance and reliability expected from Schneider Electric control platforms.
Technical Specifications
Parameter
Specification
Manufacturer
Schneider Electric
Model Number
BMXDAI1614
Product Type
Discrete Input Module
Series
Modicon X80
Number of Inputs
16 Channels
Input Type
Isolated AC Discrete Input
Input Voltage
100–120 V AC
Input Voltage Range
85–132 V AC
Input Current
2 mA
Input Frequency
50/60 Hz
Input Type
Capacitive
Input Compatibility
2-Wire Proximity Sensors
Input Impedance
14 kΩ
Input Isolation
Isolated Channels
Supervised Input Function
Supported
Activation Filtering Time
10 ms
Deactivation Filtering Time
20 ms
Protection Function
External 0.25 A Fast-Blow Fuse Per Channel Group
Diagnostic Indicators
RUN LED, Channel LEDs, ERR LED, I/O LED
Power Dissipation
5 W
Compatible Platform
Modicon M340 / Modicon M580 / Modicon X80
Protection Rating
IP20
Dimensions
134.6 × 86 × 32 mm
Weight
0.16 kg (0.35 lb)
Recommended Related Models
Model
Product Type
Schneider BMXDAI0814
8-Channel AC Discrete Input Module
Schneider BMXDDI3203
DC Discrete Input Module
Schneider BMXDDO3202
Discrete Output Module
Schneider BMXAMI0810H
Hardened Analog Input Module
Schneider BMXCPS4022H
Hardened Redundant Power Supply Module
Popular Related Models
Model
Application Category
Schneider BMXCRA31200
Remote I/O Adapter Module
Schneider BMENOP0300
Communication Module
Schneider BMEP586040
Independent Processor Module
Schneider BMEXBP0800
Ethernet Backplane Module
Schneider BMXAMO0410H
Hardened Analog Output Module
Applications and Industrial Signal Acquisition
The Schneider BMXDAI1614 Discrete Input Module is a high-performance AC digital input module designed for the Modicon X80 automation platform, providing dependable signal acquisition for industrial automation systems. It is developed to collect ON/OFF status signals from field devices such as switches, relays, contactors, and compatible proximity sensors, allowing PLC controllers to accurately monitor equipment operation and process conditions.
The BMXDAI1614 is widely used in manufacturing lines, process control systems, energy facilities, transportation applications, and infrastructure automation projects. With 16 isolated discrete input channels, the module supports 100–120 V AC signals, providing engineers with a flexible solution for connecting multiple industrial devices while maintaining reliable signal separation and stable PLC communication.
Designed as part of the Modicon X80 I/O family, the BMXDAI1614 combines signal monitoring capability, diagnostic visibility, and industrial-grade reliability. Its supervised input function allows maintenance teams to identify abnormal field conditions more efficiently, making it suitable for applications where accurate status monitoring is essential.
Core Advantages and Automation Integration Benefits
High-Density 16-Channel AC Input Design
The BMXDAI1614 provides 16 independent isolated digital input channels in a compact PLC module format. This allows control engineers to monitor multiple field signals while reducing cabinet space requirements and simplifying system architecture.
Reliable Signal Isolation Technology
Each input channel is isolated to improve protection against electrical interference, voltage fluctuations, and unwanted signal coupling. This design helps maintain stable PLC operation in complex industrial environments.
Supervised Input Monitoring Capability
The module supports supervised input detection, allowing the system to recognize abnormal conditions such as sensor faults or incorrect field signal states. This improves troubleshooting efficiency and enhances operational transparency.
Flexible Field Device Compatibility
The BMXDAI1614 supports industrial sensors and switching devices, including compatible 2-wire proximity sensors, providing greater flexibility when designing automation control systems.
Integrated Diagnostic Indicators
Built-in LED indicators provide clear information about module status, channel activity, and fault conditions, helping technicians quickly identify signal problems during commissioning and maintenance.
Technical FAQs About Schneider BMXDAI1614 Discrete Input Module
1. What is the main function of the Schneider BMXDAI1614?
The BMXDAI1614 is used to collect AC digital signals from industrial field devices and transmit the status information to a PLC controller.
2. How many digital input channels does the BMXDAI1614 provide?
The module provides 16 isolated discrete input channels.
3. What type of input signals can the BMXDAI1614 process?
The module processes 100–120 V AC discrete signals from industrial switching devices and sensors.
4. Is the BMXDAI1614 compatible with Modicon M580 systems?
Yes. The module belongs to the Modicon X80 family and can be integrated into supported Modicon M580 automation architectures.
5. What types of field devices can be connected to this module?
The module can connect with compatible switches, relays, and industrial proximity sensors.
6. How can a BMXDAI1614 input fault be diagnosed?
Technicians should check field wiring, input voltage, channel LEDs, terminal connections, and PLC diagnostic messages.
7. What causes an input channel to show an incorrect status?
Possible causes include incorrect wiring, damaged sensors, insufficient input voltage, electrical interference, or incorrect system configuration.
8. Does the BMXDAI1614 provide electrical isolation?
Yes. The module uses isolated inputs to improve protection and signal reliability.
9. How is the BMXDAI1614 configured in a PLC project?
The module is configured through Schneider Electric PLC engineering software as part of the Modicon X80 rack configuration.
10. What maintenance practices improve module performance?
Regular inspection of wiring, field devices, terminal connections, and diagnostic indicators helps ensure reliable operation.
