Brand:Schneider PLC Item No.:BMXDAI1615 Product Origin:France Product Dimensions:134.6 x 86 x 32 mm Product Weight:0.157 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

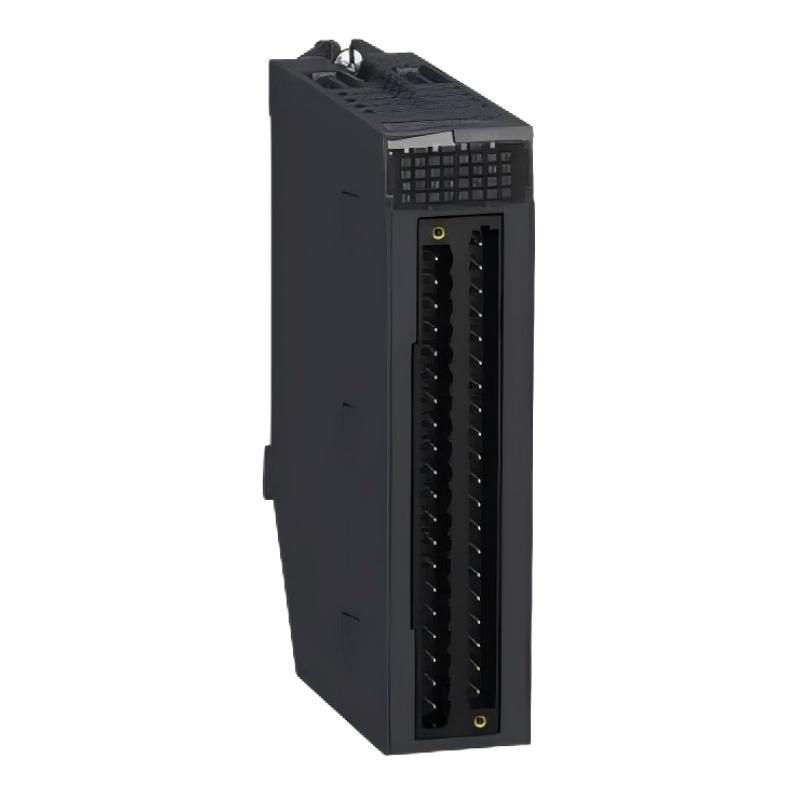

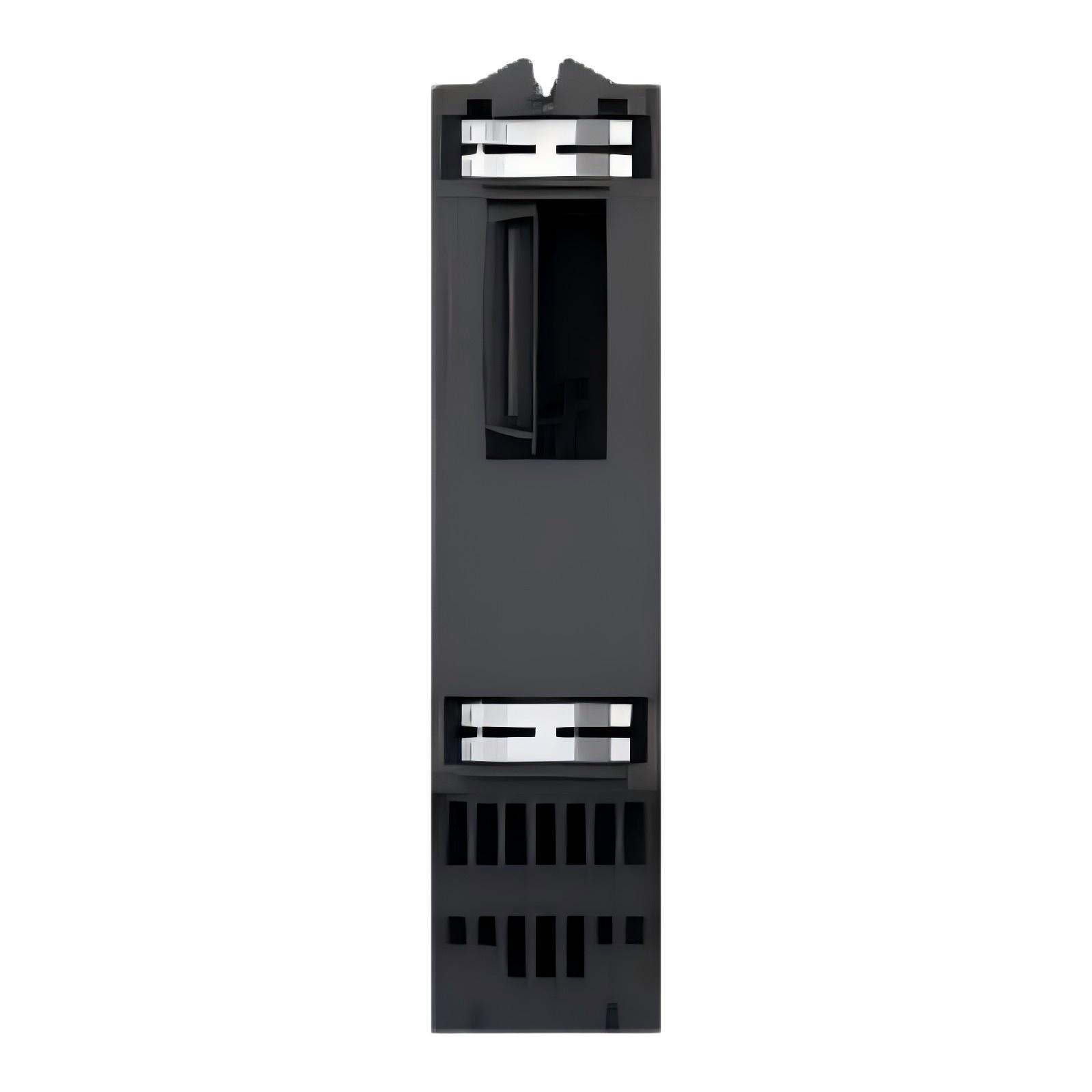

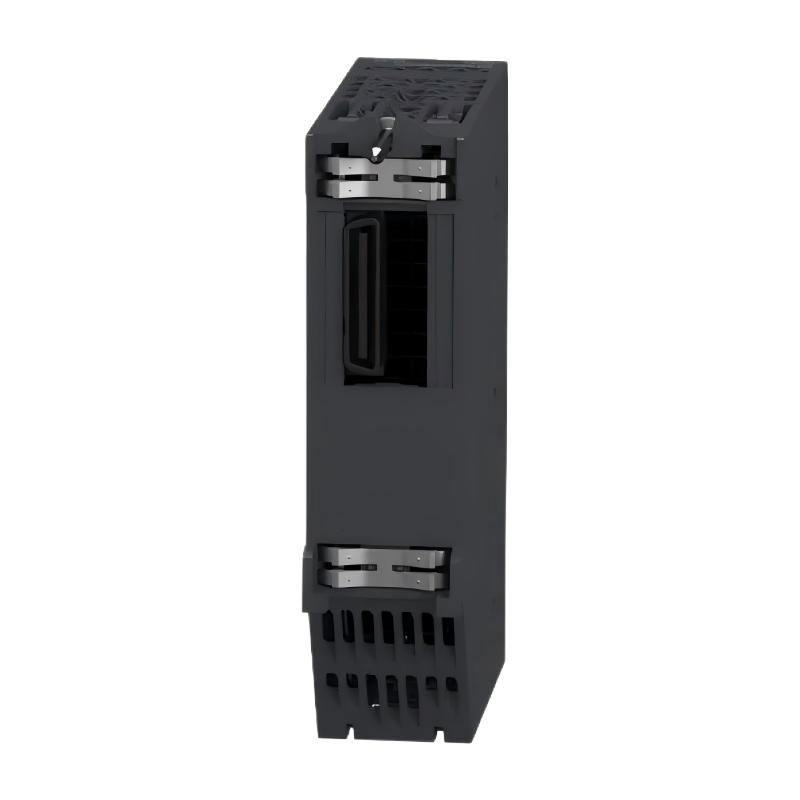

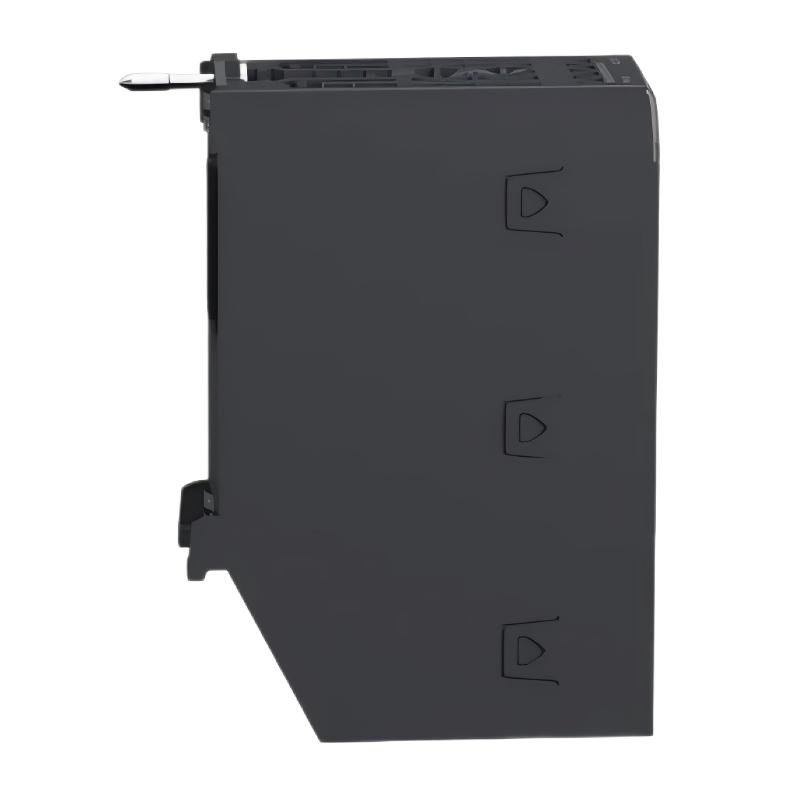

Introduction to Schneider BMXDAI1615 Discrete Input Module
The Schneider BMXDAI1615 Discrete Input Module is a professional industrial I/O solution designed to provide accurate AC signal monitoring within Modicon X80 automation systems. It creates a reliable connection between field-level electrical devices and PLC controllers, allowing operators to monitor equipment status and process conditions in real time.
Designed for applications requiring multiple AC digital inputs, the BMXDAI1615 combines compact installation, isolated signal processing, and intelligent diagnostics. Its ability to handle 200–240 V AC field signals makes it suitable for industrial environments where reliable status detection and long-term operation are important.
For automation engineers, OEM manufacturers, and system integrators, the BMXDAI1615 provides a practical solution for expanding PLC input capacity while maintaining the performance, reliability, and scalability expected from Schneider Electric Modicon platforms.
Technical Specifications
Parameter
Specification
Manufacturer
Schneider Electric
Model Number
BMXDAI1615
Product Type
Discrete Input Module
Series
Modicon X80
Number of Inputs
16 Channels
Input Type
Isolated AC Discrete Input
Input Voltage
200–240 V AC
Input Current
3–15 mA
Input Frequency
50/60 Hz
Frequency Range
47–63 Hz
Input Technology
Capacitive
Input Compatibility
2-Wire AC Proximity Sensors
Input Impedance
30 kΩ
Voltage State ON Detection
≥164 V AC
Voltage State OFF Detection
≤40 V AC
Response Time
10 ms Activation / 20 ms Deactivation
Input Standard
IEC 61131-2 Type 1
Channel Isolation
Supported
Protection Function
External 0.25 A Fast-Blow Fuse Per Channel Group
Diagnostic Indicators
RUN LED, Channel LEDs, ERR LED, I/O LED
Power Dissipation
5 W
Compatible Platforms
Modicon M340 / Modicon M580 / Modicon X80
Protection Rating
IP20
Dimensions
134.6 × 86 × 32 mm
Weight
0.16 kg (0.35 lb)
Recommended Related Models
Model
Product Type
Schneider BMXDAI1614
16-Channel AC Discrete Input Module
Schneider BMXDAI0814
8-Channel AC Discrete Input Module
Schneider BMXDDI3203
DC Discrete Input Module
Schneider BMXDDO3202
Discrete Output Module
Schneider BMXCPS4022H
Hardened Redundant Power Supply Module
Popular Related Models
Model
Application Category
Schneider BMXCRA31200
Remote I/O Adapter Module
Schneider BMENOP0300
Communication Module
Schneider BMEP586040
Independent Processor Module
Schneider BMEXBP0800
Ethernet Backplane Module
Schneider BMXAMI0810H
Hardened Analog Input Module
Applications and Industrial Digital Signal Monitoring
The Schneider BMXDAI1615 Discrete Input Module is a high-reliability AC digital input module designed for the Modicon X80 automation platform, providing accurate monitoring of industrial field signals and dependable communication with PLC control systems. This module is engineered to collect ON/OFF status information from AC-powered devices such as switches, relays, contactors, and industrial sensors, enabling efficient supervision of automated processes.
The BMXDAI1615 is widely used in manufacturing automation, process industries, energy systems, infrastructure control, and large-scale machine applications. With 16 isolated input channels, the module supports 200–240 V AC discrete signals, making it suitable for installations where higher-voltage AC signal monitoring and electrical separation are required.
As part of the Modicon X80 I/O family, the BMXDAI1615 provides stable signal acquisition, channel-level diagnostics, and flexible integration with Schneider Electric automation architectures. Its reliable design helps engineers build efficient control systems with improved operational visibility and simplified maintenance procedures.
Main Benefits and Automation System Integration Features
16-Channel High-Voltage AC Input Capability
The BMXDAI1615 provides 16 isolated digital input channels designed for 200–240 V AC signals, allowing multiple field devices to be monitored through a single compact PLC module. This high-density design helps optimize control cabinet layouts while expanding system monitoring capacity.
Enhanced Electrical Isolation Protection
Each input channel is isolated to improve resistance against electrical disturbances and reduce signal interference in industrial environments with complex power distribution systems. This ensures more stable communication between field devices and PLC controllers.
Reliable AC Signal Processing Performance
The module uses capacitive input technology and supports industrial AC frequencies of 50/60 Hz, providing consistent detection of field switching signals while maintaining dependable response performance.
Compatibility with Industrial Proximity Sensors
The BMXDAI1615 supports compatible 2-wire AC proximity sensors, providing additional flexibility for automation equipment manufacturers and system integrators designing machine monitoring solutions.
Integrated Channel Diagnostics
LED indicators provide clear operating information for the module and individual channels, allowing technicians to quickly identify input conditions and simplify troubleshooting during commissioning and maintenance.
Technical FAQs About Schneider BMXDAI1615 Discrete Input Module
1. What is the Schneider BMXDAI1615 Discrete Input Module used for?
The BMXDAI1615 is used to collect 200–240 V AC digital signals from industrial field devices and transfer status information to a Modicon PLC system.
2. How many input channels does the BMXDAI1615 provide?
The module provides 16 isolated discrete input channels.
3. What voltage range does the BMXDAI1615 support?
The module supports 200–240 V AC discrete input signals.
4. What type of input technology is used in the BMXDAI1615?
The module uses capacitive input technology designed for AC digital signal detection.
5. Can the BMXDAI1615 connect to proximity sensors?
Yes. The module supports compatible 2-wire AC proximity sensors conforming to industrial sensor standards.
6. How can a BMXDAI1615 input fault be diagnosed?
Technicians should check field wiring, AC signal levels, channel LED indicators, sensor conditions, and PLC diagnostic information.
7. What causes a channel to display an incorrect input state?
Possible causes include incorrect wiring, damaged field devices, insufficient voltage, electrical interference, or incorrect installation conditions.
8. Does the BMXDAI1615 support input isolation?
Yes. The module provides isolated inputs to improve system reliability and protect the PLC from field-side electrical disturbances.
9. How is the BMXDAI1615 configured in a Schneider PLC project?
The module is configured through Schneider Electric engineering software as part of the Modicon X80 rack hardware configuration.
10. What maintenance practices improve BMXDAI1615 reliability?
Regular inspection of terminals, field devices, AC signal quality, and diagnostic indicators helps maintain stable operation.
