Brand:Schneider PLC Item No.:BMXDAO1605 Product Origin:France Product Dimensions:117 × 117 × 55 mm Product Weight:0.203 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

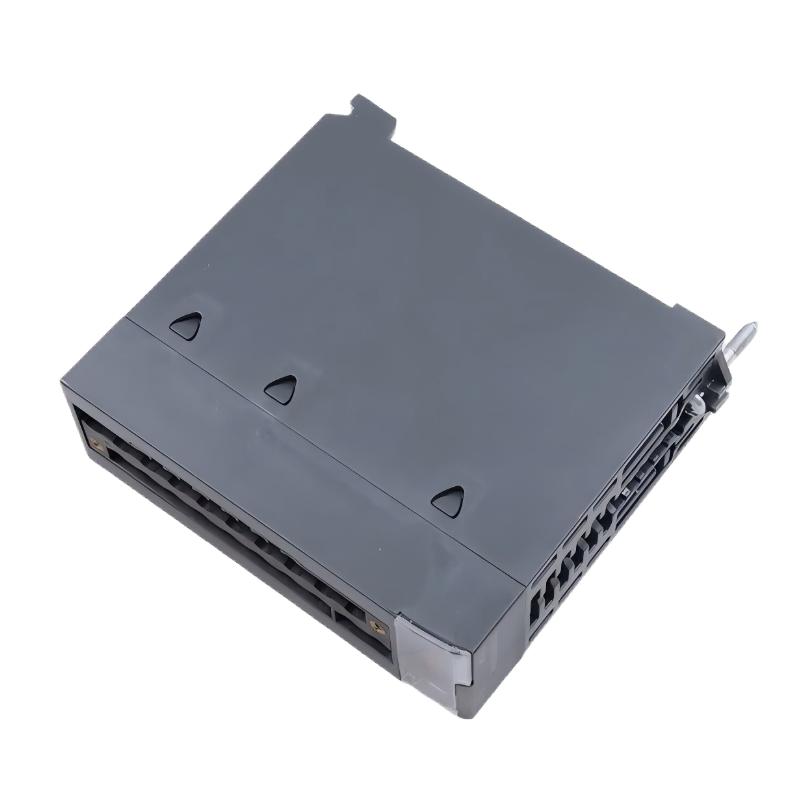

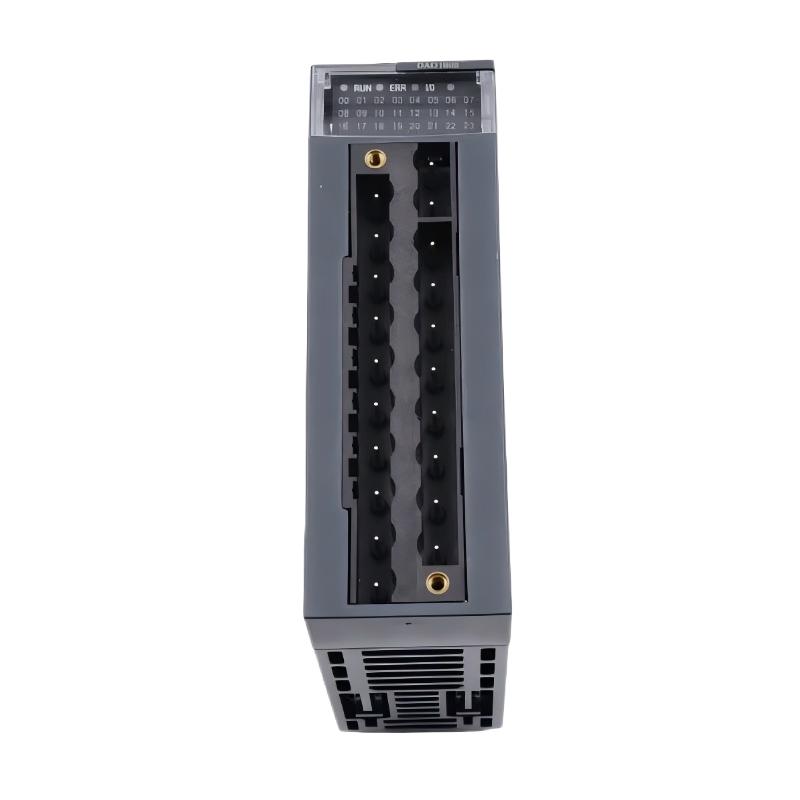

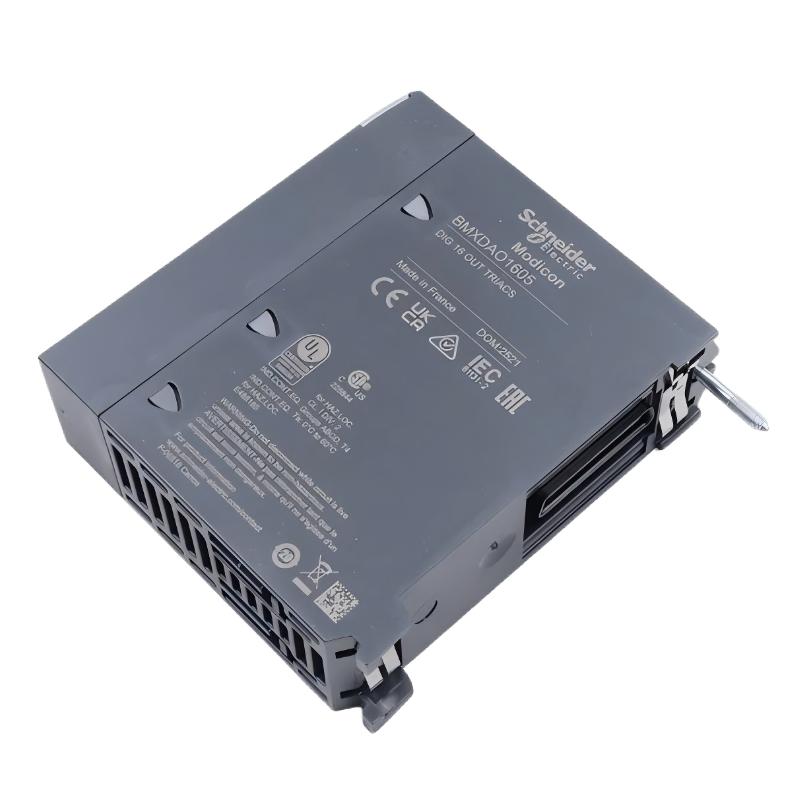

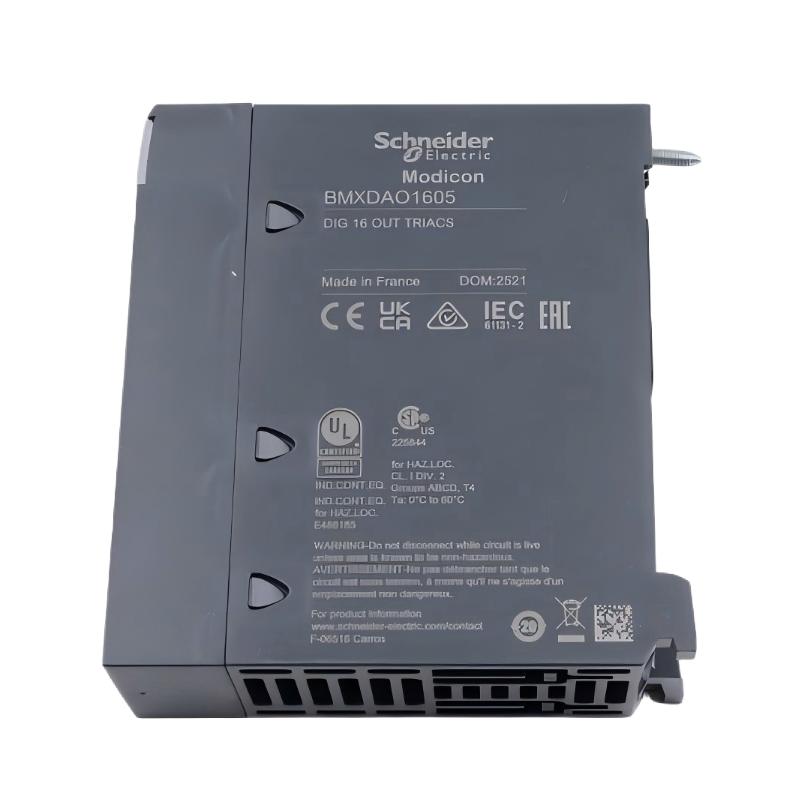

Introduction to Schneider BMXDAO1605 Discrete Output Module
The Schneider BMXDAO1605 Discrete Output Module is an industrial automation component designed to provide reliable AC digital control within Modicon X80 PLC systems. It acts as an interface between PLC logic and external electrical devices, allowing automated equipment to execute precise switching operations.
With 16 Triac output channels, fast response characteristics, and integrated monitoring functions, the BMXDAO1605 provides an efficient solution for industrial applications requiring multiple AC-controlled devices. Its compact design and strong compatibility with Schneider Electric automation platforms make it suitable for machine builders, system integrators, and industrial maintenance teams.
The module is especially valuable in applications where consistent switching performance, simplified troubleshooting, and long-term system stability are essential. It helps engineers expand PLC output capability while maintaining the reliability expected from modern industrial automation systems.
Technical Specifications
Parameter
Specification
Manufacturer
Schneider Electric
Model Number
BMXDAO1605
Product Type
Discrete Output Module
Series
Modicon X80
Number of Outputs
16 Channels
Output Type
Triac Output
Output Voltage
100–240 V AC
Output Voltage Range
85–288 V AC
Current Per Channel
≤0.6 A
Maximum Output Common Current
≤2.4 A
Output Current Limit
0.025–4.8 A
Output Leakage Current
≤1.5 mA at 120 V AC / ≤3 mA at 240 V AC
Residual Voltage
≤1.5 V at State 1
Output Response Time
≤1 ms
Output Protection
External Fast-Blow Fuse
Overload Protection
Varistor Protection
Inrush Current
≤20 A
Diagnostic Indicators
RUN LED, Channel LEDs, I/O LED, ERR LED
Electrical Isolation
>10 MΩ at 500 V DC
Connection Type
20-Way Connector
Compatible Platforms
Modicon M340 / Modicon X80
Protection Rating
IP20
Operating Temperature
0 to 60 °C
Dimensions
117 × 117 × 55 mm
Weight
0.20 kg (0.45 lb)
Recommended Related Models
Model
Product Type
Schneider BMXDRA1605
Relay Output Module
Schneider BMXDDO3202
Discrete DC Output Module
Schneider BMXDAI1615
AC Discrete Input Module
Schneider BMXAMI0810H
Hardened Analog Input Module
Schneider BMXCPS4022H
Hardened Redundant Power Supply Module
Popular Related Models
Model
Application Category
Schneider BMXCRA31200
Remote I/O Adapter Module
Schneider BMENOP0300
Communication Module
Schneider BMEP586040
Independent Processor Module
Schneider BMEXBP0800
Ethernet Backplane Module
Schneider BMXAMO0410H
Hardened Analog Output Module
Applications and Industrial Output Control Solutions
The Schneider BMXDAO1605 Discrete Output Module is a high-performance digital output module designed for the Modicon X80 automation platform, providing reliable control of AC-powered field devices in industrial automation systems. This module enables PLC controllers to switch and manage actuators, contactors, solenoid valves, indicator lamps, and other electrical loads through precise digital output commands.
The BMXDAO1605 is widely used in manufacturing automation, machine control, process industries, energy systems, and infrastructure applications where dependable AC output switching is required. Equipped with 16 Triac output channels, the module supports 100–240 V AC output signals, making it suitable for applications requiring stable high-voltage AC load control and efficient PLC integration.
As part of the Modicon X80 I/O family, the BMXDAO1605 combines compact installation, fast response performance, and integrated diagnostic functions. Its robust design allows engineers to build scalable automation systems with improved control accuracy and simplified maintenance operations.
Performance Advantages and Automation Integration Features
16-Channel AC Triac Output Capability
The BMXDAO1605 provides 16 independent Triac outputs for controlling AC devices, allowing multiple field loads to be managed from a single PLC module. This high-density output design helps optimize control cabinet layouts and improve system scalability.
Reliable High-Voltage AC Switching Performance
Supporting 100–240 V AC output applications, the module provides dependable switching performance for industrial loads such as actuators, valves, and signaling equipment. Its Triac-based design is suitable for frequent switching operations in automated processes.
Fast Output Response Capability
The BMXDAO1605 offers rapid output activation and deactivation response, helping automation systems achieve accurate timing control for production equipment and process operations.
Integrated Protection and Diagnostics
The module includes output protection features and LED diagnostic indicators for module operation, channel status, and fault conditions. These functions help technicians quickly identify wiring issues, load problems, or output abnormalities during troubleshooting.
Seamless Modicon X80 System Integration
Designed for Schneider Electric Modicon architectures, the BMXDAO1605 integrates into existing PLC configurations and provides a flexible method for expanding digital output capacity in industrial control systems.
Technical FAQs About Schneider BMXDAO1605 Discrete Output Module
1. What is the main function of the Schneider BMXDAO1605?
The BMXDAO1605 is a digital output module used to control AC-powered industrial devices through PLC commands.
2. How many output channels does the BMXDAO1605 provide?
The module provides 16 discrete Triac output channels.
3. What type of loads can be controlled by the BMXDAO1605?
The module can control compatible AC loads including contactors, valves, indicator devices, and industrial actuators.
4. What output voltage range does the BMXDAO1605 support?
The module supports 100–240 V AC output applications.
5. What is the advantage of using Triac outputs?
Triac outputs provide fast electronic switching capability and are suitable for frequent AC load control applications.
6. How can an output channel fault be diagnosed?
Technicians should check channel LED indicators, field wiring, load conditions, external protection devices, and PLC diagnostic information.
7. What causes an output channel to fail to activate?
Possible causes include incorrect wiring, damaged loads, blown external fuses, overload conditions, or configuration errors.
8. Is the BMXDAO1605 compatible with Modicon M580 systems?
Yes. The module belongs to the Modicon X80 family and can be used within supported Modicon M580 architectures.
9. How is the BMXDAO1605 configured in a PLC application?
The module is configured through Schneider Electric engineering software as part of the PLC hardware configuration.
10. What maintenance practices improve BMXDAO1605 reliability?
Regular inspection of output wiring, connected loads, protection components, and diagnostic indicators helps maintain stable operation.
