Brand:Schneider PLC Item No.:BMXDAO1615 Product Origin:France Product Dimensions:260 × 180 × 55 mm Product Weight:0.264 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

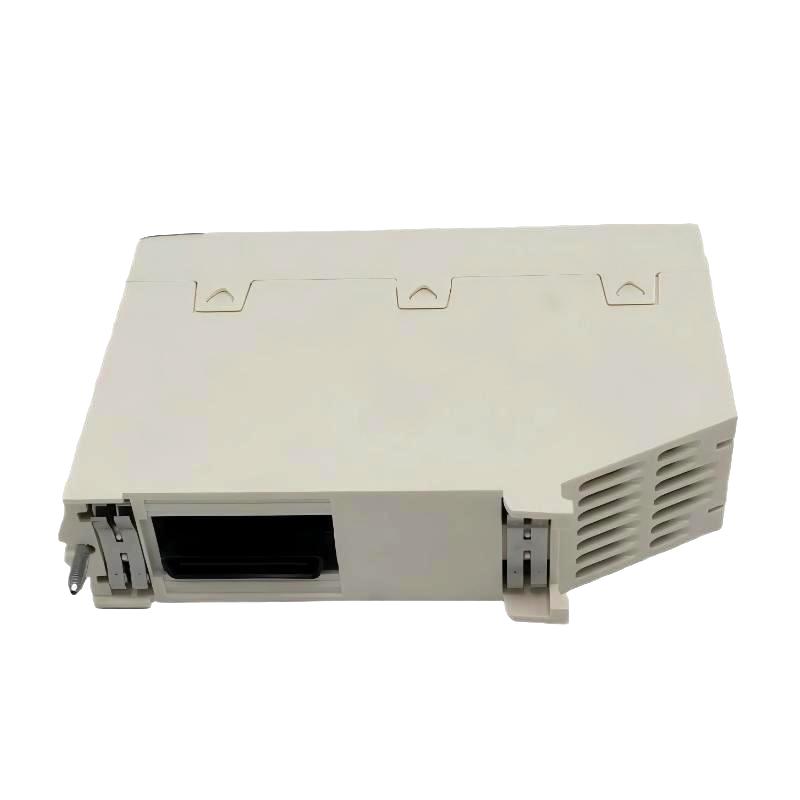

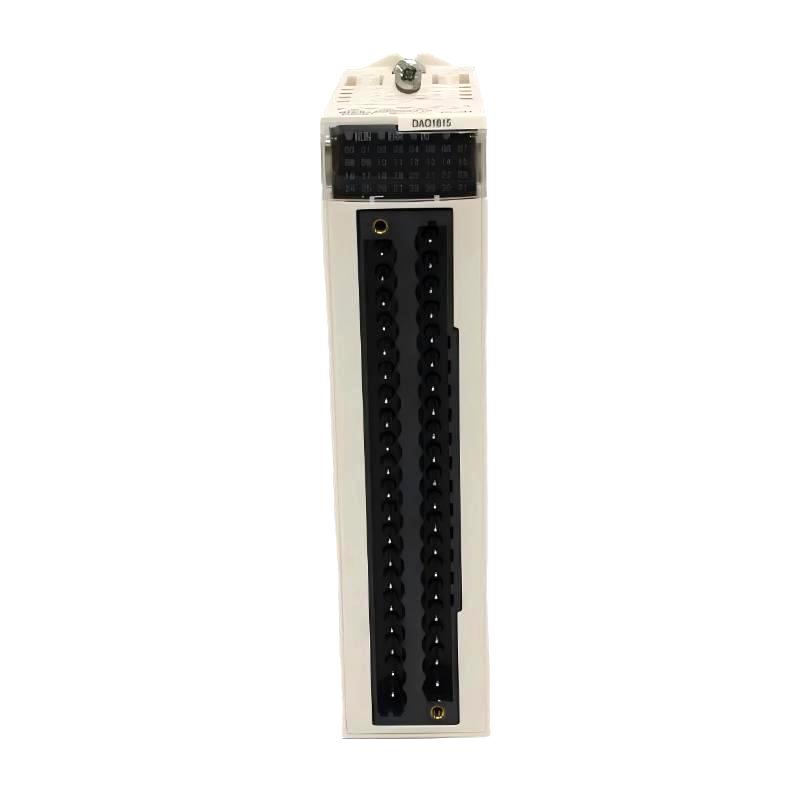

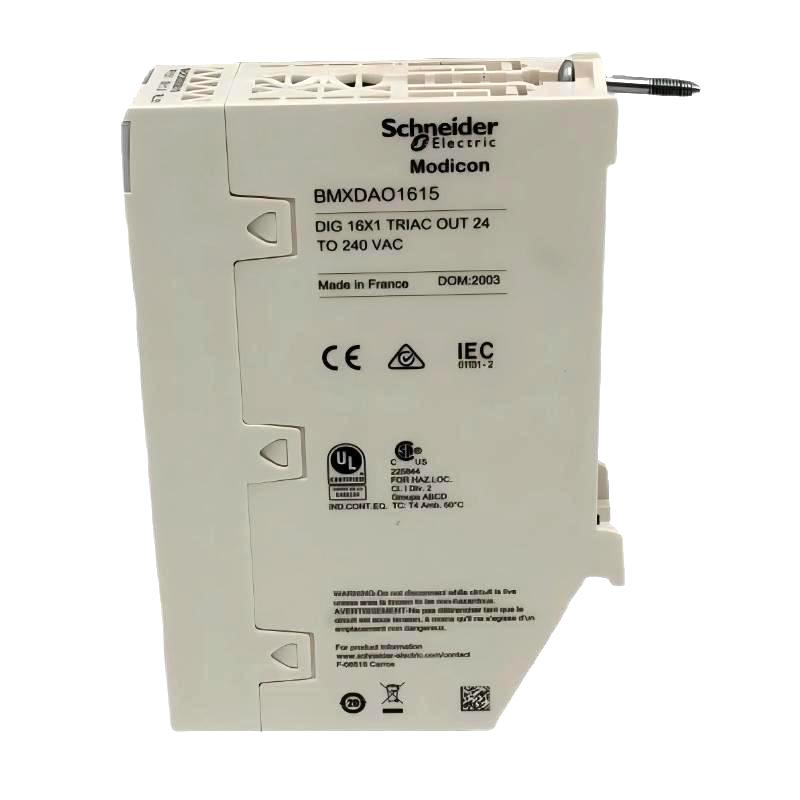

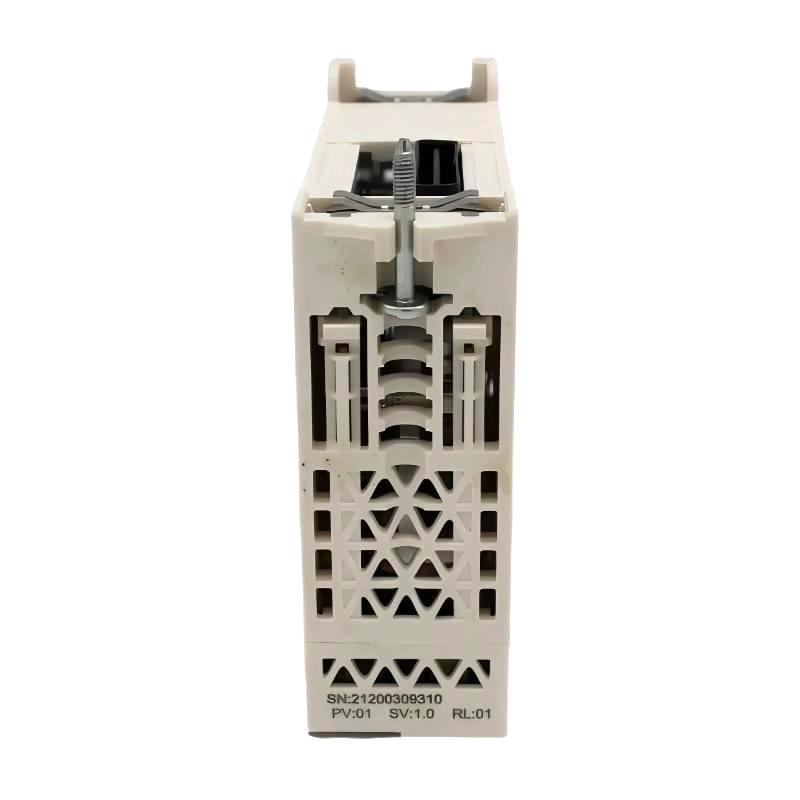

Introduction to Schneider BMXDAO1615 Discrete Output Module
The Schneider BMXDAO1615 Discrete Output Module is an industrial automation component designed to provide accurate and reliable AC device control within Modicon X80 PLC systems. It creates a direct interface between PLC logic and field-level equipment, allowing automated processes to execute switching operations efficiently.
With 16 isolated Triac outputs, the BMXDAO1615 offers a scalable solution for applications requiring multiple AC-controlled devices. Its combination of compact automation integration, electrical protection features, and diagnostic visibility makes it suitable for demanding industrial environments.
For system integrators, OEM machine builders, and maintenance engineers, the BMXDAO1615 provides a dependable option for expanding PLC output capacity while maintaining the performance and reliability expected from Schneider Electric automation platforms.
Technical Specifications
Parameter
Specification
Manufacturer
Schneider Electric
Model Number
BMXDAO1615
Product Type
Discrete Output Module
Series
Modicon X80
Output Channels
16 Channels
Output Type
Isolated Triac Output
Output Voltage Range
24–240 V AC
Maximum Voltage Range
20–264 V AC
Output Current
3 A per channel
Maximum Module Current
10 A at 40 °C
Reduced Current at Higher Temperature
4 A at 60 °C
Network Frequency
50/60 Hz
Frequency Range
47–63 Hz
Output Leakage Current
≤2.5 mA at 240 V AC
Voltage Drop at State ON
<1.55 V
Response Time
≤10 ms Activation / ≤10 ms Deactivation
Output Protection
Varistor Overload Protection
External Fuse Requirement
4 A Fast-Blow Fuse
Inrush Current
30 A
Insulation Resistance
>10 MΩ at 500 V DC
Diagnostic Indicators
RUN LED, Channel LEDs, ERR LED, I/O LED
Power Dissipation
1.45 W
Compatible Platform
Modicon M340 / Modicon M580 / Modicon X80
Protection Rating
IP20
Dimensions
260 × 180 × 55 mm
Weight
0.26 kg (0.58 lb)
Recommended Related Models
Model
Product Type
Schneider BMXDAO1605
Discrete Triac Output Module
Schneider BMXDRA1605
Relay Output Module
Schneider BMXDDO3202
Discrete DC Output Module
Schneider BMXDAI1615
AC Discrete Input Module
Schneider BMXCPS4022H
Hardened Redundant Power Supply Module
Popular Related Models
Model
Application Category
Schneider BMXCRA31200
Remote I/O Adapter Module
Schneider BMENOP0300
Communication Module
Schneider BMEP586040
Independent Processor Module
Schneider BMEXBP0800
Ethernet Backplane Module
Schneider BMXAMO0410H
Hardened Analog Output Module
Applications and Industrial AC Output Control
The Schneider BMXDAO1615 Discrete Output Module is a high-performance digital output module designed for the Modicon X80 automation platform, providing reliable control of AC-powered industrial devices. This module is developed for PLC systems that require stable switching of actuators, contactors, valves, alarms, indicator devices, and other field equipment through precise digital commands.
The BMXDAO1615 is widely used in manufacturing automation, process control, energy systems, infrastructure projects, and industrial machinery applications. Equipped with 16 isolated Triac outputs, it supports 24–240 V AC output signals, allowing engineers to control multiple AC loads while maintaining electrical separation and improved system reliability.
Designed as part of the Schneider Electric Modicon X80 I/O family, the BMXDAO1615 combines high-density output capability, integrated diagnostics, and dependable switching performance. Its isolated output architecture makes it suitable for automation environments where accurate control, reduced downtime, and simplified maintenance are important requirements.
Key Performance Advantages and System Integration Features
16-Channel Isolated Triac Output Design
The BMXDAO1615 provides 16 isolated digital output channels based on Triac technology, allowing a single module to control multiple AC devices within an automation system. This high-density design helps reduce cabinet space requirements while expanding PLC output capability.
Wide AC Voltage Compatibility
Supporting 24–240 V AC applications, the module offers flexibility when connecting different industrial loads. It can be integrated into various automation systems that require dependable AC switching performance.
Reliable Industrial Load Switching
The Triac output structure provides stable electronic switching for frequently operated AC loads, making the BMXDAO1615 suitable for automated production equipment, process machinery, and control systems requiring consistent operation.
Enhanced Electrical Protection
The module includes output overload protection using varistor-based protection technology, helping improve resistance against electrical disturbances and abnormal load conditions.
Integrated Diagnostic Monitoring
LED indicators provide clear visibility of module operation, individual channel status, and fault conditions. These diagnostic functions help maintenance personnel quickly identify output-related issues during commissioning and troubleshooting.
Technical FAQs About Schneider BMXDAO1615 Discrete Output Module
1. What is the Schneider BMXDAO1615 Discrete Output Module used for?
The BMXDAO1615 is used to control AC-powered industrial devices through digital output commands from a Modicon PLC system.
2. How many output channels does the BMXDAO1615 provide?
The module provides 16 isolated Triac output channels.
3. What type of output technology does the BMXDAO1615 use?
The module uses Triac-based electronic switching technology for AC load control.
4. What voltage range does the BMXDAO1615 support?
The module supports AC output applications from 24 V to 240 V AC.
5. What types of devices can be controlled by the BMXDAO1615?
It can control compatible AC loads such as valves, contactors, lamps, actuators, and industrial control devices.
6. How can a BMXDAO1615 output fault be diagnosed?
Technicians should check channel LEDs, field wiring, load conditions, external protection devices, and PLC diagnostic information.
7. What causes an output channel to fail during operation?
Possible causes include overload conditions, incorrect wiring, damaged loads, short circuits, or insufficient external protection.
8. Is each output channel electrically isolated?
Yes. The BMXDAO1615 uses isolated output channels to improve system reliability and reduce interference between field devices.
9. How is the BMXDAO1615 configured in a Schneider PLC project?
The module is configured through Schneider Electric engineering software as part of the Modicon X80 hardware configuration.
10. What maintenance practices improve BMXDAO1615 reliability?
Regular inspection of output wiring, connected devices, electrical protection components, and diagnostic indicators helps maintain stable performance.
