Brand:Schneider PLC Item No.:BMXDD06402K Product Origin:France Product Dimensions:134.6 x 86 x 32 mm Product Weight:0.145 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

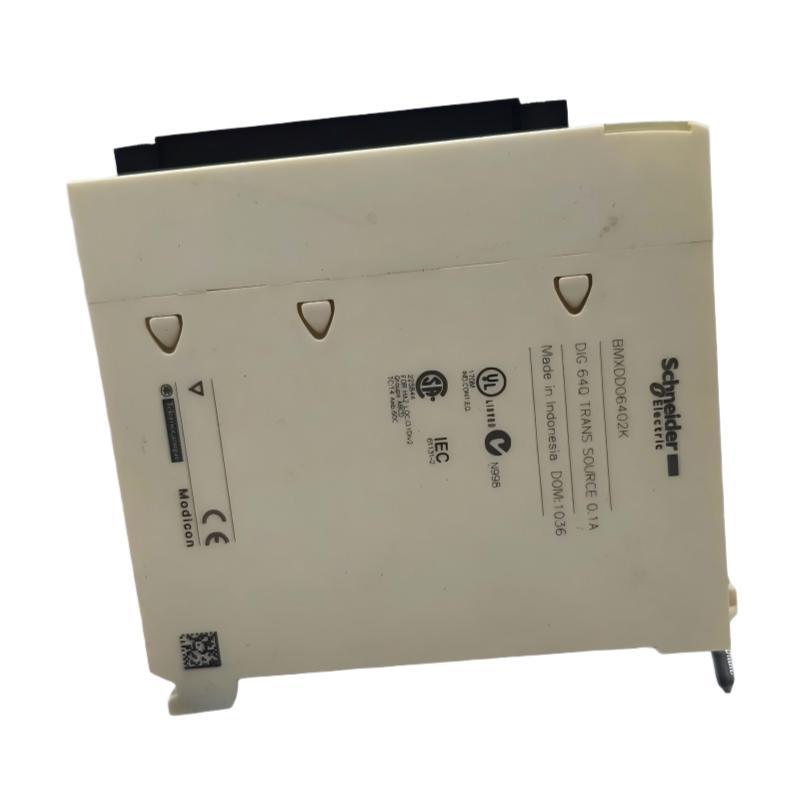

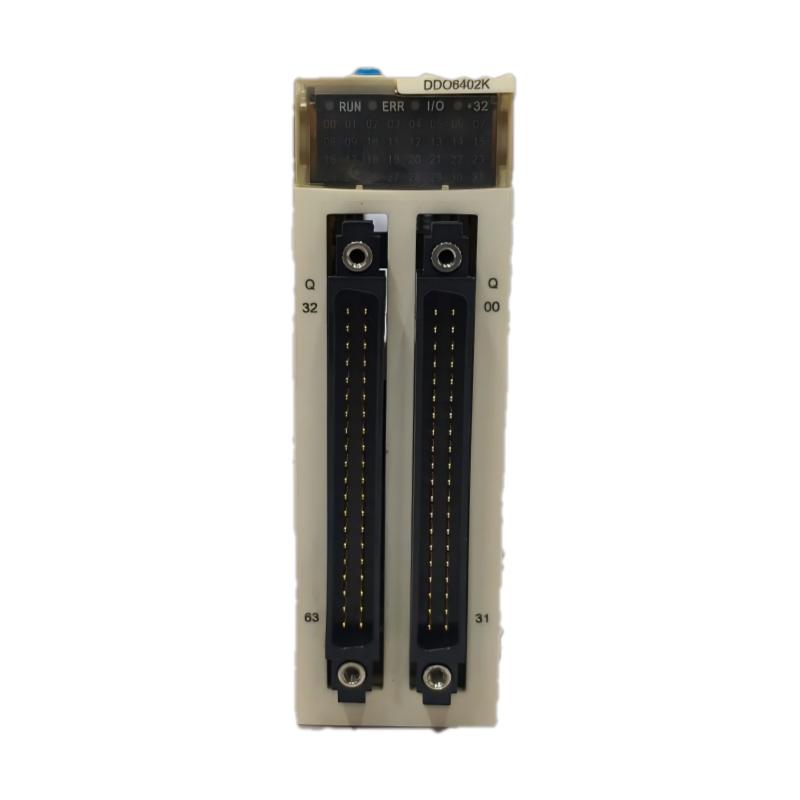

Introduction to Schneider BMXDD06402K Discrete Input Module
The Schneider BMXDD06402K Discrete Input Module is a professional industrial I/O component developed to provide large-scale digital signal acquisition for Modicon automation systems. It serves as a communication bridge between field devices and PLC controllers, enabling accurate collection of machine and process information.
With 64 input channels, the BMXDD06402K is especially valuable for applications where many digital signals must be monitored within limited cabinet space. Its high-density structure improves system scalability while reducing installation complexity.
The module is suitable for OEM machine builders, automation engineers, and industrial integrators who require dependable digital input expansion. With reliable 24 V DC signal processing, efficient diagnostics, and Modicon X80 compatibility, the BMXDD06402K supports stable operation in demanding industrial control environments.
Technical Specifications
Parameter
Specification
Manufacturer
Schneider Electric
Model Number
BMXDD06402K
Product Type
Discrete Input Module
Series
Modicon X80
Number of Inputs
64 Channels
Input Type
Isolated Discrete Input
Input Voltage
24 V DC
Logic Type
Positive Logic (Sink Input)
Input Current
1 mA
Sensor Supply Voltage
19–30 V DC
Input Impedance
24 kΩ
Input Group Isolation
16 Channels per Group
Input Standard
IEC/EN 61131-2 Type 3
Sensor Compatibility
2-Wire DC / 3-Wire PNP Sensors
Filtering Time
4 ms Typical
Maximum Filtering Time
7 ms
Protection Function
External 0.5 A Fast-Blow Fuse per Channel Group
Diagnostic Indicators
RUN LED, Channel LEDs, ERR LED, I/O LED
Power Consumption
3.9 W
Connection Type
Two 40-Pin Connectors
Compatible Platforms
Modicon M340 / Modicon X80
Protection Rating
IP20
Operating Temperature
0 to 60 °C
Dimensions
134.6 × 86 × 32 mm
Weight
0.15 kg (0.32 lb)
Recommended Related Models
Model
Product Type
Schneider BMXDDI3202K
32-Channel High-Density Discrete Input Module
Schneider BMXDDI6402K
64-Channel Discrete Input Module
Schneider BMXDDO6402K
64-Channel Discrete Output Module
Schneider BMXDAI1615
AC Discrete Input Module
Schneider BMXCPS4022H
Hardened Redundant Power Supply Module
Popular Related Models
Model
Application Category
Schneider BMXCRA31200
Remote I/O Adapter Module
Schneider BMENOP0300
Communication Module
Schneider BMEP586040
Independent Processor Module
Schneider BMEXBP0800
Ethernet Backplane Module
Schneider BMXAMO0410H
Hardened Analog Output Module
Applications and High-Density Digital Signal Acquisition
The Schneider BMXDD06402K Discrete Input Module is a high-density digital input module designed for the Modicon X80 automation platform, providing efficient and reliable acquisition of 24 V DC field signals in industrial control systems. This module is developed for applications that require a large number of digital inputs within a compact PLC architecture, helping engineers monitor sensors, switches, and machine status signals with improved system organization.
The BMXDD06402K is commonly used in manufacturing equipment, automated production lines, process control systems, transportation infrastructure, and large-scale industrial installations. Featuring 64 discrete input channels, the module allows multiple field devices to be connected through a high-density I/O configuration, reducing cabinet space requirements while increasing PLC system flexibility.
Designed for Modicon M340 and Modicon X80 architectures, the BMXDD06402K combines fast signal processing, channel diagnostics, and reliable 24 V DC input handling. Its positive logic design and isolated input groups provide stable operation in industrial environments where accurate signal detection and continuous monitoring are essential.
High-Density Control Advantages and Integration Features
64-Channel Digital Input Expansion
The BMXDD06402K provides 64 discrete input points in a single module, making it ideal for applications requiring extensive sensor feedback and machine status monitoring. The high channel density helps simplify control cabinet design and reduces the number of required I/O modules.
Reliable 24 V DC Signal Monitoring
Designed for 24 V DC industrial signals, the module provides dependable detection of field device states from sensors, switches, and automation components. Its optimized input design supports stable operation in modern PLC control environments.
Compact Modicon X80 System Integration
The module integrates directly into Modicon X80 racks, allowing engineers to expand PLC input capacity without changing the overall automation architecture. It is suitable for both new installations and system upgrades.
Fast Signal Response Performance
The BMXDD06402K provides efficient digital signal processing with short filtering times, allowing PLC systems to respond quickly to changes in field conditions. This makes it suitable for equipment requiring accurate event detection and timely control actions.
Advanced Diagnostic Monitoring
Integrated LED indicators provide clear visibility of module status, channel operation, and fault conditions. Maintenance personnel can quickly identify input-related issues during commissioning and troubleshooting.
Technical FAQs About Schneider BMXDD06402K Discrete Input Module
1. What is the Schneider BMXDD06402K used for?
The BMXDD06402K is used to collect 24 V DC digital signals from industrial field devices and transmit their status information to a Modicon PLC system.
2. How many input channels does the BMXDD06402K provide?
The module provides 64 discrete input channels.
3. What type of input signal does the BMXDD06402K support?
The module supports 24 V DC positive logic discrete input signals.
4. Which Schneider PLC platforms support the BMXDD06402K?
The module is designed for Modicon X80 systems and can be integrated into supported Modicon M340 automation architectures.
5. What types of field devices can be connected to the BMXDD06402K?
The module can connect with compatible proximity sensors, limit switches, push buttons, and industrial digital sensors.
6. How can an input channel fault be diagnosed?
Technicians should check field wiring, sensor power supply, input LED indicators, terminal connections, and PLC diagnostic information.
7. What causes incorrect input status detection?
Possible causes include wiring errors, insufficient sensor voltage, damaged field devices, electrical interference, or incorrect installation.
8. Does the BMXDD06402K support sensor connections directly?
Yes. The module is designed to interface with compatible industrial DC sensors and switching devices.
9. How is the BMXDD06402K configured in PLC engineering software?
The module is configured as part of the Modicon X80 hardware rack through Schneider Electric PLC configuration tools.
10. What maintenance improves BMXDD06402K operating reliability?
Regular inspection of field wiring, sensor conditions, connector quality, and diagnostic indicators helps maintain stable operation.
