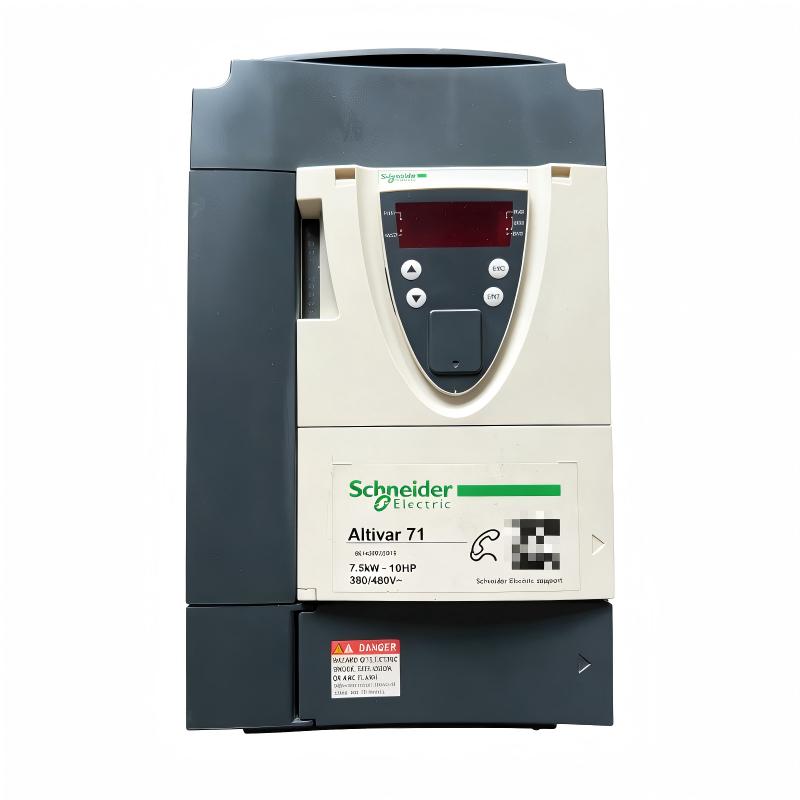

Introduction to Schneider ATV71HU75N4Z Variable Speed Drive

The Schneider ATV71HU75N4Z Variable Speed Drive is an industrial-grade motor control solution developed for applications requiring high precision, flexible configuration, and dependable operation. It provides an intelligent interface between automation controllers and electric motors, allowing industrial equipment to achieve optimized speed and torque control.

Built within the Altivar 71 family, the ATV71HU75N4Z is designed for complex machines that demand advanced motion control capabilities. Its combination of powerful motor management functions, communication flexibility, and integrated protection features makes it a valuable component for industrial automation systems.

For machine builders, automation engineers, and maintenance teams, this variable speed drive offers a practical solution for improving equipment efficiency, reducing mechanical wear, and enhancing overall process control reliability.

Technical Specifications

Parameter	Specification
Manufacturer	Schneider Electric
Model Number	ATV71HU75N4Z
Product Type	Variable Speed Drive
Series	Altivar 71
Application Type	Complex Industrial Machines
Motor Power Rating	7.5 kW
Horsepower Rating	10 HP
Rated Voltage	380–480 V AC
Power Supply Phase	Three Phase
Frequency Range	50/60 Hz
Output Frequency	0.1–599 Hz
Nominal Switching Frequency	4 kHz
Adjustable Switching Frequency	1–16 kHz
Nominal Output Current	14 A at 460 V / 17.6 A at 380 V
Maximum Transient Current	26.4 A for 60 seconds
Control Methods	V/F Control, Sensorless Flux Vector Control, Vector Control
EMC Filter	Integrated
Communication Interface	CANopen, Modbus
Motor Compatibility	Asynchronous Motors / Synchronous Motors
Protection Rating	IP20
Installation Style	Wall Mount with Heat Sink
Display Terminal	Without Graphic Terminal
Dimensions	295 × 187 × 175 mm
Weight	5.50 kg (12.13 lb)

Recommended Related Models

Model	Product Type
Schneider ATV71HU15N4	Altivar 71 Variable Speed Drive
Schneider ATV71HU22N4	Altivar 71 Variable Speed Drive
Schneider ATV71HU40N4	Altivar 71 Variable Speed Drive
Schneider ATV71HU55N4	Altivar 71 Variable Speed Drive
Schneider ATV340U75N4	Altivar Machine Variable Speed Drive

Popular Related Models

Model	Application Category
Schneider ATV930D11N4	Altivar Process Variable Speed Drive
Schneider ATV630D15N4	Process Pump and Fan Drive
Schneider ATV320U75N4C	Compact Machine Drive
Schneider ATS480D38Y	Soft Starter
Schneider BMEP586040	Modicon M580 Independent Processor

Applications and Advanced Motor Control Solutions

The Schneider ATV71HU75N4Z Variable Speed Drive is a high-performance AC drive designed for demanding industrial motor control applications. As part of the Altivar 71 series, this drive provides precise speed regulation, torque management, and energy-efficient operation for three-phase motors used in complex machinery and industrial automation systems.

The ATV71HU75N4Z is commonly applied in material handling equipment, conveyor systems, packaging machines, lifting applications, pumps, fans, compressors, and process machinery. With a 7.5 kW (10 HP) motor rating and support for 380–480 V three-phase power supplies, it delivers reliable motor control performance for applications requiring accurate acceleration, deceleration, and speed adjustment.

Designed for industrial environments, the drive integrates advanced motor control functions including sensorless flux vector control, configurable frequency adjustment, and communication capabilities through standard industrial networks. Its compact structure and flexible configuration make it suitable for OEM equipment manufacturers, system integrators, and plant automation upgrades.

Key Advantages and Industrial Performance Features

Precision Motor Speed Regulation
The ATV71HU75N4Z provides accurate frequency and torque control, helping machines achieve smoother operation, improved productivity, and reduced mechanical stress during startup and stopping processes.

High-Efficiency Variable Frequency Operation
By adjusting motor speed according to process requirements, the drive helps optimize energy consumption in applications such as pumps, fans, and production machinery while maintaining stable performance.

Advanced Motor Control Technology
The drive supports multiple control methods, including sensorless flux vector control and vector control modes, allowing engineers to select suitable control strategies based on application requirements.

Integrated EMC Filtering Capability
The built-in EMC filter helps reduce electromagnetic interference, supporting more reliable operation in industrial electrical environments with sensitive automation equipment.

Flexible Communication Integration
With support for industrial communication options such as CANopen and Modbus, the ATV71HU75N4Z can be integrated into modern PLC-based automation systems for centralized monitoring and control.

Technical FAQs About Schneider ATV71HU75N4Z Variable Speed Drive

1. What is the main function of the Schneider ATV71HU75N4Z?
The ATV71HU75N4Z is used to control the speed, torque, and operating performance of three-phase AC motors in industrial applications.

2. What motor power rating does the ATV71HU75N4Z support?
The drive supports motors rated at 7.5 kW or approximately 10 HP.

3. What type of motors can be controlled by this drive?
The drive is designed for asynchronous motors and compatible synchronous motor applications requiring variable speed control.

4. What control modes are available on the ATV71HU75N4Z?
The drive supports voltage/frequency control, sensorless flux vector control, and vector control functions.

5. How can communication faults be diagnosed on the ATV71HU75N4Z?
Technicians should check communication parameters, network wiring, address settings, PLC configuration, and drive diagnostic messages.

6. What causes an ATV71HU75N4Z overcurrent fault?
Possible causes include motor overload, incorrect acceleration settings, short circuits, mechanical blockage, or improper motor parameters.

7. Can the ATV71HU75N4Z be integrated into PLC systems?
Yes. It supports industrial communication options including CANopen and Modbus for automation system integration.

8. What should be checked if the motor does not start?
Verify power supply conditions, motor wiring, drive enable signals, control commands, parameter settings, and fault history.

9. How can drive performance be improved during commissioning?
Correct motor parameter configuration, proper acceleration/deceleration settings, and suitable control mode selection improve system performance.

10. What maintenance helps extend the service life of the ATV71HU75N4Z?
Regular inspection of cooling airflow, electrical connections, operating temperature, and fault records helps maintain reliable operation.
