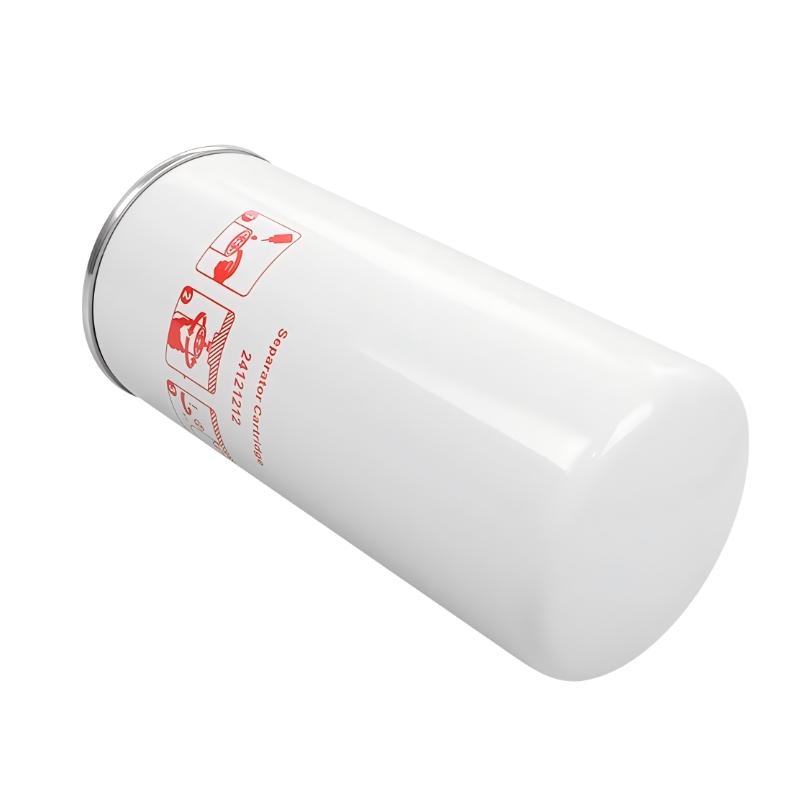

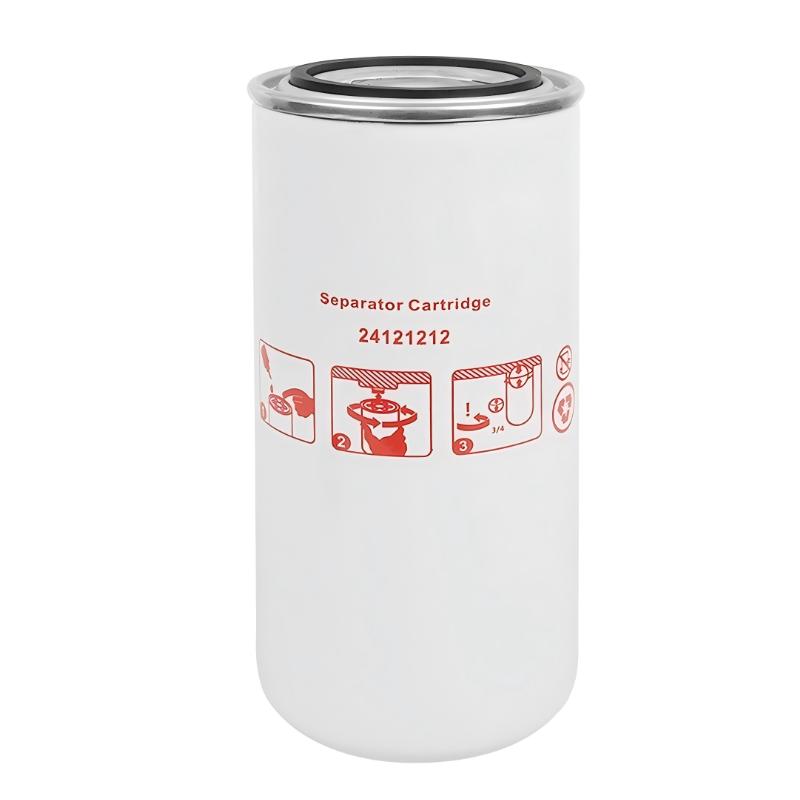

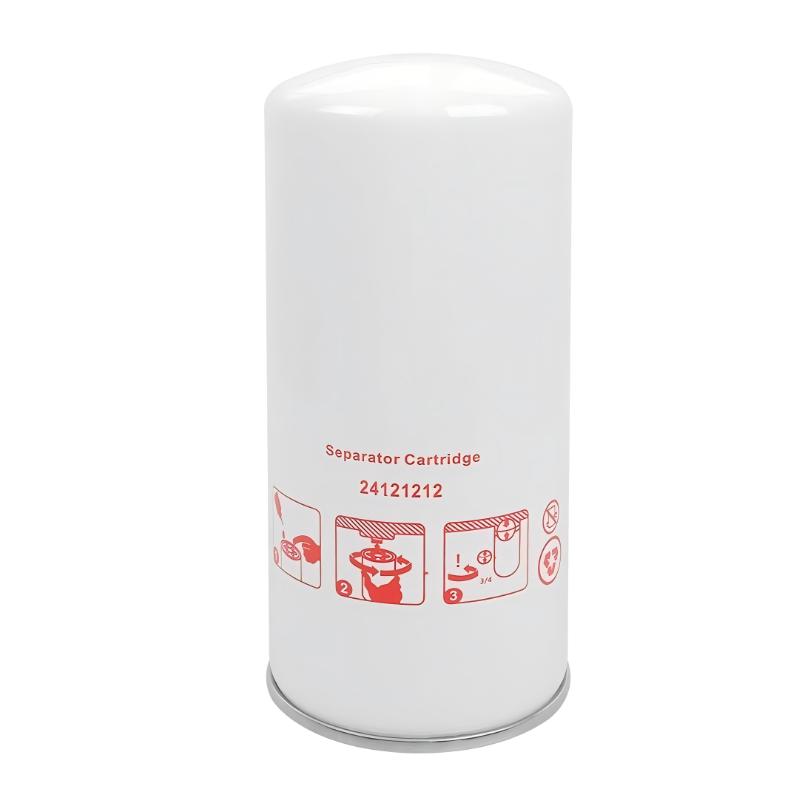

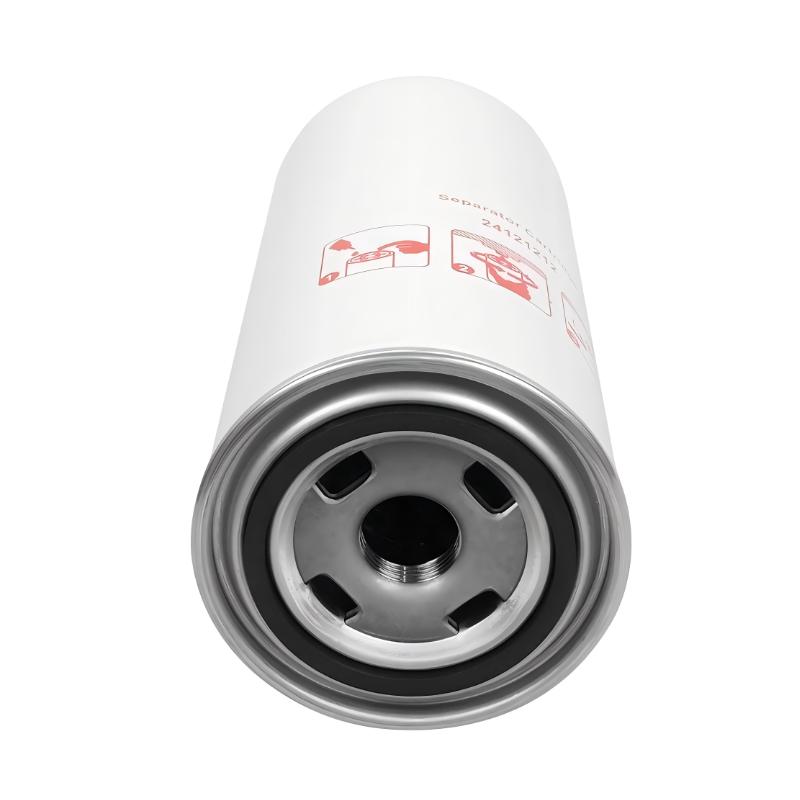

Ingersoll Rand 47627671001 / 24121212 Air Filtration & Separation Kit

Where It Excels in Industrial Use

• The Ingersoll Rand 47627671001 / 24121212 Air Filtration & Separation Kit is designed for compatible Ingersoll Rand rotary screw air compressors, combining an intake filter panel with an air/oil separator element to maintain clean airflow and efficient oil separation throughout the compression process. The 24121212 separator is widely used in R-Series and UP6 Series compressors from 5–15 HP.
• It is ideally suited for manufacturing plants, automotive production lines, food and beverage processing, pharmaceutical facilities, electronics assembly, textile mills, and metal fabrication workshops where reliable compressed air is essential.
• The maintenance kit performs exceptionally well in continuous-duty compressor installations by reducing airborne contamination, minimizing oil carryover, and maintaining stable operating efficiency.
• Replacing both components during scheduled maintenance helps extend compressor life, reduce energy consumption, and lower operating costs while maximizing equipment availability.

Key Strengths at a Glance

• Direct replacement maintenance components for compatible Ingersoll Rand rotary screw compressors.
• 47627671001 provides efficient intake air filtration to protect compressor internals.
• 24121212 effectively separates lubricating oil from compressed air, reducing downstream oil carryover.
• High-efficiency separator media minimizes pressure drop and improves compressor performance.
• Ideal for preventive maintenance programs focused on maximizing uptime and long-term reliability.

Technical FAQs

1. What are the functions of 47627671001 and 24121212?

The 47627671001 is an intake filter panel assembly, while the 24121212 is an air/oil separator element installed in the compressor discharge system.

2. Which compressors use the 24121212 separator?

The separator is commonly used in compatible Ingersoll Rand R-Series and UP6 Series rotary screw compressors ranging from 5 HP to 15 HP.

3. What is the purpose of an air/oil separator?

It removes oil aerosols from compressed air and returns the recovered lubricant to the compressor lubrication circuit.

4. Why should the separator element be replaced regularly?

Replacing the separator reduces pressure loss, maintains air quality, and prevents excessive oil carryover into downstream equipment.

5. How often should the 24121212 separator be replaced?

Ingersoll Rand generally recommends replacement approximately every 2,000 operating hours or annually, depending on operating conditions.

6. What filtration media is used in the separator?

The separator utilizes high-efficiency borosilicate microglass filtration media for effective oil separation.

7. Can both parts be replaced during the same maintenance interval?

Yes. Replacing the intake filter and separator together is standard preventive maintenance practice for rotary screw compressors.

8. Does replacing the separator improve energy efficiency?

Yes. A clean separator reduces differential pressure, allowing the compressor to operate more efficiently.

9. Is the 24121212 supplied with sealing components?

Yes. OEM separator kits typically include the separator element together with the required O-ring.

10. How do these maintenance parts improve compressor reliability?

They help maintain clean intake air, efficient oil recovery, lower internal wear, improved cooling performance, and consistent compressed air quality.
