Brand:Schneider PLC Item No.:BMXFCA150 Product Origin:France Product Dimensions:Cable Length: 1.5 meters Product Weight:0.32 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Introduction and Automation Integration Overview

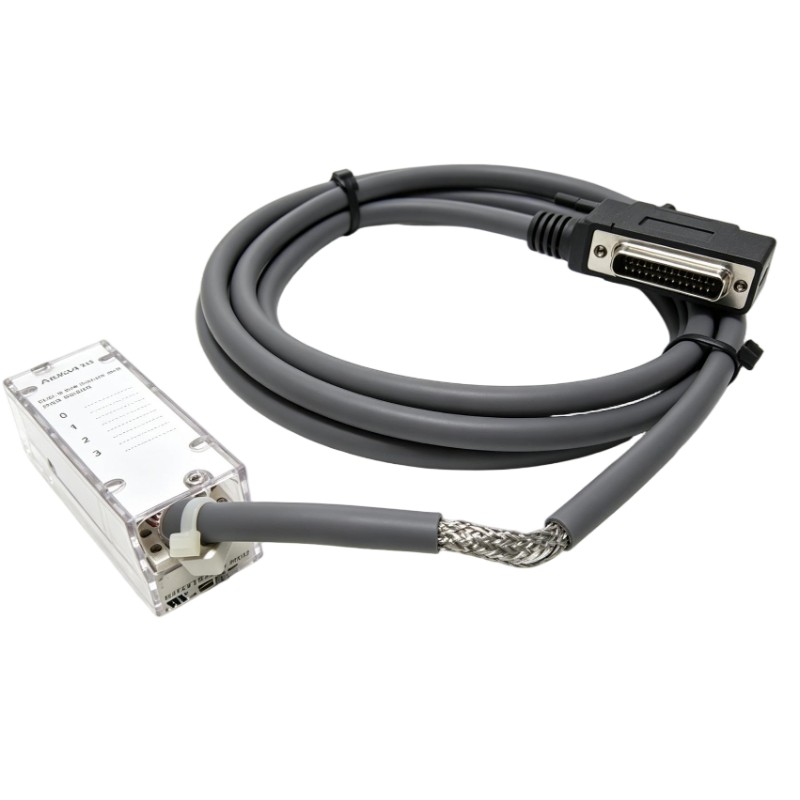

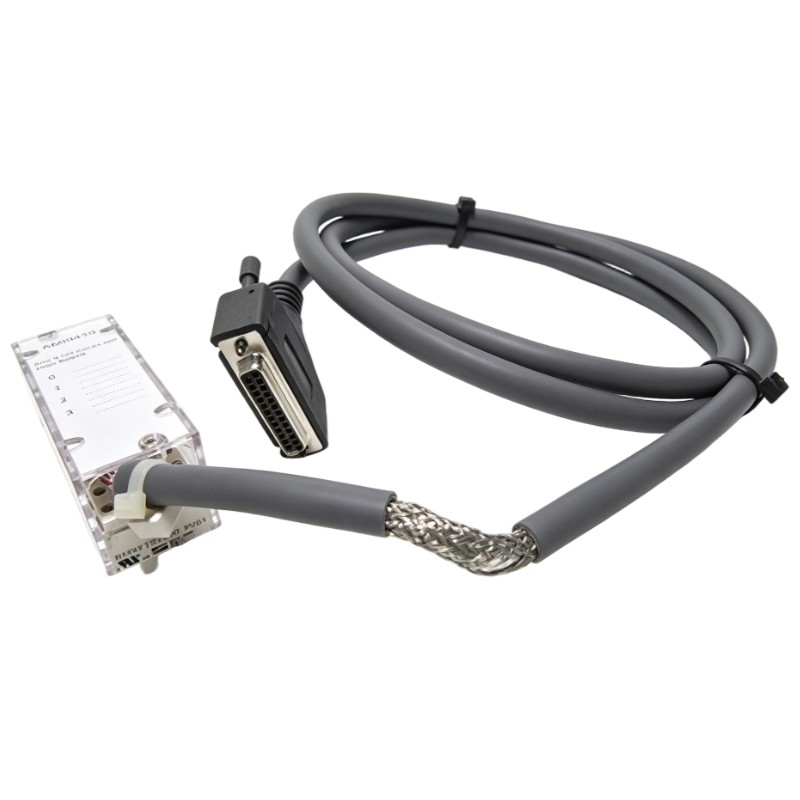

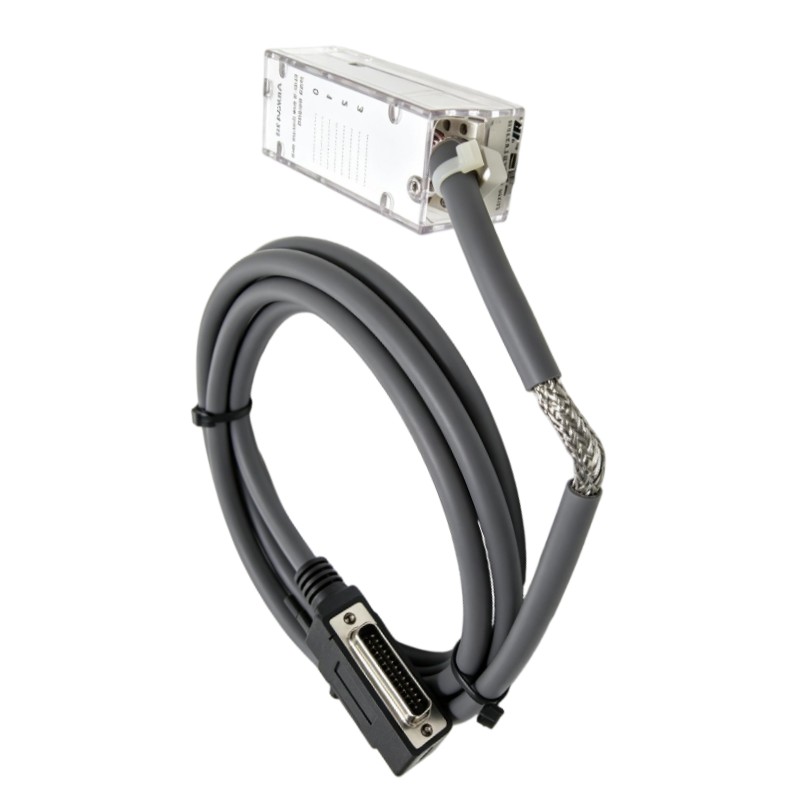

The Schneider BMXFCA150 Cable Assembly is an essential wiring accessory for industrial automation systems using Modicon controllers and I/O modules. Designed as a preformed cordset, it provides a clean and efficient connection method between control modules and field wiring interfaces.
Compared with traditional manual wiring solutions, the BMXFCA150 helps improve installation consistency and reduce engineering workload. Its standardized connection structure supports faster system assembly while maintaining reliable electrical performance in demanding automation applications.
For system integrators and maintenance teams, this cable assembly offers an effective way to simplify PLC cabinet design, improve troubleshooting efficiency, and enhance the overall reliability of industrial control systems.
The Schneider BMXFCA150 Cable Assembly is a preformed connection cable designed for reliable signal wiring between Modicon automation modules and Telefast connection systems. As an important accessory in Schneider Electric industrial control architectures, this cable simplifies field wiring, improves cabinet organization, and helps reduce installation time in PLC-based applications.
The BMXFCA150 is commonly applied in:
Modicon M340 and Modicon X80 automation platforms
Industrial PLC input/output signal connection systems
Control cabinet wiring and electrical panel integration
Machine automation equipment
Process control systems requiring organized I/O connections
Factory production lines with distributed signal management
With a preassembled design, the cable provides a practical solution for engineers who need fast deployment, stable electrical connections, and simplified maintenance procedures in industrial environments.
Connection Advantages and Engineering Benefits
The Schneider BMXFCA150 delivers a combination of installation efficiency and dependable signal transmission, making it a valuable component for automation engineers building compact and maintainable control systems.
Simplified Cabinet Wiring Design
The preformed cable structure eliminates complex manual wiring processes, helping reduce commissioning time and minimizing wiring errors during PLC system installation.
Reliable Module-to-Field Interface

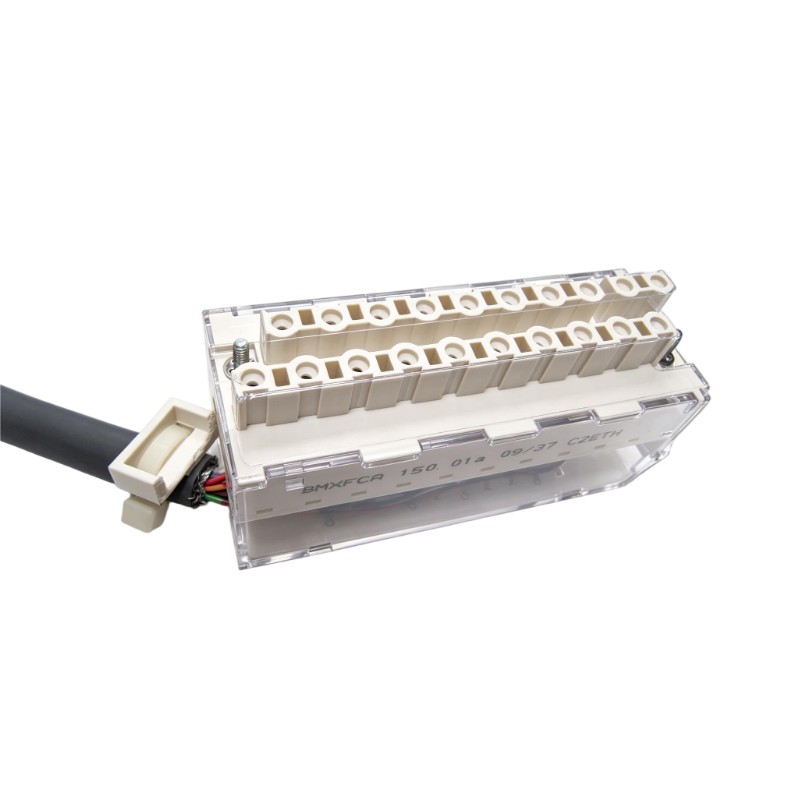

Featuring a SUB-D25 connector and a removable 20-way terminal connection, the BMXFCA150 provides a secure interface between compatible I/O modules and connection sub-bases.
Improved Maintenance Efficiency
Standardized connection design allows technicians to quickly identify, replace, and maintain wiring components during equipment servicing.
Optimized Automation Integration
The cable is designed for use with Schneider Modicon automation platforms, providing a practical connection method for analog and digital I/O expansion systems.
Industrial-Grade Reliability
Built for industrial control applications, the BMXFCA150 supports stable signal transmission in environments where long-term operational reliability is required.
