Schneider BMXFCA300 Cable Assembly

Industrial Applications and Field Wiring Integration

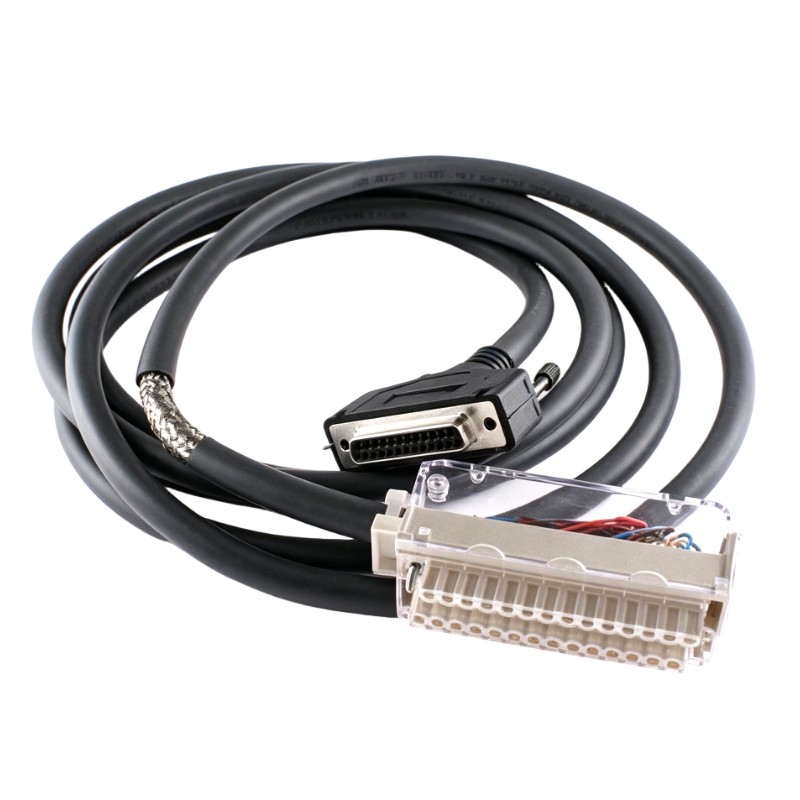

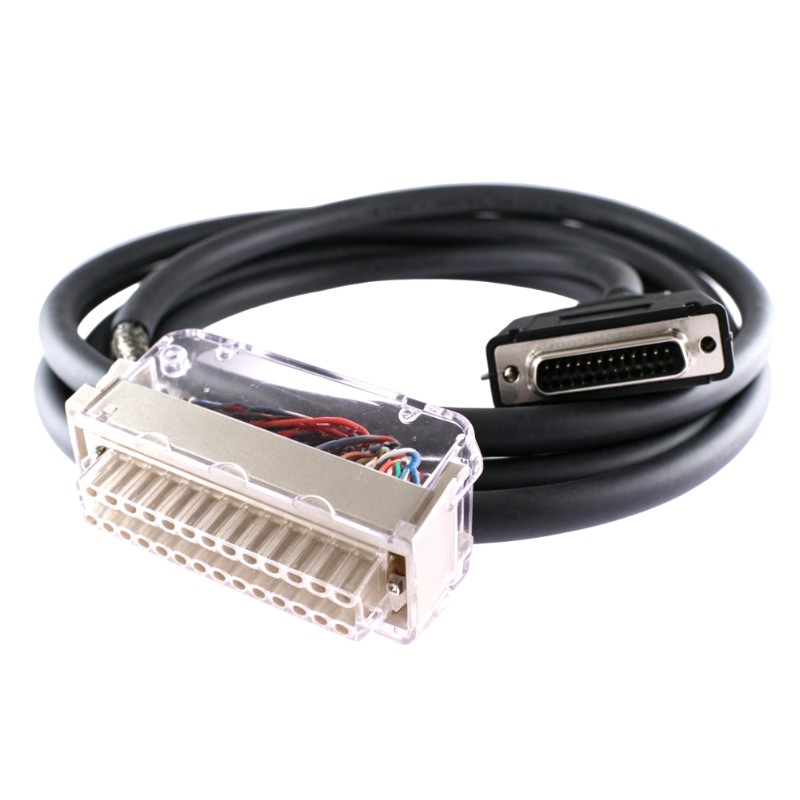

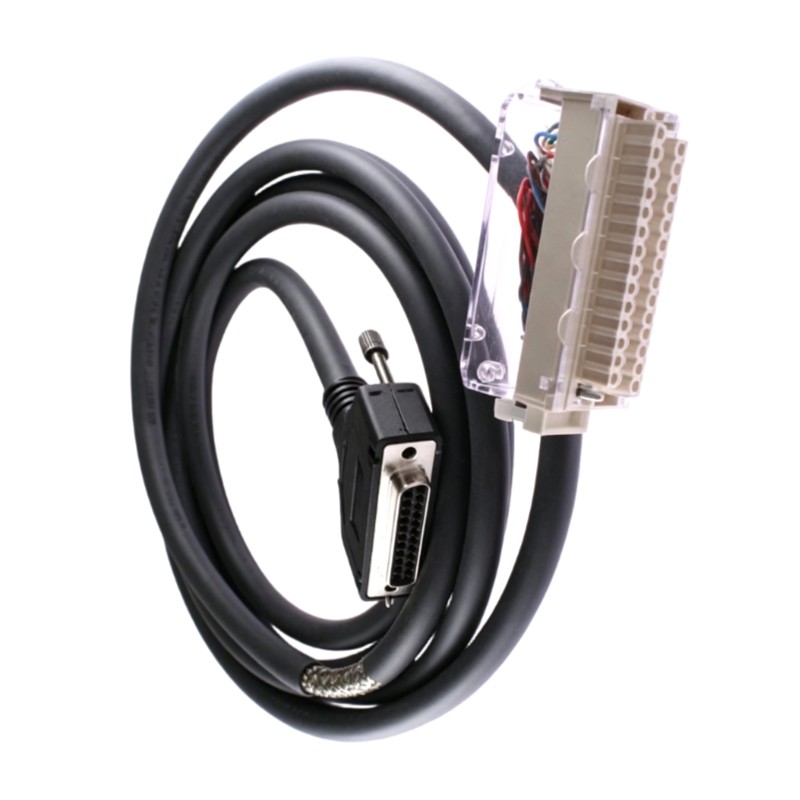

The Schneider BMXFCA300 Cable Assembly is a dedicated preassembled connection accessory designed for efficient signal transmission between Modicon X80 I/O modules and compatible Telefast interface solutions. With a 3-meter cable length, it provides additional flexibility for control cabinet layouts where longer wiring distances are required while maintaining a clean and organized automation architecture.

The BMXFCA300 is widely used in industrial environments such as:

• Modicon M340 and Modicon X80 PLC control systems
• Factory automation production lines
• Machine control cabinets requiring structured I/O wiring
• Process monitoring and control applications
• Distributed field signal connection systems
• Industrial equipment modernization projects

By replacing complex manual wiring with a standardized cable assembly, the BMXFCA300 helps engineers improve installation efficiency, reduce wiring errors, and achieve more reliable PLC system integration.

Installation Benefits and System Integration Advantages

Efficient Cabinet Layout Optimization

The extended 3-meter cable length allows greater flexibility when arranging PLC racks, connection interfaces, and field terminals inside larger electrical cabinets. This helps system designers create cleaner wiring structures and easier maintenance access.

Reliable Signal Connection Performance

The BMXFCA300 provides a stable connection between compatible Modicon I/O modules and external terminal interfaces, reducing the risks associated with manually assembled wiring solutions.

Reduced Commissioning Time

Using a factory-prepared cable assembly minimizes installation complexity. Engineers can complete PLC I/O connections faster while improving wiring consistency across multiple control panels.

Enhanced Maintenance Convenience

The standardized connection design makes troubleshooting easier by allowing technicians to quickly identify cable paths, terminal assignments, and module interfaces.

Suitable for Industrial Automation Expansion

The BMXFCA300 is a practical choice for automation systems that require additional I/O connectivity distance without sacrificing system reliability and signal integrity.

Technical FAQs

1. Q: What is the primary purpose of the Schneider BMXFCA300 Cable Assembly?
A: The BMXFCA300 is used to connect compatible Modicon X80 I/O modules with Telefast connection interfaces, providing a preconfigured wiring solution for automation systems.

2. Q: Which PLC platforms can use the BMXFCA300 Cable Assembly?
A: The cable assembly is mainly designed for Schneider Electric Modicon M340 and Modicon X80 automation platforms with compatible I/O connection accessories.

3. Q: Does the BMXFCA300 require any PLC software configuration?
A: No direct software configuration is required for the cable itself, but connected I/O modules must be correctly configured within the PLC programming environment.

4. Q: What should engineers check if connected I/O points do not respond correctly?
A: Engineers should verify connector installation, terminal wiring, module configuration, I/O addressing, and PLC diagnostic information.

5. Q: Can the BMXFCA300 be used for analog signal connections?
A: Yes, it can support compatible Modicon analog I/O modules when the electrical interface and module specifications match.

6. Q: What are common causes of intermittent signals with this cable assembly?
A: Typical causes include loose connectors, damaged cable sections, incorrect terminal assignments, or electromagnetic interference from nearby equipment.

7. Q: How does the BMXFCA300 improve PLC cabinet wiring compared with traditional wiring methods?
A: It reduces manual point-to-point wiring requirements, improves connection consistency, and simplifies installation and maintenance processes.

8. Q: Can the BMXFCA300 be installed in industrial environments with continuous operation?
A: Yes, it is designed for industrial automation applications where stable electrical connections and long-term reliability are required.

9. Q: How can technicians diagnose a suspected cable-related fault?
A: Troubleshooting should include connector inspection, continuity testing, terminal verification, and checking PLC module diagnostic status.

10. Q: What maintenance actions are recommended for BMXFCA300 installations?
A: Regular inspection of connectors, cable routing, cabinet conditions, and terminal connections helps maintain reliable operation.
