Schneider BMXFTA300 Cable Assembly

Industrial Applications and Connection Solutions

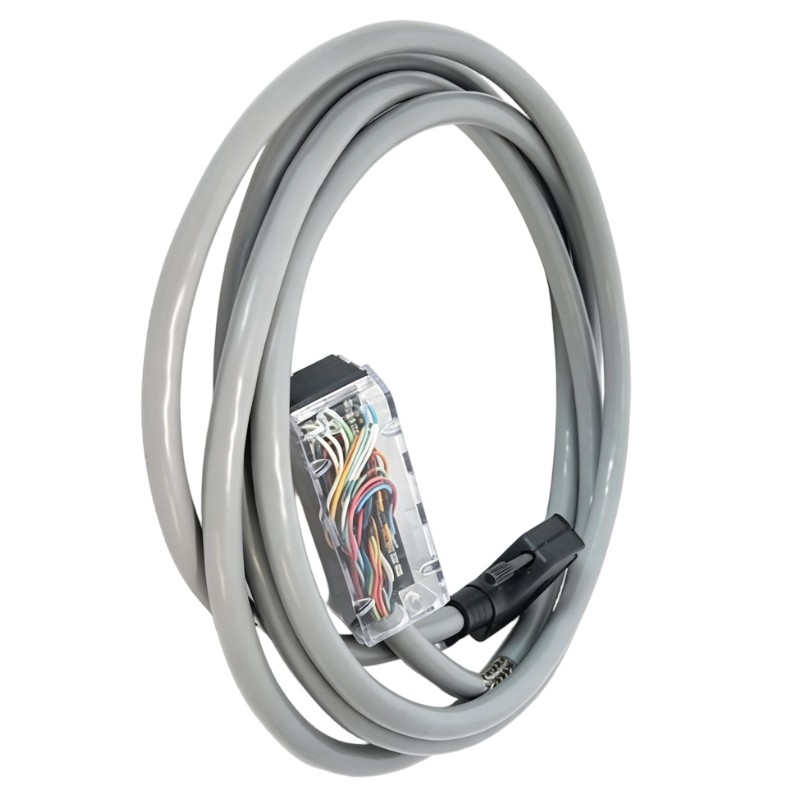

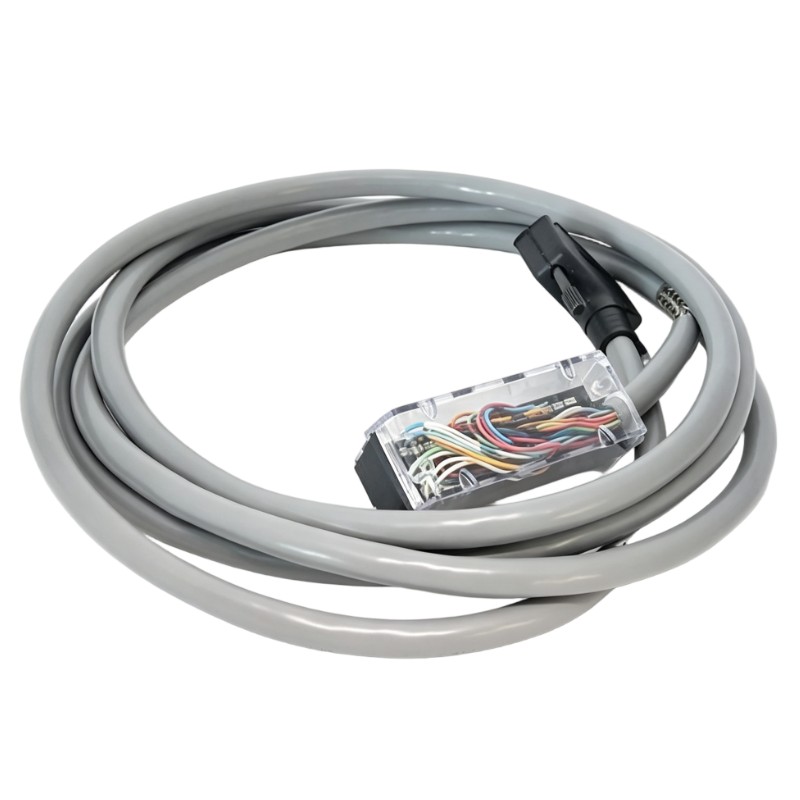

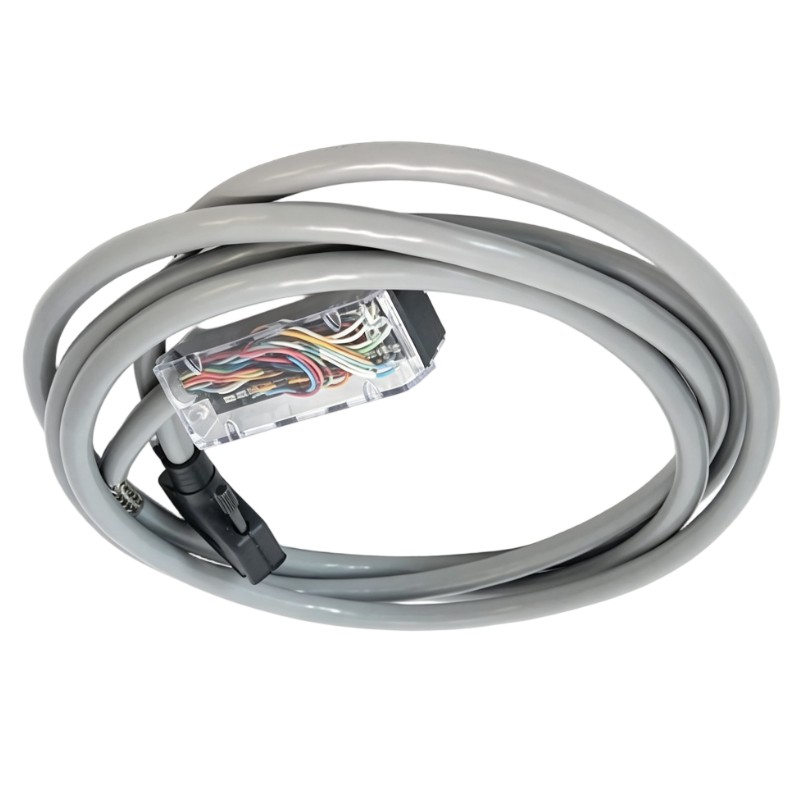

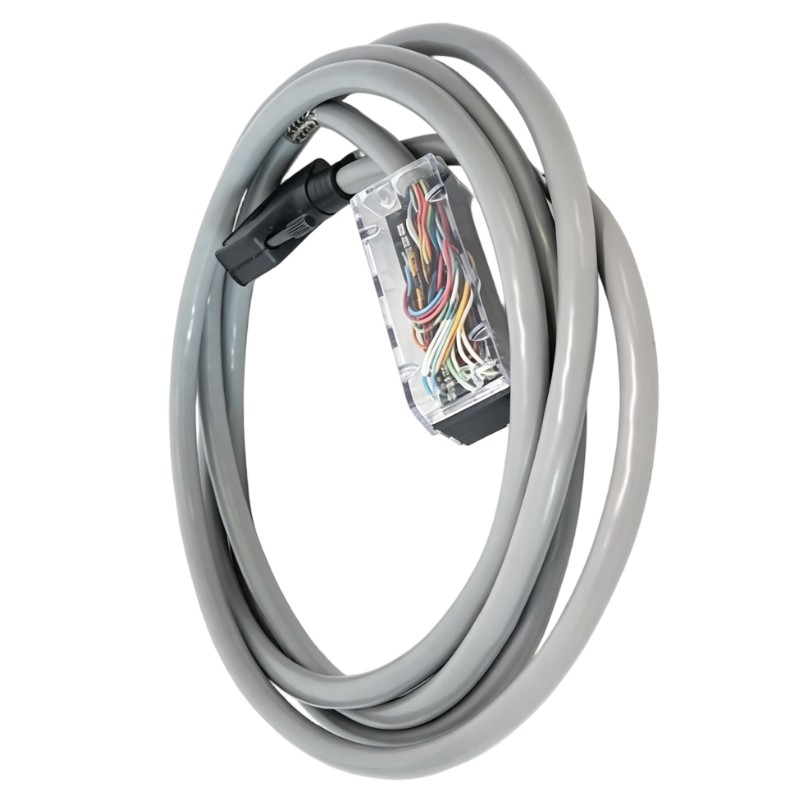

The Schneider BMXFTA300 Cable Assembly is a professional-grade connection accessory designed for industrial automation systems using Modicon X80 I/O modules. With a 3-meter cable length, it provides additional installation flexibility for control cabinets where PLC modules and terminal interfaces require greater separation.

This preassembled cable solution is commonly used in:

• Modicon M340 and Modicon X80 PLC control architectures
• Industrial automation control cabinets
• Factory production and assembly equipment
• Process automation systems
• Remote I/O signal connection applications
• OEM machinery and customized automation platforms

The BMXFTA300 helps engineers simplify complex wiring tasks by providing a standardized connection method between automation modules and field interfaces. Its extended cable length makes it suitable for larger electrical panels and applications requiring more flexible cabinet layouts.

Key Engineering Benefits and System Advantages

Flexible Installation for Larger Control Panels

The 3-meter cable design provides greater freedom when arranging PLC racks, terminal blocks, and field connection points. This allows engineers to optimize cabinet layouts according to machine design requirements.

Reliable Preassembled Connection

The BMXFTA300 eliminates many risks associated with manual wiring by providing a factory-prepared cable assembly with consistent connection quality and reliable signal transmission.

Faster Commissioning and Deployment

Using a dedicated connection cable reduces installation time, allowing automation teams to complete PLC system integration and startup procedures more efficiently.

Cleaner Control Cabinet Design

The cable assembly helps reduce excessive point-to-point wiring, creating a more organized panel structure that improves accessibility during maintenance.

Designed for Industrial Automation Reliability

The BMXFTA300 supports demanding automation environments where stable I/O connectivity, easy troubleshooting, and long-term operational reliability are required.

Technical FAQs

1. Q: What is the purpose of the Schneider BMXFTA300 Cable Assembly?
A: The BMXFTA300 provides a preassembled connection solution between compatible Modicon X80 I/O modules and external terminal interfaces.

2. Q: Which Schneider PLC systems can use the BMXFTA300?
A: The cable assembly is designed for compatible Modicon M340 and Modicon X80 automation platforms.

3. Q: Does the BMXFTA300 require software configuration?
A: No configuration is required for the cable itself, but connected I/O modules must be correctly configured in the PLC programming environment.

4. Q: What should be checked if field devices do not receive correct signals?
A: Verify cable connections, terminal assignments, module configuration, PLC I/O addressing, and diagnostic information.

5. Q: Can the BMXFTA300 be used for analog signal applications?
A: Yes, it can support compatible Schneider I/O modules when the connector interface and electrical specifications match.

6. Q: What causes intermittent I/O signals when using this cable assembly?
A: Common causes include loose connectors, incorrect wiring, electrical interference, cable damage, or improper grounding.

7. Q: How does BMXFTA300 improve PLC installation compared with manual wiring?
A: It reduces wiring workload, improves connection consistency, and helps prevent installation errors during system assembly.

8. Q: How can technicians diagnose a BMXFTA300 connection fault?
A: Check connector seating, inspect cable condition, perform continuity testing, and compare PLC diagnostics with expected I/O behavior.

9. Q: Is the BMXFTA300 suitable for continuous industrial operation?
A: Yes, it is designed for industrial automation systems requiring stable and dependable connection performance.

10. Q: What maintenance is recommended for BMXFTA300 installations?
A: Regular inspection of connectors, cable routing, cabinet environment, and mechanical protection helps maintain reliable operation.
