Brand:Schneider PLC Item No.:BMXNRP0201 Product Origin:France Product Dimensions:32 x 100 x 86 mm Product Weight:0.203 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Overview and Industrial Network Integration

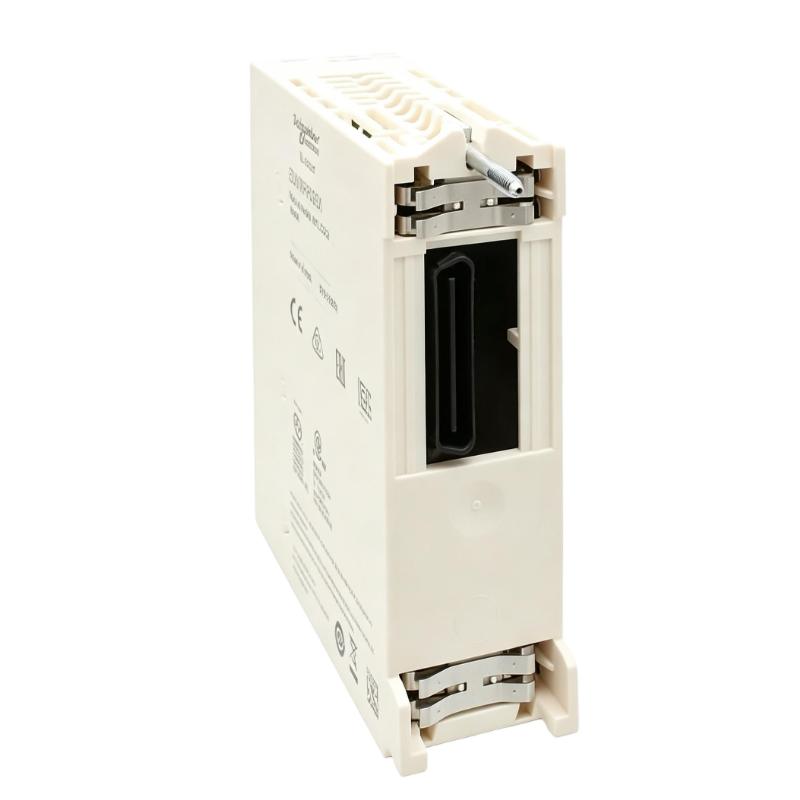

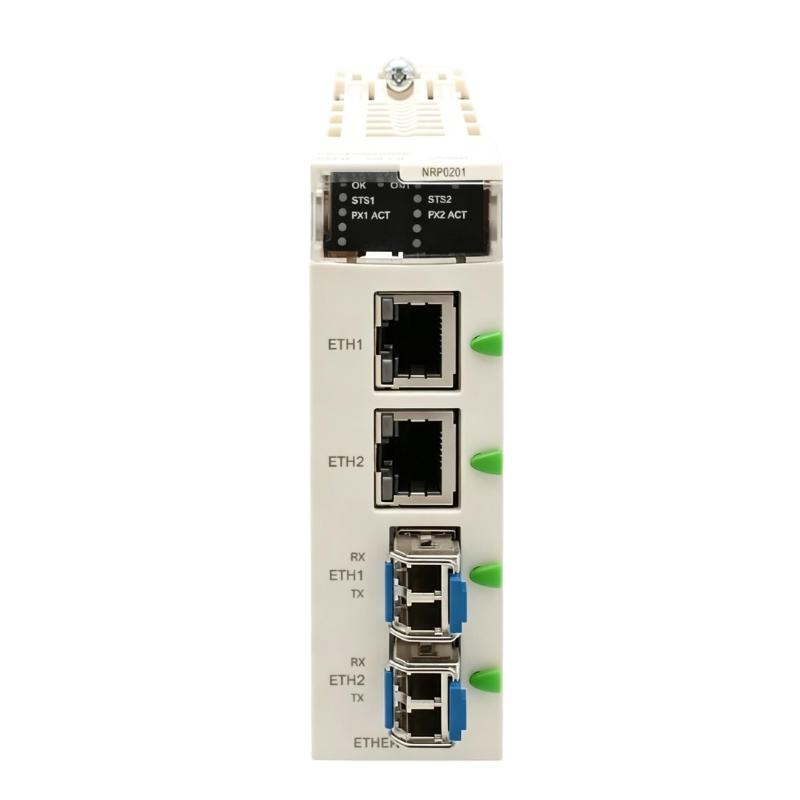

The Schneider BMXNRP0201 Fiber Optic Converter is an essential communication component for modern industrial automation networks. Designed as part of the Modicon X80 product family, it provides a practical solution for extending Ethernet communication through single-mode fiber technology.
Industrial facilities often face challenges such as long cable distances, electrical interference, and complex network layouts. The BMXNRP0201 addresses these requirements by providing a robust fiber-based communication method that improves network stability and reduces communication risks.
With support for Ethernet fiber conversion, diagnostic indicators, and integration into Modicon automation environments, the BMXNRP0201 is an ideal choice for system integrators and automation engineers building reliable distributed control networks.
Industrial Applications and Network Communication Solutions

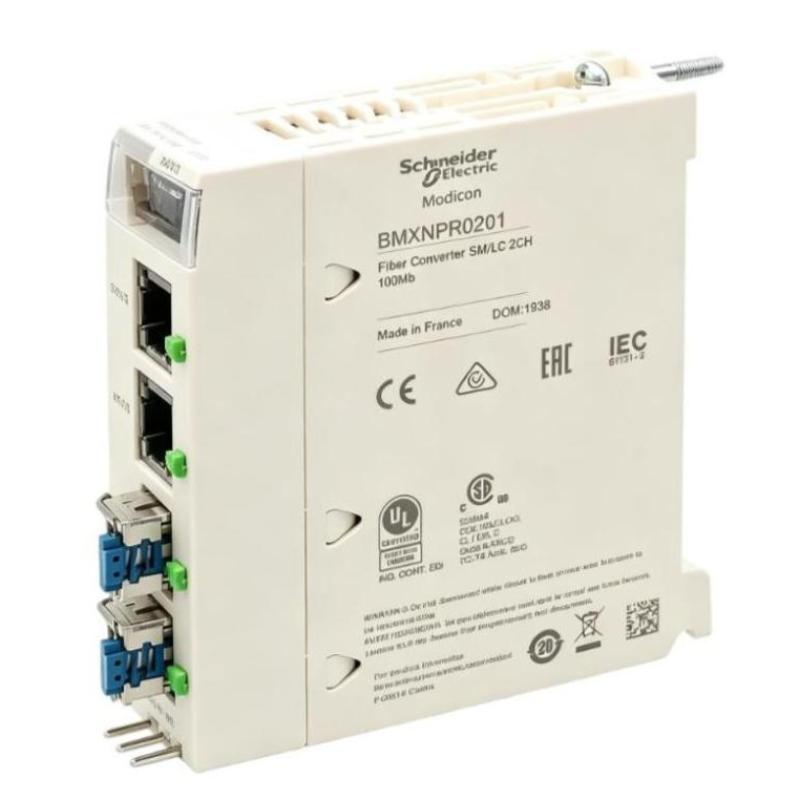

The Schneider BMXNRP0201 Fiber Optic Converter is a high-reliability communication module designed for Modicon X80 automation architectures. It provides Ethernet-to-fiber conversion capability, allowing industrial networks to extend communication distances while improving resistance against electromagnetic interference in demanding factory environments.
The BMXNRP0201 is widely used in:
Modicon M340 and Modicon X80 remote I/O systems
Industrial Ethernet network extension projects
Distributed control systems requiring long-distance communication
Manufacturing plants with high electrical noise levels
Process automation and infrastructure monitoring applications
Large-scale PLC networking architectures
By converting standard Ethernet signals into single-mode fiber communication, the BMXNRP0201 helps engineers build more stable and flexible industrial networks, especially where copper Ethernet limitations become a challenge.
Advanced Communication Features and Engineering Advantages
Long-Distance Fiber Network Expansion
The BMXNRP0201 enables extended Ethernet communication over single-mode fiber, making it suitable for large facilities where remote I/O stations or control areas are separated by significant distances.
Enhanced Electromagnetic Immunity
Fiber optic communication provides excellent protection against electrical interference, helping maintain stable data transmission in environments containing motors, drives, welding equipment, and other industrial noise sources.
Flexible Ethernet Integration
The module supports Ethernet conversion between 100BASE-TX copper connections and 100BASE-FX fiber interfaces, allowing seamless integration into existing industrial communication infrastructures.
Improved Network Reliability
Designed for Modicon X80 systems, the BMXNRP0201 supports reliable communication architectures for remote I/O and distributed automation applications.
Simplified Maintenance and Diagnostics

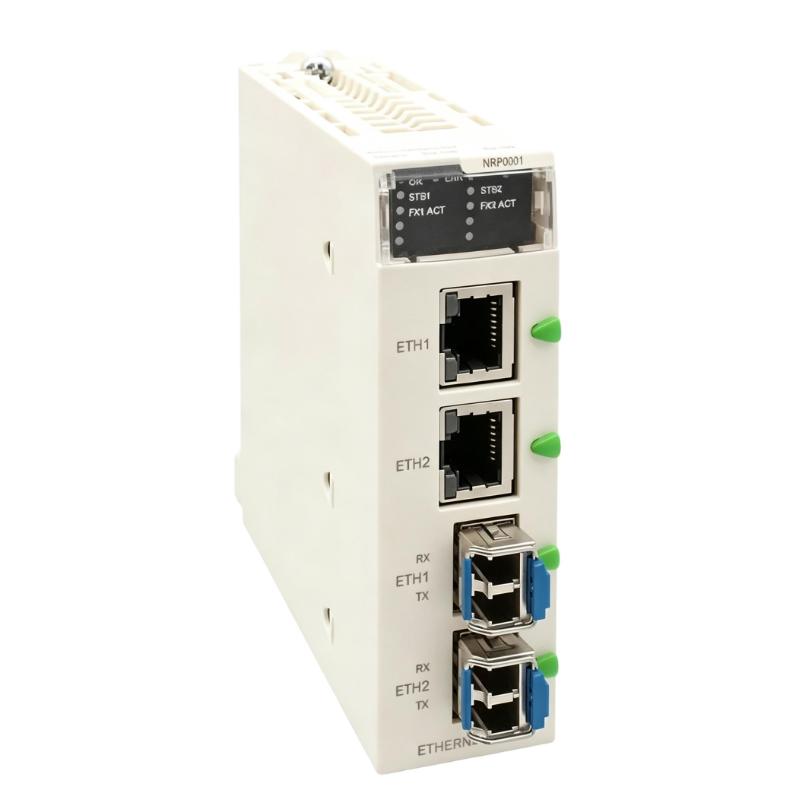

Built-in LED indicators provide visual feedback for power status, error conditions, link status, and fiber activity, helping technicians quickly identify communication issues.
Technical FAQs
1. Q: What is the main function of the Schneider BMXNRP0201 Fiber Optic Converter?
A: The BMXNRP0201 converts Ethernet signals between copper-based 100BASE-TX connections and single-mode fiber 100BASE-FX communication links for industrial network applications.
2. Q: Which automation platforms support the BMXNRP0201?
A: The module is designed for Schneider Electric Modicon X80 architectures and can be used within Modicon M340 and related automation systems.
3. Q: What type of fiber optic cable does BMXNRP0201 use?
A: The module supports single-mode optical fiber communication with LC-type fiber connections.
4. Q: How should engineers troubleshoot a fiber communication failure?
A: Check fiber polarity, connector cleanliness, optical signal levels, Ethernet link status, and module diagnostic indicators.
5. Q: Can BMXNRP0201 be installed in a hot-swappable system?
A: Yes, the module supports hot swap functionality within compatible Modicon X80 architectures.
6. Q: What causes intermittent communication loss on a fiber network?
A: Common causes include damaged fiber cables, contaminated optical connectors, incorrect fiber connections, excessive attenuation, or network configuration issues.
7. Q: Does BMXNRP0201 require special software configuration?
A: The module operates as a communication converter, but the overall Ethernet network configuration must be correctly managed within the PLC system.
8. Q: What is the maximum communication distance supported by BMXNRP0201?
A: The module supports long-distance single-mode fiber communication applications, with operating distances up to approximately 15 km depending on network conditions and optical parameters.
9. Q: How can technicians identify whether the fault comes from the converter or the fiber cable?
A: Technicians should compare LED diagnostic states, test optical power levels, inspect connectors, and verify Ethernet communication from both network ends.
10. Q: What maintenance procedures improve BMXNRP0201 reliability?
A: Regular inspection of fiber connectors, cabinet environment, module status indicators, and network performance helps maintain stable operation.
