Brand:Schneider PLC Item No.:XCC-1510PS11Y Product Origin:France Product Dimensions:Diameter: 58 mm Product Weight:0.465 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Overview and Industrial Motion Control Integration

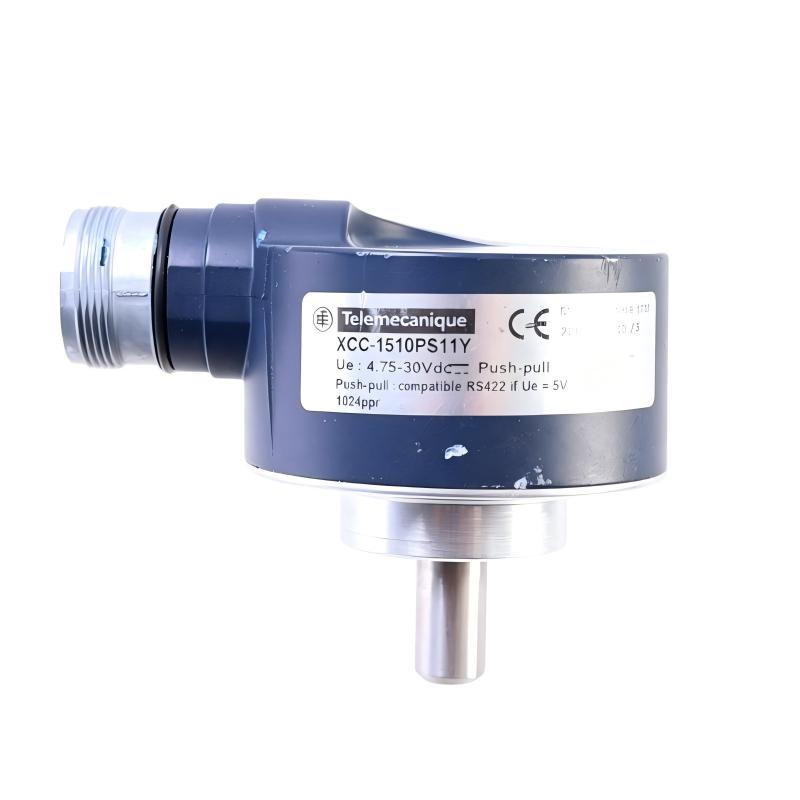

The Schneider XCC-1510PS11Y XCC Incremental Encoder is designed to provide dependable motion feedback for modern industrial automation systems. It converts mechanical rotation into precise electrical pulse signals, allowing controllers to monitor position, speed, and movement direction accurately.
Built for demanding automation applications, this encoder combines optical sensing technology with robust mechanical construction to support reliable operation in manufacturing environments. Its compact industrial design and standardized connection method make it suitable for integration into various PLC-based control architectures.
For machine builders, automation engineers, and maintenance professionals, the XCC-1510PS11Y offers a practical feedback solution for improving machine accuracy, optimizing motion performance, and increasing production reliability.
Automation Applications and Motion Feedback Solutions
The Schneider XCC-1510PS11Y XCC Incremental Encoder is a precision rotary feedback device designed for industrial motion measurement, speed monitoring, and position control applications. As part of the Schneider OsiSense XCC encoder family, this incremental encoder provides accurate pulse feedback to PLC systems, variable speed drives, motion controllers, and industrial automation equipment.
The XCC-1510PS11Y is widely applied in:
Automated production and assembly machines
Conveyor and material handling systems
Packaging and printing equipment
Robotics and positioning mechanisms
CNC and machine tool applications
Motor speed feedback and motion control systems
With a 1024-point resolution, solid shaft design, and push-pull output technology, the encoder provides reliable position and speed feedback for industrial environments where precise motion control and operational stability are required.
Performance Advantages and Engineering Benefits
High-Accuracy Motion Feedback
The XCC-1510PS11Y provides 1024 pulses per revolution, enabling automation controllers to achieve accurate position detection and smooth speed regulation in dynamic industrial applications.
Reliable Incremental Signal Output
Equipped with a push-pull output stage, this encoder delivers stable A/B/Z pulse signals suitable for integration with industrial controllers and motion systems.
Strong Industrial Protection Capability
The encoder features an IP65-rated enclosure, helping protect internal components against dust and environmental conditions commonly found in manufacturing environments.
Flexible PLC and Drive Integration
The XCC-1510PS11Y can be integrated with PLC systems, counters, motion controllers, and variable frequency drives requiring incremental feedback signals.
Durable Mechanical Construction
The solid shaft structure, stainless steel shaft material, and industrial bearing design provide reliable operation in continuous-duty applications.
Efficient Maintenance and Troubleshooting
Clear signal feedback and standardized connector design allow technicians to quickly diagnose motion control problems and reduce equipment downtime.
Technical FAQs
1. Q: What is the main function of the Schneider XCC-1510PS11Y encoder?
A: The XCC-1510PS11Y provides incremental pulse feedback for measuring rotational speed, position, and movement direction in industrial automation systems.
2. Q: What resolution does the XCC-1510PS11Y provide?
A: The encoder provides 1024 points per revolution, allowing accurate motion feedback for precision control applications.
3. Q: What type of output signal does the XCC-1510PS11Y use?
A: It uses a push-pull output stage with incremental A/B/Z channel signals for motion control applications.
4. Q: How should engineers troubleshoot missing encoder feedback signals?
A: Check power supply voltage, connector wiring, output signal status, controller input configuration, and mechanical coupling between the encoder and rotating shaft.
5. Q: Can the XCC-1510PS11Y be connected directly to a PLC system?
A: Yes, it can be connected to compatible PLC high-speed counters, motion modules, or encoder interfaces that support its signal type.
6. Q: What causes unstable encoder pulse signals during operation?
A: Common causes include electrical interference, incorrect grounding, damaged cables, loose connectors, or mechanical vibration affecting the encoder shaft.
7. Q: Does the XCC-1510PS11Y require parameter programming?
A: No programming is required inside the encoder, but the connected PLC or motion controller must be configured according to encoder resolution and signal requirements.
8. Q: What should be checked if the motor direction feedback is incorrect?
A: Engineers should verify A/B channel wiring polarity and confirm the encoder rotation direction settings in the controller.
9. Q: How can encoder communication faults be diagnosed?
A: Check encoder power, measure output pulses, inspect wiring continuity, and compare feedback values with actual mechanical movement.
10. Q: What maintenance practices improve encoder reliability?
A: Regular inspection of shaft alignment, connectors, cable condition, mounting stability, and environmental conditions helps maintain long-term performance.
