Brand:Schneider PLC Item No.:BMXNGD0100 Product Origin:France Product Dimensions:120 × 110 × 55 mm Product Weight:0.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Overview and Industrial Ethernet Communication Solution

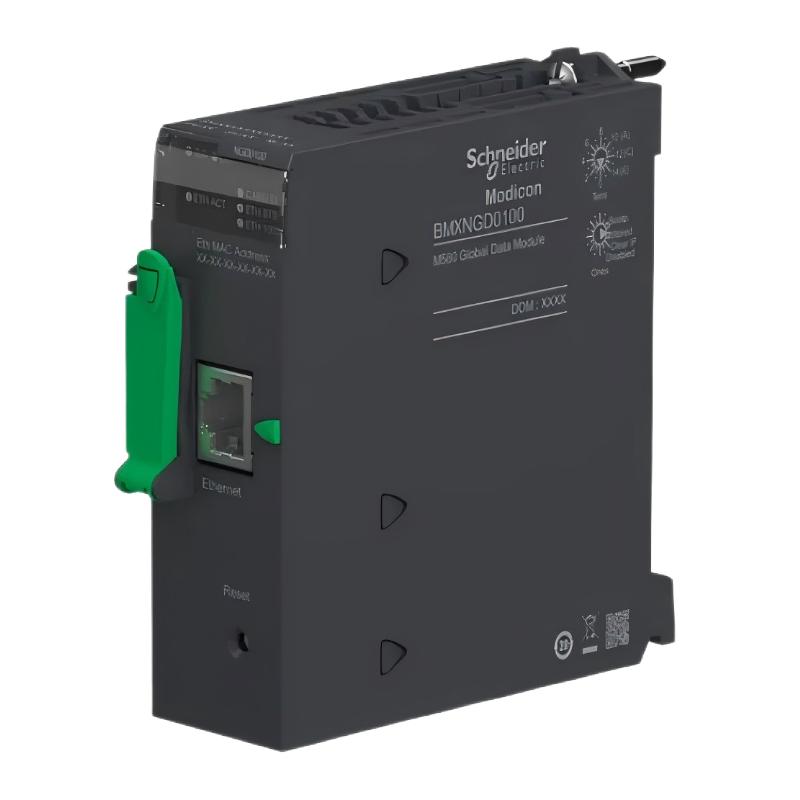

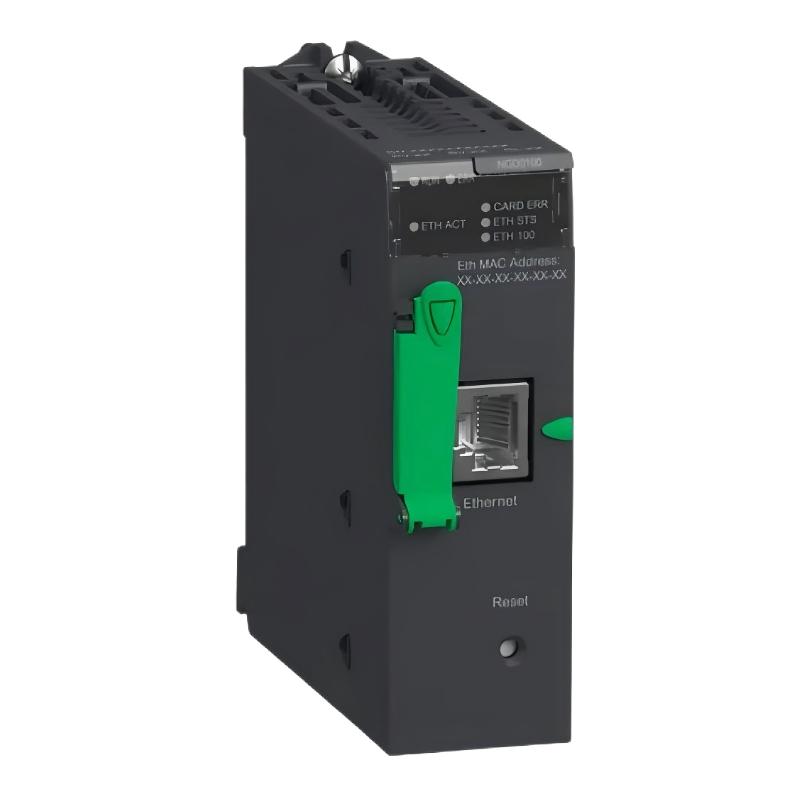

The Schneider BMXNGD0100 Ethernet TCP/IP Network Module is engineered for industrial users who require dependable communication between automation controllers. As part of the Modicon M580 ecosystem, it provides a professional networking solution for modern industrial control environments.
In large automation projects, efficient data exchange between controllers is essential for improving productivity and system coordination. The BMXNGD0100 helps simplify these communication requirements by providing dedicated Ethernet connectivity and reliable industrial messaging services.
Its compact design and integrated communication features make it an effective choice for system integrators, OEM manufacturers, and industrial engineers developing scalable automation architectures.
Technical Specifications
Parameter
Specification
Product Type
Ethernet TCP/IP Network Module
Manufacturer
Schneider Electric
Model Number
BMXNGD0100
Product Family
Modicon M580
Communication Interface
Ethernet RJ45 10/100 Mbps
Network Protocol
Ethernet TCP/IP, Modbus TCP Messaging
Communication Service
Global Data
Memory
Supplied Flash Memory Card BMXRWSC016M
Power Supply
Internal Power Supply via Rack
Protection Rating
IP20
Operating Temperature
0…60 °C
Dimensions
120 × 110 × 55 mm
Weight
0.20 kg (0.44 lb)
Recommended Related Models
Model
Description
Schneider BMEP581020
Modicon M580 Processor Module
Schneider BMEP582020
Modicon M580 High Performance Processor
Schneider BMEP585040
Modicon M580 Independent Processor
Schneider BMXCPS3500
Modicon X80 Power Supply Module
Schneider BMXP342020
Modicon M340 Processor Module
Popular Related Models
Model
Product Type
Schneider BMECRA31210
Modicon X80 Ethernet Remote Adapter Module
Schneider BMXNOM0200
Modicon X80 Serial Communication Module
Schneider BMXNOE0100
Modicon M340 Ethernet Communication Module
Schneider BMXDDI1602
Modicon X80 Digital Input Module
Schneider BMXDDO1602
Modicon X80 Digital Output Module
Industrial Applications and Network Communication Integration
The Schneider BMXNGD0100 Ethernet TCP/IP Network Module is a high-performance communication solution designed for Modicon M580 automation platforms. It provides reliable Ethernet-based data exchange capabilities for industrial control architectures, supporting Global Data services and Modbus TCP messaging to improve communication efficiency between controllers and automation devices.
Designed for complex industrial environments, the BMXNGD0100 enables controller-to-controller communication and helps integrate distributed automation systems into a unified network structure. It is particularly suitable for applications where fast, stable, and organized data transmission is required.
Typical applications include:
Modicon M580 PAC automation systems
Multi-controller industrial networks
Process automation installations
Water and wastewater treatment systems
Manufacturing production lines
Energy and infrastructure control systems
Large-scale machine automation projects
By providing dedicated Ethernet communication capability, the BMXNGD0100 helps engineers build scalable automation networks with improved data accessibility, easier system management, and enhanced operational efficiency.
Communication Advantages and Industrial Network Performance
High-Efficiency Ethernet Communication
The BMXNGD0100 supports Ethernet TCP/IP communication with RJ45 connectivity, enabling reliable data exchange across industrial automation networks.
Advanced Controller Data Exchange
With Global Data service support, the module allows multiple controllers to exchange important information efficiently, making it suitable for complex distributed control applications.
Modbus TCP Compatibility
The integrated Modbus TCP messaging capability provides flexible communication options for connecting Schneider automation devices and third-party industrial equipment.
Simplified System Integration
The module is designed to reduce communication architecture complexity, allowing engineers to create structured and maintainable industrial networks.
Enhanced Maintenance Visibility

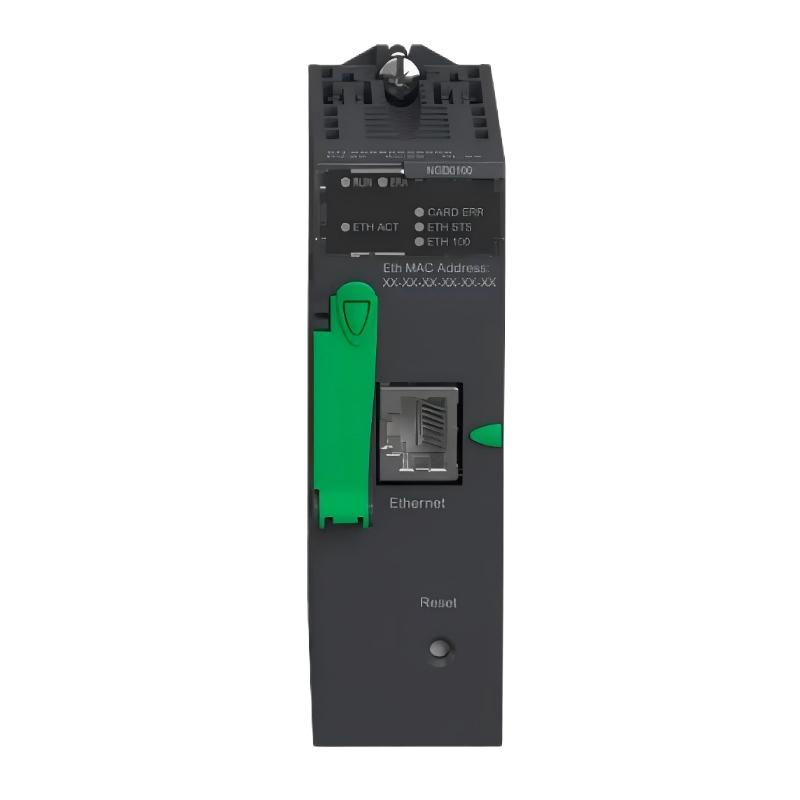

LED status indicators provide quick information about Ethernet activity, network status, processor operation, memory faults, and system conditions, supporting faster troubleshooting.
Technical FAQs
1. Q: What is the primary function of the Schneider BMXNGD0100 module?
A: The BMXNGD0100 provides Ethernet TCP/IP communication capability for Modicon M580 systems, supporting Global Data services and Modbus TCP messaging.
2. Q: Which Schneider PLC platforms support BMXNGD0100?
A: The BMXNGD0100 is designed for Modicon M580 automation architectures.
3. Q: What communication protocols are supported by BMXNGD0100?
A: The module supports Ethernet TCP/IP communication and Modbus TCP messaging for industrial network applications.
4. Q: How can engineers troubleshoot BMXNGD0100 communication failures?
A: Check Ethernet cable connections, verify IP configuration, inspect LED status indicators, and confirm network device settings.
5. Q: What causes Ethernet communication interruption on BMXNGD0100?
A: Common causes include incorrect network parameters, damaged cables, IP address conflicts, switch configuration problems, or module faults.
6. Q: Does BMXNGD0100 require a separate external power supply?
A: No. The module receives power internally through the PLC rack connection.
7. Q: How does the Global Data function improve automation performance?
A: It enables efficient data sharing between controllers, supporting coordinated operation in multi-controller systems.
8. Q: What should be checked if the Ethernet status LED indicates an error?
A: Verify network wiring, communication parameters, connected devices, and module diagnostic information.
9. Q: Can BMXNGD0100 communicate with third-party devices?
A: Yes. Through Ethernet TCP/IP and Modbus TCP messaging, it can support communication with compatible industrial devices.
10. Q: What maintenance practices are recommended for BMXNGD0100?
A: Regular inspection of network connections, configuration backups, diagnostic monitoring, and cabinet conditions is recommended.
