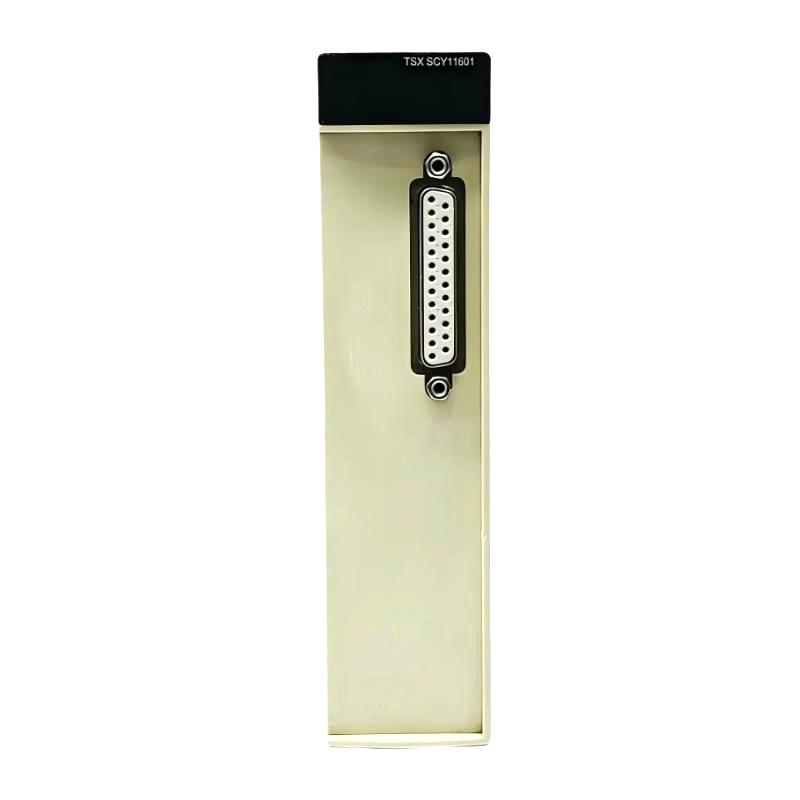

Schneider TSXSCY11601 Communication Module

Industrial Applications and Serial Communication Integration

The Schneider TSXSCY11601 Communication Module is a dedicated serial communication solution designed for Modicon Premium automation platforms. It provides isolated RS485 communication capability for industrial networks, enabling reliable data exchange between PLC systems, field devices, and intelligent automation equipment.

Designed for industrial applications requiring stable serial communication, the TSXSCY11601 supports Modbus and Uni-Telway communication functions, allowing automation engineers to integrate distributed devices into existing control architectures. With support for up to 32 connected devices and long-distance bus communication, it is suitable for large-scale industrial installations where communication reliability is essential.

The TSXSCY11601 is commonly used in:

• Modicon Premium PLC automation systems
• RS485 industrial communication networks
• Modbus master/slave applications
• Process automation systems
• Factory production equipment
• Distributed field device monitoring
• Legacy PLC communication upgrades

By providing a dedicated communication interface, the TSXSCY11601 helps improve data exchange efficiency and enables reliable integration between PLC controllers and industrial devices.

Communication Advantages and Automation Network Benefits

Reliable RS485 Serial Communication

The TSXSCY11601 features isolated RS485 communication technology, helping maintain stable data transmission in industrial environments with electrical noise and long cable distances.

Flexible Protocol Support

The module supports Modbus and Uni-Telway communication protocols, providing engineers with flexible options for connecting industrial instruments, controllers, and automation devices.

Multi-Device Network Capability

With support for communication with up to 32 devices, the module is suitable for distributed automation systems requiring multiple connected field components.

Extended Communication Distance

The RS485 interface supports long-distance communication networks, making it practical for large production areas and industrial facilities.

Enhanced Troubleshooting Efficiency

Integrated diagnostic and event monitoring functions help maintenance teams identify communication problems faster and improve system availability.

Technical FAQs

1. Q: What is the primary function of the Schneider TSXSCY11601 module?
A: The TSXSCY11601 provides RS485 serial communication capability for Modicon Premium PLC systems, enabling communication with external industrial devices.

2. Q: Which Schneider PLC platforms support TSXSCY11601?
A: The module is designed for Modicon Premium and compatible Atrium automation platforms.

3. Q: What communication protocols are available on TSXSCY11601?
A: The module supports Modbus and Uni-Telway communication protocols for industrial serial networks.

4. Q: How can engineers troubleshoot TSXSCY11601 communication failures?
A: Check RS485 wiring polarity, communication parameters, termination resistance, device addresses, and PLC diagnostic information.

5. Q: What causes unstable RS485 communication on TSXSCY11601?
A: Common causes include incorrect baud rates, poor cable shielding, address conflicts, missing termination resistors, and grounding issues.

6. Q: Does TSXSCY11601 require additional software configuration?
A: Yes. Communication parameters such as protocol type, baud rate, and device settings must be configured within the PLC programming environment.

7. Q: Can TSXSCY11601 communicate with third-party Modbus devices?
A: Yes. Compatible Modbus devices can communicate through the RS485 interface when communication parameters are matched correctly.

8. Q: What should be checked if connected devices are not responding?
A: Verify wiring connections, slave addresses, communication speed, parity settings, and network termination conditions.

9. Q: Why is RS485 isolation important in industrial applications?
A: Electrical isolation helps reduce the impact of voltage differences and electrical interference, improving communication stability.

10. Q: What maintenance actions are recommended for TSXSCY11601?
A: Regular inspection of communication cables, connectors, configuration backups, and network diagnostics helps maintain reliable operation.
