Brand:Schneider PLC Item No.:TWDAMI2HT Product Origin:France Product Dimensions:250 x 102 x 76 mm Product Weight:0.085 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Introduction and Industrial Signal Acquisition Solution

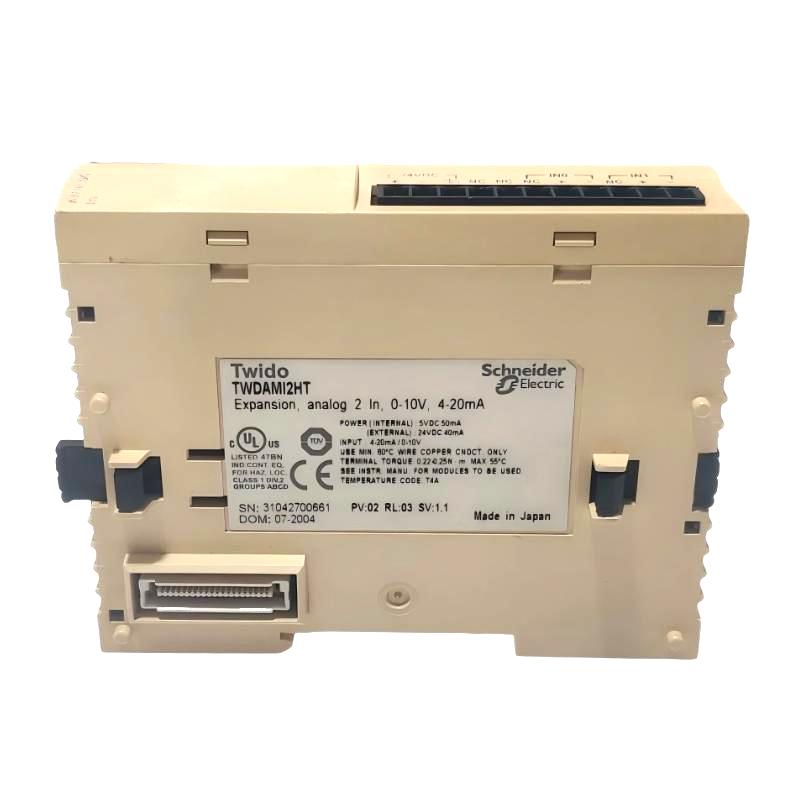

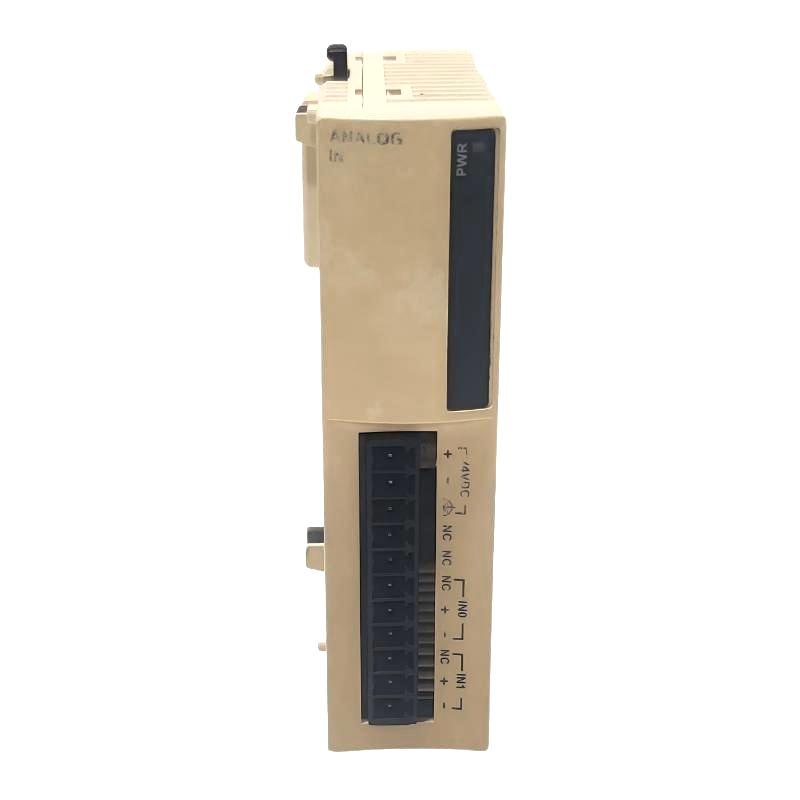

The Schneider TWDAMI2HT Analog Input Module is designed to enhance the measurement capabilities of Twido PLC systems by providing dependable analog signal acquisition. It allows automation engineers to integrate field sensors into PLC control applications where continuous monitoring and precise data processing are required.
In industrial automation, accurate analog feedback is essential for maintaining stable machine operation. The TWDAMI2HT helps bridge the connection between physical processes and digital PLC control logic, enabling efficient monitoring of parameters such as pressure, temperature, flow, and equipment status.
Its compact structure, flexible input options, and reliable signal conversion performance make the TWDAMI2HT a practical choice for OEM machine builders, maintenance engineers, and industrial automation professionals working with Twido-based control systems.
Technical Specifications
Parameter
Specification
Product Type
Analog Input Module
Manufacturer
Schneider Electric
Model Number
TWDAMI2HT
Product Family
Twido
Analog Input Channels
2 Channels
Input Type
High-Level Analog Input
Voltage Input Range
0…10 V DC
Current Input Range
4…20 mA
Resolution
12-bit (4096 increments)
Conversion Type
Sigma-Delta ADC
Input Impedance
Voltage ≥1 MΩ / Current 10 Ω
Sampling Time
10 ms max.
Power Supply
24 V DC
Connection Type
Removable Screw Terminal Block
Cable Requirement
Shielded Twisted-Pair Cable
Dimensions
250 × 102 × 76 mm
Weight
0.09 kg (0.19 lb)
Recommended Related Models
Model
Description
Schneider TWDAMI4LT
Twido Analog Input Module
Schneider TWDAMI8HT
Twido Analog Input Module
Schneider TWDAMO1HT
Twido Analog Output Module
Schneider TWDAMM3HT
Twido Mixed Analog I/O Module
Schneider TM2AMI2HT
Modicon Analog Input Module
Popular Related Models
Model
Product Type
Schneider TWDLCAA24DRF
Twido Compact PLC Controller
Schneider TWDLCAE40DRF
Twido Ethernet PLC Controller
Schneider TWDLMDA20DTK
Twido Modular PLC Controller
Schneider TM221CE16R
Modicon M221 PLC Controller
Industrial Applications and Analog Signal Processing Solutions
The Schneider TWDAMI2HT Analog Input Module is a compact analog expansion module designed for Twido PLC automation systems. It provides reliable analog signal acquisition capability, allowing controllers to process real-world measurements from industrial sensors and field instruments. The module supports high-level analog inputs including 0–10 V voltage signals and 4–20 mA current signals, making it suitable for various monitoring and control applications.
Designed for machine automation and industrial measurement tasks, the TWDAMI2HT enables PLC systems to collect accurate analog data from sensors such as pressure transmitters, temperature controllers, flow meters, level sensors, and other process instruments.
Typical applications include:
Twido PLC automation systems
Machine process monitoring
Industrial sensor data acquisition
Packaging and assembly equipment
Pump and motor monitoring systems
Small-scale process control applications
OEM automation equipment
With its flexible input capability and compact modular design, the TWDAMI2HT helps engineers expand PLC functionality while maintaining efficient system integration.
Key Advantages and Automation Integration Features
Dual Analog Input Capability
The TWDAMI2HT provides two analog input channels supporting 0–10 V voltage signals and 4–20 mA current signals, allowing integration with a wide range of industrial sensors and transmitters.
High-Resolution Signal Conversion
Equipped with 12-bit analog conversion technology, the module provides precise measurement processing for industrial applications requiring stable analog feedback.
Flexible Sensor Compatibility
The module supports common industrial analog standards, making it suitable for pressure, temperature, speed, and flow measurement applications.
Simplified PLC Expansion
The compact design allows engineers to easily extend Twido controller capabilities without replacing the existing control architecture.
Reliable Industrial Data Acquisition
The module provides stable analog signal processing with features such as input filtering, error detection, and electrical isolation to improve system reliability.
Technical FAQs
1. Q: What is the main function of the Schneider TWDAMI2HT module?
A: The TWDAMI2HT converts external analog voltage and current signals into digital values that can be processed by Twido PLC controllers.
2. Q: How many analog input channels does TWDAMI2HT provide?
A: The module provides two analog input channels for industrial signal acquisition.
3. Q: What input signal types are supported by TWDAMI2HT?
A: It supports 0–10 V DC voltage input and 4–20 mA current input signals.
4. Q: How can engineers troubleshoot incorrect analog readings from TWDAMI2HT?
A: Check sensor wiring, verify input signal type selection, inspect cable shielding, and confirm PLC configuration parameters.
5. Q: What causes unstable analog values during operation?
A: Common causes include electrical interference, incorrect grounding, damaged sensor cables, improper shielding, or unstable transmitter output.
6. Q: Does TWDAMI2HT require software configuration before use?
A: Yes. The analog input type and channel settings must be configured through the PLC programming environment.
7. Q: Why is shielded cable recommended for TWDAMI2HT connections?
A: Shielded twisted-pair cable helps reduce electromagnetic interference and improves analog signal stability in industrial environments.
8. Q: What should be checked if the PLC receives no analog signal?
A: Verify module installation, sensor power supply, wiring polarity, input mode selection, and PLC analog channel configuration.
9. Q: Can TWDAMI2HT connect to third-party sensors?
A: Yes. Compatible industrial sensors providing standard 0–10 V or 4–20 mA signals can be connected.
10. Q: What maintenance practices are recommended for TWDAMI2HT?
A: Regular inspection of wiring connections, sensor output accuracy, cabinet conditions, and PLC diagnostic information is recommended.
