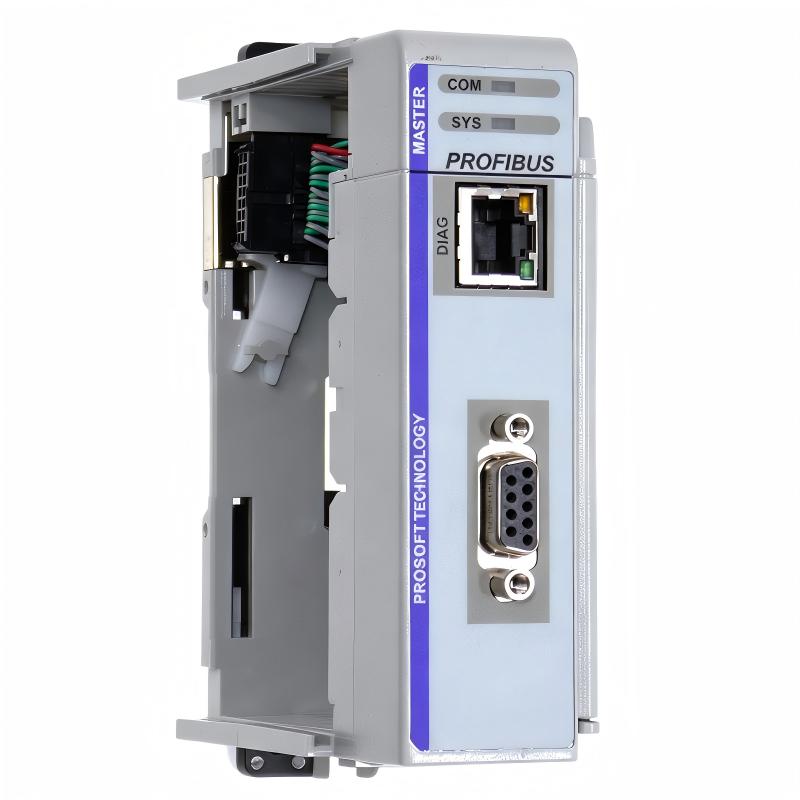

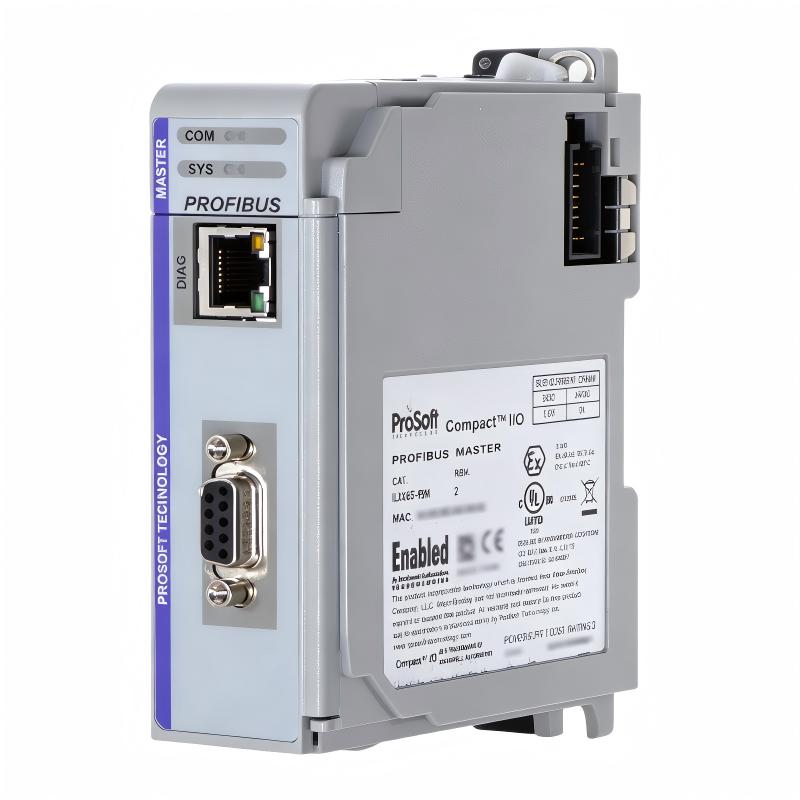

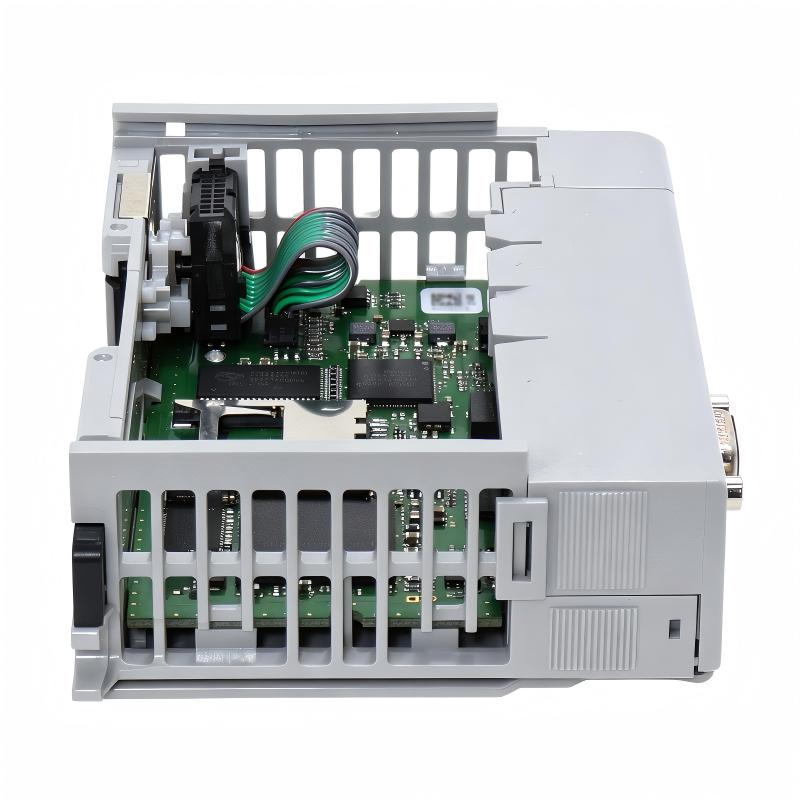

Allen Bradley ILX69-PBM PROFIBUS DP Master Communication Module
Allen Bradley ILX69-PBM PROFIBUS DP Master Communication Module
0.0
Points
Brand:Allen Bradley PLC Item No.:ILX69-PBM Product Origin:USA Product Dimensions:131.6 x 39.3 x 92.1 mm Product Weight:0.152 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Introduction and Industrial PROFIBUS Communication Solution
The Allen Bradley ILX69-PBM PROFIBUS DP Master Communication Module provides an efficient communication bridge between CompactLogix controllers and PROFIBUS field networks. It is designed for industrial users who need dependable connectivity while maintaining existing automation infrastructure.
Many manufacturing facilities continue to operate PROFIBUS-based equipment due to its reliability and long service life. The ILX69-PBM enables these systems to work seamlessly with Rockwell Automation controllers, helping companies extend equipment lifetime and improve automation flexibility.
With its dedicated communication processor, compact installation design, and strong protocol compatibility, the ILX69-PBM is an ideal choice for system integrators, OEM machine builders, and maintenance engineers requiring stable PROFIBUS communication performance.
Technical Specifications
Parameter
Specification
Product Type
PROFIBUS DP Master Communication Module
Manufacturer
Allen Bradley
Model Number
ILX69-PBM
Communication Protocol
PROFIBUS DP / DPV1
Communication Role
Master
Compatible Platform
CompactLogix 1769 System
Host Interface
1769 Backplane

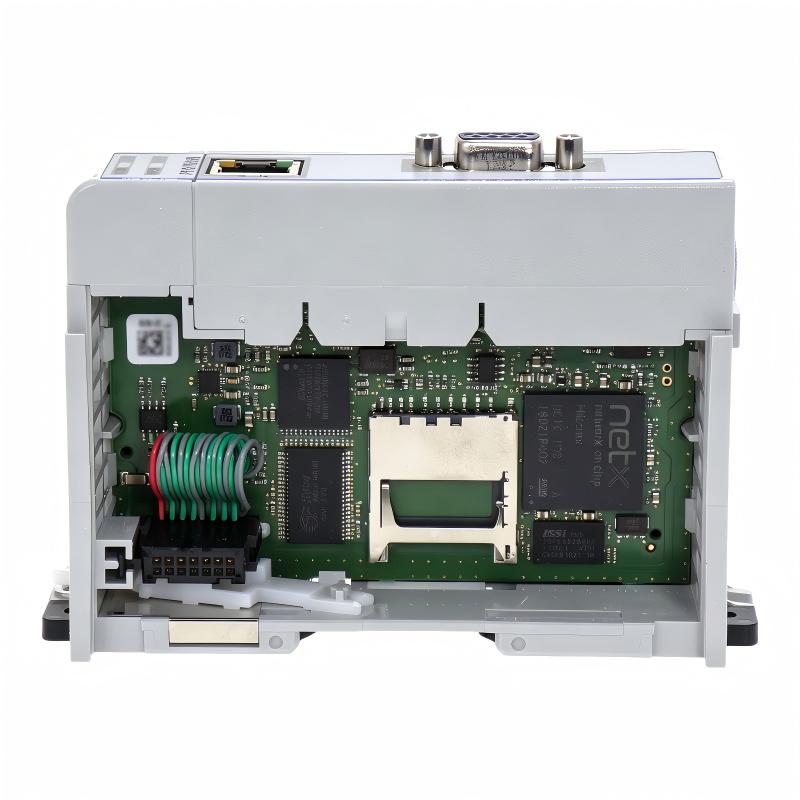

Communication Processor
netX 100 Processor
RAM Memory
8 MB SDRAM
Flash Memory
16 MB Serial Flash EPROM
PROFIBUS Interface
1 × DB9 Connector
Maximum Slave Devices
Up to 125 PROFIBUS Devices
Supply Voltage
5 VDC ±5%
Configuration Software
ProSoft Configuration Manager
Operating Temperature
0…60 °C
Installation Type
CompactLogix Rack Mounting
Dimensions
131.6 × 39.3 × 92.1 mm
Weight
0.15 kg (0.33 lb)
Recommended Related Models
Model
Description
Allen Bradley 1769-L33ER
CompactLogix Ethernet Controller
Allen Bradley 1769-L36ERM
CompactLogix Controller Module
Allen Bradley 1769-PA4
CompactLogix Power Supply
ProSoft MVI69-PDPMV1
PROFIBUS DP Master Module
Allen Bradley 1769-SM1
CompactLogix Communication Module
Popular Related Models
Model
Product Type
Allen Bradley 1756-DPS
ControlLogix PROFIBUS Communication Module
Allen Bradley 1756-EN2T
ControlLogix EtherNet/IP Communication Module
Allen Bradley 1769-SDN
CompactLogix DeviceNet Scanner Module
Allen Bradley 1769-ECR
CompactLogix End Cap Module
Allen Bradley 5069-L320ER
CompactLogix 5380 Controller
Industrial Applications and PROFIBUS Network Integration
The Allen Bradley ILX69-PBM PROFIBUS DP Master Communication Module is a high-performance communication interface designed to connect Rockwell Automation CompactLogix controllers with PROFIBUS DP networks. It enables PLC systems to exchange cyclic and acyclic data with PROFIBUS slave devices, providing a flexible communication solution for industrial automation environments.
The ILX69-PBM works as a PROFIBUS DP master module, allowing CompactLogix platforms to communicate with distributed I/O stations, drives, sensors, motor controllers, and other PROFIBUS-compatible field devices. It supports PROFIBUS DPV0 and DPV1 communication functions, helping engineers integrate existing PROFIBUS infrastructure into modern control systems.
Typical applications include:
Factory automation production lines
Process control systems
CompactLogix PLC communication upgrades
PROFIBUS remote I/O networks
Motor drive communication systems
Packaging and material handling equipment
Industrial machine control applications
By providing reliable protocol conversion and direct PLC communication capability, the ILX69-PBM helps reduce system migration costs while maintaining compatibility with established PROFIBUS field installations.
Communication Performance Advantages and Automation Integration Features
CompactLogix PROFIBUS Expansion Capability
The ILX69-PBM adds PROFIBUS DP master communication capability to CompactLogix systems through the 1769 backplane interface, allowing Rockwell controllers to exchange process data with PROFIBUS devices efficiently.
Support for DPV0 and DPV1 Communication
The module supports both cyclic I/O data exchange and advanced PROFIBUS messaging functions, providing greater flexibility for automation applications requiring diagnostics and parameter access.
Efficient Data Exchange Architecture
Using an integrated communication processor, the ILX69-PBM manages PROFIBUS network communication independently, reducing processing load on the CompactLogix controller.
Flexible PROFIBUS Device Connectivity
The module supports connection with a wide range of PROFIBUS DP slave devices, making it suitable for upgrading existing automation systems without replacing complete field networks.
Simplified Commissioning and Maintenance
Diagnostic indicators and configuration tools help technicians monitor communication status, identify network issues, and improve troubleshooting efficiency.
Technical FAQs
1. Q: What is the main function of the Allen Bradley ILX69-PBM?
A: The ILX69-PBM is a PROFIBUS DP master communication module that allows CompactLogix controllers to communicate with PROFIBUS slave devices.
2. Q: Which PLC platforms are compatible with the ILX69-PBM?
A: The module is designed for Rockwell Automation CompactLogix 1769 platform systems.
3. Q: What PROFIBUS communication modes does the ILX69-PBM support?
A: The module supports PROFIBUS DPV0 and DPV1 communication functions for industrial data exchange and device management.
4. Q: How can engineers troubleshoot ILX69-PBM PROFIBUS communication failure?
A: Check PROFIBUS wiring, termination resistors, slave addressing, baud rate settings, module configuration, and diagnostic indicators.
5. Q: What causes PROFIBUS network instability when using ILX69-PBM?
A: Common causes include incorrect cable shielding, missing termination, duplicate slave addresses, poor grounding, and communication parameter mismatch.
6. Q: How many PROFIBUS slave devices can the ILX69-PBM communicate with?
A: The module supports PROFIBUS network communication with multiple slave devices, depending on network configuration and system limitations.
7. Q: Does the ILX69-PBM reduce CompactLogix CPU communication workload?
A: Yes. The module handles PROFIBUS communication processing independently, allowing the controller to focus on application logic.
8. Q: What should be checked if PROFIBUS devices appear offline?
A: Verify slave power status, PROFIBUS cable connections, device addresses, network termination, and module configuration parameters.
9. Q: Can the ILX69-PBM be used for replacing older PROFIBUS master systems?
A: Yes. It provides a practical migration option for integrating existing PROFIBUS devices into CompactLogix-based control architectures.
10. Q: What maintenance practices improve ILX69-PBM communication reliability?
A: Regular inspection of PROFIBUS cables, connectors, grounding, configuration backups, and diagnostic records is recommended.
