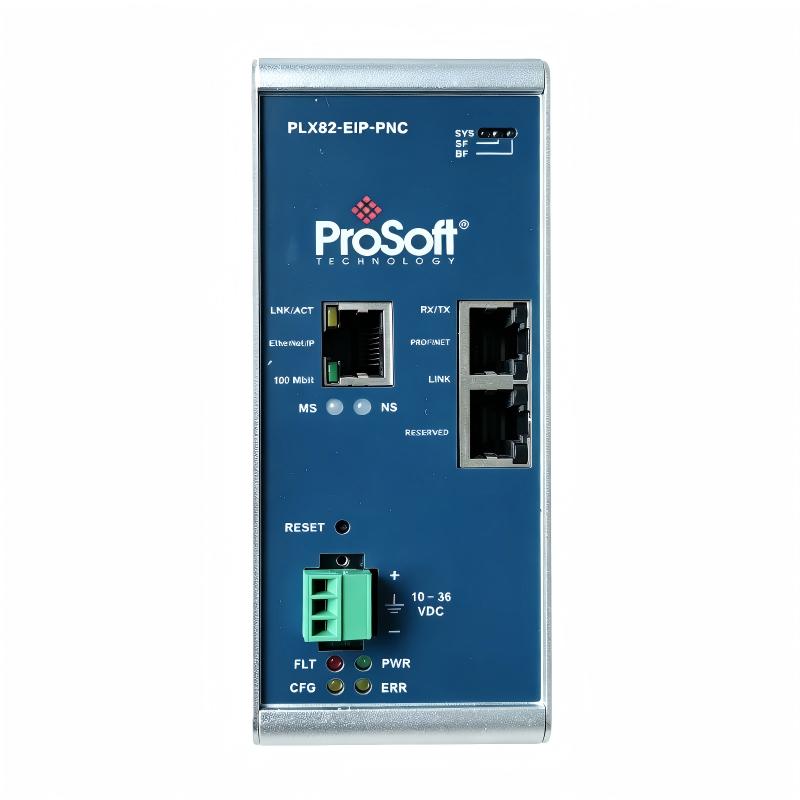

Allen Bradley PLX82-EIP-PNC Ethernet/IP To Profinet Controller Gateway Module
Allen Bradley PLX82-EIP-PNC Ethernet/IP To Profinet Controller Gateway Module
0.0
Points
Brand:Allen Bradley PLC Item No.:PLX82-EIP-PNC Product Origin:USA Product Dimensions:140.1 x 52.4 x 110.9 mm Product Weight:1.41 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Introduction and Industrial Ethernet Gateway Solution
The Allen Bradley PLX82-EIP-PNC Ethernet/IP to PROFINET Controller Gateway Module provides a reliable communication solution for industrial facilities operating mixed automation platforms.
Modern factories often combine equipment from different automation manufacturers, creating challenges when integrating EtherNet/IP and PROFINET networks. The PLX82-EIP-PNC solves this challenge by providing transparent protocol conversion and stable data communication between different industrial Ethernet environments.
Designed for OEM engineers, system integrators, and maintenance teams, this gateway module improves automation flexibility while protecting existing equipment investments. Its compact DIN-rail installation design, strong protocol compatibility, and advanced diagnostic features make it an effective choice for industrial communication modernization projects.
The PLX82-EIP-PNC helps organizations achieve seamless connectivity between control systems, improve production efficiency, and build more flexible industrial network architectures.
Technical Specifications
Parameter
Specification
Product Type
Ethernet/IP to PROFINET Controller Gateway Module
Manufacturer
Allen Bradley / ProSoft Technology
Model Number
PLX82-EIP-PNC
Communication Protocol 1
EtherNet/IP
Communication Protocol 2
PROFINET Controller
PROFINET Version
PROFINET v2, Class A Compliance
PROFINET Device Capacity
Maximum 36 PROFINET RT Devices
Ethernet Ports
2 × 10/100 Mbps RJ45 Ports
Power Supply
24 VDC Nominal
Input Voltage Range
10–36 VDC
Current Consumption
400 mA @ 24 VDC Nominal
Mounting Type
DIN Rail Mounting
Configuration Storage
Optional SD Card Backup
Operating Temperature
0 to 50 °C
Relative Humidity
5% to 95% RH Non-condensing
Dimensions
140.1 × 52.4 × 110.9 mm
Weight
1.41 kg (3.11 lb)
Recommended Related Models
Model
Description
Allen Bradley ILX69-PBM
PROFIBUS DP Master Communication Module
Allen Bradley MV156-MCM
Modbus Communication Module
Allen Bradley 1756-EN2T
ControlLogix EtherNet/IP Communication Module
Allen Bradley 1756-EN3TR
ControlLogix Triple-Port Ethernet Module
Allen Bradley 1769-L36ERM
CompactLogix Ethernet Controller
Popular Related Models
Model
Product Type
Allen Bradley 1756-L8 Series
ControlLogix Controller Platform
Allen Bradley 1769-L3 Series
CompactLogix Controller Series
Siemens ET 200 Series
PROFINET Distributed I/O System
Siemens SINAMICS Series
PROFINET Drive Systems
Allen Bradley PowerFlex Series
Industrial Ethernet Drive Systems
Industrial Applications and Cross-Protocol Network Communication
The Allen Bradley PLX82-EIP-PNC Ethernet/IP to PROFINET Controller Gateway Module is a high-performance industrial communication solution designed to connect EtherNet/IP-based control systems with PROFINET networks. It enables Rockwell Automation controllers and PROFINET devices from different automation ecosystems to exchange real-time data without replacing existing field equipment.
The PLX82-EIP-PNC works as a protocol gateway between EtherNet/IP and PROFINET Controller networks, allowing EtherNet/IP controllers to control PROFINET RT devices such as remote I/O stations, drives, HMIs, and industrial controllers. The module supports high-speed communication and provides an efficient approach for multi-vendor automation system integration.
Common application areas include:
Factory automation production lines
Siemens PROFINET device integration with Allen Bradley PLC systems
Automotive manufacturing equipment
Packaging and material handling systems
Process control applications
Machine builder automation platforms
Industrial Ethernet migration projects
Multi-brand PLC communication networks
By bridging two major industrial Ethernet protocols, the PLX82-EIP-PNC helps engineers modernize automation architectures, extend equipment compatibility, and reduce costly control system replacements.
Communication Advantages and Industrial Integration Benefits
Seamless EtherNet/IP and PROFINET Connectivity
The PLX82-EIP-PNC provides a practical communication bridge between EtherNet/IP controllers and PROFINET devices, allowing different automation platforms to operate together through a unified industrial network architecture.
High-Speed PROFINET Device Control
The gateway supports PROFINET RT communication and allows EtherNet/IP-based controllers to control multiple PROFINET devices, including field I/O modules, drives, and controllers.
Independent Protocol Processing
The module handles communication conversion independently, reducing PLC programming complexity and minimizing additional processing requirements on the host controller.
Dual Ethernet Port Design
Integrated Ethernet ports provide flexible network configuration options, allowing communication networks to be separated into different subnets while maintaining reliable data exchange.
Simplified System Migration
For factories operating mixed automation environments, the PLX82-EIP-PNC provides a cost-effective upgrade path by connecting existing EtherNet/IP systems with modern PROFINET devices.
Advanced Diagnostic Capability
Remote monitoring and diagnostic functions help engineers quickly identify communication problems, improve commissioning efficiency, and reduce troubleshooting time.
Technical FAQs
1. Q: What is the main function of the Allen Bradley PLX82-EIP-PNC?
A: The PLX82-EIP-PNC is an Ethernet/IP to PROFINET Controller Gateway Module used to exchange data between EtherNet/IP controllers and PROFINET devices.
2. Q: Which industrial protocols does the PLX82-EIP-PNC support?
A: The module supports EtherNet/IP communication and PROFINET Controller functionality for industrial network integration.
3. Q: Can the PLX82-EIP-PNC connect Allen Bradley PLCs with Siemens PROFINET devices?
A: Yes. The gateway is designed specifically for integrating EtherNet/IP-based control systems with PROFINET field devices.
4. Q: How can engineers troubleshoot PLX82-EIP-PNC communication failures?
A: Check Ethernet cable connections, IP addressing, PROFINET device configuration, EtherNet/IP settings, network status indicators, and gateway configuration files.
5. Q: What causes PROFINET devices to appear offline through the gateway?
A: Common causes include incorrect device names, IP conflicts, communication parameter errors, wiring issues, or improper network configuration.
6. Q: Does the PLX82-EIP-PNC require additional PLC ladder programming?
A: No. EtherNet/IP I/O connections can be configured through the controller environment without requiring complex ladder logic for communication conversion.
7. Q: How many PROFINET devices can the gateway communicate with?
A: The module supports communication with up to 36 PROFINET RT devices depending on network configuration.
8. Q: What should be checked if data exchange between EtherNet/IP and PROFINET is unstable?
A: Verify network load, communication configuration, device compatibility, Ethernet quality, and diagnostic information from both networks.
9. Q: Can the PLX82-EIP-PNC be used for automation system upgrades?
A: Yes. It is commonly used for modernizing existing systems by connecting different industrial Ethernet platforms.
10. Q: What maintenance practices improve gateway communication reliability?
A: Regular backup of configuration files, inspection of Ethernet connections, firmware management, and monitoring communication diagnostics are recommended.
