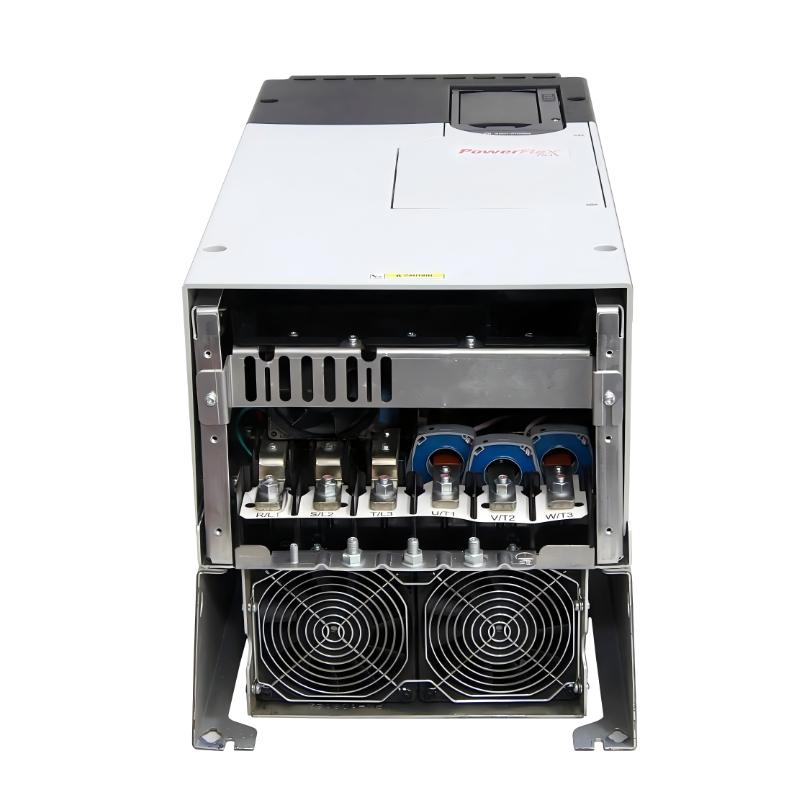

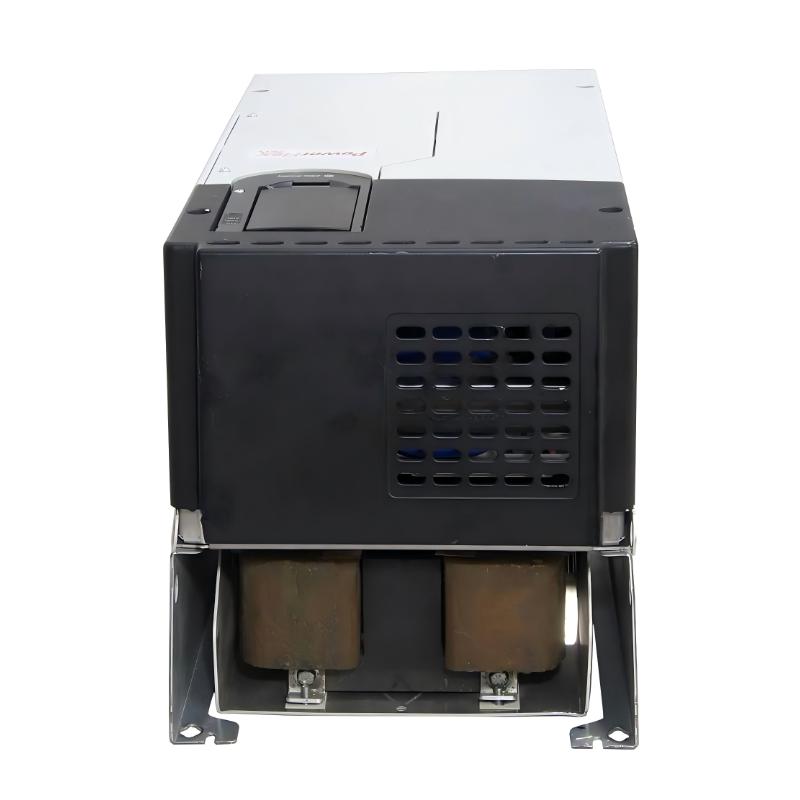

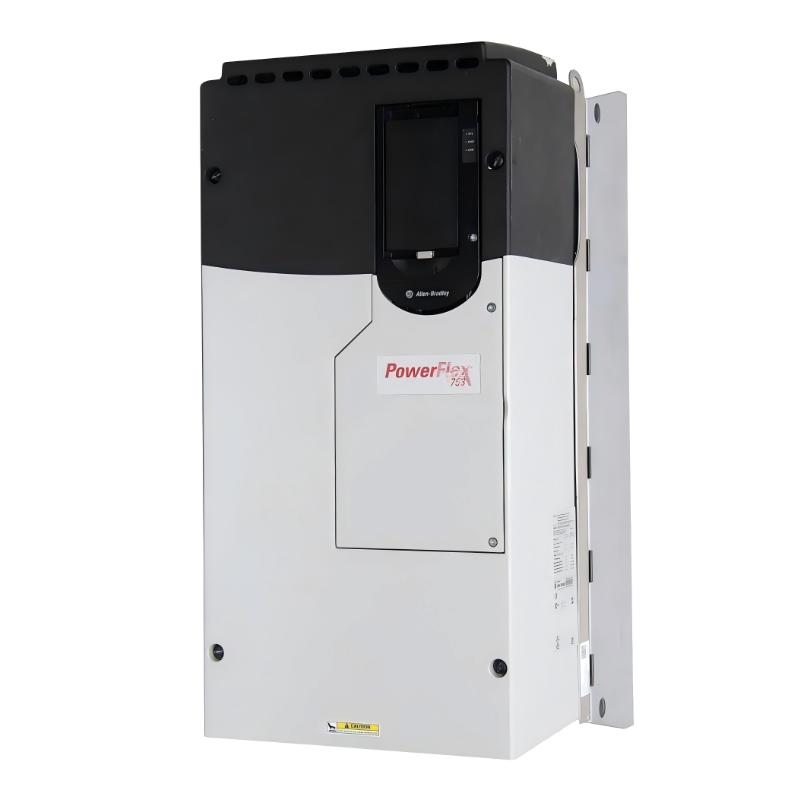

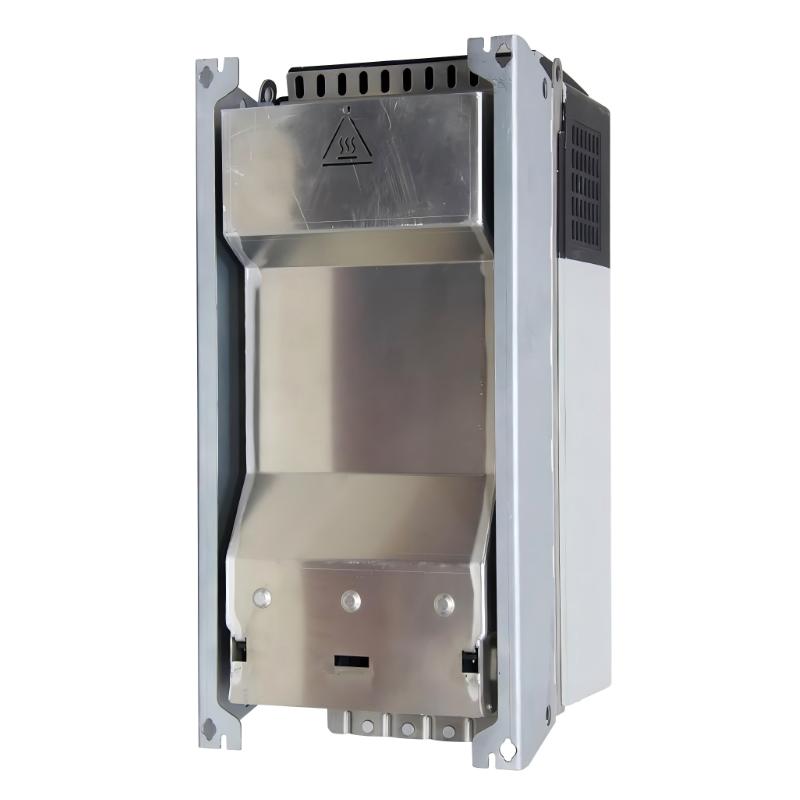

Allen Bradley 20F1ANC170JN0NNNNN PowerFlex 753 AC Drive
Allen Bradley 20F1ANC170JN0NNNNN PowerFlex 753 AC Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20F1ANC170JN0NNNNN Product Origin:USA Product Dimensions:665.5 x 308 x 346.4 mm Product Weight:38.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 20F1ANC170JN0NNNNN PowerFlex 753 AC Drive is a robust variable frequency drive designed for industrial applications requiring dependable motor control and flexible automation capabilities. This model features embedded I/O, forced-air cooling, standard protection, 400 VAC three-phase operation, and a 170 A output current configuration.
Built on the PowerFlex 753 platform, this drive provides a scalable solution for industrial equipment requiring accurate motor control, simplified system integration, and reliable long-term operation. Its modular structure allows engineers to adapt the drive configuration based on application needs while maintaining efficient installation and maintenance processes.
The 20F1ANC170JN0NNNNN is especially suitable for users looking to improve existing motor control systems or develop new automation equipment with stable performance and flexible configuration options.
Technical Specifications and Engineering Data
Parameter
Specification
Brand
Allen Bradley
Model
20F1ANC170JN0NNNNN
Product Type
PowerFlex 753 AC Drive
Drive Family
PowerFlex 750-Series
Input Voltage
400 VAC
Phase
Three Phase
Output Current
170 A
Normal Duty Rating
90 kW
Heavy Duty Rating
75 kW
Frame Size
Frame 6
Cooling Method
Forced Air Cooling
Protection Type
IP20/IP00 Open Type
Embedded I/O
Integrated
Dynamic Braking
No Internal Braking Transistor
Communication Expansion
Supported
EMC Filtering
Filtered
Mounting Type
Panel Mount
Dimensions
665.5 × 308 × 346.4 mm
Weight
38.60 kg (85.10 lb)
Recommended Related Models
Model
Product Type
20F1ANC170JA0NNNNN
PowerFlex 753 AC Drive
20F1ANC156JN0NNNNN
PowerFlex 753 AC Drive
20F1ANC205JN0NNNNN
PowerFlex 753 AC Drive
20G1ANC170JN0NNNNN
PowerFlex 755 AC Drive
20G1ANC205JN0NNNNN
PowerFlex 755 AC Drive
Popular Related Models
Model
Product Type
20F14NC205JA0NNNNN
PowerFlex 753 AC Drive
20F11NC104JA0NNNNN
PowerFlex 753 AC Drive
20F11ND034AA0NNNNN
PowerFlex 753 AC Drive
25B-D043N114
PowerFlex 525 AC Drive
1756-L83E
ControlLogix Controller
Industrial Applications and Automation Integration
The Allen Bradley 20F1ANC170JN0NNNNN PowerFlex 753 AC Drive is engineered for industrial automation applications requiring reliable motor speed control, efficient power management, and flexible system integration. Designed for medium-to-large motor applications, this AC drive provides stable performance in demanding production environments where accuracy and uptime are essential.
The drive is commonly used in manufacturing equipment, conveyor systems, material handling machines, pumps, fans, compressors, process machinery, and automated production systems. Its embedded I/O structure and modular design allow engineers to develop efficient motor control solutions while maintaining flexibility for future system expansion.
The 20F1ANC170JN0NNNNN is a practical choice for OEM machine builders, industrial system integrators, and maintenance professionals who require dependable variable frequency control with simplified commissioning and long-term operational reliability.
Advanced Advantages and Engineering Benefits
Reliable High-Performance Motor Control
The PowerFlex 753 AC Drive provides accurate speed regulation and stable motor operation, helping equipment maintain consistent performance under changing load conditions.
Flexible Industrial Automation Integration
Its modular architecture allows connection with different automation platforms and control systems, supporting customized configurations for various industrial applications.
Efficient Equipment Operation
Variable frequency control enables motors to operate according to actual process requirements, helping improve energy efficiency and reduce unnecessary mechanical stress.
Integrated I/O Functionality
Built-in I/O capability simplifies field device connections and reduces the need for additional external control components.
Enhanced System Diagnostics
Advanced monitoring and diagnostic functions help technicians identify operating conditions quickly, improving troubleshooting efficiency and reducing downtime.
Space-Efficient Industrial Design
The compact Frame 6 configuration provides strong performance while supporting practical cabinet installation for industrial control applications.
Technical FAQs
Q1: What type of applications can use the Allen Bradley 20F1ANC170JN0NNNNN PowerFlex 753 AC Drive?
A: This drive is suitable for industrial applications including conveyors, pumps, fans, compressors, production equipment, and automated machinery.
Q2: What motor control functions does this PowerFlex 753 drive support?
A: It supports adjustable frequency control with advanced speed and torque management functions for industrial AC motors.
Q3: Can the 20F1ANC170JN0NNNNN be integrated with PLC systems?
A: Yes. The drive can be connected with industrial controllers through compatible communication and automation solutions.
Q4: What is the difference between this model and other PowerFlex 753 configurations?
A: Different catalog configurations provide options such as braking functions, filtering selections, and hardware features to match specific application requirements.
Q5: How does the drive help improve machine efficiency?
A: It adjusts motor speed based on process demand, reducing unnecessary operation and improving overall system efficiency.
Q6: What commissioning steps are required after installation?
A: Engineers should configure motor parameters, verify control signals, test communication functions, and confirm operating performance before production use.
Q7: Does this model include dynamic braking capability?
A: This configuration is designed without an integrated dynamic braking transistor, making it suitable for applications that do not require internal braking functions.
Q8: How can technicians troubleshoot drive faults?
A: Troubleshooting can be performed by reviewing fault information, monitoring operating parameters, checking wiring conditions, and verifying system configuration.
Q9: What communication options are available for this drive?
A: The PowerFlex 753 platform supports optional communication modules for integration with different industrial network environments.
Q10: What maintenance practices are recommended for this AC drive?
A: Regular inspection of cooling airflow, electrical connections, parameter settings, and fault records helps maintain reliable operation.
