Brand:Schneider PLC Item No.:HMISCU6A5 Product Origin:France Product Dimensions:74.95 x 128 x 102 mm Product Weight:0.512 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Introduction and Compact HMI Control Overview

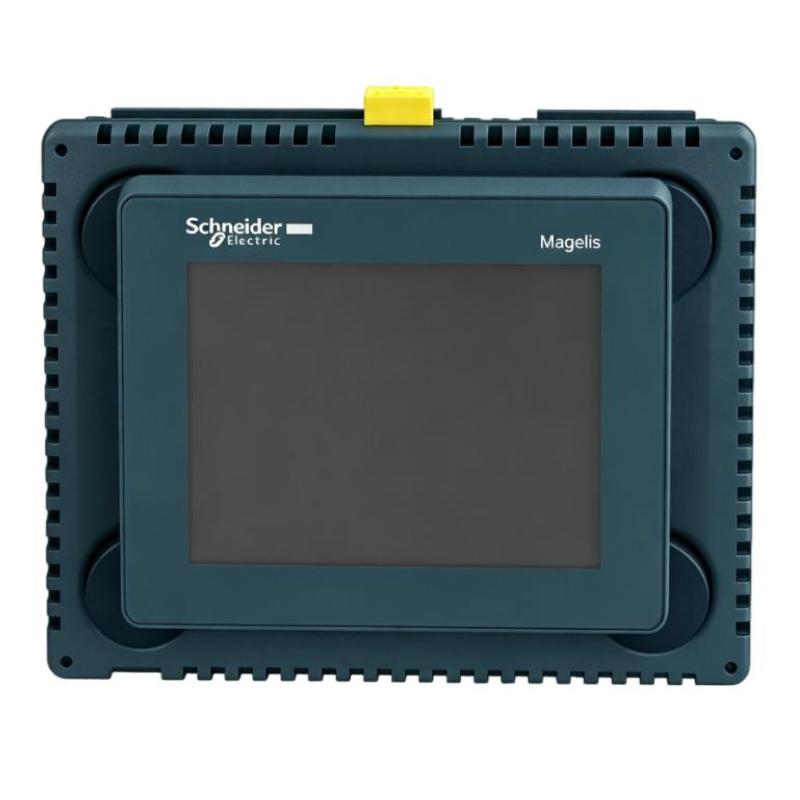

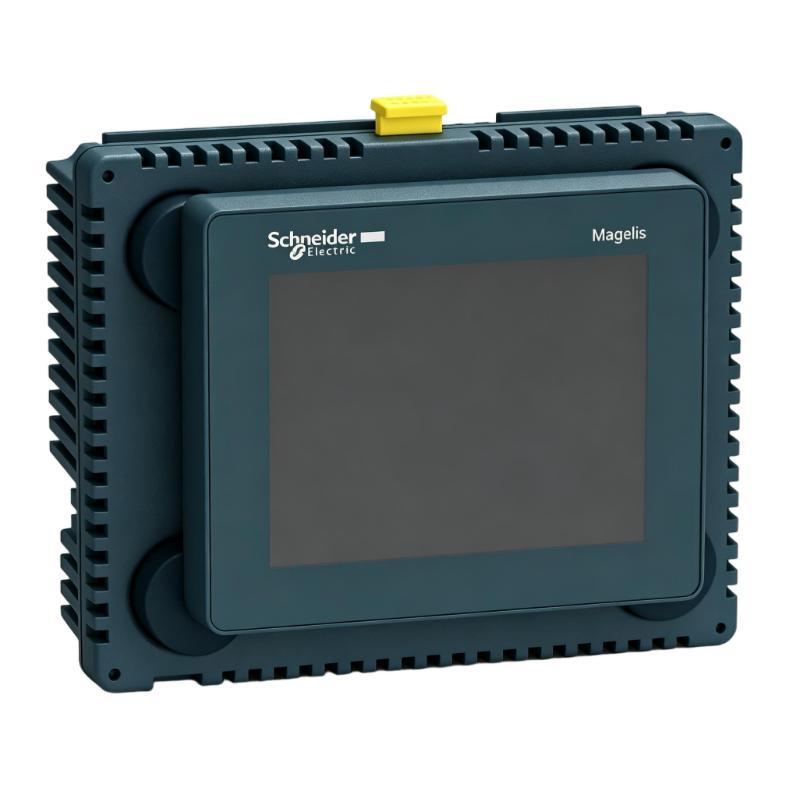

The Schneider HMISCU6A5 3.5-Inch Touch Control Panel is a compact automation interface designed to deliver efficient machine visualization and control in industrial environments. It combines touchscreen operation with embedded control capability, providing a practical solution for applications requiring reliable operator interaction and streamlined system design.
The HMISCU6A5 features a 3.5-inch color display and supports industrial automation tasks including machine status monitoring, parameter adjustment, alarm management, and process visualization. Its integrated architecture helps reduce hardware requirements while maintaining effective control performance.
For OEM manufacturers, system integrators, and industrial automation engineers, the HMISCU6A5 offers a flexible and reliable solution for building compact, efficient, and user-friendly machine control systems.
Technical Specifications and Engineering Data
Parameter
Specification
Brand
Schneider
Model
HMISCU6A5
Product Type
3.5-Inch Touch Control Panel
Product Series
Harmony SCU
Display Size
3.5 Inch
Display Type
Color TFT LCD Touch Display
Display Resolution
320 × 240 Pixels
Touch Interface
Analog Touchscreen
Processor
Integrated Controller CPU
Communication Interfaces
Ethernet, Serial, USB
Power Supply
24 VDC
Digital Inputs
16 Channels
Digital Outputs
10 Channels
Installation Type
Panel Mount
Application
Machine HMI and Control Interface
Dimensions
74.95 × 128 × 102 mm
Shipping Weight
0.51 kg (1.13 lb)
Recommended Related Models
Model
Product Type
HMISCU6B5
3.5-Inch Touch Control Panel
HMISCU8A5
5.7-Inch Touch Control Panel
HMISCU8B5
5.7-Inch Touch Control Panel
HMISTU855
Touch Panel Display
HMIGTO1300
Graphic Touch Panel
Popular Related Models
Model
Product Type
TM221CE16R
Modicon M221 PLC Controller
TM251MESE
Modicon M251 Logic Controller
BMXPRA0100
Peripheral Remote I/O Adapter Module
HMIGTO6310
Advanced Touch Panel HMI
HMIG3U2
Industrial HMI Controller
Industrial Applications and Machine Control Integration
The Schneider HMISCU6A5 3.5-Inch Touch Control Panel is a compact human-machine interface solution designed for small and medium automation systems that require efficient operator interaction, machine monitoring, and integrated control capabilities. Combining visualization functions with controller performance, this HMI provides a flexible approach for machine builders looking to optimize control cabinet space and simplify system architecture.
The HMISCU6A5 is widely used in packaging equipment, assembly machines, material handling systems, OEM machinery, and automated production lines. Its compact touchscreen interface allows operators to monitor processes, adjust parameters, manage alarms, and interact with equipment in real time.
With its integrated design and reliable industrial performance, the HMISCU6A5 helps engineers develop efficient automation solutions while improving machine usability and operational flexibility.
Key Advantages and Engineering Benefits
Integrated HMI and Controller Design
The HMISCU6A5 combines display and control functions into one compact unit, reducing the need for multiple automation components.
Compact Space-Saving Structure
Its small footprint makes it ideal for applications where control cabinet space is limited and efficient panel design is required.
User-Friendly Touch Operation
The color touchscreen interface provides intuitive operation, allowing users to access machine information and adjust system settings easily.
Flexible Automation Communication
The panel supports connection with various industrial devices, enabling efficient data exchange between HMI systems and automation equipment.
Enhanced Machine Visualization
Clear graphical displays improve process monitoring, alarm management, and operator decision-making.
Efficient Commissioning and Maintenance
Integrated control features simplify system setup, troubleshooting, and daily machine operation.
Technical FAQs
Q1: What is the main function of the Schneider HMISCU6A5?
A: The HMISCU6A5 provides operator visualization, machine control, and automation monitoring functions through an integrated touchscreen interface.
Q2: What applications are suitable for the HMISCU6A5?
A: It is suitable for compact machines, OEM equipment, packaging systems, and industrial automation applications.
Q3: Does the HMISCU6A5 include controller functionality?
A: Yes. It integrates HMI operation with controller functions for compact automation solutions.
Q4: What communication methods are supported by this touch panel?
A: The device supports industrial communication interfaces for connection with PLCs, drives, and automation devices.
Q5: How can communication faults be diagnosed on the HMISCU6A5?
A: Check communication parameters, cable connections, network settings, device status, and controller configuration.
Q6: What software is used to configure the HMISCU6A5?
A: The panel is configured through Schneider Electric automation programming and HMI configuration software.
Q7: Can the HMISCU6A5 be used in machine modernization projects?
A: Yes. It can replace traditional operator interfaces and provide improved visualization and control capabilities.
Q8: What should be checked if the touchscreen operation becomes abnormal?
A: Verify power supply stability, configuration settings, touch calibration, and hardware operating conditions.
Q9: How does an integrated HMI improve machine efficiency?
A: It provides faster access to operating data, alarms, and control parameters, helping operators respond quickly.
Q10: What maintenance practices are recommended for the HMISCU6A5?
A: Regular inspection of connections, software settings, operating environment, and system diagnostics is recommended.
