Brand:Schneider PLC Item No.:VW3M3308 Product Origin:France Product Dimensions:89 x 41 x 61 mm Product Weight:0.45 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Introduction and PROFINET Communication Overview

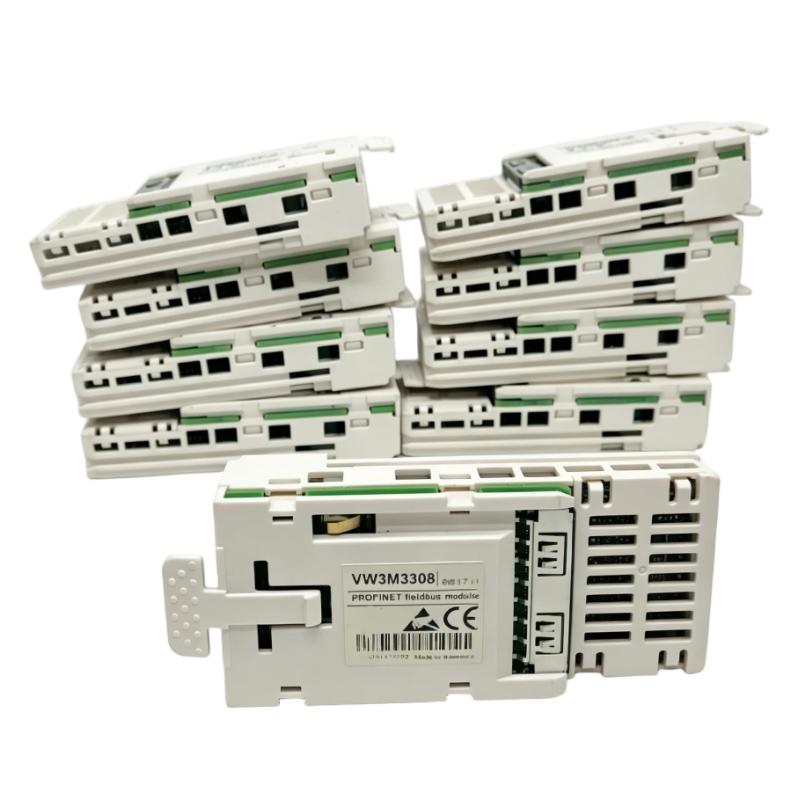

The Schneider VW3M3308 Fieldbus Module is a dedicated communication accessory designed for Lexium 32M servo drive applications. It provides a reliable PROFINET interface that enables servo systems to connect with industrial automation controllers and network architectures.

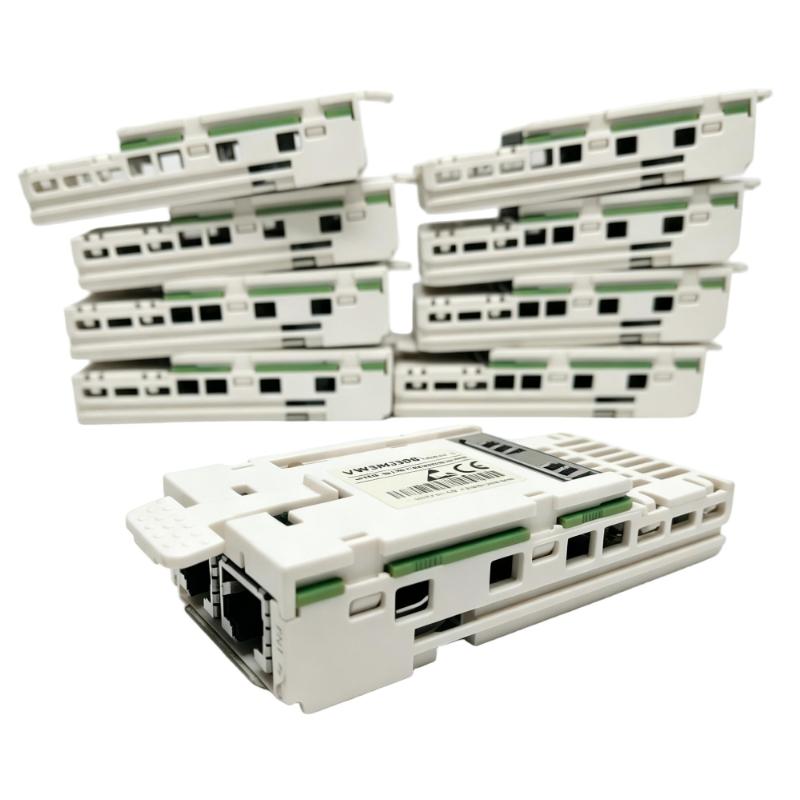

Featuring dual RJ45 connectors and high-speed communication capability, the VW3M3308 helps engineers build efficient motion control systems with improved connectivity and easier network management. Its compact design makes it suitable for applications where reliable communication and space optimization are important.
For OEM manufacturers and industrial automation professionals, the VW3M3308 provides a flexible solution for integrating servo drives into modern industrial Ethernet environments.
Technical Specifications and Engineering Data
Parameter
Specification
Brand
Schneider
Model
VW3M3308
Product Type
Fieldbus Module
Communication Type
PROFINET Communication Module
Compatible Product Series
Lexium 32M Servo Drive
Communication Protocol
PROFINET
Transmission Rate
10 Mbit/s and 100 Mbit/s
Network Connection
Dual RJ45 Connectors
Address Capacity
256 Addresses
Status Indicators
4 Communication LEDs
Installation Type
Servo Drive Communication Expansion
Dimensions
89 × 41 × 61 mm
Shipping Weight
0.45 kg (0.99 lb)
Recommended Related Models
Model
Product Type
VW3M3308
PROFINET Fieldbus Module
VW3M3309
EtherNet/IP Fieldbus Module
VW3M3102
DeviceNet Communication Module
LXM32M
Lexium 32M Servo Drive
LXM32AD18N4
Lexium 32 Servo Drive
Popular Related Models
Model
Product Type
VW3A3616
Ethernet Communication Module
VW3A3627
PROFINET Communication Module
ATV320 Communication Modules
Variable Speed Drive Communication Accessories
TM251MESE
Modicon M251 Logic Controller
BMXNOC0401
Ethernet Communication Module
Industrial Applications and Motion Control Integration
The Schneider VW3M3308 Fieldbus Module is a high-performance communication interface designed for Lexium 32M servo drive systems requiring fast and reliable industrial network connectivity. This communication module enables servo drives to communicate with automation controllers through PROFINET networks, providing an efficient solution for advanced motion control applications.
The VW3M3308 is widely used in packaging machinery, robotics, CNC equipment, assembly lines, material handling systems, and automated production environments where precise motion coordination and stable data exchange are essential.
With its compact design and reliable network communication capability, the VW3M3308 helps machine builders and system integrators improve servo system flexibility, simplify network architecture, and achieve efficient motion control performance.
Key Advantages and Engineering Benefits
High-Speed PROFINET Communication
The VW3M3308 provides fast industrial network communication, enabling efficient data exchange between Lexium servo drives and automation controllers.
Enhanced Motion System Integration
The module allows Lexium 32M servo drives to be integrated into modern automation architectures for coordinated motion applications.
Dual RJ45 Network Interface Design
The integrated dual-port connection simplifies network installation and supports flexible industrial communication layouts.
Compact Installation Structure
The small form factor allows easy integration into servo drive systems without requiring additional cabinet space.
Reliable Real-Time Data Exchange
The module supports stable communication for applications requiring accurate positioning, speed control, and synchronized motion.
Improved Machine Performance
By connecting servo systems with industrial networks, the VW3M3308 helps optimize machine control efficiency and operational flexibility.
Technical FAQs
Q1: What is the main function of the Schneider VW3M3308 module?
A: The VW3M3308 is a PROFINET communication module used to connect Lexium 32M servo drives with industrial automation networks.
Q2: Which servo drive series is compatible with the VW3M3308?
A: The module is designed for use with Schneider Lexium 32M servo drive systems.
Q3: What communication protocol does the VW3M3308 support?
A: The module supports PROFINET industrial communication protocol.
Q4: How does the VW3M3308 improve motion control applications?
A: It enables faster communication between servo drives and controllers, improving synchronization and system response.
Q5: What should be checked if network communication fails?
A: Technicians should inspect network cables, communication settings, device configuration, and controller parameters.
Q6: Can the VW3M3308 be used in multi-axis motion systems?
A: Yes. It supports industrial motion applications requiring multiple servo drives and coordinated control.
Q7: What maintenance practices are recommended for this communication module?
A: Regular inspection of connectors, communication status indicators, and network configuration is recommended.
Q8: How can engineers troubleshoot PROFINET connection issues?
A: Check IP configuration, network topology, device recognition, and communication parameters.
Q9: What advantages does fieldbus integration provide for servo systems?
A: It improves system flexibility, reduces wiring complexity, and enables centralized motion management.
Q10: Can the VW3M3308 support automation system upgrades?
A: Yes. It provides a practical communication expansion solution for compatible Lexium motion systems.
