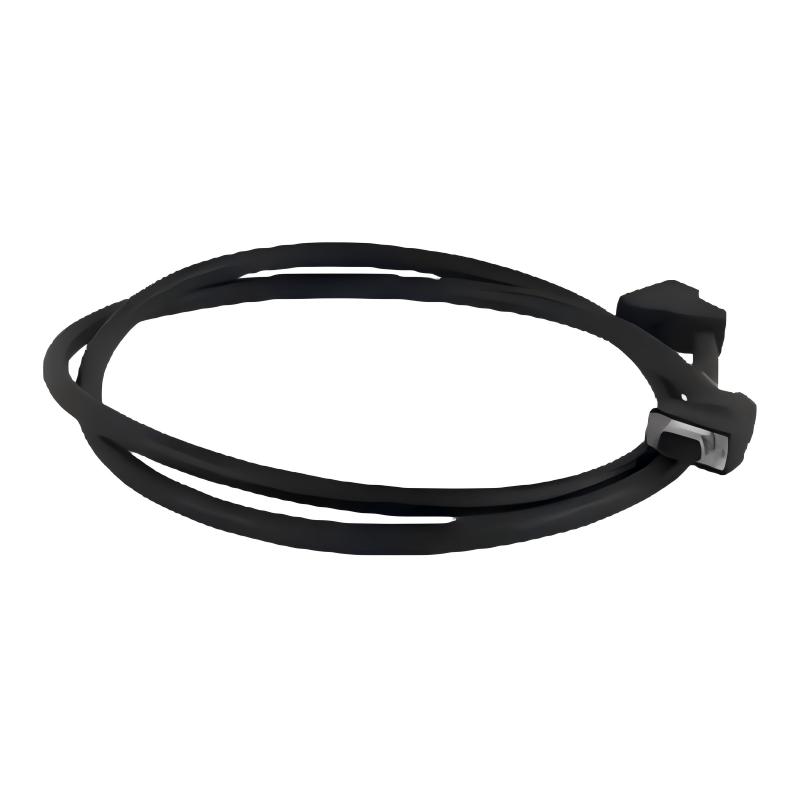

Schneider BMXXBC015K Backplate Extension Cable

Industrial Applications and PLC Rack Expansion Integration

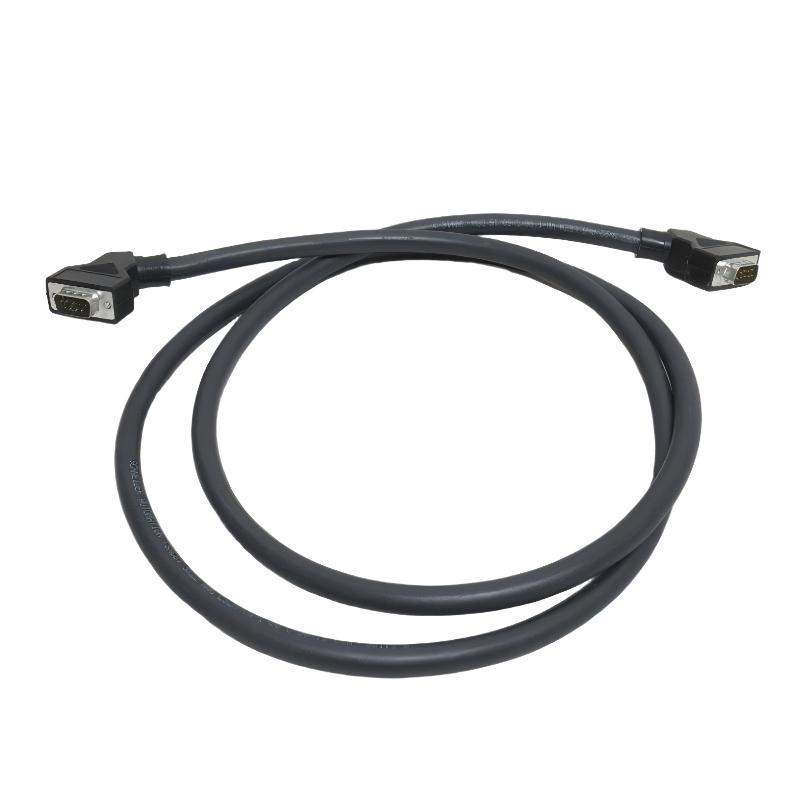

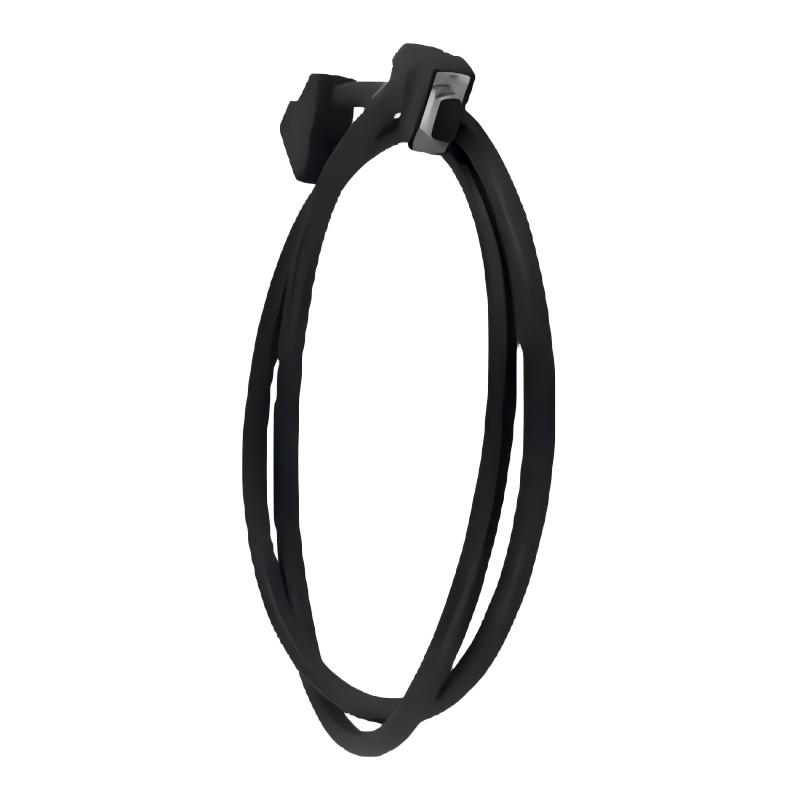

The Schneider BMXXBC015K Backplane Extension Cable is a dedicated connection accessory designed for Modicon M340 PLC systems. It provides reliable rack extension capability, allowing automation engineers to separate PLC racks within control cabinets while maintaining stable communication between system components.

The BMXXBC015K is widely used in industrial automation equipment, manufacturing systems, process control applications, energy management projects, and large-scale machine control installations where flexible PLC cabinet layouts are required.

With a 1.5-meter cable length, this extension cable helps optimize cabinet design, simplify system installation, and support scalable automation architectures. It provides an efficient solution for applications requiring additional space between PLC racks without compromising system reliability.

Key Advantages and Engineering Benefits

Flexible Rack Layout Design
The BMXXBC015K allows PLC racks to be positioned separately, providing greater flexibility during control cabinet planning and installation.

Reliable Backplane Communication Extension
The cable maintains stable signal transmission between connected racks, supporting dependable PLC system operation.

Simplified Automation System Expansion
By enabling rack separation, the cable helps engineers expand existing PLC systems without major cabinet redesign.

Efficient Cabinet Space Management
The extension capability allows better organization of PLC components, improving accessibility and maintenance convenience.

Industrial-Grade Connection Reliability
The cable is designed for continuous operation in industrial automation environments requiring stable communication performance.

Easy Installation and Maintenance
The dedicated connection design simplifies installation procedures and reduces wiring complexity during system integration.

Technical FAQs

Q1: What is the main function of the Schneider BMXXBC015K?
A: The BMXXBC015K is a backplane extension cable used to connect separated PLC racks in Modicon M340 systems.

Q2: Which automation platform is compatible with the BMXXBC015K?
A: It is designed for Schneider Modicon M340 PLC architectures.

Q3: Why are backplane extension cables used in PLC systems?
A: They allow PLC racks to be installed at different positions while maintaining communication between system modules.

Q4: What should engineers check if rack communication fails?
A: Check cable connections, connector conditions, rack configuration, module status, and PLC diagnostics.

Q5: Can the BMXXBC015K support distributed cabinet designs?
A: Yes. It is suitable for applications requiring PLC racks to be installed in separated cabinet locations.

Q6: How does the extension cable improve PLC installation flexibility?
A: It allows engineers to optimize cabinet layouts and place PLC components according to space requirements.

Q7: What factors can affect backplane communication reliability?
A: Incorrect installation, damaged connectors, poor connections, and improper rack configuration may affect communication performance.

Q8: Can the BMXXBC015K be used for PLC system expansion projects?
A: Yes. It supports expanded Modicon M340 rack configurations when additional space or separation is required.

Q9: How should technicians troubleshoot extension cable faults?
A: Inspect physical connections, verify rack settings, check system diagnostics, and confirm cable integrity.

Q10: What maintenance practices are recommended for PLC extension cables?
A: Regular inspection of cable condition, connectors, installation stability, and communication performance is recommended.
