Brand:Schneider PLC Item No.:BMXXBC050K Product Origin:France Product Dimensions:Cable Length: 5 meters Product Weight:Shipping Weight: 3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Introduction and Modicon M340 Rack Extension Overview

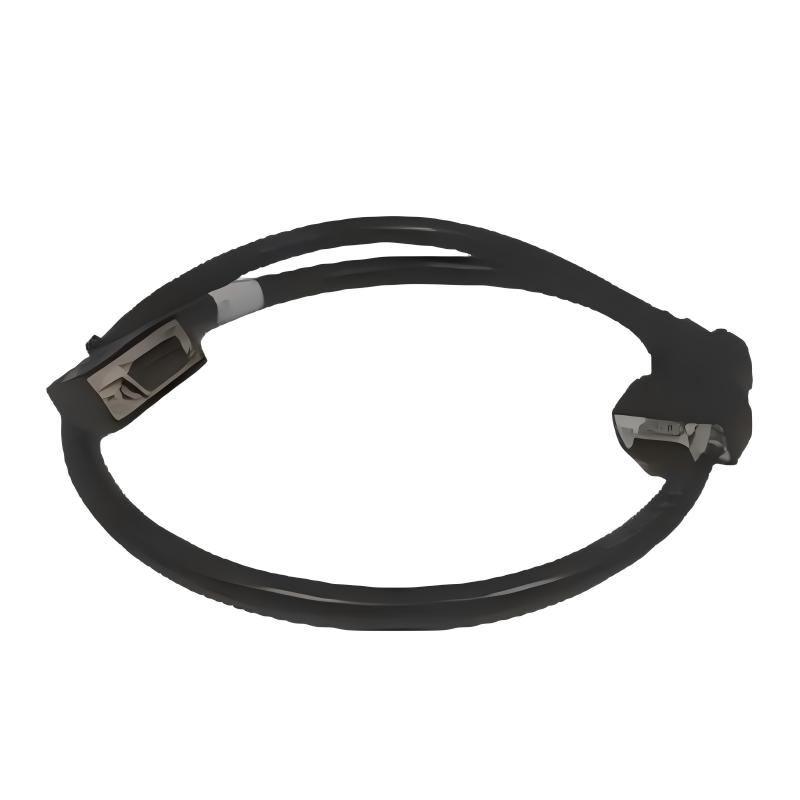

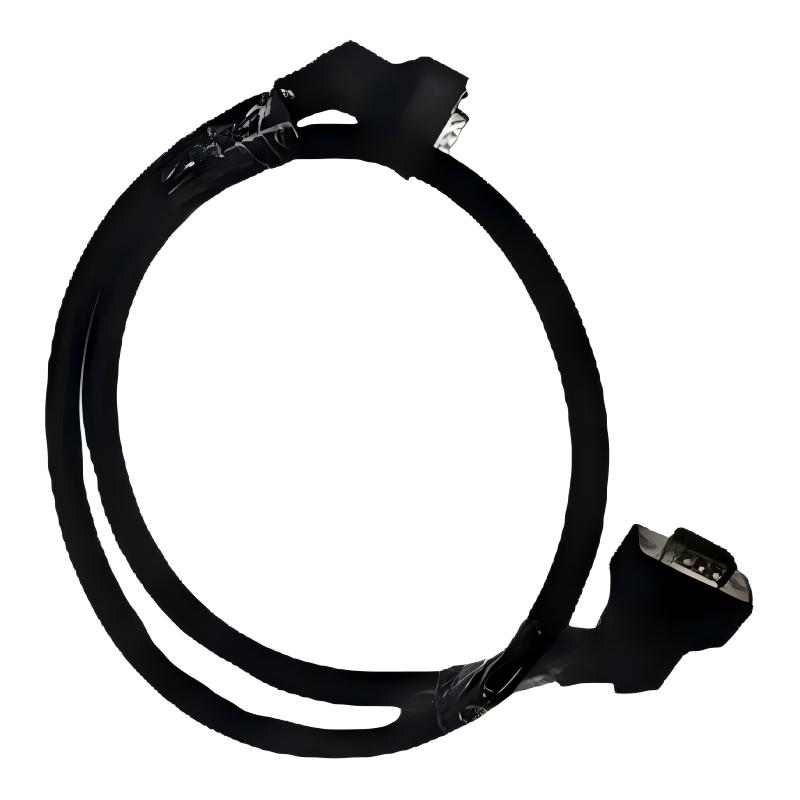

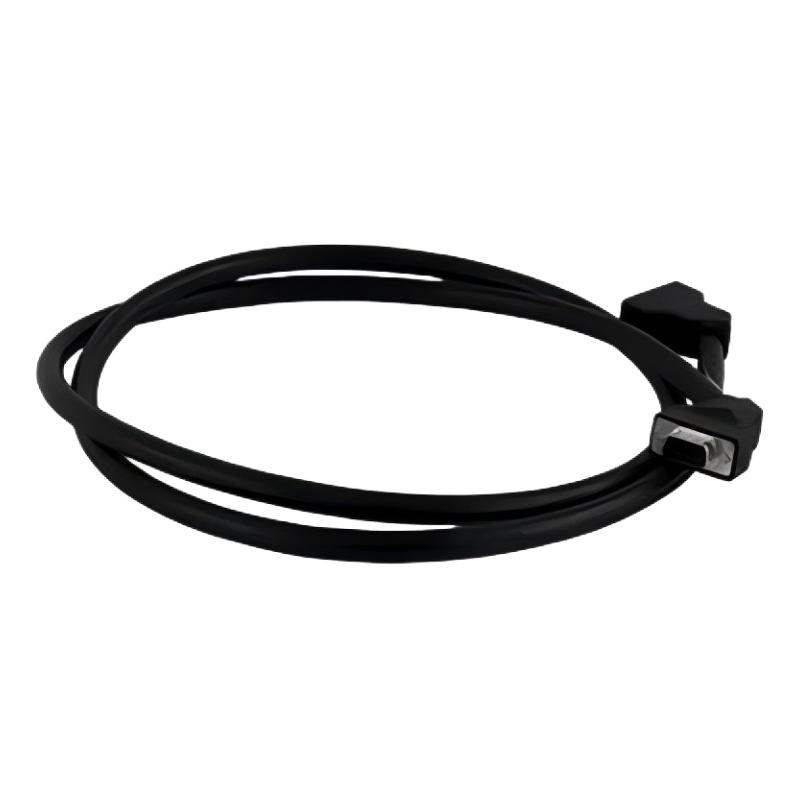

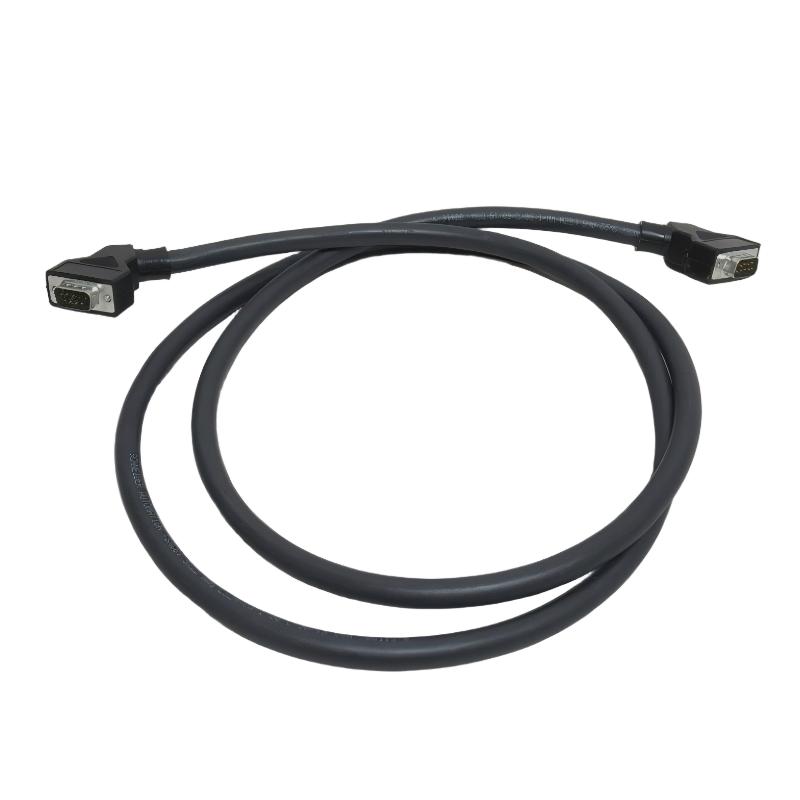

The Schneider BMXXBC050K Backplane Extension Cable is an essential accessory for expanding Modicon M340 PLC system configurations. It provides a reliable connection between separated racks, enabling automation engineers to design flexible control architectures for complex industrial applications.
In modern automation systems, PLC components may need to be distributed due to cabinet space limitations, machine design requirements, or maintenance considerations. The BMXXBC050K provides a practical solution by extending the rack connection distance while maintaining reliable system communication.
For machine builders, automation engineers, and system integrators, this 5-meter extension cable delivers improved installation flexibility, efficient system planning, and dependable long-term operation.
Technical Specifications and Engineering Data
Parameter
Specification
Brand
Schneider
Model
BMXXBC050K
Product Type
Backplane Extension Cable
Product Series
Modicon M340
Application
PLC Rack Expansion Connection
Cable Length
5 meters
Connection Function
Backplane Communication Extension
Connector Type
SUB-D 9 Male Connectors
Compatible System
Modicon M340 Automation Platform
Installation Type
PLC Rack Connection Accessory
Shipping Weight
3.00 kg (6.61 lb)
Recommended Related Models
Model
Product Type
BMXXBC015K
Backplane Extension Cable
BMXXBC030K
Backplane Extension Cable
BMXXBE1001
Rack Extension Module
BMXXBE1003
Rack Extension Module
BMXP342020H
Modicon M340 Processor Module
Popular Related Models
Model
Product Type
BMXP3420302H
Modicon M340 Processor Module
BMXCPS2000
Modicon X80 Power Supply Module
BMXPRA0100
Peripheral Remote I/O Adapter Module
BMXNOE0100
Ethernet Communication Module
BMXNOC0401
Ethernet Network Communication Module
Industrial Applications and PLC Rack Expansion Integration
The Schneider BMXXBC050K Backplane Extension Cable is a specialized connection accessory designed for Modicon M340 PLC rack expansion applications. It provides an extended connection distance between PLC racks, allowing engineers to create flexible automation cabinet layouts while maintaining stable communication between rack components.
The BMXXBC050K is widely used in large-scale machine automation, manufacturing systems, process control applications, infrastructure projects, and industrial installations where PLC hardware needs to be distributed across different cabinet sections.
With a 5-meter cable length, this extension cable provides additional flexibility for complex automation system designs. It helps optimize equipment layouts, improve cabinet organization, and support scalable PLC architectures in demanding industrial environments.
Key Advantages and Engineering Benefits
Long-Distance Rack Expansion Capability
The BMXXBC050K allows PLC racks to be positioned farther apart, providing greater flexibility for large automation system installations.
Reliable Backplane Signal Transmission
The cable maintains stable communication between connected racks, ensuring dependable data exchange within the PLC architecture.
Improved Control Cabinet Design Flexibility
The extended cable length allows engineers to separate PLC components according to machine structure and installation requirements.
Simplified System Expansion
The BMXXBC050K provides an efficient solution for expanding Modicon M340 systems without requiring major cabinet modifications.
Enhanced Maintenance Accessibility
Separated rack installation can improve access to PLC components, making inspection and maintenance operations easier.
Industrial Automation Reliability
Designed for continuous industrial operation, the cable supports stable performance in automation environments requiring dependable connections.
Technical FAQs
Q1: What is the primary function of the Schneider BMXXBC050K?
A: The BMXXBC050K is a backplane extension cable used to connect separated PLC racks in Modicon M340 automation systems.
Q2: Which PLC platform is compatible with the BMXXBC050K?
A: It is designed for Schneider Modicon M340 automation platform rack expansion applications.
Q3: Why are extended backplane cables required in PLC systems?
A: They allow PLC racks to be installed at different locations while maintaining communication between system modules.
Q4: What should technicians check when rack communication fails?
A: Check cable connections, rack configuration, connector conditions, module status, and PLC diagnostic information.
Q5: Can the BMXXBC050K be used for large industrial automation projects?
A: Yes. It is suitable for applications requiring separated PLC racks and expanded system layouts.
Q6: How does the BMXXBC050K improve PLC cabinet design?
A: It provides greater flexibility by allowing engineers to arrange PLC components according to available installation space.
Q7: What factors may influence backplane extension performance?
A: Incorrect installation, damaged connectors, poor cable routing, and improper rack configuration may affect communication reliability.
Q8: Can the BMXXBC050K support future PLC system expansion?
A: Yes. It helps create flexible rack structures for larger Modicon automation systems.
Q9: How can engineers troubleshoot an extension cable connection fault?
A: Inspect cable integrity, verify rack settings, check connector installation, and review PLC diagnostics.
Q10: What maintenance practices are recommended for the BMXXBC050K?
A: Regular inspection of cable condition, connectors, mounting stability, and communication performance is recommended.
