Product Introduction and Modicon M340 Rack Extension Overview

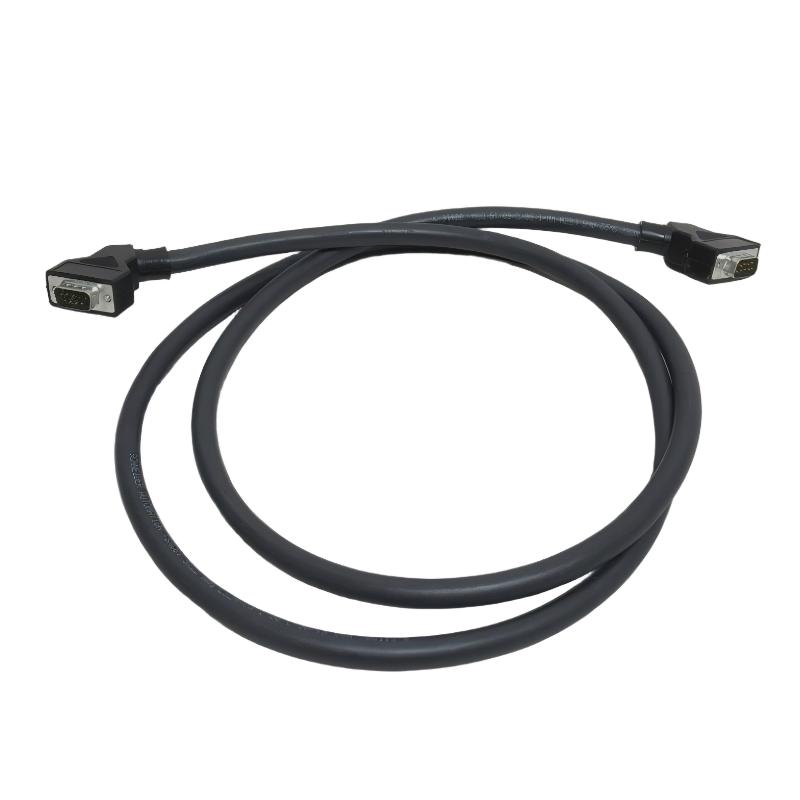

The Schneider BMXXBC120K Backplane Extension Cable is an essential accessory for Modicon M340 PLC system expansion. It provides a reliable connection solution for applications where PLC racks need to be installed at extended distances from each other.
In modern industrial automation environments, control cabinets and machine structures often require flexible hardware placement. The BMXXBC120K helps engineers overcome installation limitations by providing a longer connection distance while maintaining stable communication between PLC racks.
For automation engineers, machine builders, and system integrators, this 12-meter extension cable delivers improved installation flexibility, efficient cabinet organization, and dependable operation for advanced PLC architectures.
Technical Specifications and Engineering Data
Parameter
Specification
Brand
Schneider
Model
BMXXBC120K
Product Type
Backplane Extension Cable
Product Series
Modicon M340
Application
PLC Rack Expansion Connection
Cable Length
12 meters
Connection Function
Backplane Communication Extension
Communication Type
Local Bus Signal Extension
Compatible System
Modicon M340 Automation Platform
Installation Type
PLC Rack Connection Accessory
Shipping Weight
3.00 kg (6.61 lb)
Recommended Related Models
Model
Product Type
BMXXBC015K
Backplane Extension Cable
BMXXBC030K
Backplane Extension Cable
BMXXBC050K
Backplane Extension Cable
BMXXBE1004
Rack Extension Module
BMXP342020H
Modicon M340 Processor Module
Popular Related Models
Model
Product Type
BMXP3420302H
Modicon M340 Processor Module
BMXCPS2000
Modicon X80 Power Supply Module
BMXPRA0100
Peripheral Remote I/O Adapter Module
BMXNOE0100
Ethernet Communication Module
BMXNOC0401
Ethernet Network Communication Module
Industrial Applications and PLC Rack Expansion Integration
The Schneider BMXXBC120K Backplane Extension Cable is a dedicated connection accessory designed for Modicon M340 PLC automation systems. It provides a long-distance connection between PLC racks, allowing engineers to create flexible control architectures where rack separation is required due to cabinet layout, machine structure, or installation constraints.
The BMXXBC120K is widely used in large industrial automation systems, manufacturing equipment, process control applications, infrastructure projects, and distributed control installations. It enables PLC components to be positioned in different locations while maintaining reliable communication between connected racks.
With a 12-meter cable length, this extension cable provides enhanced installation flexibility for complex automation projects. It helps optimize control cabinet design, simplify system expansion, and support scalable Modicon M340 configurations.
Key Advantages and Engineering Benefits
Long-Distance Rack Connection Capability
The BMXXBC120K allows PLC racks to be installed with greater physical separation, providing more flexibility for large automation system layouts.
Reliable Backplane Communication Extension
The cable maintains stable local bus communication between connected racks, supporting dependable PLC system performance.
Flexible Cabinet Design Solution
The extended cable length enables engineers to arrange automation components according to machine structure and available installation space.
Simplified PLC System Expansion
The BMXXBC120K provides an efficient method for expanding Modicon M340 architectures without major cabinet redesign.
Improved Equipment Accessibility
Separated rack installation can improve access to PLC modules, making maintenance and inspection procedures more convenient.
Industrial Automation Reliability
Designed for continuous industrial operation, the cable supports stable communication performance in demanding automation environments.
