Brand:Schneider PLC Item No.:TWDAMI4LT Product Origin:France Product Dimensions:250 x 102 x 76 mm Product Weight:0.085 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Introduction and Twido Analog Expansion Overview

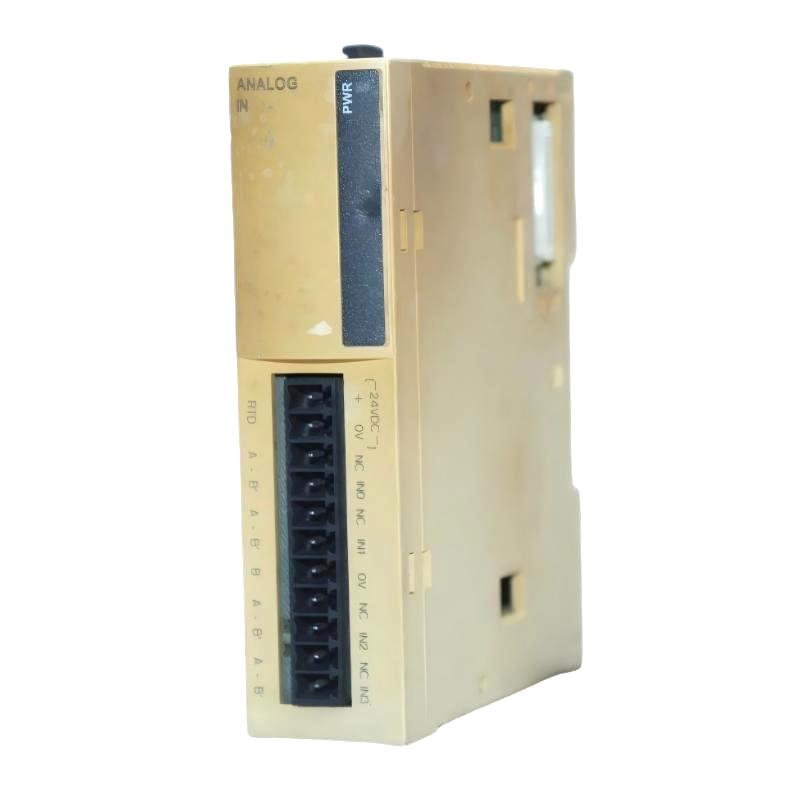

The Schneider TWDAMI4LT Analog Input Module is designed to extend the measurement capabilities of Twido PLC systems. It provides a reliable interface between field sensors and PLC controllers, allowing automation systems to monitor and control real-world industrial processes.
In modern automation applications, accurate analog data acquisition is essential for maintaining production quality and improving equipment efficiency. The TWDAMI4LT enables engineers to integrate additional measurement functions into compact PLC systems while maintaining reliable operation.
For machine builders and automation professionals, this analog input module offers a practical solution for improving monitoring capability, enhancing process control, and expanding Twido PLC applications.
Technical Specifications and Engineering Data
Parameter
Specification
Brand
Schneider
Model
TWDAMI4LT
Product Type
Analog Input Module
Product Series
Twido
Application
PLC Analog Signal Acquisition
Number of Analog Inputs
4 Channels
Input Type
Voltage / Current / Temperature Signal
Signal Processing
Analog-to-Digital Conversion
Installation Type
PLC Expansion Module
Compatible System
Twido Automation Platform
Dimensions
250 × 102 × 76 mm
Shipping Weight
0.09 kg (0.20 lb)
Recommended Related Models
Model
Product Type
TWDAMI2HT
Analog Input Module
TWDAMO1HT
Analog Output Module
TWDAMM3HT
Analog Mixed I/O Module
TWDDDI8DT
Digital Input Module
TWDDDO8TT
Digital Output Module
Popular Related Models
Model
Product Type
TWDLCAA24DRF
Twido Compact PLC Controller
TWDLCAE40DRF
Twido Ethernet PLC Controller
TWDLMDA20DTK
Twido Modular PLC Controller
TM221CE24T
Modicon M221 PLC Controller
TM221ME16R
Modicon M221 PLC Controller
Industrial Applications and Analog Signal Processing Integration
The Schneider TWDAMI4LT Analog Input Module is an expansion module designed for Twido PLC automation systems, providing reliable analog signal acquisition for industrial control and monitoring applications. It allows PLC controllers to collect real-world signals from sensors, transmitters, and measurement devices, improving process visibility and control accuracy.
The TWDAMI4LT is commonly used in machine automation, environmental monitoring, packaging systems, water treatment equipment, HVAC applications, and industrial process control systems. By converting analog field signals into digital values that can be processed by PLC programs, the module helps engineers achieve more precise automation management.
With its compact design and flexible signal input capability, the TWDAMI4LT provides an effective solution for expanding PLC measurement functions in applications requiring accurate analog data collection.
Key Advantages and Engineering Benefits
Flexible Analog Signal Acquisition
The TWDAMI4LT supports industrial analog measurement applications, enabling PLC systems to monitor different types of field signals.
Improved Process Monitoring Accuracy
The module provides stable signal conversion, helping automation systems achieve reliable measurement and control performance.
Easy PLC System Expansion
As an expansion module for Twido controllers, it allows engineers to add analog input capability without redesigning the complete control system.
Wide Industrial Application Range
The module can be applied in machinery, process equipment, temperature monitoring, and production automation systems.
Compact Installation Design
Its optimized structure allows convenient integration into control panels and PLC configurations with limited space.
Reliable Industrial Operation
The module provides stable performance for continuous automation applications requiring dependable analog data processing.
Technical FAQs
Q1: What is the main function of the Schneider TWDAMI4LT module?
A: The TWDAMI4LT is an analog input module used to collect and process analog signals in Twido PLC systems.
Q2: How many analog input channels does the TWDAMI4LT provide?
A: The module provides four analog input channels for industrial signal measurement.
Q3: What types of signals can be connected to the TWDAMI4LT?
A: It can process common industrial analog signals such as voltage, current, and temperature measurement signals.
Q4: How should engineers troubleshoot incorrect analog readings?
A: Check sensor wiring, input configuration, signal scaling, grounding conditions, and PLC program settings.
Q5: What applications are suitable for the TWDAMI4LT?
A: It is suitable for machine control, temperature monitoring, process automation, and industrial measurement applications.
Q6: How does the module improve PLC functionality?
A: It expands PLC capability by allowing the controller to process analog field information.
Q7: What causes unstable analog signal values?
A: Common causes include electrical interference, poor wiring, incorrect configuration, and unstable sensor output.
Q8: Can the TWDAMI4LT be integrated into existing Twido systems?
A: Yes. It can be added to compatible Twido PLC configurations as an analog expansion module.
Q9: What should be checked before replacing the module?
A: Verify system compatibility, save PLC configuration data, disconnect power, and confirm wiring requirements.
Q10: What maintenance practices are recommended for analog input modules?
A: Regular inspection of terminal connections, signal cables, sensor conditions, and PLC diagnostics is recommended.
