Brand:Schneider PLC Item No.:TWDAMI8HT Product Origin:France Product Dimensions:235 x 90 x 70 mm Product Weight:0.085 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Introduction and Twido Analog Expansion Overview

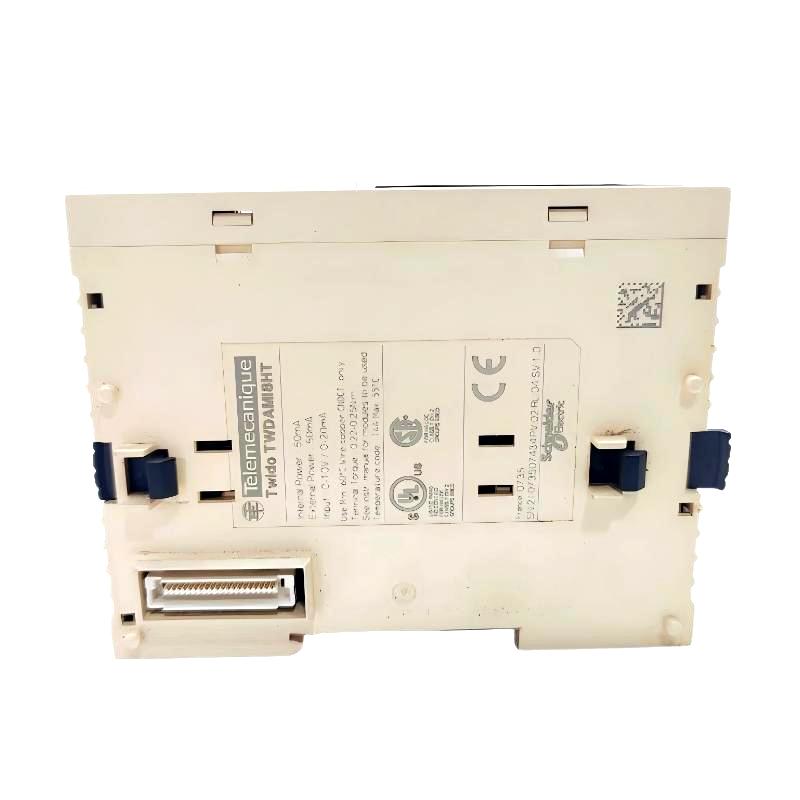

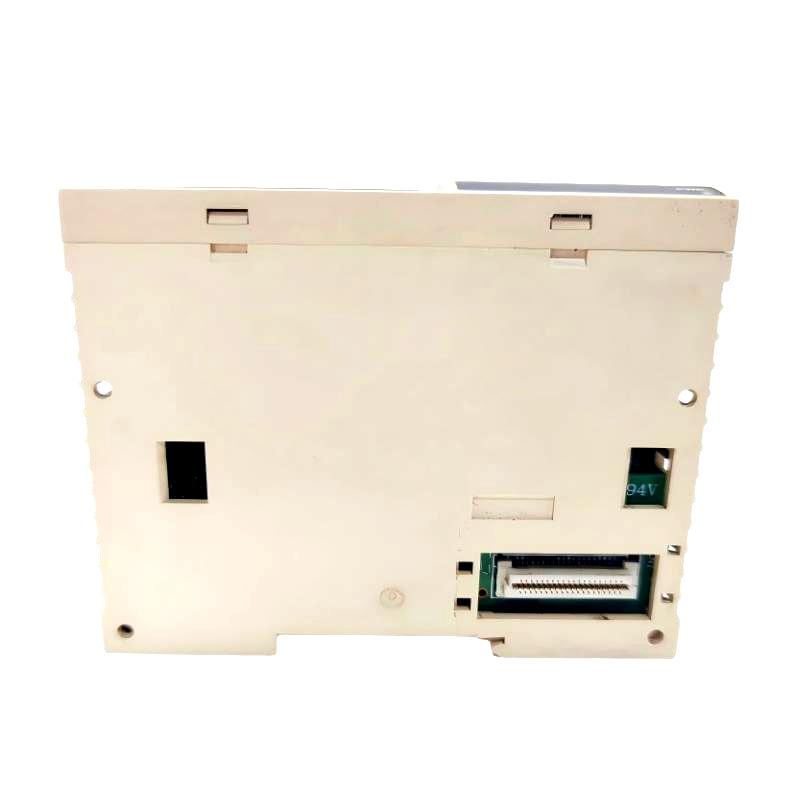

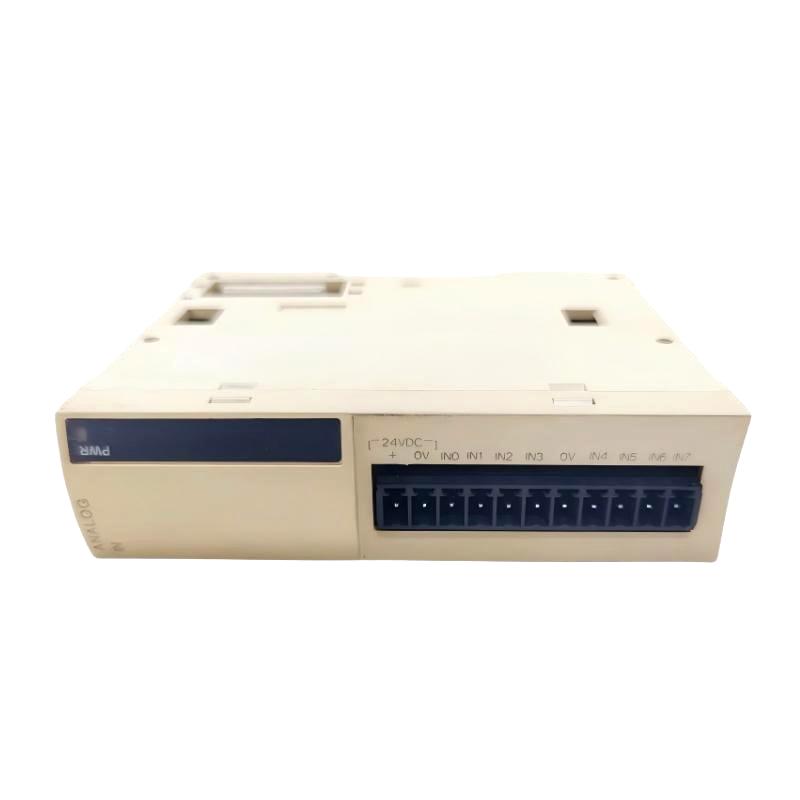

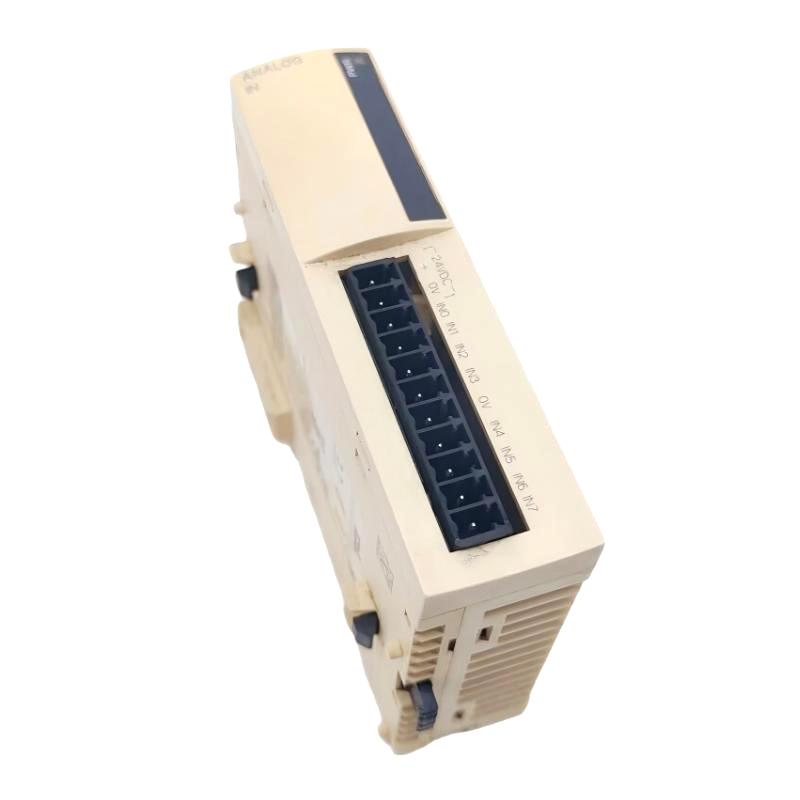

The Schneider TWDAMI8HT I/O Expansion Module is designed to enhance the analog processing capability of Twido PLC systems. It provides additional input channels for collecting industrial measurement signals and transferring this information into PLC control programs.
In modern automation applications, accurate analog data acquisition plays an important role in improving process control and equipment performance. The TWDAMI8HT provides engineers with a practical method to integrate additional sensors and measurement devices into compact PLC-based control systems.
For machine builders and automation professionals, this module delivers reliable signal acquisition, flexible system expansion, and improved monitoring capability for industrial applications.
Technical Specifications and Engineering Data
Parameter
Specification
Brand
Schneider
Model
TWDAMI8HT
Product Type
I/O Expansion Module
Product Series
Twido
Application
Analog Signal Acquisition
Number of Analog Inputs
8 Channels
Input Type
Voltage / Current Analog Input
Signal Processing
Analog-to-Digital Conversion
Installation Type
PLC Expansion Module
Compatible System
Twido Automation Platform
Dimensions
235 × 90 × 70 mm
Shipping Weight
0.09 kg (0.20 lb)
Recommended Related Models
Model
Product Type
TWDAMI4LT
Analog Input Module
TWDAMO1HT
Analog Output Module
TWDAMM3HT
Analog Mixed I/O Module
TWDNOI10M3
Communication Interface Module
TWDNAC485D
Modbus Communication Module
Popular Related Models
Model
Product Type
TWDLCAA24DRF
Twido Compact PLC Controller
TWDLCAE40DRF
Twido Ethernet PLC Controller
TWDLMDA20DTK
Twido Modular PLC Controller
TM221CE24T
Modicon M221 PLC Controller
TM221ME16R
Modicon M221 PLC Controller
Industrial Applications and Analog Signal Acquisition Integration
The Schneider TWDAMI8HT I/O Expansion Module is an analog expansion module designed for Twido PLC automation systems, providing additional analog input capability for industrial measurement and monitoring applications. It enables PLC controllers to receive and process field signals from sensors, transmitters, and measurement instruments for improved automation control.
The TWDAMI8HT is widely used in machine automation, production equipment, process monitoring, temperature control systems, packaging machinery, and industrial control applications where multiple analog signals are required.
With its multi-channel design and compact structure, the TWDAMI8HT helps engineers expand Twido PLC functionality while maintaining efficient system integration and reliable signal acquisition performance.
Key Advantages and Engineering Benefits
Multi-Channel Analog Input Expansion
The TWDAMI8HT provides multiple analog input channels, allowing automation systems to collect information from several field devices simultaneously.
Enhanced Process Monitoring Capability
The module enables PLC systems to monitor real-world operating conditions with improved measurement flexibility.
Flexible Sensor Integration
It supports connection with industrial sensors and transmitters, making it suitable for various automation applications.
Easy PLC System Expansion
The module allows engineers to increase analog input capacity without replacing existing Twido PLC controllers.
Compact Automation Design
Its space-efficient structure makes it suitable for control cabinets with limited installation space.
Reliable Industrial Signal Processing
The module provides stable analog data acquisition for continuous industrial operation and process management.
Technical FAQs
Q1: What is the main function of the Schneider TWDAMI8HT module?
A: The TWDAMI8HT is an analog I/O expansion module used to collect and process analog signals in Twido PLC systems.
Q2: How many analog input channels does the TWDAMI8HT provide?
A: The module provides eight analog input channels for industrial signal acquisition applications.
Q3: What types of signals can be connected to the TWDAMI8HT?
A: It supports industrial analog signals such as voltage and current inputs from sensors and transmitters.
Q4: How can engineers troubleshoot incorrect analog readings?
A: Check field wiring, sensor operation, input configuration, scaling parameters, and PLC program settings.
Q5: What applications are suitable for the TWDAMI8HT?
A: It is suitable for machine control, process monitoring, industrial measurement, and automated production systems.
Q6: How does the module improve PLC system capability?
A: It expands the controller’s ability to process analog information from external field devices.
Q7: What causes unstable analog input signals?
A: Electrical interference, incorrect wiring, poor grounding, sensor problems, or incorrect configuration may cause unstable readings.
Q8: Can the TWDAMI8HT be installed in existing Twido systems?
A: Yes. It can be integrated into compatible Twido PLC configurations as an expansion module.
Q9: What should be checked before replacing the module?
A: Verify system compatibility, backup PLC configuration data, disconnect power, and confirm wiring requirements.
Q10: What maintenance procedures are recommended for analog expansion modules?
A: Regular inspection of terminals, signal cables, sensor connections, and PLC diagnostics is recommended.
