Introduction
The Ingersoll Rand 47704434001 / 47690462001 Minimum Pressure Check Valve Rebuild Kit is a dedicated maintenance solution for rebuilding the minimum pressure check valve assembly used on compatible rotary screw compressors.
The MPCV has an important role within the compressor's pressure-control system. It helps maintain the minimum pressure required for proper operation of the separator and lubrication circuit while controlling compressed-air flow toward the plant air system. When internal valve components become worn or damaged, the valve may no longer respond as intended, making a controlled rebuild an effective maintenance option.
The 47690462001 part reference is identified as an MPCV rebuild kit for Ingersoll Rand compressed-air equipment, with application information associating it with RS45–75i/N compressor configurations.
For maintenance teams, a rebuild kit offers a targeted approach to valve servicing. Instead of replacing the entire MPCV assembly when only internal service components have deteriorated, the appropriate rebuild kit can help restore the existing valve when its main body and critical surfaces remain in usable condition.
Technical Specifications
| Specification | Details |
|---|
| Brand | Ingersoll Rand |
| Primary Part Number | 47704434001 |
| Corresponding Part Number | 47690462001 |
| Product Type | Minimum Pressure Check Valve Rebuild Kit |
| Abbreviation | MPCV Rebuild Kit |
| Application | Rotary Screw Air Compressors |
| Associated Compressor Range | RS45–75i/N |
| Main Function | Minimum Pressure Check Valve Service |

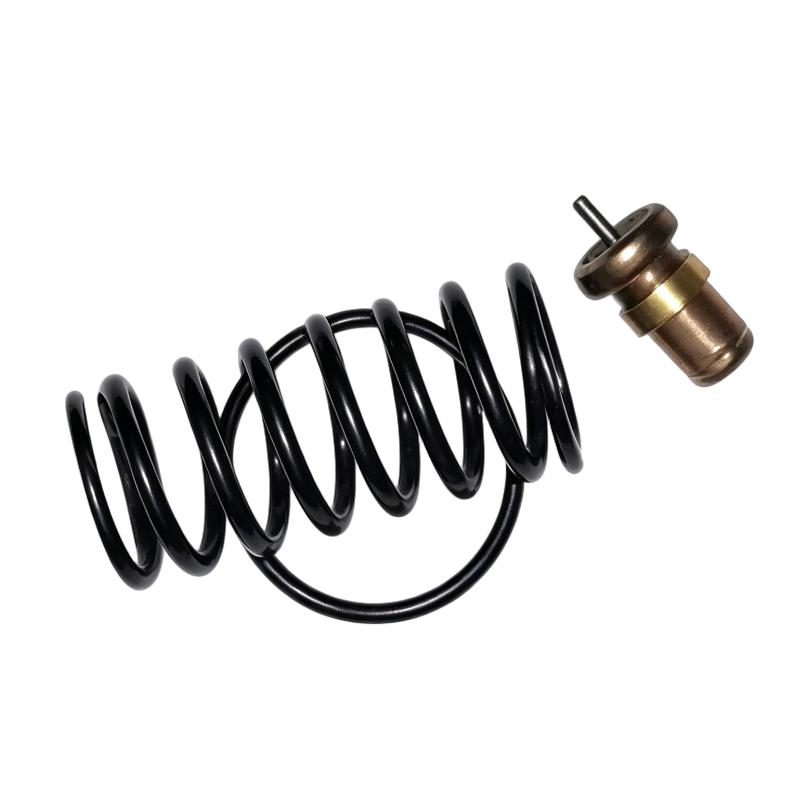

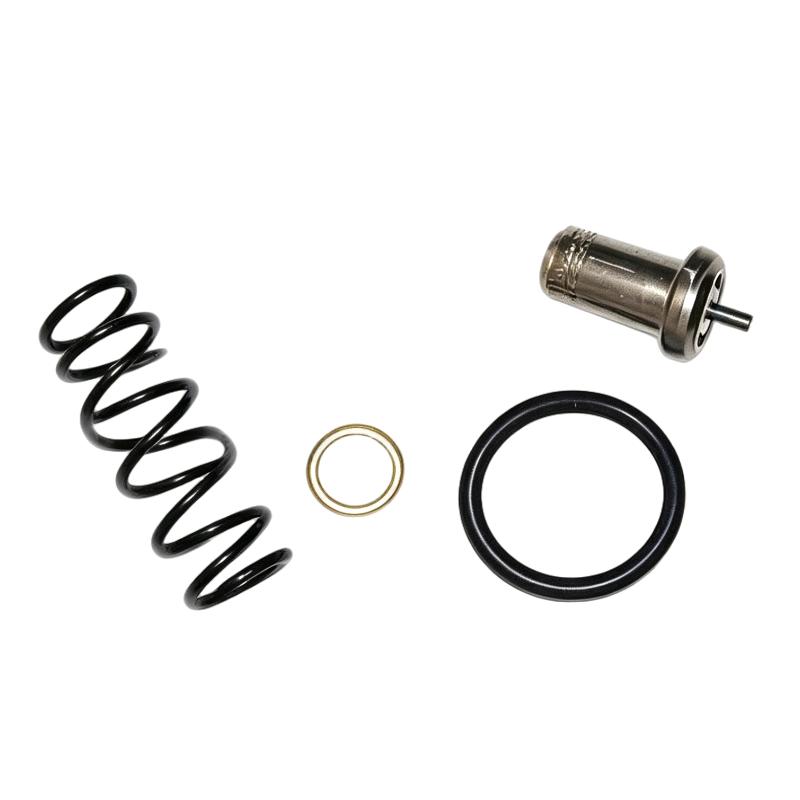

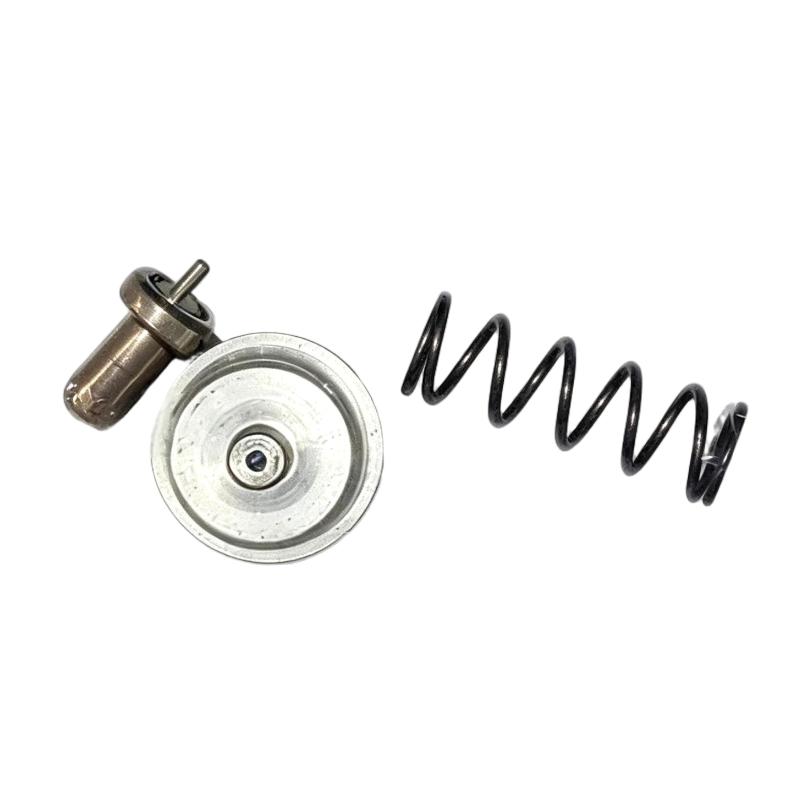

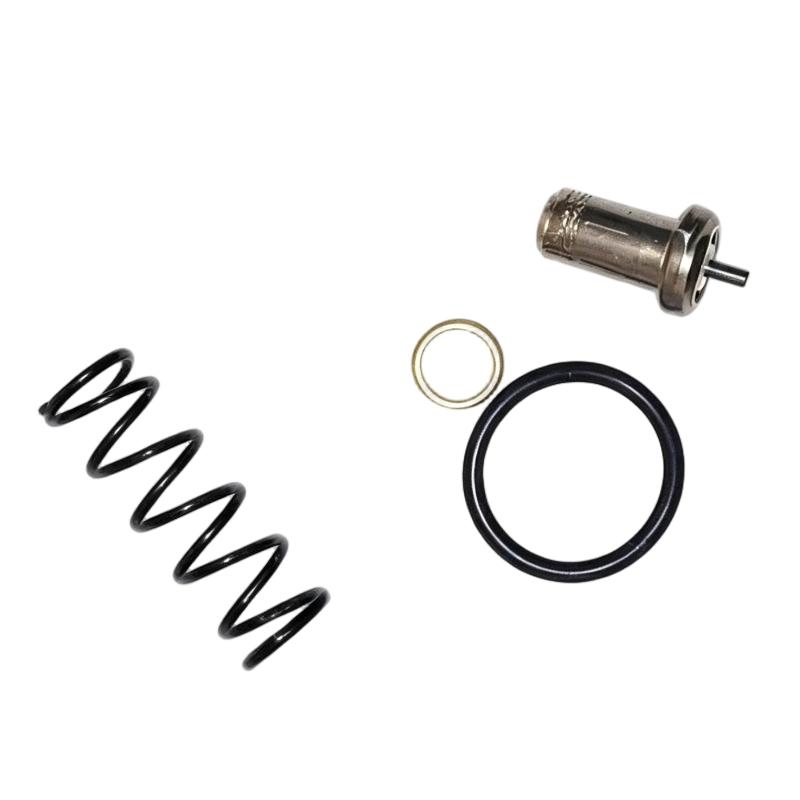

| Typical Components | Springs, washers, rings, and related valve hardware |
| Installation Location | Minimum Pressure Check Valve Assembly |
| Maintenance Type | Valve Rebuild / Preventive Maintenance |
| Dimensions | Kit-specific; verify against the supplied configuration and packaging |
| Weight | Kit-specific; verify against the supplied configuration and packaging |
Recommended Companion Models
| Model | Product Name |
| 47704435001 | Ingersoll Rand Compressor Service Kit |
| 47704436001 | Ingersoll Rand Compressor Service Kit |
| 47704439001 | Ingersoll Rand Compressor Service Kit |
| 47703795001 | Ingersoll Rand Compressor Service Kit |
Frequently Selected Alternatives
| Model | Product Name |
| 99289845 | Ingersoll Rand Minimum Pressure Check Valve |
| 47690461001 | Ingersoll Rand Minimum Pressure Check Valve Service Kit |
| 47690463001 | Ingersoll Rand Minimum Pressure Check Valve Service Kit |
| 47704437001 | Ingersoll Rand Compressor Service Kit |
Technical FAQs
1. What is the main function of the Ingersoll Rand 47704434001 / 47690462001 kit?
The kit is used to rebuild the minimum pressure check valve, commonly referred to as the MPCV, in compatible Ingersoll Rand rotary screw compressors. It provides replacement internal components needed to restore the valve assembly.
2. What does MPCV mean in an Ingersoll Rand compressor?
MPCV refers to the Minimum Pressure Check Valve. The valve helps maintain the required minimum pressure within the compressor's separator system while controlling the movement of compressed air toward the discharge side.
3. Why is the minimum pressure check valve important?
The MPCV helps establish the pressure conditions required for proper oil separation and compressor lubrication-system operation. Incorrect valve operation can affect pressure stability and overall compressor performance.
4. What components are included in the 47690462001 rebuild kit?
Available product information identifies the kit as a minimum pressure check valve rebuild kit and describes components such as springs, washers, rings, and related metal hardware. The exact kit contents should be confirmed against the applicable parts list for the compressor configuration.
5. Which compressor range is associated with 47690462001?
The 47690462001 kit is associated with Ingersoll Rand RS45–75i/N compressor configurations. Final compatibility should be confirmed using the compressor model and serial number before installation.
6. Can the rebuild kit be used instead of replacing the complete MPCV?
When the valve body and major assembly components remain serviceable, rebuilding the valve can provide a practical alternative to replacing the complete assembly. The valve should first be inspected to determine whether a rebuild is appropriate.
7. What symptoms may indicate a problem with the minimum pressure check valve?
Possible symptoms include abnormal separator pressure behavior, unstable discharge pressure, unusual compressor loading characteristics, or changes in oil carryover. Proper diagnosis should distinguish an MPCV problem from issues elsewhere in the pressure and separation system.
8. What can happen if the MPCV does not maintain the intended pressure?
Incorrect valve operation can interfere with the compressor's pressure-control conditions and may affect oil separation, lubrication, and overall system performance. Continued operation with a malfunctioning valve should therefore be evaluated by qualified maintenance personnel.
9. Should the valve be inspected before installing the rebuild kit?
Yes. The valve assembly should be inspected for scoring, corrosion, damaged sealing surfaces, abnormal wear, and other conditions that could prevent a successful rebuild. A damaged valve body may require complete assembly replacement.
10. What information should be verified before ordering this kit?
The compressor model, serial number, existing valve configuration, and current parts information should be checked before ordering. The references 47704434001 and 47690462001 should be treated as the same product reference for this listing, while equipment-specific compatibility should still be confirmed.
