Introduction

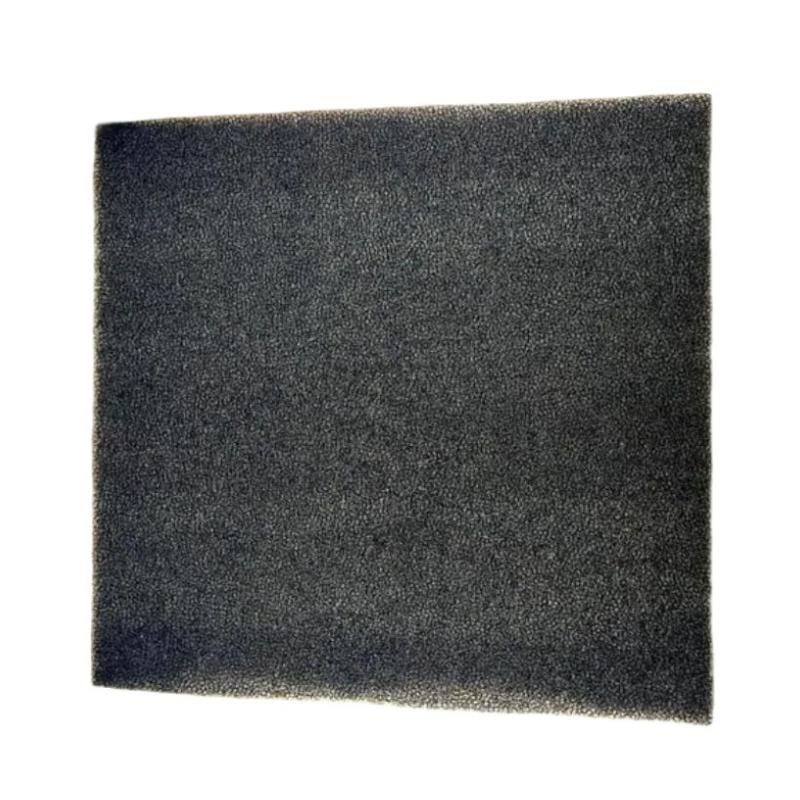

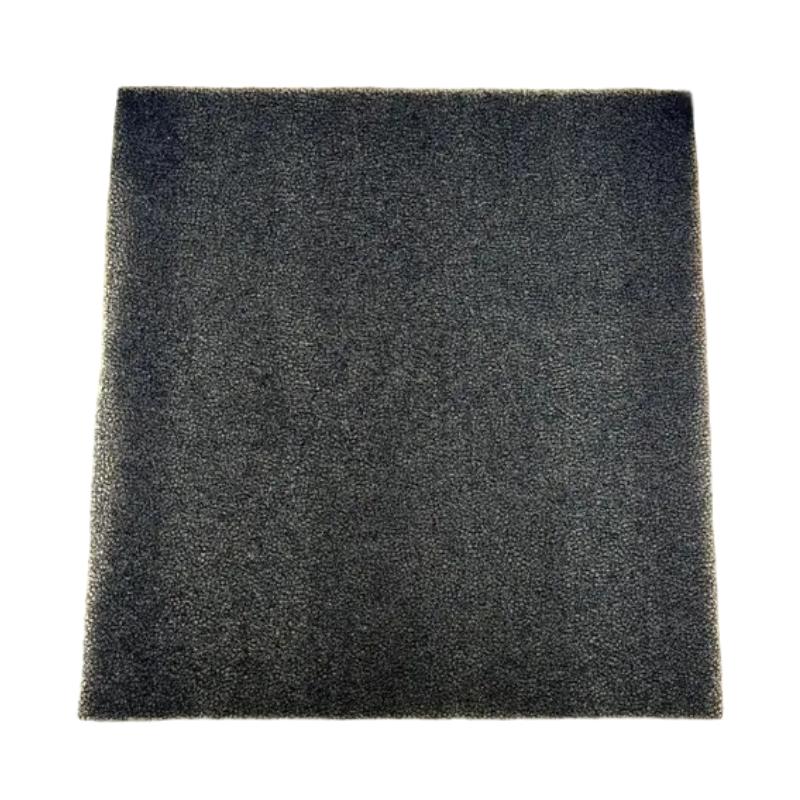

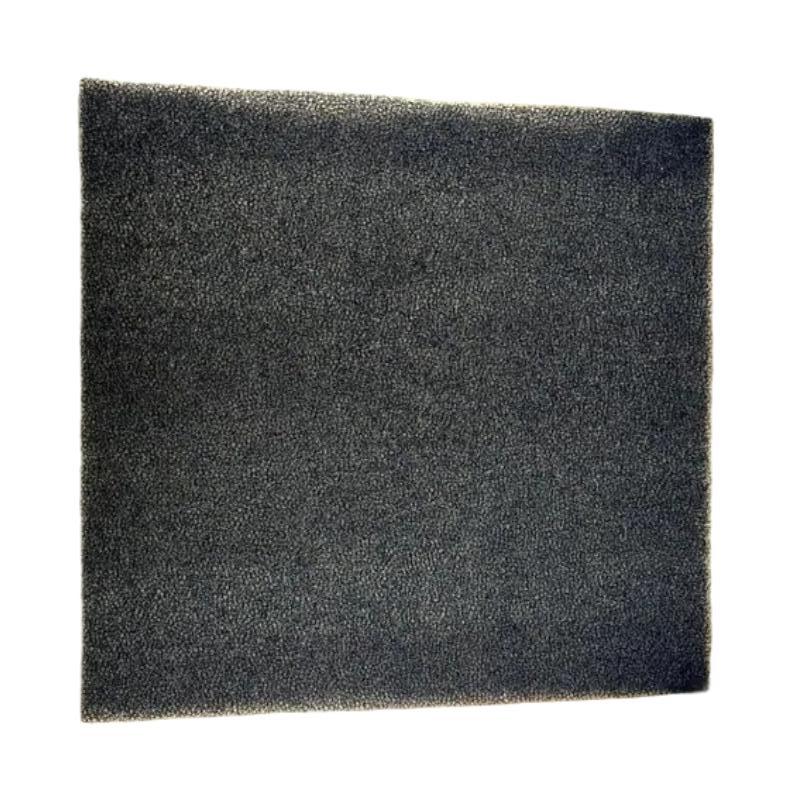

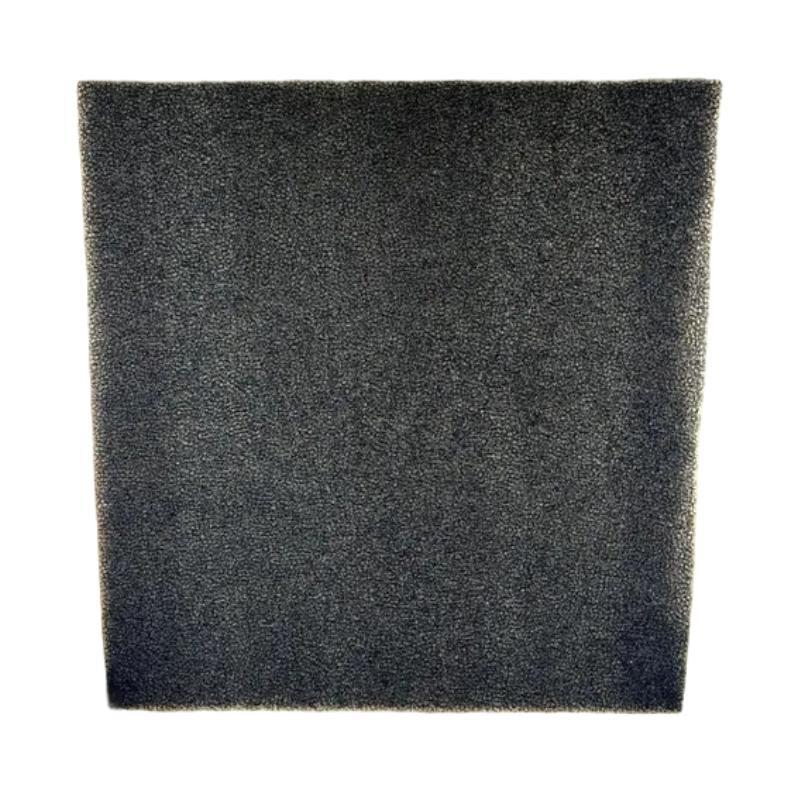

The Ingersoll Rand 47704435001 / 47569978001 Pad Pre-Filter provides an additional layer of protection for compatible compressor intake systems. Positioned ahead of the primary filtration stage, the pad pre-filter helps intercept larger airborne contaminants before they reach the main air filter.
This type of pre-filtration is especially valuable in industrial environments where ambient air contains significant levels of dust and particulate matter. By reducing the initial contaminant load, the pre-filter can help the primary filter maintain effective airflow and filtration performance for longer.
For compressors operating continuously, intake-air management has a direct relationship with reliability. Excessive contamination or restriction can affect airflow conditions and place additional demands on the filtration system. Maintaining the pre-filter as part of routine service helps keep the intake path cleaner and more predictable.
The 47704435001 / 47569978001 reference should be treated as the same product listing, while final application suitability should always be checked against the exact compressor configuration.
Technical Specifications
| Specification | Details |
|---|
| Brand | Ingersoll Rand |
| Primary Part Number | 47704435001 |
| Corresponding Part Number | 47569978001 |
| Product Type | Pad Pre-Filter |
| Application | Compressor Intake-Air Pre-Filtration |
| Primary Function | Initial Removal of Airborne Particles |
| Installation Position | Upstream of Primary Air Filter |
| Filter Format | Pad-Type Pre-Filter |
| Approx. Dimensions | 10 × 530 × 740 mm |
| Approx. Weight | 5.05 kg |
| Maintenance Role | Intake Contamination Control |
| Application Environment | Industrial Compressor Systems |
| Compatibility | Configuration-dependent |
Recommended Companion Models
| Model | Product Name |
|---|
| 47557738001 | Ingersoll Rand Air Filter Element |
| 24900433 | Ingersoll Rand Oil Filter Element |
| 39863865 | Ingersoll Rand Air/Oil Separator Element |
| 47704435001 | Ingersoll Rand 8000-Hour Service Kit |
Frequently Selected Alternatives
| Model | Product Name |
|---|
| 47524186001 | Ingersoll Rand Pad Pre-Filter |
| 23595879 | Ingersoll Rand Pre-Filter |
| 47581604001 | Ingersoll Rand Pre-Filter Pad |
| 47612233001 | Ingersoll Rand Intake Air Filter Component |
Technical FAQs
1. What is the primary function of the Ingersoll Rand 47704435001 / 47569978001?
The product is a pad-style pre-filter designed to provide an initial stage of filtration for compressor intake air. It helps capture larger airborne contaminants before they reach the primary air filtration system.
2. How does a pre-filter differ from the main air filter?
The pre-filter provides upstream protection against larger contaminants, while the main air filter performs the primary filtration required for compressor intake air. The two components work together rather than serving as interchangeable filtration stages.
3. Why is a pre-filter beneficial in dusty environments?
A dusty environment can cause the main air filter to load more quickly. The pre-filter captures a portion of the incoming contamination first, reducing the amount of larger particulate matter reaching the primary filter.
4. Can a blocked pre-filter affect compressor performance?
Yes. As dust accumulates on the pre-filter, airflow resistance can increase. If restriction becomes excessive, it can affect intake conditions and potentially reduce compressor operating efficiency.
5. How frequently should the pre-filter be inspected?
Inspection frequency depends on the surrounding environment and compressor operating hours. Installations exposed to heavy dust generally require more frequent inspection than compressors operating in clean indoor conditions.
6. Should the pre-filter be replaced together with the primary air filter?
Not necessarily. The replacement schedule for each filtration stage depends on its condition and the compressor maintenance procedure. A heavily contaminated pre-filter may require replacement before the primary filter reaches its service limit.
7. Is the 47569978001 a pad-style pre-filter?
Yes. The 47569978001 reference is identified as a pad pre-filter for compatible Ingersoll Rand compressor applications.
8. Can the pre-filter replace the main air filter element?
No. The pre-filter is an additional upstream filtration stage and should not be considered a substitute for the compressor's specified primary air filter.
9. What environmental conditions can accelerate pre-filter loading?
Construction dust, metalworking particles, textile fibers, outdoor dust, poor ventilation, and other airborne contaminants can accelerate loading and shorten the practical service interval.
10. What should be verified before ordering 47704435001 / 47569978001?
The compressor model, intake arrangement, existing part number, and applicable parts documentation should be checked. Compatibility should be confirmed for the specific compressor configuration before installation.
