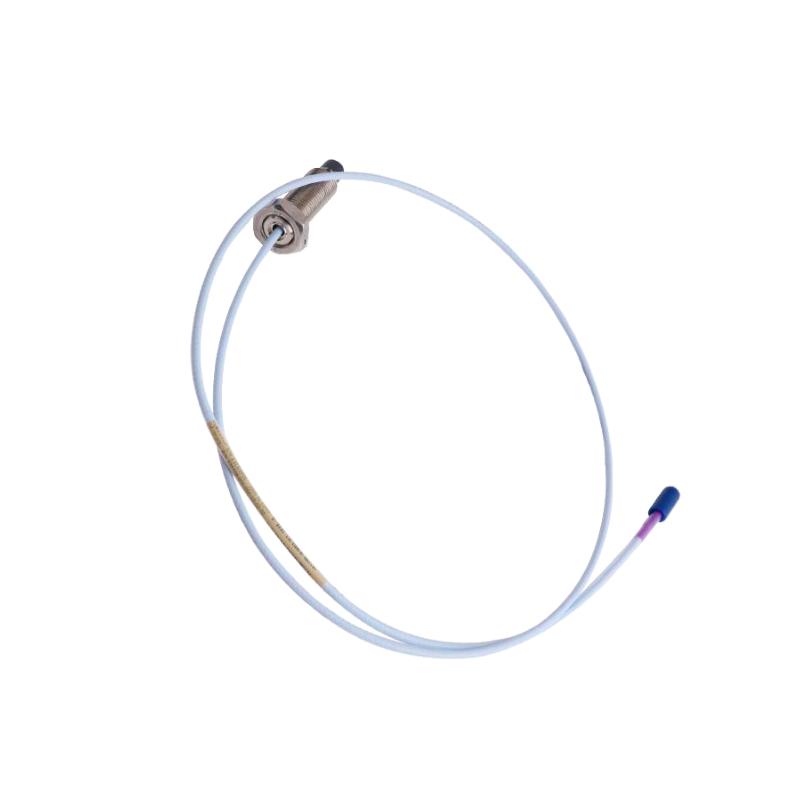

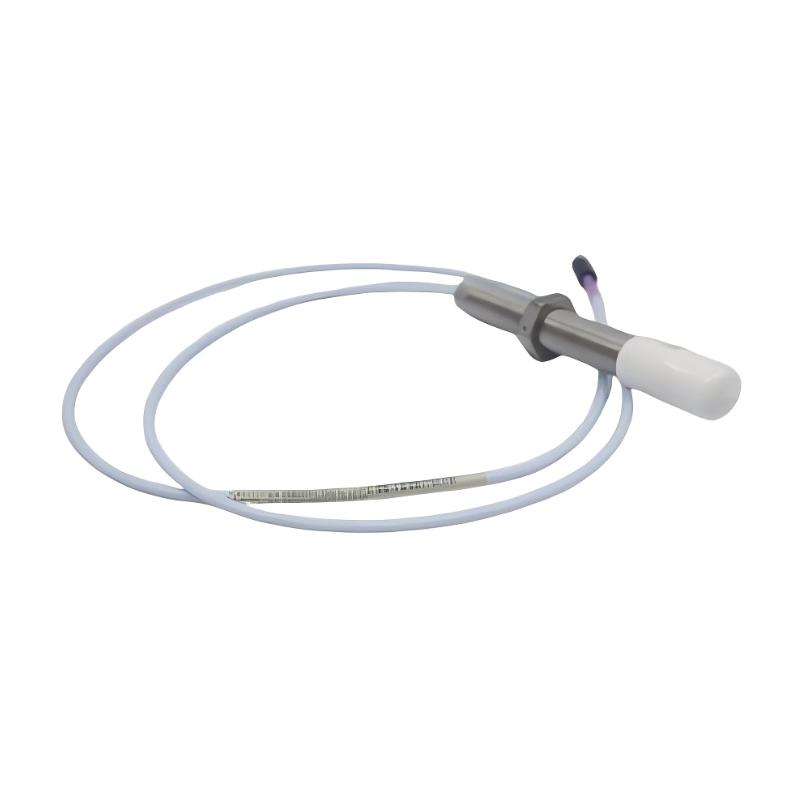

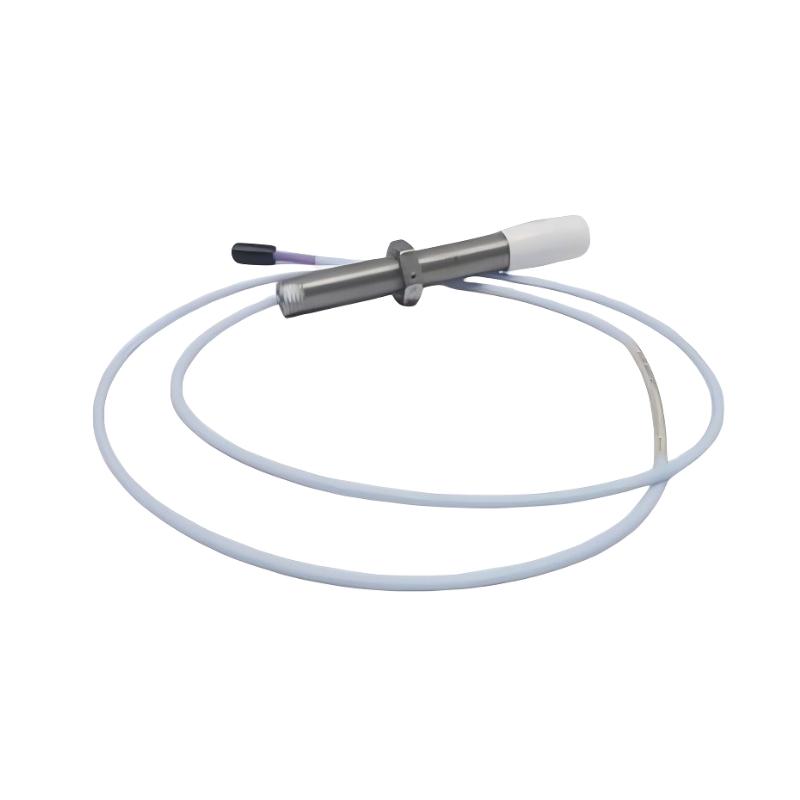

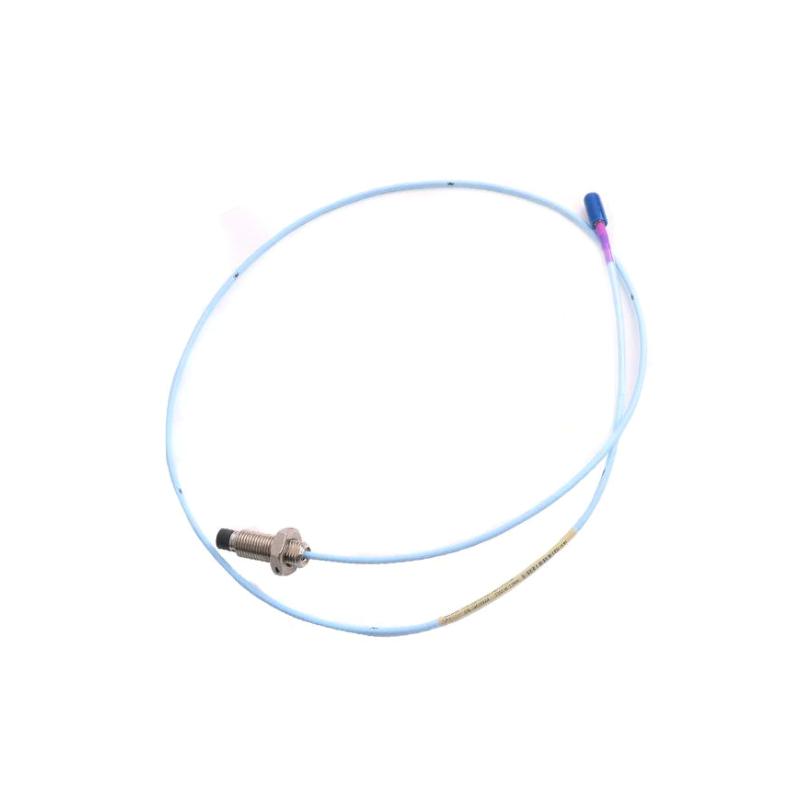

Bently Nevada 330709-000-100-10-02-00 3300 XL 11 mm Proximity Probe, Metric

Applications and Industrial Monitoring Applications

The Bently Nevada 330709-000-100-10-02-00 3300 XL 11 mm Proximity Probe, Metric is a precision sensing device designed for accurate shaft displacement and vibration measurement in critical rotating equipment. Using advanced eddy current technology, this proximity probe provides reliable non-contact monitoring data for machinery protection and predictive maintenance systems.

This probe is widely used in industrial environments where continuous equipment monitoring is required, including:

• Steam turbine vibration monitoring
• Gas turbine protection systems
• Centrifugal compressor condition monitoring
• Large motor and generator analysis
• Pump performance monitoring
• Petrochemical processing machinery
• Industrial rotating equipment diagnostic systems

The metric configuration allows convenient installation in machinery systems designed with international mechanical standards, making it a practical choice for global industrial applications.

Advantages and Technical Performance

The 330709-000-100-10-02-00 3300 XL 11 mm Proximity Probe combines measurement accuracy, system compatibility, and industrial reliability to support demanding machinery protection requirements.

• Precise Non-Contact Sensing
  The eddy current measurement principle provides accurate shaft position and vibration detection without physical contact between the probe and rotating components.
• Reliable Monitoring Capability
  Designed to deliver stable measurement signals for continuous machinery condition evaluation.
• Metric Mechanical Design
  Supports installations requiring metric specifications, simplifying integration into various industrial equipment configurations.
• Excellent Environmental Adaptability
  Suitable for applications involving vibration, mechanical movement, and continuous industrial operation.
• Supports Predictive Maintenance Programs
  Provides essential operating information that helps maintenance teams identify potential equipment issues at an early stage.
• Compatible with 3300 XL Monitoring Systems
  Enables efficient replacement and maintenance of existing machinery protection installations.

Technical FAQs

1. What is the main purpose of the Bently Nevada 330709-000-100-10-02-00 proximity probe?

The probe measures shaft displacement and vibration changes in rotating machinery to support equipment protection and condition monitoring.

2. What sensing method does the 3300 XL 11 mm probe use?

It uses eddy current sensing technology to detect the distance between the probe tip and a conductive rotating shaft.

3. Why are proximity probes important in rotating machinery protection?

They provide real-time shaft movement information, allowing monitoring systems to detect abnormal operating conditions.

4. What equipment can be monitored with this proximity probe?

It is suitable for turbines, compressors, generators, motors, pumps, and other critical rotating assets.

5. What factors can affect proximity probe measurement accuracy?

Installation position, probe gap adjustment, cable condition, target surface quality, and system calibration can influence measurement performance.

6. How can a technician troubleshoot unstable probe signals?

Technicians should inspect connections, verify cable integrity, check system parameters, and confirm proper probe installation.

7. What causes incorrect gap voltage readings in a proximity system?

Incorrect mounting, improper calibration, cable issues, or electrical interference may result in abnormal gap voltage values.

8. Can the 330709-000-100-10-02-00 be used for continuous monitoring applications?

Yes. It is designed for permanent installation in machinery protection systems requiring continuous operation.

9. Why is eddy current technology suitable for vibration monitoring?

It provides non-contact measurement, allowing accurate detection of shaft movement without mechanical wear.

10. What maintenance procedures are recommended for this type of sensor?

Regular inspections of mounting conditions, cable connections, signal output, and system calibration help maintain reliable operation.
