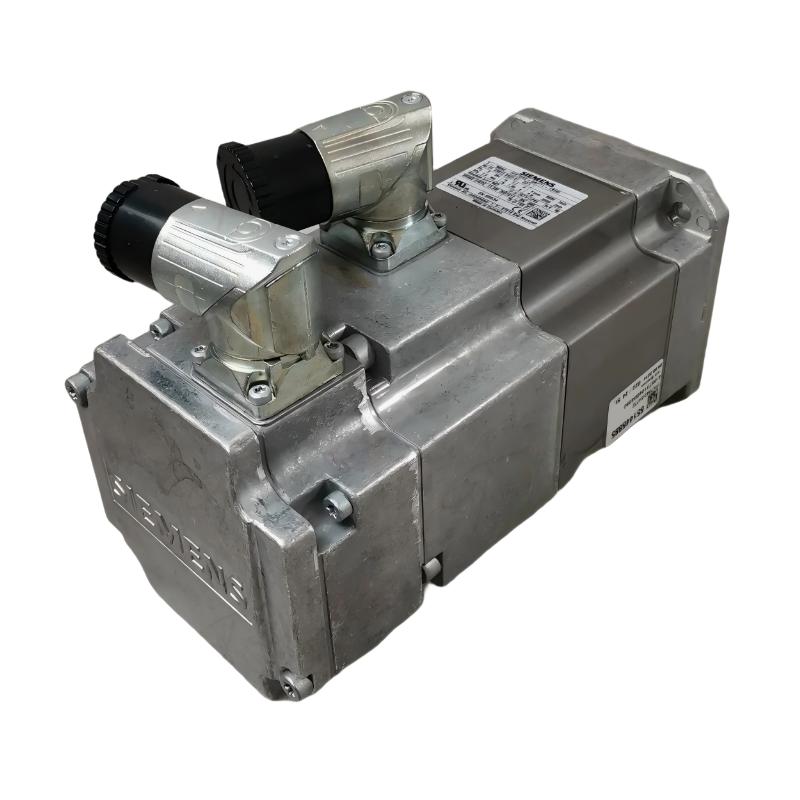

Siemens 1FK7042-5AF71-1SH0 Servo Motor

Applications and Industrial Motion Control Applications

The Siemens 1FK7042-5AF71-1SH0 Servo Motor is a high-performance synchronous servo motor designed for precision motion applications that require excellent dynamic response, accurate positioning, and reliable operation. As a member of the Siemens SIMOTICS S family, this motor is engineered to support advanced automation systems where motion accuracy and machine productivity are critical.

This servo motor is commonly used in:

• CNC machining equipment
• Robotics and automated handling systems
• Packaging and assembly machines
• Electronic manufacturing equipment
• Printing and textile machinery
• Precision positioning systems
• Industrial production lines

The 1FK7042-5AF71-1SH0 provides stable torque performance and precise motion control, making it a suitable choice for engineers developing high-efficiency automation solutions.

Advantages and Motion Performance Benefits

The Siemens 1FK7042-5AF71-1SH0 Servo Motor combines compact construction with advanced motor technology to deliver dependable performance in demanding industrial environments.

• High Positioning Accuracy
  Designed for applications requiring precise movement control, repeatability, and stable positioning performance.
• Fast Dynamic Response
  Provides rapid acceleration and deceleration characteristics, supporting high-speed machine cycles.
• Efficient Synchronous Motor Technology
  Permanent magnet synchronous design improves operational efficiency while maintaining reliable torque output.
• Compact Industrial Structure
  The optimized motor design allows easier integration into machines with limited installation space.
• Reliable Long-Term Operation
  Built for continuous industrial use where stable performance and reduced maintenance requirements are important.
• Seamless Automation Integration
  Supports connection with Siemens motion control and drive systems for advanced machine automation.

Technical FAQs

1. What is the main purpose of the Siemens 1FK7042-5AF71-1SH0 servo motor?

The servo motor converts electrical control commands into precise mechanical motion for industrial automation equipment.

2. What motor technology is used in the 1FK7042-5AF71-1SH0?

It uses permanent magnet synchronous motor technology designed for accurate and efficient motion control.

3. Why are servo motors preferred for precision automation applications?

Servo motors provide accurate positioning, speed regulation, and fast response compared with conventional motors.

4. Which Siemens drive systems are compatible with this servo motor?

It is designed for use with compatible Siemens SINAMICS drive and motion control systems.

5. What can cause servo motor positioning deviation?

Possible causes include incorrect drive parameters, encoder feedback issues, mechanical alignment problems, or excessive load conditions.

6. How can technicians troubleshoot servo motor overheating?

They should inspect motor load, cooling conditions, drive settings, mechanical resistance, and operating cycles.

7. What is the role of encoder feedback in servo motor control?

The encoder provides real-time position and speed information, allowing the controller to maintain accurate movement.

8. What factors influence servo motor operating accuracy?

System tuning, mechanical installation, feedback performance, load characteristics, and control parameters affect accuracy.

9. Can the 1FK7042-5AF71-1SH0 be used in robotic systems?

Yes. Its precise motion characteristics make it suitable for robotic and automated positioning applications.

10. How can users maintain reliable servo motor performance?

Regular inspection of electrical connections, mechanical mounting, drive parameters, and operating conditions helps maintain stable operation.
