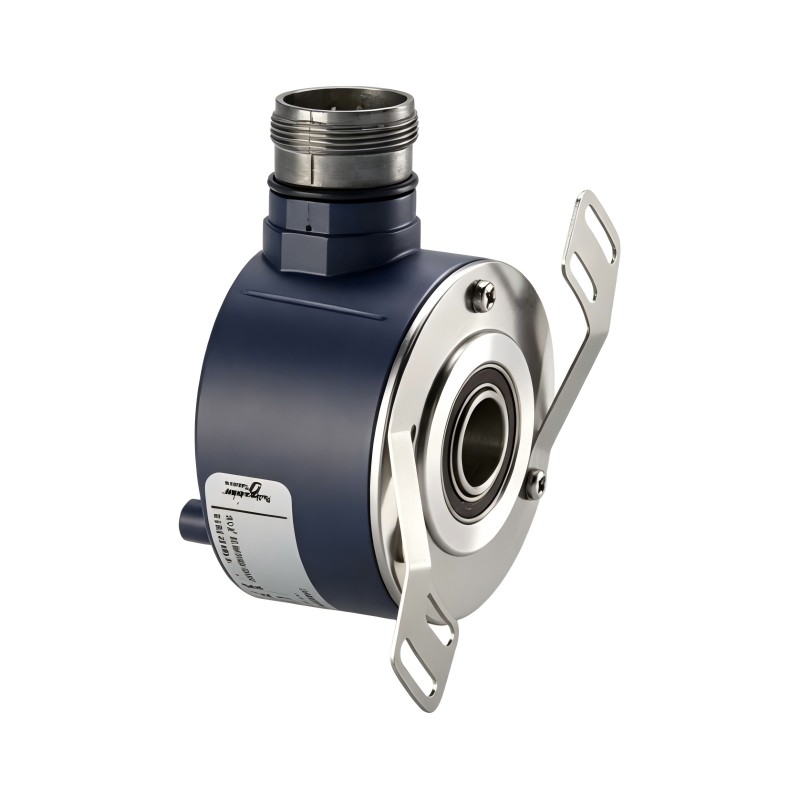

Schneider XCC-1514TS03Y XCC Incremental Encoder

Applications and Industrial Motion Feedback Applications

The Schneider XCC-1514TS03Y XCC Incremental Encoder is a reliable rotary feedback device designed for industrial automation systems requiring accurate speed detection, motion synchronization, and precise machine control. It converts mechanical rotation into electrical pulse signals, allowing controllers and drives to monitor movement changes and maintain stable operation.

This incremental encoder is widely used in:

• Servo and motion control systems
• CNC machine tools
• Automated assembly equipment
• Packaging and processing machinery
• Conveyor systems
• Robotics applications
• Industrial production lines

With its compact 58 mm diameter design and dependable feedback capability, the XCC-1514TS03Y provides an efficient solution for machine builders seeking improved motion accuracy, better control performance, and reliable automation integration.

Advantages and Technical Performance Features

The Schneider XCC-1514TS03Y Incremental Encoder combines accurate sensing technology with industrial durability to support demanding automation applications.

• Reliable Incremental Feedback Output
  Provides stable pulse signals for monitoring rotational speed, direction, and relative position changes.
• Precise Motion Control Support
  Enables automation controllers and drives to accurately regulate machine movement and synchronization.
• Compact Industrial Structure
  The 58 mm diameter housing allows flexible installation in various mechanical equipment designs.
• Fast Response Capability
  Supports dynamic machine operation where quick and accurate feedback information is required.
• Improved Machine Productivity
  Accurate feedback helps reduce positioning errors and improve the consistency of automated processes.
• Durable Operation in Industrial Environments
  Designed for continuous use in applications requiring dependable performance and long service life.

Technical FAQs

1. What is the primary function of the Schneider XCC-1514TS03Y encoder?

The encoder provides incremental rotary feedback signals used for speed monitoring and motion control applications.

2. How does an incremental encoder generate feedback signals?

It converts shaft rotation into electrical pulse sequences that represent movement changes.

3. What is the difference between an incremental encoder and an absolute encoder?

An incremental encoder provides relative movement information through pulses, while an absolute encoder provides a direct position value.

4. What automation systems can use the XCC-1514TS03Y encoder?

It can be integrated with PLC systems, motion controllers, servo drives, and industrial automation equipment.

5. What causes encoder signal instability?

Possible causes include wiring problems, electrical interference, incorrect installation, damaged components, or configuration errors.

6. How can technicians troubleshoot missing encoder pulses?

They should inspect cable connections, verify signal channels, check controller settings, and test encoder output conditions.

7. Why is encoder feedback important in motion applications?

Feedback allows control systems to monitor machine movement and maintain accurate speed and synchronization.

8. What factors affect encoder measurement performance?

Mechanical alignment, mounting accuracy, cable quality, environmental conditions, and electrical noise can influence performance.

9. Can incremental encoders support high-speed industrial applications?

Yes. They are commonly used in machines requiring continuous and rapid rotational feedback.

10. What maintenance practices help extend encoder service life?

Regular inspection of mounting conditions, connectors, cables, and operating environments helps maintain reliable performance.
