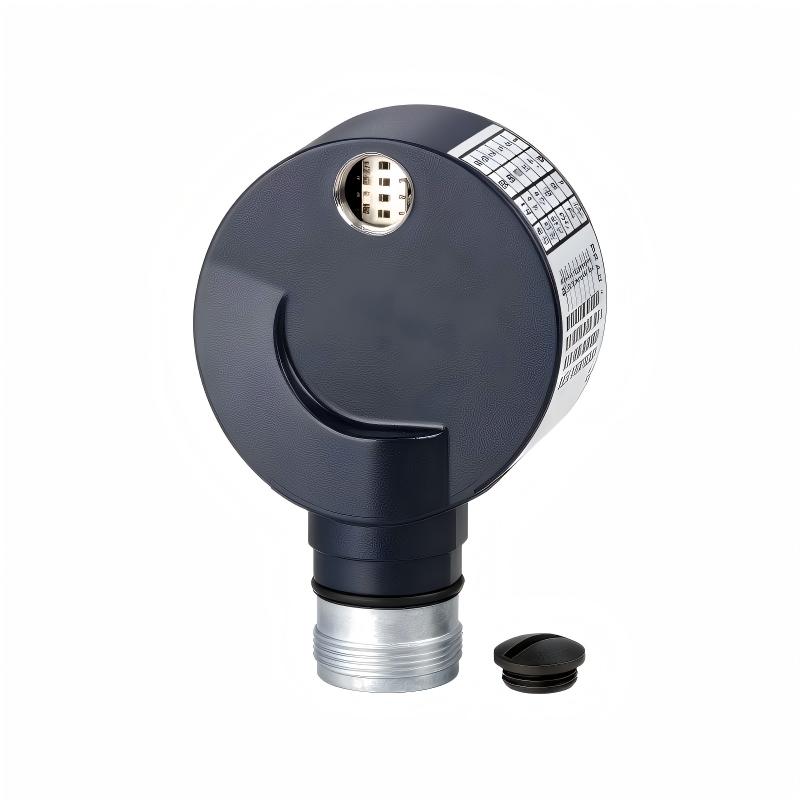

Schneider XCC-1510PSM02X XCC Incremental Encoder

Applications and Industrial Motion Feedback Applications

The Schneider XCC-1510PSM02X XCC Incremental Encoder is a precision rotary feedback component designed for industrial automation systems requiring accurate speed monitoring, motion synchronization, and reliable position detection. It converts mechanical rotation into electrical pulse signals, allowing controllers and drive systems to accurately track machine movement.

This incremental encoder is widely applied in:

• Servo motor feedback systems
• Automated manufacturing equipment
• CNC machine tools
• Robotics and robotic positioning systems
• Packaging and assembly machinery
• Conveyor and material handling systems
• Industrial motion control applications

The XCC-1510PSM02X provides stable feedback performance for applications where accurate motion control and consistent machine operation are essential.

Advantages and Technical Performance Features

The Schneider XCC-1510PSM02X Incremental Encoder offers dependable feedback capability combined with a compact industrial structure, making it suitable for various automation environments.

• Reliable Rotary Feedback Measurement
  Provides accurate pulse-based output signals to monitor rotational movement, speed, and relative position changes.
• High Motion Control Compatibility
  Designed for integration with industrial controllers, drives, and automation systems requiring precise feedback information.
• Compact 58 mm Diameter Design
  The optimized housing structure allows easier installation in machines with limited mounting space.
• Stable Signal Performance
  Supports consistent feedback transmission during continuous machine operation and dynamic movement cycles.
• Enhanced Equipment Efficiency
  Accurate motion feedback helps improve machine synchronization, reduce positioning errors, and maintain production quality.
• Industrial-Grade Durability
  Designed for reliable operation in demanding automation environments requiring long service life.

Technical FAQs

1. What is the main function of the Schneider XCC-1510PSM02X encoder?

The encoder detects rotary movement and generates incremental feedback signals for industrial motion control systems.

2. How does an incremental encoder provide movement information?

It produces electrical pulses based on shaft rotation, allowing controllers to calculate speed, direction, and relative movement.

3. What applications commonly use incremental encoders?

They are widely used in servo systems, machine tools, robotics, packaging equipment, and automated production lines.

4. What control devices can connect with this encoder?

It can be integrated with PLCs, motion controllers, servo drives, and industrial automation platforms.

5. What causes unstable encoder output signals?

Possible causes include cable damage, electrical interference, incorrect wiring, mechanical vibration, or installation issues.

6. How can technicians diagnose encoder signal failures?

They should inspect connections, verify output signals, check controller inputs, and review system configuration parameters.

7. Why is encoder feedback important in automation systems?

Feedback allows controllers to monitor machine movement and adjust operation for improved accuracy and synchronization.

8. What factors influence encoder performance?

Mounting accuracy, shaft alignment, environmental conditions, signal quality, and electrical installation can affect performance.

9. Can this encoder be used for continuous industrial operation?

Yes. It is designed for applications requiring continuous rotary measurement and reliable feedback output.

10. How can users improve encoder reliability?

Regular inspection of mechanical mounting, electrical connections, cable condition, and operating conditions helps maintain stable performance.
