Brand:Ingersoll Rand Item No.:47704446001 / 95023131 Product Origin:USA Product Dimensions:109 × 64 × 58 mm Product Weight:0.08 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

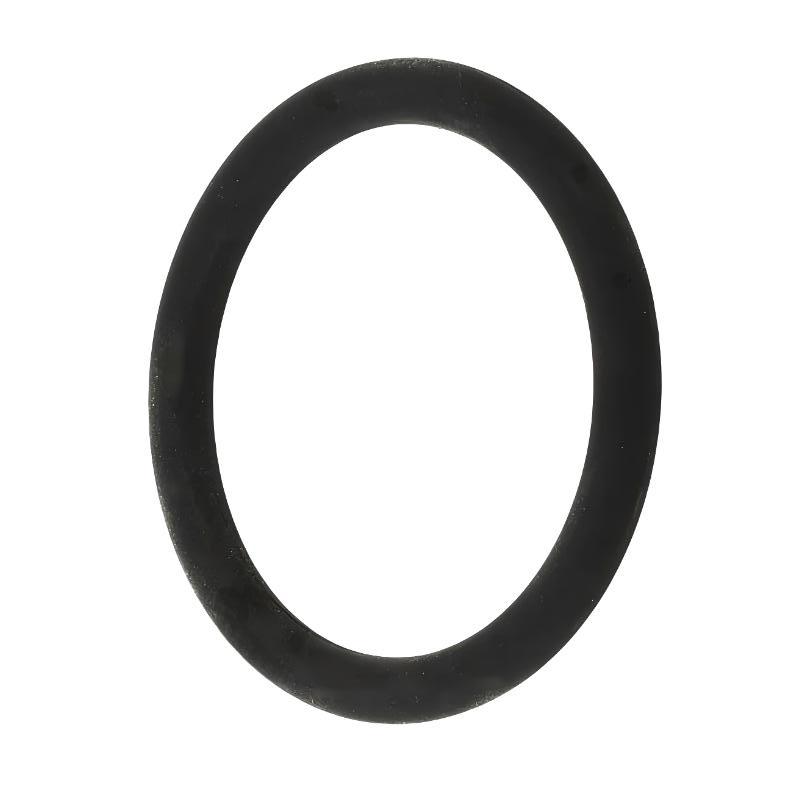

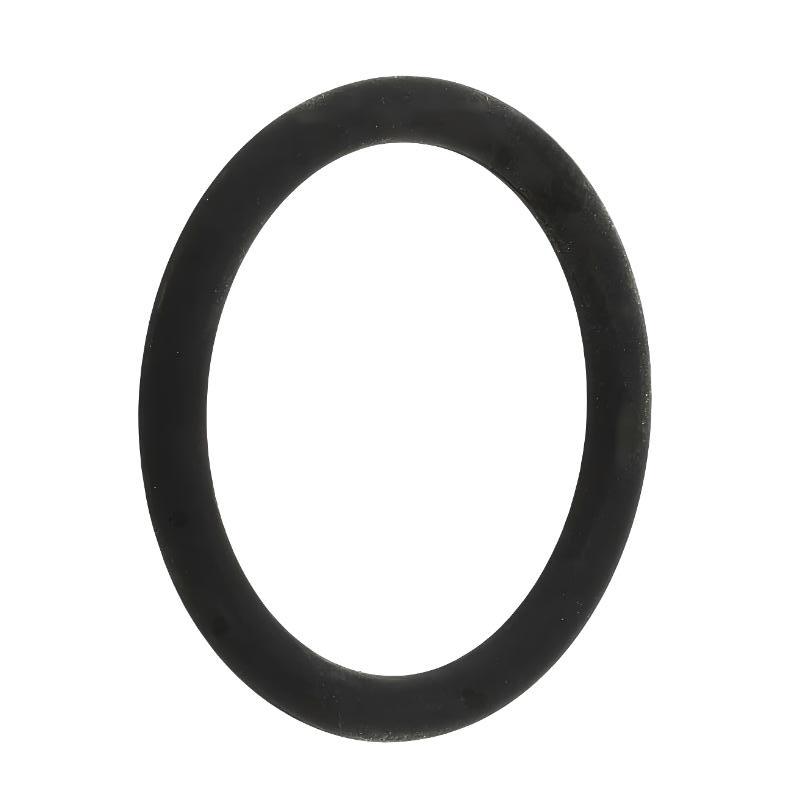

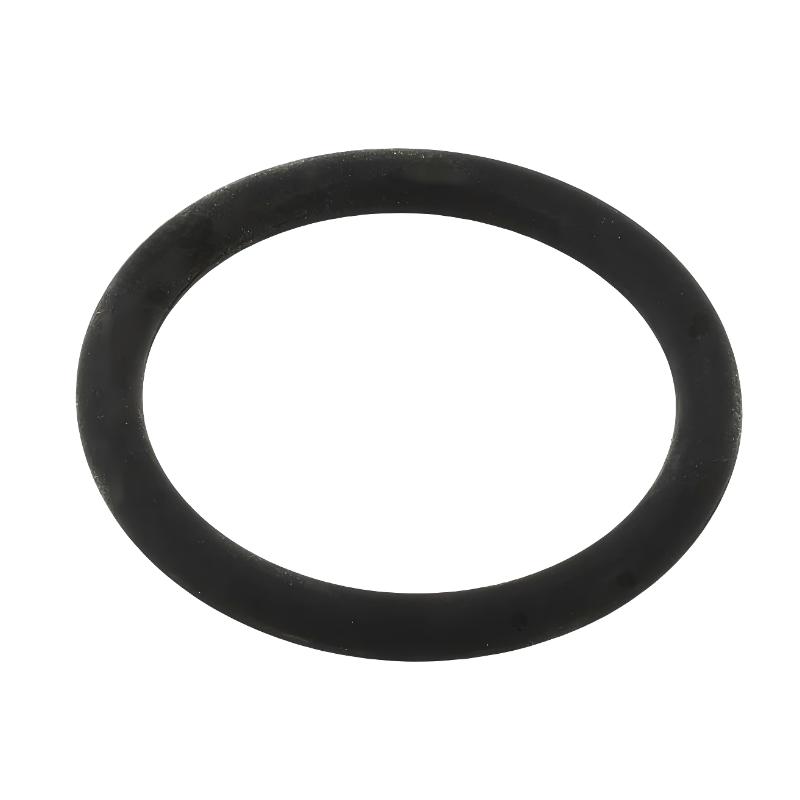

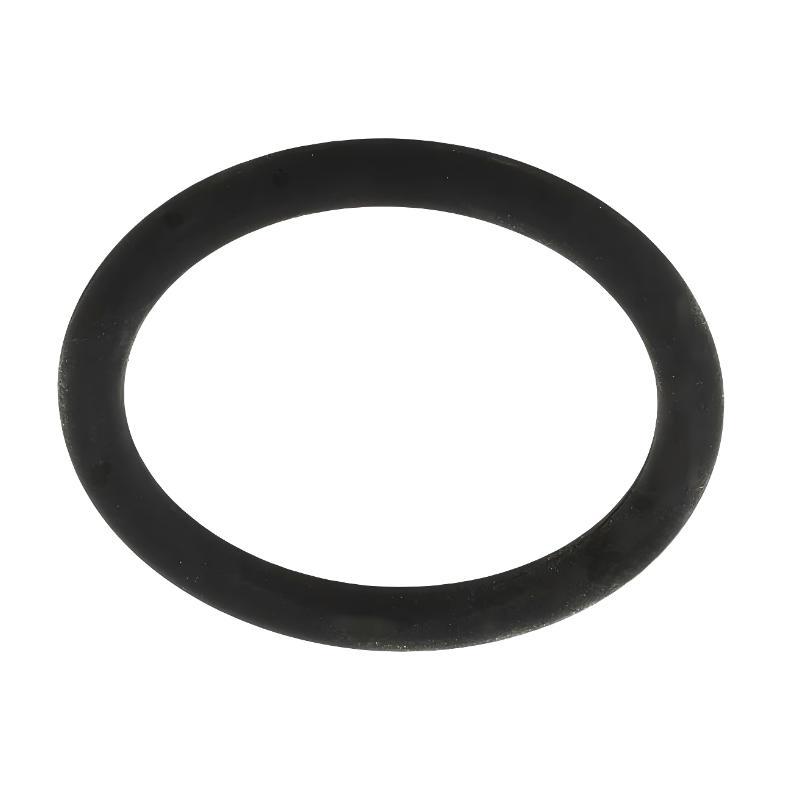

The Ingersoll Rand 47704446001 / 95023131 O-Ring is a standard sealing component used in compatible compressor assemblies. The 95023131 is documented as an O-Ring Standard -159, making dimensional and application matching particularly important when selecting a replacement.
O-rings are small but critical components in industrial compressor systems. They maintain sealing integrity between mating surfaces and help prevent unwanted leakage from pressure-containing or lubricant-containing assemblies. During compressor overhaul or routine service, an O-ring may be exposed to compression, temperature, lubricant, and repeated disassembly, making condition and correct sizing essential.
Ingersoll Rand parts documentation identifies 95023131 within contact-cooled rotary screw compressor assemblies, including RS30i and RS37i configurations. The part is also listed by OEM-oriented suppliers as a genuine Ingersoll Rand component.
For maintenance personnel, the safest replacement practice is to verify the complete part number together with the compressor model, serial number, sealing location, and applicable parts drawing. A correctly sized O-ring helps restore the intended sealing performance after component service.
The 47704446001 / 95023131 references are treated as the same product listing for this page.
The dimensional references are taken from published OEM-oriented product information, while the 0.01 kg figure is listed as net item weight by Edmac. Packaging dimensions shown by that listing should not be interpreted as the physical O-ring dimensions.
These components are documented within Ingersoll Rand contact-cooled rotary screw compressor parts information, particularly for RS30i/RS37i assemblies.
Frequently Selected Alternatives
Model
Product Name
95023132
Ingersoll Rand O-Ring
95023149
Ingersoll Rand O-Ring
95023156
Ingersoll Rand O-Ring
96759295
Ingersoll Rand O-Ring
Where It Excels in Industrial Use
Compressor Sealing Applications: The 95023131 is an Ingersoll Rand standard O-ring, size -159, specified for use in compatible compressor assemblies. It provides the sealing interface required between mating components to help prevent pressure or fluid leakage.
Rotary Screw Compressor Maintenance: Ingersoll Rand parts documentation lists 95023131 as an O-ring used in contact-cooled rotary screw compressor assemblies, including RS-series equipment.
High-Pressure Service Environments: Correctly specified sealing components are essential around compressor air, lubricant, and pressure-containing assemblies where even a small sealing defect can contribute to leakage.
Preventive Maintenance and Overhaul: Replacing the O-ring whenever the associated joint is opened helps restore the intended sealing condition and reduces the risk of reusing a hardened, damaged, or deformed seal.
Key Strengths at a Glance
Standard -159 Configuration: The 95023131 is identified as an O-Ring Standard -159, with published dimensional references of approximately 4.987-inch inside diameter and 0.103-inch cross-section width.
OEM Ingersoll Rand Reference: The part is listed under the Ingersoll Rand brand, with OEM listings identifying it as a genuine Ingersoll Rand replacement component.
Reliable Static Sealing: An appropriately sized O-ring provides a controlled seal between mating surfaces, helping maintain pressure integrity and prevent unwanted leakage.
Compact Maintenance Component: The published net weight is approximately 0.01 kg, making the seal easy to handle and replace during compressor servicing.
Technical FAQs
1. What is Ingersoll Rand 47704446001 / 95023131?
It is an Ingersoll Rand standard -159 O-ring used as a sealing component in compatible compressor assemblies.
2. What does the -159 designation indicate?
The -159 designation identifies the O-ring size according to the applicable standard sizing system. It is an important identification reference when selecting a replacement seal.
3. What are the published dimensions of 95023131?
The available product information identifies an inside diameter of approximately 4.987 inches and a cross-section width of approximately 0.103 inch.
4. Where is 95023131 used in Ingersoll Rand equipment?
Ingersoll Rand parts documentation lists 95023131 as an O-ring in contact-cooled rotary screw compressor assemblies, including RS30i and RS37i configurations. Other applications may depend on the specific machine and production configuration.
5. What is the main function of this O-ring?
Its primary function is to create a seal between mating compressor components, helping prevent leakage of pressurized air or compressor fluids through the joint.
6. Can an O-ring be reused after disassembly?
Reuse is generally not recommended when the sealing joint has been opened. Compression set, surface damage, hardening, or deformation can prevent a previously used O-ring from sealing correctly.
7. What problems can result from using the wrong O-ring size?
An incorrect inside diameter or cross-section can cause inadequate compression, extrusion, leakage, installation damage, or premature seal failure.
8. Is 95023131 a filter, valve, or mechanical control component?
No. It is a sealing O-ring. It should not be confused with Ingersoll Rand inlet valves, filters, separator elements, or other functional compressor components.
9. What should be checked before installing 95023131?
Verify the complete part number, O-ring size, groove dimensions, mating-component condition, compressor model, and applicable Ingersoll Rand parts documentation before installation.
10. Can 95023131 be substituted with a visually similar O-ring?
Not without confirming the required size, material, hardness, temperature capability, and application. A visually similar seal may not provide the correct compression or chemical and temperature resistance.
