Brand:Ingersoll Rand Item No.:47690335001 / 95998076 Product Origin:USA Product Dimensions:108 × 7.2 × 7.2 mm Product Weight:0.08 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Ingersoll Rand 47690335001 / 95998076 Inlet Valve Kit is a service-oriented component listing for compatible compressor intake-control systems.
The primary reference, 47690335001, is explicitly cataloged as Kit, Inlet Valve (On/Off) and is listed as an Ingersoll Rand OEM compressor part. The on/off configuration distinguishes this component from the separately cataloged 47690336001 modulation inlet-valve kit.
The secondary reference 95998076 has a separate published component identity as an O-ring. An Ingersoll Rand R75I fixed-speed parts list places 95998076 within the airend assembly as an O-ring, while supplier specifications identify it as an AS568 sealing ring.
For maintenance purchasing, this distinction is important. The two supplied references are treated as the same product listing for this page, but their individual component descriptions should be retained when verifying an application. The final selection should always be matched against the compressor model, serial number, and applicable OEM parts documentation.
Technical Specifications
Specification
Details
Brand
Ingersoll Rand
Primary Part Number
47690335001
Secondary Reference
95998076
Primary Product Type
Inlet Valve Kit
Valve Configuration
On/Off
Primary Function
Compressor Inlet-Air Control
Installation Area
Compressor Intake / Inlet Assembly
Secondary Component Type
O-Ring
95998076 Standard
SAE AS568
95998076 Inside Diameter
8.25 in
95998076 Cross-Section
0.125 in
95998076 Material
FKM90 / Viton
47690335001 Dimensions
Configuration-specific; verify against supplied valve
47690335001 Weight
Not reliably verified from available OEM documentation
95998076 Net Weight
Approx. 0.01 kg
Service Type
Inlet-Valve Replacement / Maintenance
Compatibility
Model-, serial-number and configuration-dependent
The 95998076 net weight is listed as approximately 0.01 kg by Edmac. The package dimensions shown by that supplier should not be interpreted as the physical dimensions of the O-ring.
No sufficiently reliable source located in the current records provides confirmed physical dimensions or a verified engineering weight for the complete 47690335001 inlet-valve kit; therefore, configuration-specific verification is recommended rather than substituting package measurements.
Recommended Companion Models
Model
Product Name
47690336001
Ingersoll Rand Inlet Valve Kit – Modulation
47690341001
Ingersoll Rand MPCV Kit
47690337001
Ingersoll Rand Thermostatic Valve – 180–198°F
47715237001
Ingersoll Rand Fittings Kit for Inlet Valve 47607256001
These components belong to the same broader compressor service environment. 47690336001 provides the modulation-valve counterpart to the on/off 47690335001, while 47690341001 is an MPCV kit. The 47715237001 reference is specifically listed as a fittings kit for inlet valve 47607256001.
On/Off Inlet-Air Control: Ingersoll Rand 47690335001 is identified as a Kit, Inlet Valve (On/Off) for Ingersoll Rand compressed-air equipment. The on/off configuration is intended for applications where inlet airflow is controlled through discrete valve positions rather than continuous modulation.
Compressor Intake Management: The inlet valve regulates air entering the compressor package and forms an important part of the machine's loading and unloading control sequence.
Industrial Compressor Maintenance: A dedicated inlet-valve kit is useful for planned replacement work when the existing intake-control assembly has experienced wear or requires service.
OEM-Oriented Parts Selection: Ingersoll Rand provides a model-based Parts Finder Assistant for identifying genuine compressor replacement components, which is particularly useful when inlet-valve configurations vary by machine.
Key Strengths at a Glance
Defined On/Off Configuration: 47690335001 is specifically cataloged as an Inlet Valve (On/Off) rather than a modulation valve.
Dedicated Valve-Service Solution: The kit format provides a practical replacement option for maintenance teams servicing compatible inlet-control assemblies.
Compatible with Industrial Air Systems: The part is listed for Ingersoll Rand compressed-air equipment and belongs to a broader family of compressor service components.
Related Sealing Reference: 95998076 is independently cataloged as an Ingersoll Rand O-ring. Parts documentation for an R75I fixed-speed airend also lists 95998076 as an O-ring within the airend assembly, confirming its use as a sealing component in applicable equipment.
Technical FAQs
1. What is Ingersoll Rand 47690335001 / 95998076?
The supplied references are treated as one product listing. The primary product identity is 47690335001, Inlet Valve Kit (On/Off), while 95998076 is an associated Ingersoll Rand O-ring reference. Public parts records identify these as different component types, so the exact relationship should be confirmed against the applicable machine parts list.
2. What is the main function of the inlet valve?
The inlet valve controls the admission of air into the compressor and supports the compressor's loading, unloading, and intake-air management sequence.
3. Is 47690335001 an on/off or modulation valve?
47690335001 is specifically identified as an on/off inlet-valve kit. Ingersoll Rand separately catalogs 47690336001 as an inlet-valve modulation kit.
4. How does an on/off inlet valve differ from a modulation valve?
An on/off valve primarily operates between defined open and closed states, while a modulation valve adjusts its opening progressively to regulate inlet airflow over a broader operating range.
5. What is the function of 95998076?

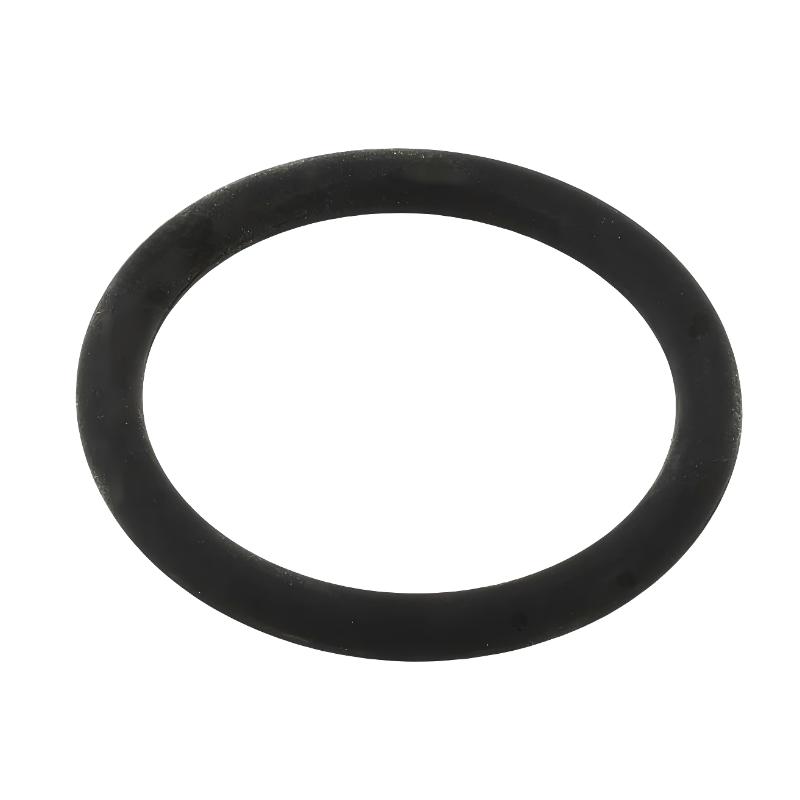

95998076 is an Ingersoll Rand O-ring used as a sealing component. One OEM-oriented listing specifies it as SAE AS568, 8.25-inch inside diameter × 1/8-inch width, FKM90/Viton.
6. Where is 95998076 documented in compressor parts information?
An Ingersoll Rand R75I fixed-speed airend parts list identifies 95998076 as an O-ring within the airend assembly.
7. Can 95998076 be considered the complete replacement for 47690335001?
No. 95998076 is cataloged as an O-ring, whereas 47690335001 is an inlet-valve kit. They should not be considered interchangeable simply because both references may occur within the same compressor service environment.
8. What problems can occur when an inlet valve is worn?
Possible symptoms include abnormal loading or unloading, poor intake control, unstable compressor operation, air leakage, or delayed response during operating-state changes. Diagnosis should also include the associated control and pneumatic components.
9. What should be checked when servicing an on/off inlet valve?
The technician should inspect the valve mechanism, sealing surfaces, pneumatic connections, actuator/control components, fasteners, and associated O-rings for wear, contamination, or damage.
10. How should compatibility be confirmed before installation?
Confirm the complete part number against the compressor model and serial number and compare the existing valve configuration with the applicable Ingersoll Rand parts documentation. Ingersoll Rand's Parts Finder Assistant is designed for model-based OEM part identification.
