Brand:Ingersoll Rand Item No.:47690563001 / 95022349 Product Origin:USA Product Dimensions:202 × 21 × 261 mm Product Weight:0.08 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

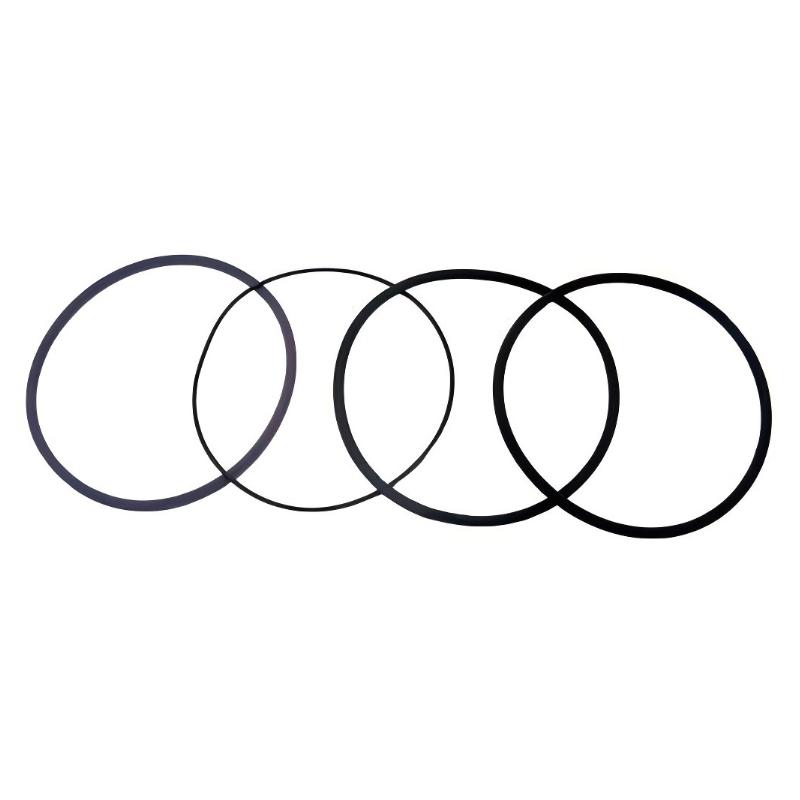

The Ingersoll Rand 47690563001 / 95022349 Thermal Valve Rebuild Kit is a maintenance-oriented listing for servicing the thermal-control circuit of compatible Ingersoll Rand compressors.
The primary reference, 47690563001, is documented as a Kit, Thermal Valve 180–198F, Rebuild. The associated 95022349 is an Ingersoll Rand O-ring. Published component data identify it as a standard AS568 3-3/8-inch ID × 0.125-inch seal, with one source specifying FKM70 material.
Thermal-valve service is important because compressor lubricant performs both lubrication and heat-management functions. Maintaining the correct oil temperature supports viscosity control, bearing protection, cooling performance, and dependable compressor operation.
For maintenance teams, a rebuild kit provides a practical approach to restoring a serviceable thermal-control assembly. Replacing worn sealing components at the same time can also help reduce the possibility of leakage after reassembly.
The two supplied references are treated as one product listing as requested. Final compatibility should nevertheless be confirmed against the compressor model and serial number, especially where different thermal-valve temperature ratings are available.
Technical Specifications
Specification
Details
Brand
Ingersoll Rand
Primary Part Number
47690563001
Associated Reference
95022349
Product Type
Thermal Valve Rebuild Kit
Valve Function
Thermal / Oil Temperature Control
Thermal Rating
180–198°F
Equivalent Range
Approximately 82–92°C
Associated Seal
95022349 O-Ring
O-Ring Standard
SAE AS568
O-Ring Inside Diameter
3-3/8 in / 85.32 mm
O-Ring Cross-Section
0.125 in / 3.53 mm
O-Ring Material
FKM70, according to published supplier specification
Equipment Type
Ingersoll Rand Compressed-Air Equipment
Service Type
Thermal Valve Rebuild / Preventive Maintenance
Dimensions – Complete Kit
Configuration-specific; verify supplied kit
Weight – Complete Kit
Not reliably verified from available technical documentation
O-Ring Weight
Approximately 0.01 lb according to one supplier listing
Compatibility
Model-, serial-number and thermal-rating dependent
The 5.05 value shown by one supplier for 47690563001 is not sufficiently clear as a product-level weight, so it has not been used as the confirmed kit weight.
47690337001 is documented as another 180–198°F thermal-valve kit, while 47690564001 is specified for the different 185–203°F range. 47695714001 is identified for 180–195°F applications, and 23710842 is listed as an Ingersoll Rand thermal valve kit.
Frequently Selected Alternatives
Model
Product Name
23812340
Ingersoll Rand Thermostatic Valve, 180–198°F Hot Side
Thermal Valve Maintenance: The supplied 47690563001 / 95022349 references are treated as one product listing. 47690563001 is identified as an Ingersoll Rand thermal valve rebuild kit for the 180–198°F range, while 95022349 is an Ingersoll Rand O-ring used as a sealing component.
Compressor Lubrication-System Service: The thermal valve regulates lubricant flow through the cooling circuit, helping maintain the intended oil operating temperature during compressor operation.
Scheduled Rebuild Work: A rebuild kit is useful during preventive maintenance when the thermal-control assembly requires renewal of serviceable internal sealing and valve components rather than replacement of the entire compressor cooling system.
Leak Prevention: The 95022349 O-ring is specified as a 3-3/8-inch ID × 0.125-inch cross-section seal, providing the sealing interface needed in its applicable compressor assembly.
Key Strengths at a Glance
Defined Thermal Range: 47690563001 is documented as a Thermal Valve 180–198°F Rebuild Kit.
OEM-Referenced Seal: 95022349 is identified as an Ingersoll Rand O-ring, with published specifications of 3-3/8-inch ID × 0.125-inch width.
Supports Stable Oil Temperature: Proper thermal-valve operation helps control oil temperature and maintain effective lubrication and cooling performance.
Maintenance-Focused Design: Renewing the thermal valve and its sealing interfaces during scheduled service can help reduce leakage risk and restore reliable temperature-control performance.
Technical FAQs
1. What is Ingersoll Rand 47690563001 / 95022349?
The supplied references are treated as one product listing. 47690563001 is a thermal valve rebuild kit, while 95022349 is an Ingersoll Rand O-ring associated with compressor sealing applications.
2. What is the primary function of the thermal valve?
The thermal valve controls lubricant flow through the compressor cooling circuit so that the oil can reach and remain within its intended operating-temperature range.
3. What temperature range is associated with 47690563001?
The rebuild kit is specified for the 180–198°F thermal-valve range.
4. What is the function of 95022349?
95022349 is an O-ring used to provide a sealing interface and help prevent lubricant or air leakage at the applicable mating surfaces.
5. What are the published dimensions of 95022349?
The available specification identifies it as a standard AS568 O-ring with a 3-3/8-inch inside diameter and 0.125-inch cross-section.
6. Is 47690563001 a complete thermal valve assembly?
No. It is specifically described as a thermal valve rebuild kit, so it should not automatically be treated as a complete valve assembly.
7. Can a different thermal-valve temperature rating be substituted?
Not without confirming the compressor's specified operating temperature. For example, Ingersoll Rand also lists 47690564001 for a different 185–203°F range, demonstrating that thermal settings are application-specific.
8. What can happen if the thermal valve does not operate correctly?
A malfunctioning valve can contribute to abnormal oil temperature, inadequate cooling, excessive thermal cycling, or compressor temperature-related alarms.
9. What should be inspected during a thermal-valve rebuild?
Technicians should inspect the valve element, spring and mating surfaces, O-rings, sealing grooves, valve body, and oil passages for wear, contamination, corrosion, or damage.
10. What should be verified before ordering this listing?
Confirm the compressor model, serial number, existing thermal-valve reference, temperature rating, and applicable Ingersoll Rand parts documentation before installation.
