Name: Ingersoll Rand 47704461001 / 24266223 Hydraulic Hose Assembly
Brand: Ingersoll Rand
SKU: 18213
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

The Ingersoll Rand 47704461001 / 24266223 Hydraulic Hose Assembly is a large-bore flexible hose designed for fluid routing within compatible Ingersoll Rand compressor equipment.

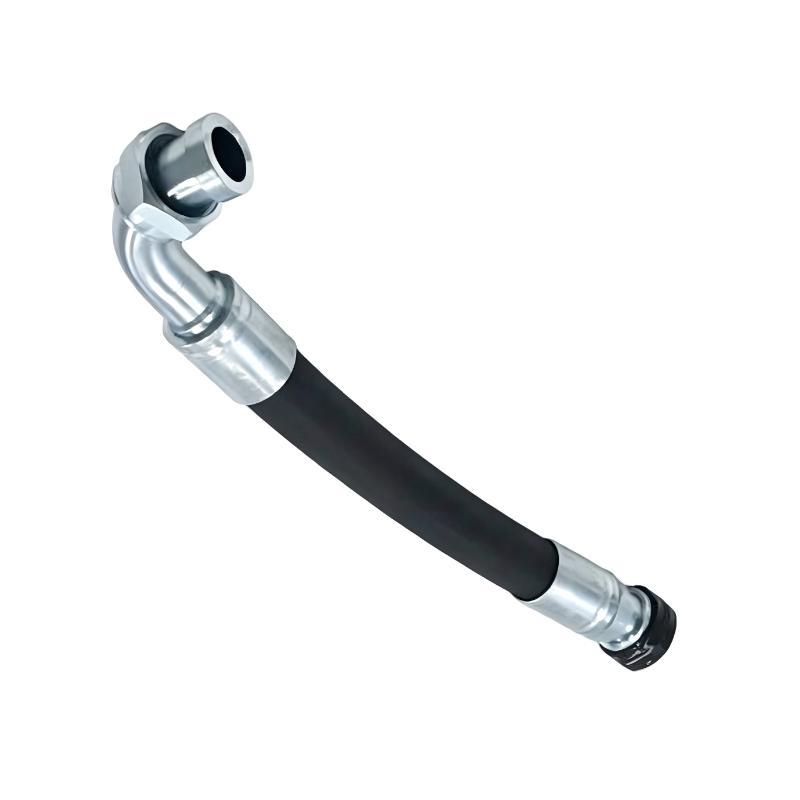

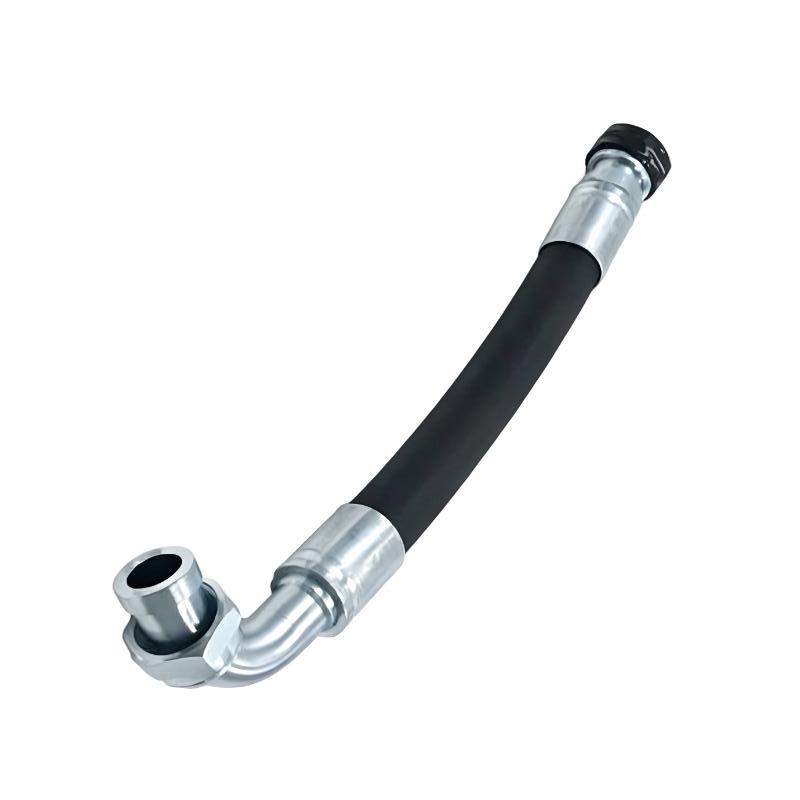

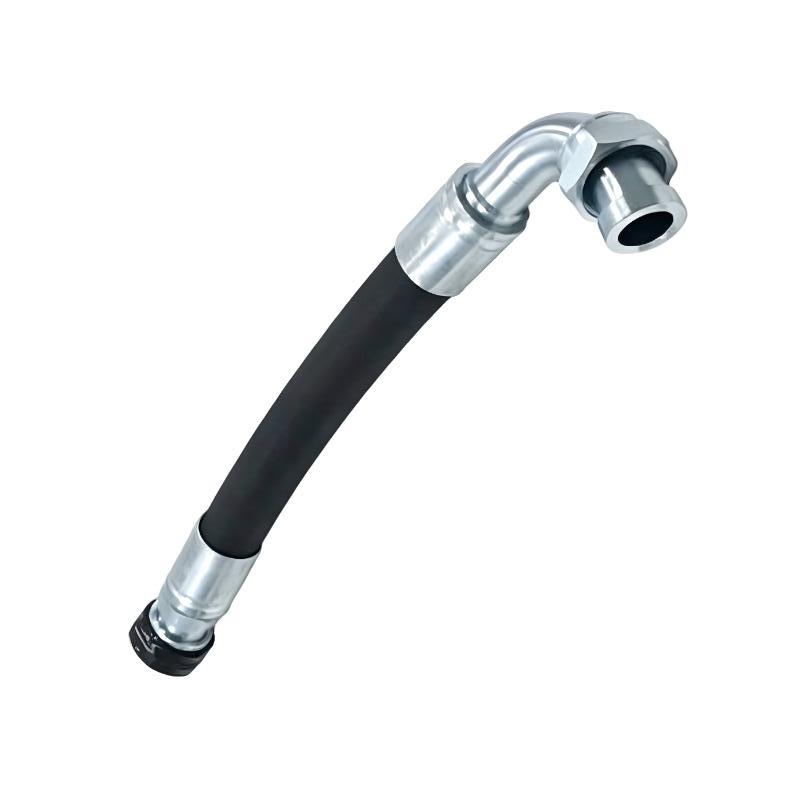

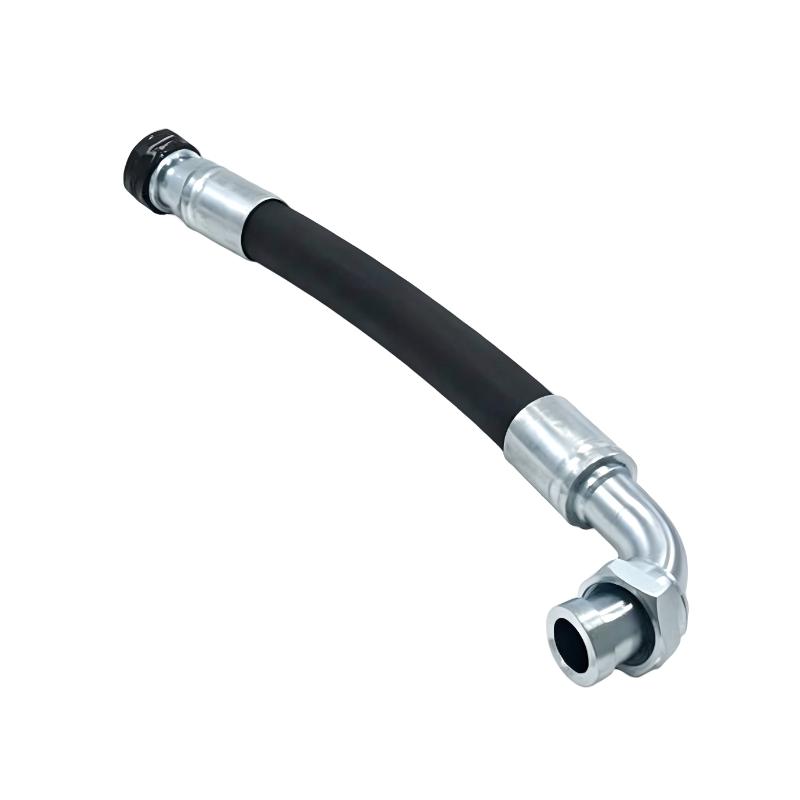

The directly documented 24266223 specification identifies a 1.00 × 44-inch hydraulic hose, with detailed OEM listings describing an ORFS straight × ORFS 90-degree elbow configuration.

Application listings connect this hose with Ingersoll Rand R55N, R75N, R55I, and R75I equipment, including oil-side radiator applications for TAS configurations. This makes correct hose selection particularly important during compressor maintenance.

The 90-degree connection is an integral part of the assembly rather than a cosmetic feature. It establishes the intended routing direction and helps position the hose correctly relative to fixed compressor components. Using an incorrectly oriented replacement can introduce twisting, interference, or excessive bending.

The 44-inch hose length is likewise important because hose routing must allow sufficient flexibility without creating unnecessary slack. During replacement, technicians should compare the original installation path and connection orientation before final tightening.

The two supplied references are treated as one product listing as requested. Public documentation directly verifies 24266223, while the relationship between 47704461001 and 24266223 is not independently established in the available records. Final compatibility should therefore be confirmed against the compressor model, serial number, and current OEM parts documentation.

Technical Specifications

Specification	Details
Brand	Ingersoll Rand
Primary Part Number	47704461001
Associated Reference	24266223
Product Type	Hydraulic Hose Assembly
Hose Description	HYD 1.00 × 44 ORFS STR × ORFS 90° ELB
Nominal Hose Size	1.00 in
Hose Length	44 in
Approx. Hose Length	1117.6 mm
Connection 1	ORFS Straight
Connection 2	ORFS 90° Elbow
Sealing System	ORFS / O-Ring Face Seal
Service Function	Compressor Fluid Routing
Documented Equipment	Ingersoll Rand Compressor Equipment
Documented Applications	R55N, R75N, R55I, R75I; oil-side radiator/TAS applications
Complete Assembly Dimensions	44-inch hose-length specification; overall fitting envelope is configuration-specific
Weight	Approx. 1.38 kg net according to an Edmac item record; verify current packing data before shipment.
Package Dimensions	50 × 620 × 330 mm reported by Edmac; these are packaging dimensions, not product dimensions.
Hose Material	PTFE/Teflon construction is identified by some product listings; verify the exact construction against the applicable OEM specification.
Compatibility	Model-, serial-number and circuit-configuration dependent

Note: Public catalogs are inconsistent regarding the second fitting: detailed OEM-oriented listings specify straight × 90° elbow, while another catalog describes straight × straight. The detailed 90-degree description is therefore the safer specification to use, but the original hose and machine parts list should be checked before ordering.

Recommended Companion Models

Model	Product Name
24266207	Ingersoll Rand Hydraulic Hose, 1.00 × 32 ORFS Straight × ORFS 90° Elbow
24266215	Ingersoll Rand Hydraulic Hose, 1.00 × 28 ORFS Straight × ORFS 90° Elbow
24266231	Ingersoll Rand Hydraulic Hose, 1.00 × 42 ORFS Straight × ORFS 90° Elbow
24266249	Ingersoll Rand Hydraulic Hose, 1.00 × 19 ORFS Straight × ORFS 90° Elbow

These references belong to the same Ingersoll Rand hydraulic-hose family, with variations primarily in hose length and installation configuration.

Frequently Selected Alternatives

Model	Product Name
24267015	Ingersoll Rand Hydraulic Hose, 1.25 × 43 ORFS Straight × ORFS Straight
24267056	Ingersoll Rand Hydraulic Hose, 2.00 × 46 JIC Straight × JIC Straight
24267064	Ingersoll Rand Hydraulic Hose, 0.25 × 16 JIC Straight × JIC Straight
24267080	Ingersoll Rand Hydraulic Hose, 2.00 × 18 JIC Straight × JIC Straight

These are related Ingersoll Rand hydraulic-hose references rather than guaranteed direct replacements for 24266223. Their diameters, lengths, fitting systems, and end configurations differ, so they should only be selected after confirming the specific compressor application and OEM parts list.

Where It Excels in Industrial Use

Compressor Oil-Circuit Routing: The supplied 47704461001 / 24266223 references are treated as one product listing. Part 24266223 is documented as an Ingersoll Rand 1-inch × 44-inch hydraulic hose for compressor equipment.
R55/R75 Compressor Service: Replacement-part listings specifically associate 24266223 with Ingersoll Rand R55N, R75N, R55I, and R75I compressor series, including oil-side radiator applications on TAS configurations.
Flexible High-Flow Routing: The 1-inch hose size provides a substantial fluid passage for compressor service circuits, while the flexible construction accommodates equipment movement and vibration.
Preventive Maintenance: Replacing a hose showing cracking, abrasion, leakage, deformation, or connection deterioration helps maintain the integrity of the compressor fluid circuit.

Key Strengths at a Glance

OEM Ingersoll Rand Reference: 24266223 is listed as a genuine Ingersoll Rand hose for compressed-air equipment.
1-Inch Hydraulic Hose: The documented specification identifies a 1.00-inch nominal hose size with a 44-inch length.
ORFS Connection System: Multiple parts catalogs identify the hose with ORFS connections, with the most detailed listings specifying a straight connection and a 90-degree elbow.
Application-Specific Geometry: The 44-inch hose length and angled connection configuration are important for maintaining the original routing and avoiding excessive bending at the compressor connection points.

Technical FAQs

1. What is Ingersoll Rand 47704461001 / 24266223?

The supplied references are treated as one product listing. 24266223 is an Ingersoll Rand hydraulic hose specified as 1.00 × 44 inches with an ORFS connection configuration.

2. What is the primary function of 24266223?

It provides flexible fluid routing within compatible Ingersoll Rand compressor systems, including documented oil-side radiator applications.

3. What is the nominal hose size?

The documented nominal hose size is 1.00 inch.

4. What is the specified hose length?

The documented hose length is 44 inches, equivalent to approximately 1117.6 mm.

5. What connection system does 24266223 use?

The detailed OEM listing identifies ORFS straight × ORFS 90-degree elbow connections.

6. What does ORFS mean?

ORFS means O-Ring Face Seal. The sealing interface uses an O-ring at the face of the fitting.

7. Which compressor series are associated with this hose?

Available application information associates 24266223 with R55N, R75N, R55I, and R75I compressor series.

8. Is 24266223 a general-purpose replacement hose?

No. The hose should be selected according to the original compressor configuration, connection geometry, hose size, length, and operating requirements.

9. What components should be inspected during replacement?

Inspect the mating fittings, O-rings, sealing faces, clamps, supports, and surrounding hose assemblies for contamination, wear, or mechanical damage.

10. What should be checked after installation?

Verify correct routing and fitting orientation, ensure the hose is not twisted or sharply bent, and check the system for leakage during controlled compressor operation.
