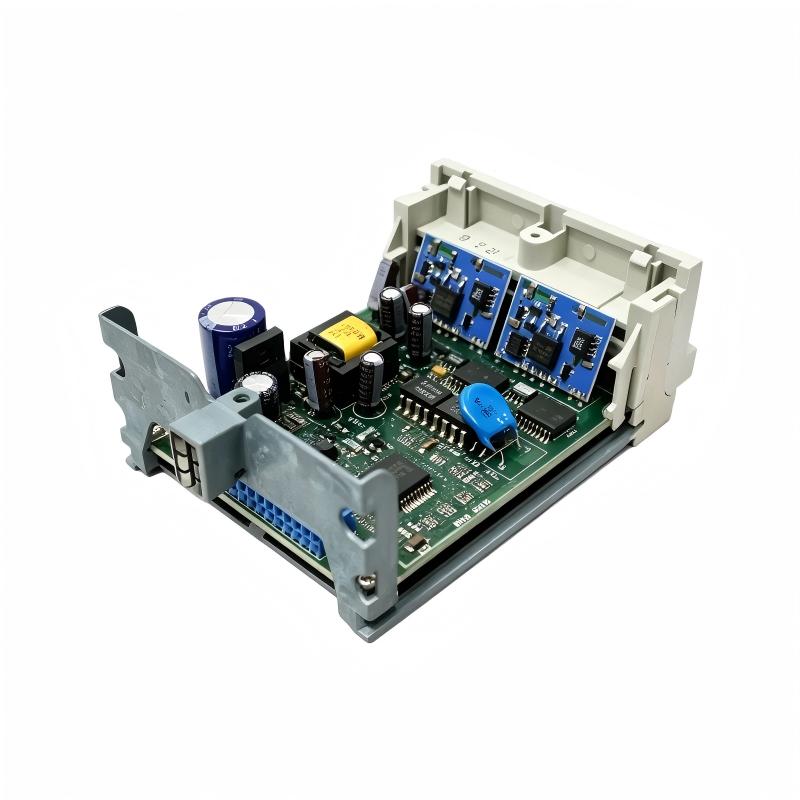

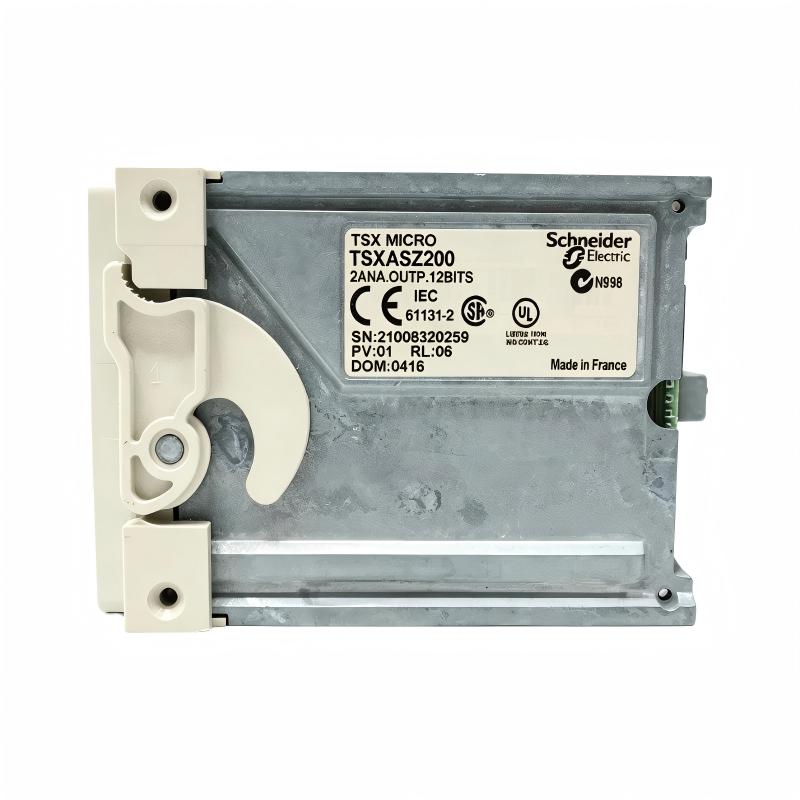

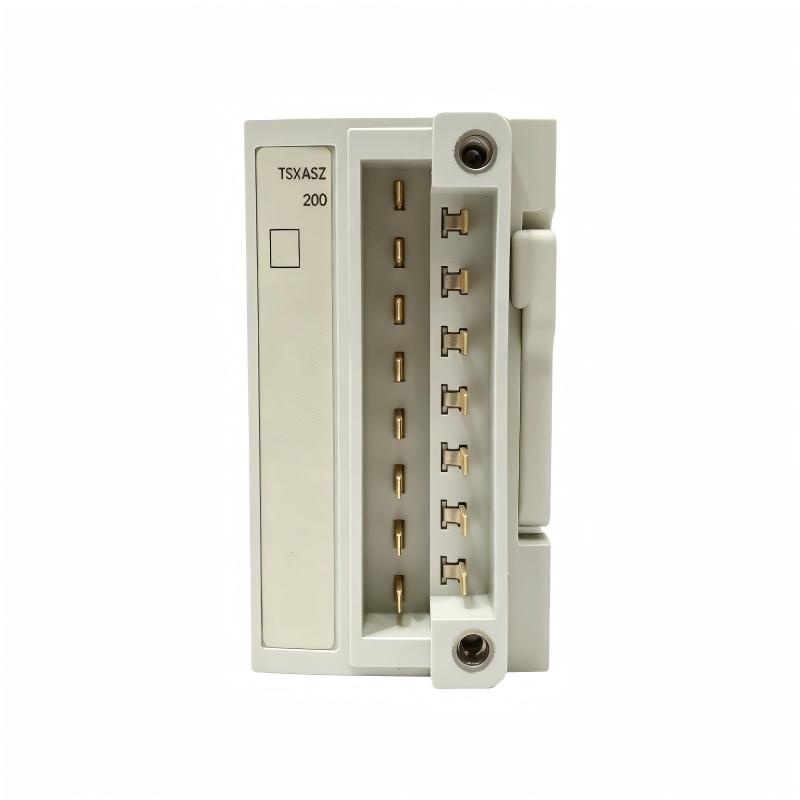

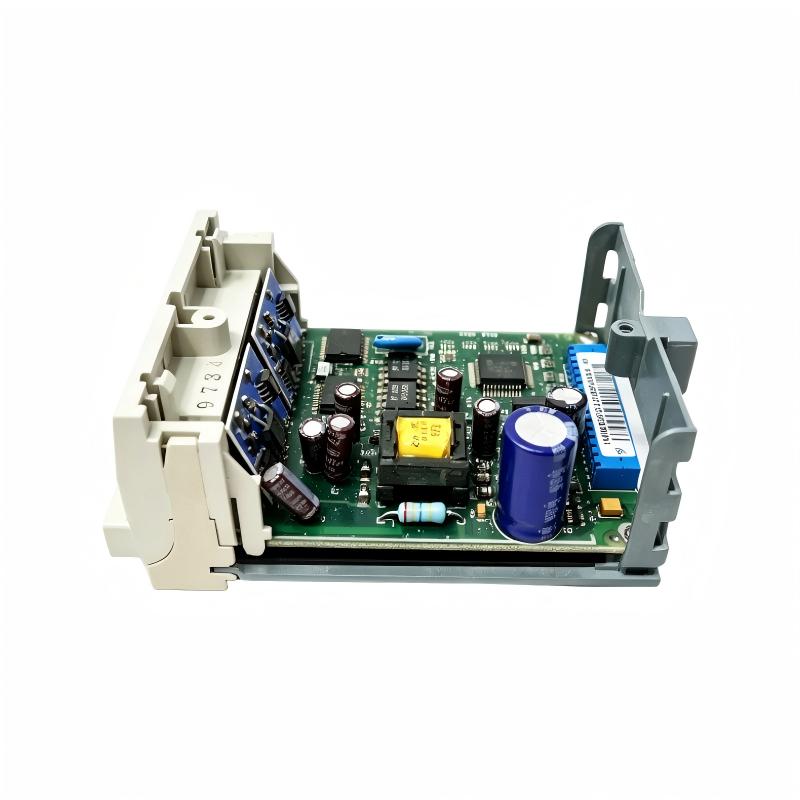

Schneider TSXASZ200 2-Channel Analog Output Module

Industrial Applications and Analog Control Integration

The Schneider TSXASZ200 2-Channel Analog Output Module is designed to provide accurate analog signal generation for Modicon automation systems. It enables PLC controllers to communicate with field devices that require continuous control signals, making it suitable for industrial processes where precise output regulation is essential.

The TSXASZ200 is commonly used in applications requiring reliable analog adjustment and process control, including:

• Industrial temperature regulation systems
• Motor speed control applications
• Valve and actuator positioning
• Process monitoring and adjustment
• Machine automation equipment
• Production line control systems

By converting PLC-generated control data into stable analog output signals, the TSXASZ200 helps improve process accuracy and supports flexible automation solutions for various industrial environments.

Technical Performance and Application Advantages

The Schneider TSXASZ200 provides engineers with a practical analog output solution for automation systems requiring dependable signal control and easy integration.

Main advantages include:

• Precise Analog Signal Output
  Provides stable analog signals for controlling industrial devices such as drives, actuators, and regulating equipment.
• Efficient PLC System Expansion
  Allows existing automation platforms to add analog control capability without major system redesign.
• Reliable Process Regulation
  Supports applications where continuous signal adjustment is required for maintaining stable production conditions.
• Simplified Engineering Configuration
  Designed for straightforward integration into compatible Schneider automation architectures.
• Compact Industrial Design
  The module combines analog output functionality with efficient space utilization for control cabinet installation.

The TSXASZ200 is a valuable choice for system integrators and maintenance engineers who need dependable analog output performance in industrial control projects.

Technical FAQs About Schneider TSXASZ200 2-Channel Analog Output Module

Q1: What is the main function of the TSXASZ200 module?
The TSXASZ200 converts PLC control values into analog output signals used for controlling external industrial devices.

Q2: What types of applications require an analog output module?
Analog output modules are commonly used for controlling variable devices such as drives, valves, actuators, and process regulators.

Q3: What should be checked if the analog output signal is incorrect?
Engineers should verify channel configuration, wiring connections, output parameters, field device requirements, and PLC program values.

Q4: How can unstable analog signals be diagnosed?
Check grounding conditions, cable quality, electrical interference, configuration settings, and the connected field equipment.

Q5: Does the TSXASZ200 require software configuration?
Yes, output channels must be configured correctly within the PLC programming environment before operation.

Q6: What causes an analog output channel to show no signal?
Possible causes include incorrect addressing, configuration errors, wiring faults, power issues, or problems with connected devices.

Q7: How can analog control accuracy be improved?
Proper calibration, stable power conditions, correct scaling parameters, and suitable signal wiring improve output accuracy.

Q8: Can the TSXASZ200 be used with variable frequency drives?
Yes, analog output modules are commonly used to provide control references for compatible industrial drives.

Q9: What maintenance practices are recommended for analog output modules?
Regular inspection of wiring, signal quality, configuration backups, and system diagnostics helps maintain reliable operation.

Q10: What should be confirmed before replacing the TSXASZ200 module?
Verify that the issue originates from the module, save system configuration data, and confirm compatibility with the automation platform.
