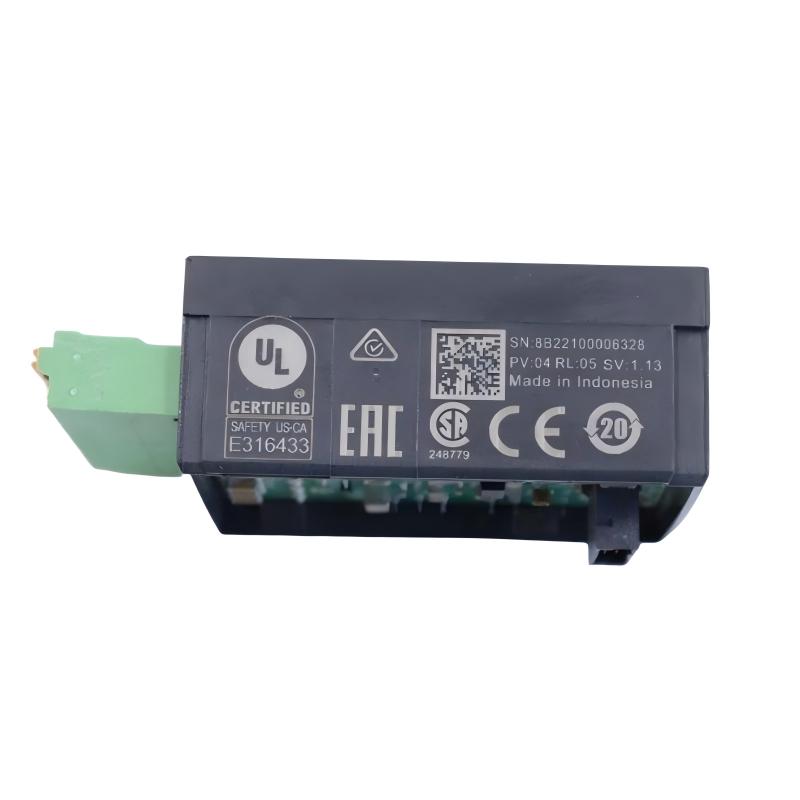

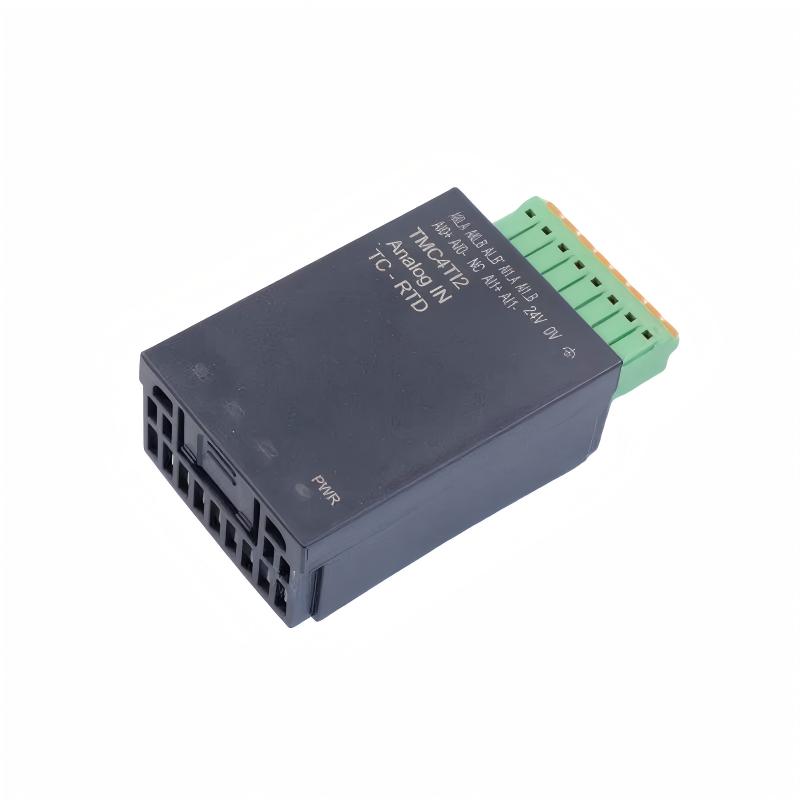

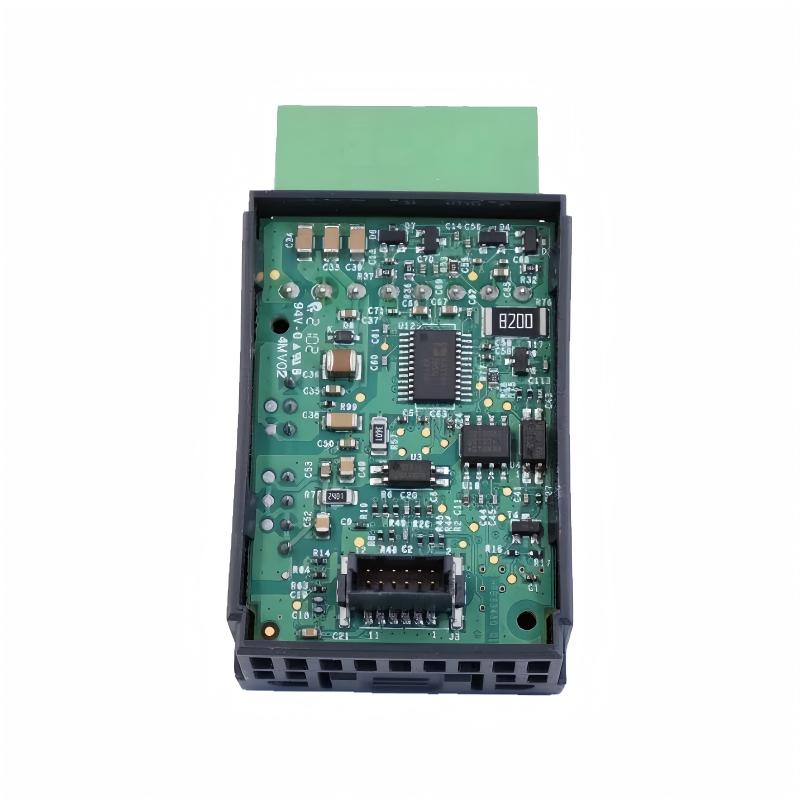

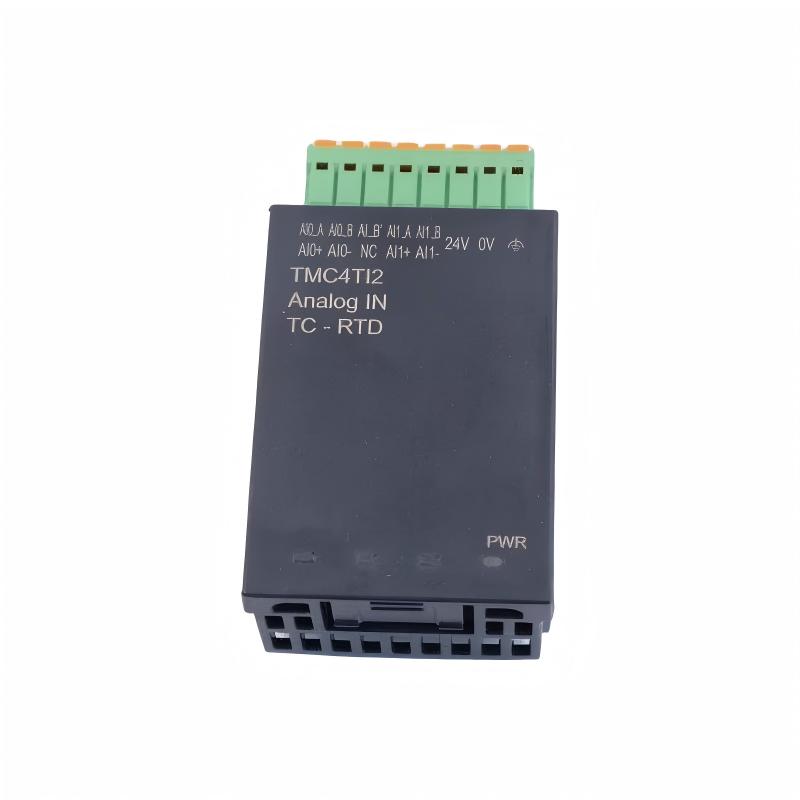

Schneider TMC4TI2 Analog Input Card

Industrial Applications and Analog Data Acquisition

The Schneider TMC4TI2 Analog Input Card is designed to provide precise analog signal measurement for compact automation systems. As an expansion module for Schneider Modicon M221 controller platforms, this analog input card enables PLC systems to collect continuous signals from field instruments and convert them into usable control data.

The TMC4TI2 is commonly applied in automation environments where accurate monitoring of process variables is required. Typical applications include:

• Temperature monitoring systems
• Pressure and flow measurement applications
• Machine condition monitoring
• Industrial equipment control
• Building automation systems
• Small process automation projects

By adding analog input capability to compact PLC installations, the TMC4TI2 helps engineers improve monitoring accuracy and create more intelligent control solutions.

Compact Design Features and Engineering Advantages

The Schneider TMC4TI2 provides an efficient way to expand the measurement capability of compact automation systems while maintaining a simple installation approach.

Key advantages include:

• Accurate Analog Signal Acquisition
  Designed to collect continuous field signals, helping PLC systems monitor real-world process conditions more effectively.
• Compact Automation Expansion
  Its small form factor allows additional analog functionality without increasing cabinet space requirements significantly.
• Flexible Application Support
  Suitable for various sensors and measurement devices used in industrial automation environments.
• Easy System Integration
  Designed for straightforward connection with compatible Schneider controllers and automation architectures.
• Improved Control Precision
  Enables more accurate data collection for applications requiring variable signal monitoring and process adjustment.

The TMC4TI2 is an ideal solution for machine builders and automation engineers looking to enhance compact PLC systems with reliable analog measurement capability.

Technical FAQs About Schneider TMC4TI2 Analog Input Card

Q1: What is the main purpose of the Schneider TMC4TI2 module?
The TMC4TI2 provides analog input capability, allowing PLC systems to collect and process continuous signals from connected field devices.

Q2: What types of signals can be connected to an analog input card?
Analog input modules are commonly used with signals from sensors measuring temperature, pressure, level, flow, and other process variables.

Q3: Why might an analog input value be incorrect?
Possible causes include incorrect wiring, wrong signal type selection, scaling errors, sensor problems, or configuration issues.

Q4: How can analog input accuracy be improved?
Proper sensor calibration, correct wiring methods, signal grounding, and accurate PLC parameter settings help improve measurement accuracy.

Q5: Does the TMC4TI2 require software configuration?
Yes, the input channel parameters must be configured correctly within the PLC programming environment.

Q6: What should be checked if the PLC cannot read the analog signal?
Engineers should verify wiring connections, input configuration, sensor output, and PLC communication status.

Q7: How can electrical interference affect analog input signals?
Noise from motors, drives, and power equipment may introduce signal fluctuations, so proper shielding and grounding practices are recommended.

Q8: Can the TMC4TI2 be used for real-time process monitoring?
Yes, analog input modules are commonly used for continuous monitoring applications where variable data acquisition is required.

Q9: What maintenance procedures are recommended for analog input modules?
Regular inspection of signal wiring, sensor condition, configuration parameters, and system diagnostics helps maintain stable operation.

Q10: What should be confirmed before replacing the TMC4TI2 card?
Users should verify that the fault originates from the module, save the PLC configuration, and confirm compatibility with the controller system.
