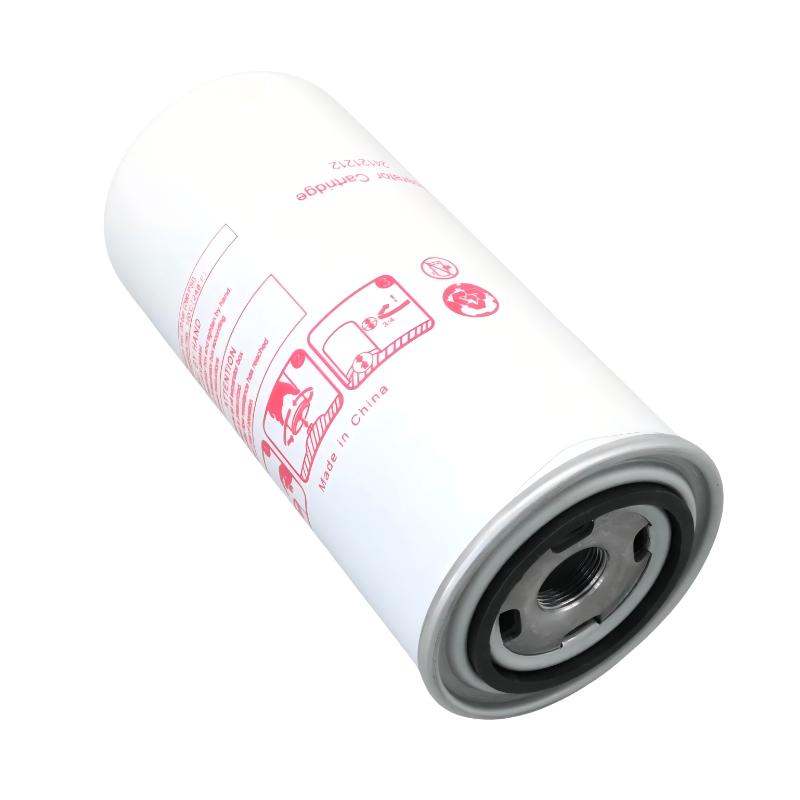

Ingersoll Rand 47545137001 54509427 Air/Oil Separator Element

Introduction

The Ingersoll Rand 47545137001 54509427 Air/Oil Separator Element is a maintenance-focused combination for compatible New Cobra M90–160 air-cooled rotary screw compressors. The 47545137001 reference represents a major 16,000-hour preventive maintenance program, while 54509427 is the dedicated separator element used in applicable Ingersoll Rand compressor systems.

Air/oil separation is fundamental to the operation of an oil-injected rotary screw compressor. During compression, lubricant is introduced into the air stream to provide cooling, sealing, and lubrication. After compression, that oil must be efficiently removed from the compressed air before the air leaves the separator vessel.

The 54509427 element performs this task through coalescing separation. Fine oil droplets are captured by the separator media and combined into larger droplets that can return to the lubrication system. This helps reduce oil carryover while maintaining the intended separation process.

Maintaining the separator is therefore more than a routine filter replacement. Its condition can influence pressure drop, oil carryover, downstream air quality, and compressor operating efficiency. A separator that becomes heavily loaded or damaged can create operating conditions that are costly if left unresolved.

Ingersoll Rand describes its rotary maintenance kits as an integral part of factory-recommended maintenance, with periodic service levels including 2,000, 4,000, 8,000, and 16,000 hours. The company also emphasizes the value of scheduled maintenance for reliability and planned downtime.

The 16,000-hour maintenance milestone represented by 47545137001 is consequently an important opportunity to review major filtration and separation components. Coordinating separator service with other scheduled inspections can reduce unplanned downtime and improve maintenance efficiency.

54509427 has a well-established identity as an Ingersoll Rand separator element. Current parts sources describe it as an element/separator for rotary screw compressor applications, while independent filter references provide dimensional and media information for compatible replacement products.

Published third-party reference data lists 54509427 at approximately 427 mm overall height, with outside-diameter measurements varying by the measurement point. Another filter source identifies a 14.750-inch nominal outside diameter, 16.870-inch height, and 8.380-inch inside diameter. Because these measurements are supplied by replacement-filter references rather than a current Ingersoll Rand engineering drawing, they should be treated as reference information only.

Separator replacement should also include inspection of the separator vessel, seals, connections, and associated return-oil components. Simply changing the element may not resolve excessive oil carryover if the underlying problem originates elsewhere in the lubrication or separation circuit.

It is equally important to distinguish 54509427 from other separator references. Several Ingersoll Rand separator numbers, including 54509435, 54509500, 54517776, and 54601513, appear in cross-reference catalogues, but their presence in the same product family does not make them automatic substitutes.

For purchasing teams, using the exact 54509427 reference provides a clearer route to fitment verification than selecting a separator solely from approximate dimensions. Ingersoll Rand's current parts-finder guidance likewise emphasizes selecting the equipment model to identify the exact OEM parts required.

Exact OEM weight, internal construction, gasket materials, filtration efficiency, collapse pressure, and current package contents for 54509427 were not sufficiently verified from authoritative Ingersoll Rand documentation. These values are therefore intentionally not presented as definitive OEM specifications.

When correctly matched to the compressor, 54509427 supports effective air/oil separation, cleaner compressed-air delivery, and efficient recovery of separated lubricant. Combined with the broader 47545137001 maintenance program, it provides an important component of long-term compressor reliability and service planning.

Technical Specifications

Ingersoll Rand recommends using its parts-finder process to identify exact OEM components by equipment model, helping avoid incorrect substitutions.

Recommended Companion Models

These references address complementary intake filtration, coolant filtration, minimum-pressure control, and temperature-control functions within the broader New Cobra M90–160 maintenance strategy.
