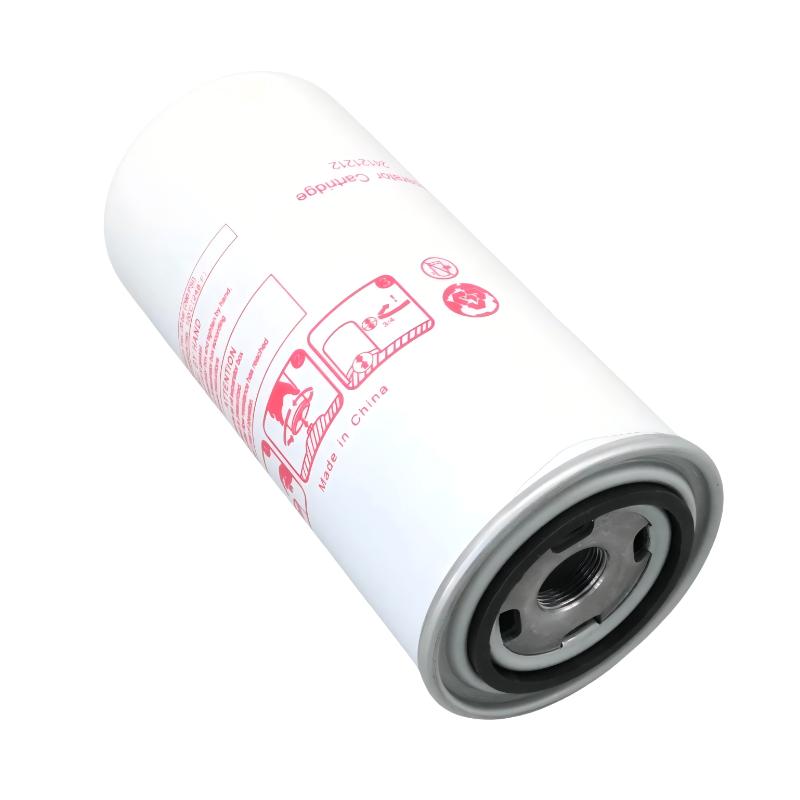

Ingersoll Rand 47545141001 54509427 Air/Oil Separator Element

Introduction

The Ingersoll Rand 47545141001 54509427 Air/Oil Separator Element is a critical filtration component within the 16,000-hour preventive maintenance program for compatible New Cobra M90–160 water-cooled rotary screw compressors. The 47545141001 reference identifies the complete maintenance package, while 54509427 is listed as the separator-tank element included in that package.

In an oil-injected rotary screw compressor, compressed air and lubricating oil are present together during the compression process. After compression, the mixture enters the separation system, where the separator element performs fine coalescing filtration to remove oil mist from the compressed-air stream. The separated oil can then return to the compressor lubrication circuit.

This separation function is essential for maintaining compressed-air quality and controlling lubricant losses. If excessive oil passes downstream, it can contaminate air treatment equipment, piping, pneumatic machinery, and production processes. Maintaining the separator therefore supports both compressor reliability and downstream air-system cleanliness.

The 54509427 reference is specifically identified as an Ingersoll Rand separator element and is also described as an element for an 18-inch separator tank in current parts listings.

Its inclusion in 47545141001 makes the part particularly relevant during major scheduled maintenance. The current New Cobra M90–160 maintenance listing specifies one 54509427 separator element together with the 24172215 air filter, two 39911631 coolant filter elements, 39218193 motor grease, 99289894 minimum-pressure valve kit, 47545136001 temperature-control valve kit, 47545138001 modified inlet-valve service kit, 47545140001 air-cooling hose kit, and 47545143001 water-cooler seal kit.

A separator element gradually accumulates contaminants and separated oil as the compressor operates. As resistance through the element increases, pressure drop can become an important operating consideration. A well-maintained separator helps keep the separation system operating within its intended performance range.

Separator condition can also influence oil carryover. Excessive downstream oil does not necessarily mean the separator alone is defective; incorrect lubricant level, operating conditions, drain-system problems, or other separation-system issues can produce similar symptoms. Proper troubleshooting should therefore evaluate the complete system.

The 54509427 reference should not be confused with other filtration components used on the same compressor. The 24172215 element performs intake-air filtration, 39911631 serves the coolant/lubricant filtration system, and 54509427 performs air/oil separation. Correct identification of these functions is important when preparing a maintenance order.

Current parts references also associate 39863865 with 54509427. However, cross-reference information should be treated as application-specific rather than as blanket approval for substitution. The compressor's serial number and current parts documentation should be checked before installing an alternative reference.

For maintenance planning, replacing the separator during a major service interval offers an opportunity to inspect the separator vessel, seals, oil-return arrangement, connections, and related components. This can help identify conditions that might otherwise develop into oil-carryover or efficiency problems.

Some third-party sources publish dimensional information for 54509427, but these specifications vary between suppliers and are not sufficient to establish definitive OEM dimensions for every application. For that reason, exact dimensions, filtration efficiency, pressure-drop limits, and construction details should be confirmed against the applicable Ingersoll Rand documentation.

For industrial operators, 54509427 provides an important barrier between the compressor's oil-injected compression process and the downstream compressed-air network. When correctly matched to the compressor and maintained according to the applicable service requirements, it supports oil separation, air quality, energy-conscious operation, and dependable compressor performance.

Technical Specifications

The current maintenance listing confirms one 54509427 separator element in the 47545141001 16,000-hour water-cooled New Cobra M90–160 package.

Recommended Companion Models

These components address complementary intake filtration, coolant/lubricant filtration, pressure regulation, and water-cooling maintenance requirements within the same New Cobra M90–160 service program.
