Introduction

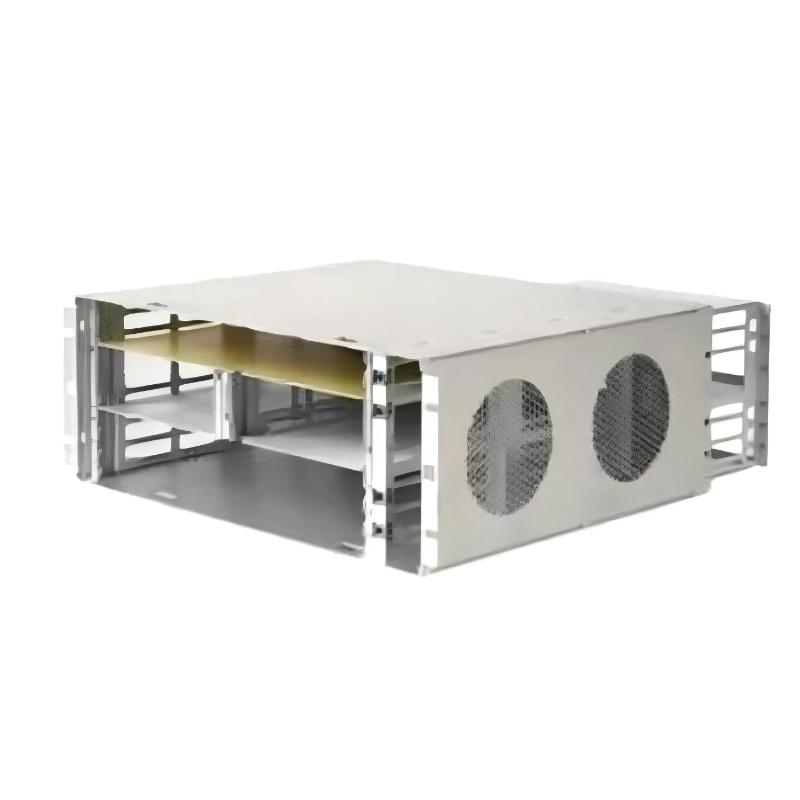

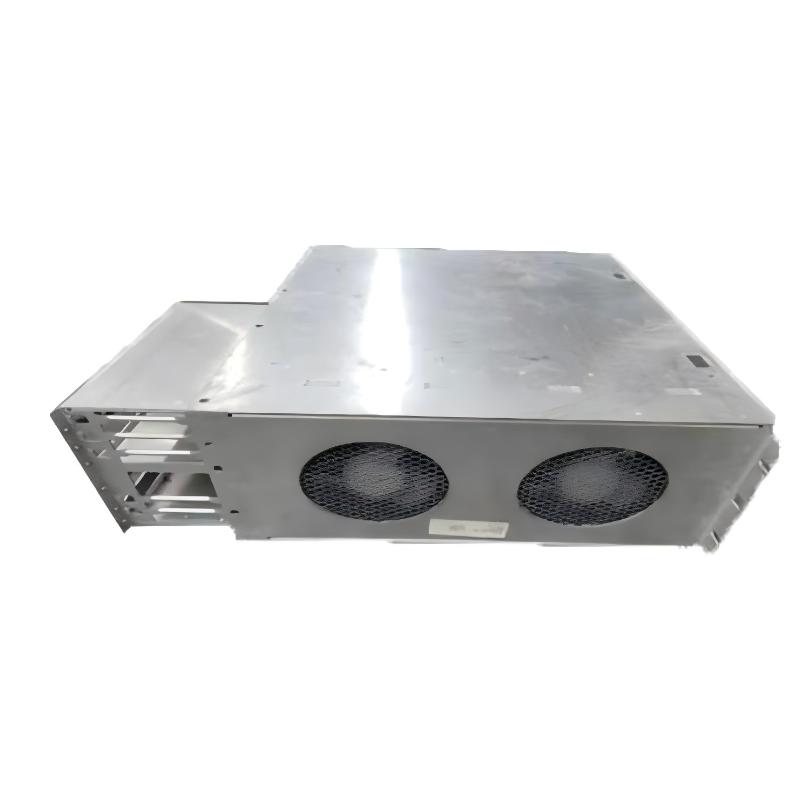

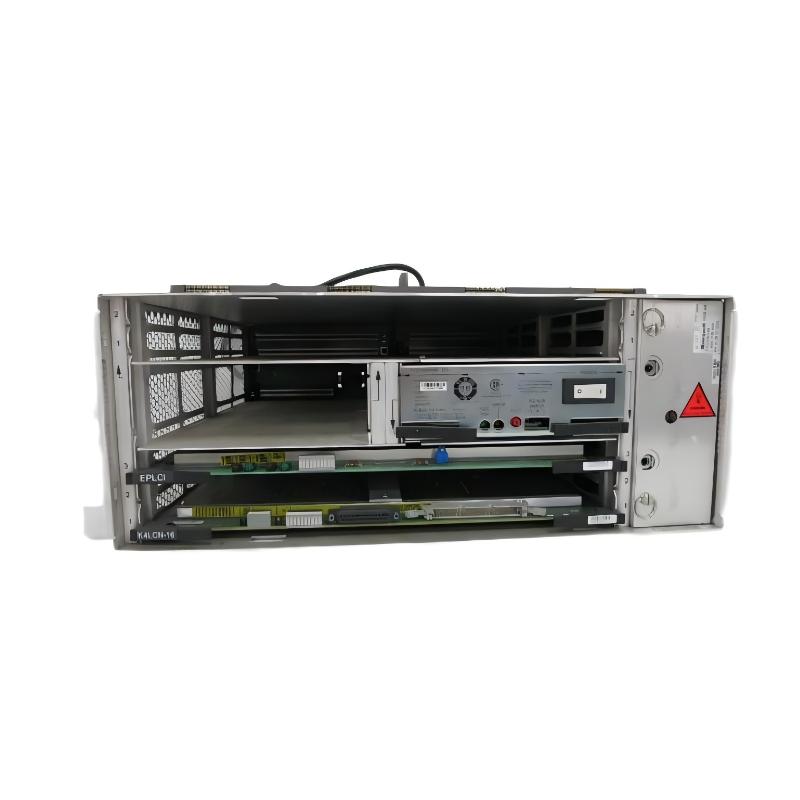

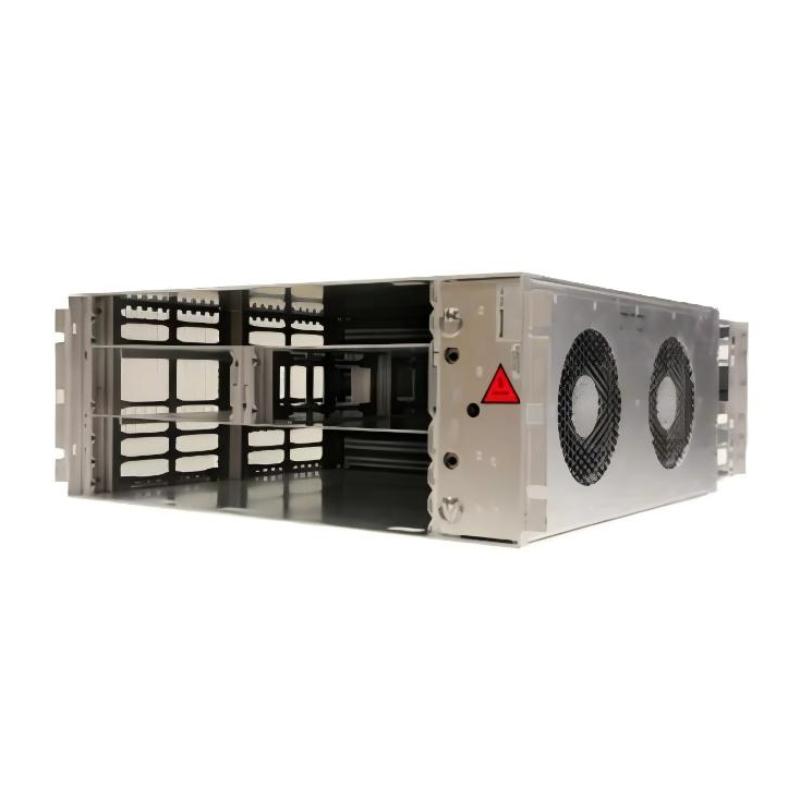

The Honeywell MP-DNCF02-200 / MP-DNCF02-201 Classic Backplate serves as a robust mechanical backbone for industrial control systems. Its solid construction and precise dimensions make it ideal for supporting control modules, power assemblies, and wiring infrastructure.

Technical Specifications

Item	Description
Model	MP-DNCF02-200 / MP-DNCF02-201
Part Number	51402455-100
Type	Classic Backplate
Dimensions	480 × 120 × 30 mm
Weight	Approx. 7.57 kg
Installation	Control cabinet or system frame mounting
Function	Mechanical support and module mounting
Application	Industrial automation and control systems

Recommended Related Models

Honeywell MP Power Supply Modules – stable power assemblies mounted on backplates
Honeywell MC and FC I/O Modules – compatible control and signal modules
Honeywell MP System Frames – structural support for backplate installations
Honeywell FC Controllers – central control units mounted on classic layouts

Popular Related Models

Honeywell MP-DNCF02-200 / MP-DNCF02-201 Classic Backplate
Honeywell MP-DNCP Series Backplates – alternative mounting sizes
Honeywell MC-PSRX Power System Enclosures
Honeywell FS-PDB Distribution Boards

Where It Belongs

The Honeywell MP-DNCF02-200 / MP-DNCF02-201 Classic Backplate is designed as a solid mechanical foundation for mounting control, power, and I/O components within industrial automation systems. It provides structural integrity, precise alignment, and long-term stability for classic Honeywell control architectures.

Base mounting platform for Honeywell control and I/O assemblies
Installation inside control cabinets and system racks
Industrial automation systems requiring rigid mechanical support
Power and signal module organization in classic control layouts
Facilities demanding vibration-resistant mounting solutions

What Makes It a Reliable Choice

This backplate is built for strength, accuracy, and durability, supporting heavy components while maintaining clean system organization.

Heavy-Duty Construction: Supports multiple modules with excellent mechanical stability.
Large Mounting Surface: 480 × 120 mm area allows flexible component placement.
Structural Rigidity: 7.57 kg weight minimizes vibration and mechanical movement.
System Compatibility: Designed for classic Honeywell mounting standards.
Long-Term Durability: Built for continuous industrial service life.

Technical FAQs

What is the main function of the MP-DNCF02 backplate?
It provides a rigid mounting surface for control, power, and I/O modules.
Why is the backplate relatively heavy?
The mass improves mechanical stability and vibration resistance.
Is it suitable for industrial environments?
Yes, it is designed for demanding industrial control installations.
What are the dimensions of the backplate?
480 × 120 × 30 mm.
What is the weight?
Approximately 7.57 kg.
Does it support modular system layouts?
Yes, it allows flexible positioning of multiple components.
How is it installed?
Mounted inside a control cabinet or system frame.
Is it compatible with modern Honeywell systems?
It is optimized for classic Honeywell architectures and compatible assemblies.
Does it help with cable management?
Yes, it supports organized routing and secure mounting.
Which industries typically use this backplate?
Oil and gas, chemical processing, power generation, and heavy manufacturing.
