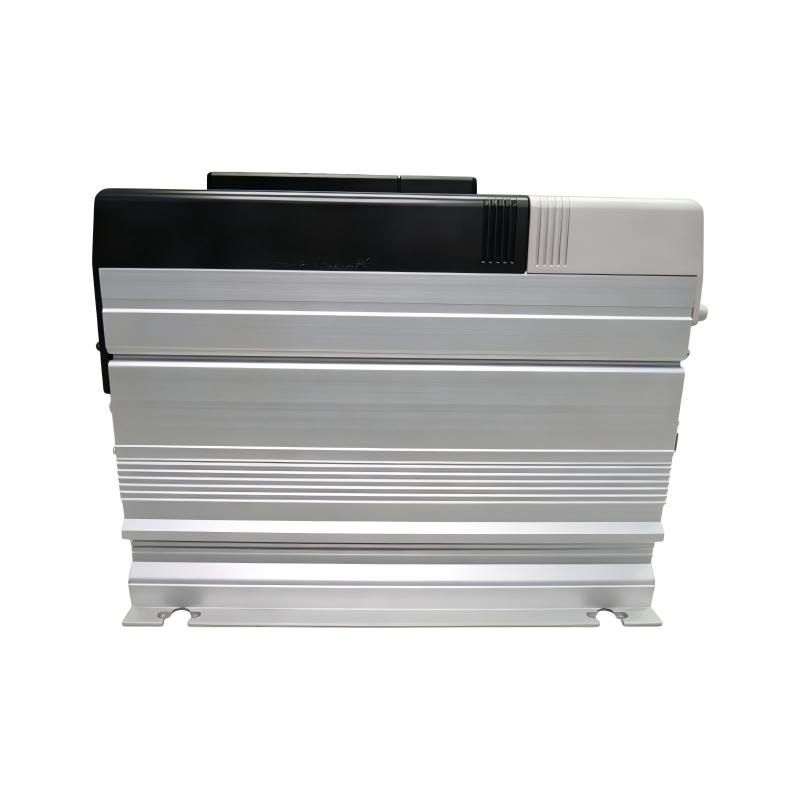

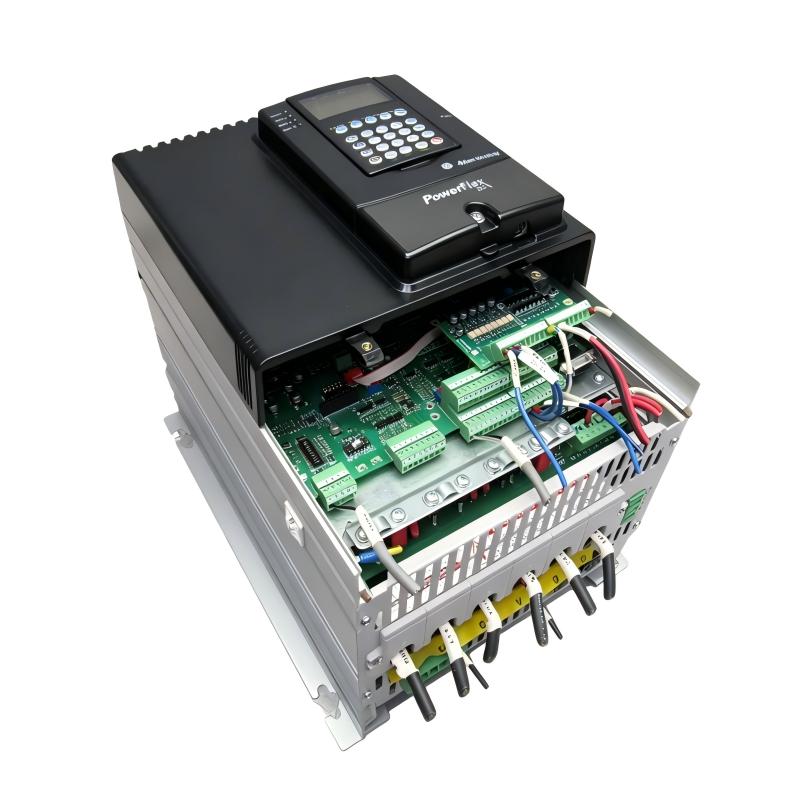

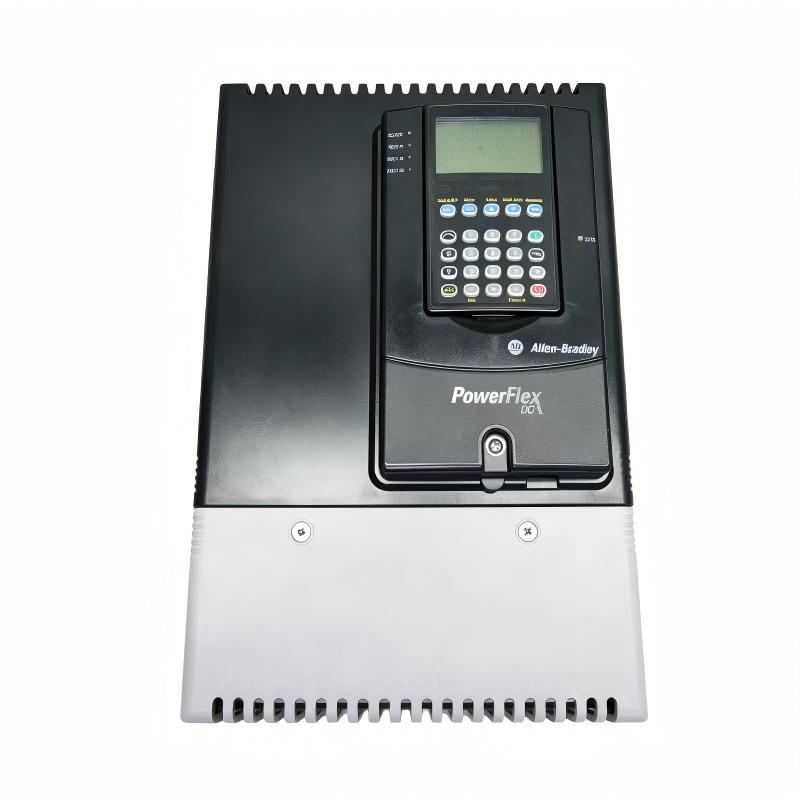

Allen Bradley 20P41AB055RA0NNN PowerFlex DC Driver
Allen Bradley 20P41AB055RA0NNN PowerFlex DC Driver
0.0
Points
Brand:Allen Bradley PLC Item No.:20P41AB055RA0NNN Product Origin:USA Product Dimensions:359 x 267 x 287 mm Product Weight:11.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Many industrial plants still operate machinery built around DC motors because those systems have proven reliable over years of production. The Allen Bradley 20P41AB055RA0NNN PowerFlex DC Drive provides a dedicated control solution for maintaining this type of equipment while delivering adjustable and manageable motor operation.
For a maintenance engineer, retaining an existing DC motor can often be more practical than replacing the complete drive train. A motor replacement may involve mechanical redesign, new cabling, control-system changes, commissioning work, and extended downtime. When the existing motor remains serviceable, a suitable DC drive can offer a more focused modernization path.
The PowerFlex DC platform is particularly useful in machinery where motor speed and torque need to respond predictably to production requirements. Applications such as web handling, material processing, conveying, and printing can benefit from controlled DC motor operation.
The 20P41AB055RA0NNN is therefore well suited to industrial maintenance, retrofit, and replacement projects where reliable DC motor control remains a priority. Proper sizing and configuration are essential to achieving stable performance and protecting both the drive and motor.
Technical Specifications
Specification
Details
Brand
Allen Bradley
Model
20P41AB055RA0NNN
Product Family
PowerFlex DC
Product Type
PowerFlex DC Drive
Drive Category
DC Motor Drive
Primary Function
DC Motor Speed and Torque Control
Application
Industrial Automation
Typical Equipment
Conveyors, Web Systems, Printing and Processing Machinery
Motor Type
Compatible DC Motor
Installation
Industrial Control Cabinet
Dimensions
359 × 267 × 287 mm
Weight
11.50 kg (25.35 lb)
Recommended Related Models
Model
Product Type
Application
Allen Bradley 20P41AB038RA0NNN
PowerFlex DC Drive
DC motor speed and torque control
Allen Bradley 20P41AB055RA0NNN
PowerFlex DC Drive
Industrial DC motor applications
Allen Bradley PowerFlex DC
DC Drive
DC motor control and retrofit
Allen Bradley PowerFlex 70
AC Drive
Variable-speed AC motor control
Allen Bradley PowerFlex 700
AC Drive
Industrial AC motor applications
For applications that continue to use DC motors, the PowerFlex DC family is the more directly relevant group. AC drive alternatives should only be evaluated when the motor and machine are suitable for an AC conversion.
Popular Related Models
Model
Product Type
Typical Application
Allen Bradley 20P41AB038RA0NNN
PowerFlex DC Drive
Industrial DC motor control
Allen Bradley 20P41AB055RA0NNN
PowerFlex DC Drive
DC motor speed control
Allen Bradley PowerFlex DC
DC Drive
DC motor retrofit projects
Allen Bradley PowerFlex 70
AC Drive
General industrial motor control
Allen Bradley PowerFlex 700
AC Drive
Process and machinery applications
When purchasing or replacing the 20P41AB055RA0NNN, the complete catalog number should be verified together with the existing motor's electrical requirements, field configuration, feedback arrangement, load characteristics, and control-system interface. This is especially important when replacing a drive in an operating production machine.
Applications
The Allen Bradley 20P41AB055RA0NNN PowerFlex DC Drive is designed for industrial machinery that continues to rely on controlled DC motor operation. It provides a dedicated interface for applications where adjustable speed, controlled torque, and stable motor performance are important to the production process.
Typical applications include conveyors, web-handling equipment, printing systems, material-processing machinery, unwind and rewind equipment, extruders, and other machines built around compatible DC motors. It is particularly relevant to facilities maintaining established DC motor installations where replacing the entire motor system would require significant mechanical and electrical modifications.
For retrofit and maintenance projects, the PowerFlex DC platform offers a practical way to keep existing equipment productive while maintaining controlled motor operation within the plant's established automation architecture.
Advantages
Purpose-built DC motor control — Provides a dedicated solution for compatible industrial DC motor applications.
Adjustable speed operation — Allows motor speed to be coordinated with machine and process requirements.
Controlled torque performance — Suitable for applications where stable torque contributes directly to production quality.
Retrofit-friendly approach — Helps extend the useful operating life of existing DC motor equipment.
Industrial automation integration — Can be incorporated into compatible PLC and process-control architectures.
Suitable for demanding machinery — Designed for applications where repeatable motor behavior is essential.
Simplifies DC system maintenance — Gives maintenance teams a practical drive solution for established DC installations.
Efficient cabinet integration — The compact physical format can help simplify installation in suitable control panels.
Technical FAQs
1. What is the Allen Bradley 20P41AB055RA0NNN used for?
The 20P41AB055RA0NNN is a PowerFlex DC drive intended to control compatible DC motors in industrial automation and machine-control applications.
2. What makes a DC drive different from an AC drive?
A DC drive is designed to control DC motor characteristics such as armature operation and field excitation. An AC drive is designed around AC motor control and uses variable-frequency techniques to regulate motor operation.
3. What machinery can benefit from this type of drive?
Suitable applications may include conveyors, printing equipment, web-processing systems, material-handling machinery, extruders, and unwind/rewind systems that use compatible DC motors.
4. Is the 20P41AB055RA0NNN suitable for retrofit applications?
It can be considered for compatible retrofit projects where an existing DC motor and control architecture are being maintained. Motor and drive requirements should be carefully matched before installation.
5. What motor information is required during setup?
The motor nameplate should be used to determine applicable armature voltage, armature current, field requirements, speed, and other parameters required by the selected drive configuration.
6. What could cause a DC motor to draw excessive current?
Potential causes include excessive mechanical loading, incorrect drive settings, motor faults, mechanical binding, wiring problems, or unsuitable acceleration and current-limit parameters.
7. What should be checked if the motor does not accelerate correctly?
Check the drive's command and reference signals, motor connections, armature and field circuits, current limits, acceleration settings, and the mechanical load. Diagnostic information can help narrow down the cause.
8. Why is speed feedback important in some DC motor applications?
Feedback can provide the control system with actual motor-speed information, allowing the drive to regulate speed more accurately when the application requires tighter speed control.
9. Can the drive communicate with a PLC?
A compatible PowerFlex DC installation can be integrated into a PLC-based automation system using the available control and communication interfaces appropriate to the selected configuration.
10. What maintenance should be performed on a PowerFlex DC installation?
Inspect cooling paths, cabinet cleanliness, electrical connections, motor wiring, field circuits, feedback devices where applicable, and stored diagnostic information. Maintenance intervals should reflect the operating environment and site requirements.
