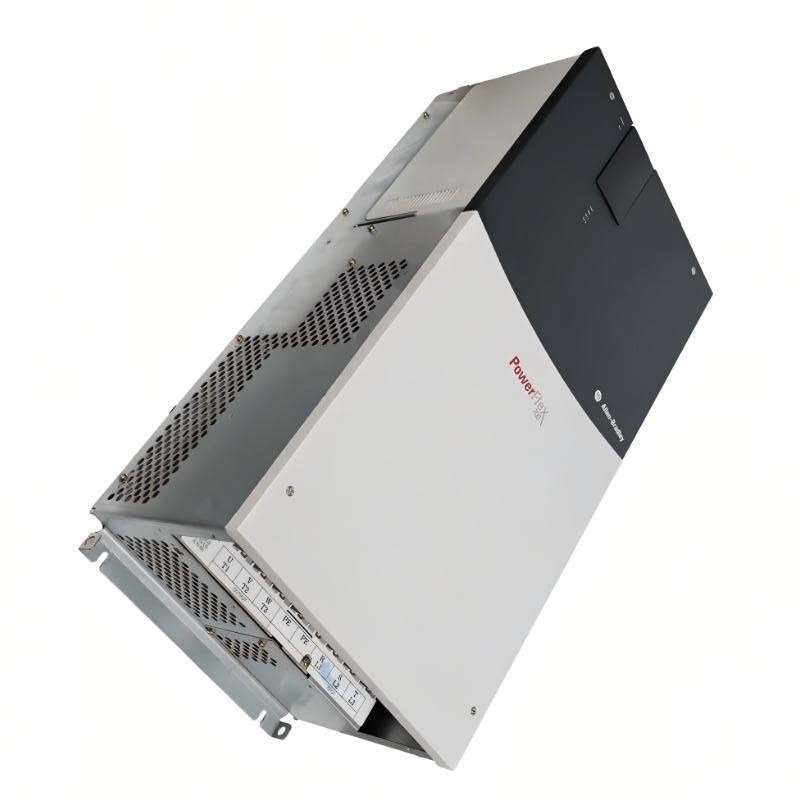

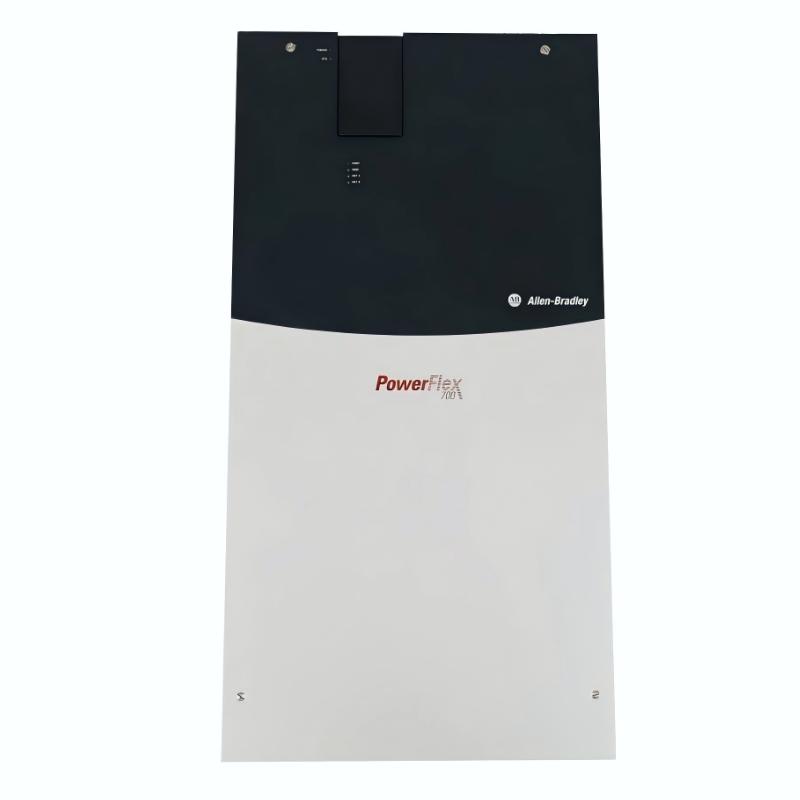

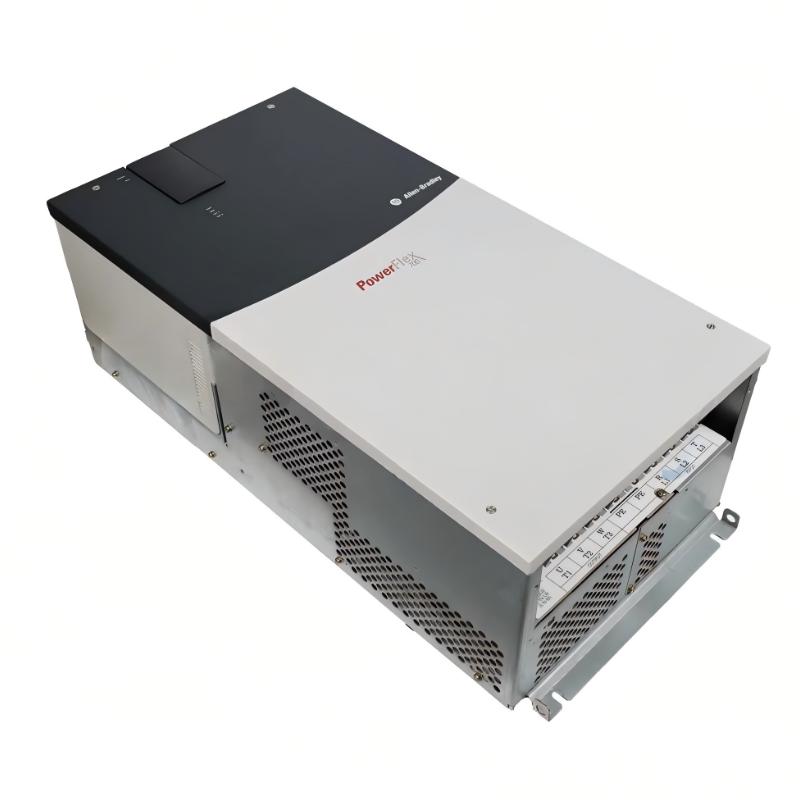

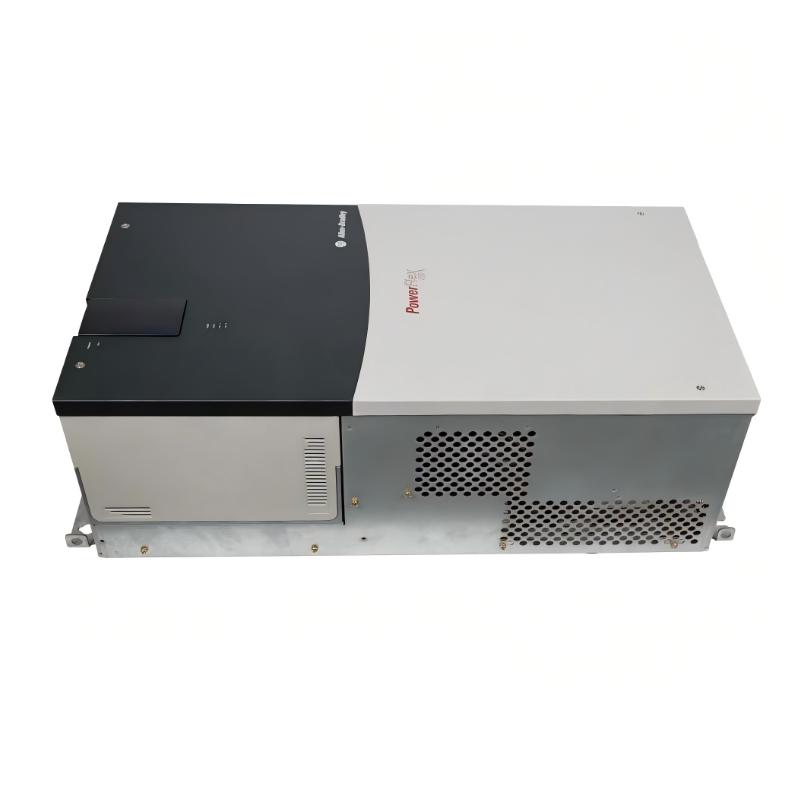

Allen Bradley 20BB192A0ANNANC0 PowerFlex 700 AC Drive

Industrial Applications

The Allen Bradley 20BB192A0ANNANC0 PowerFlex 700 AC Drive is engineered for industrial motor-control applications where consistent speed regulation, controlled torque response, and dependable machine operation are important to production performance.

As part of the PowerFlex 700 family, this AC drive is suited to automated equipment that needs a configurable motor-control solution rather than a simple fixed-speed starter. It can be incorporated into machinery where motor speed must change according to production cycles, process demand, or material movement.

Common application areas include:

• Heavy-duty conveyor systems
• Material-handling machinery
• Industrial pumping equipment
• Fans and large ventilation systems
• Packaging and processing machinery
• Manufacturing production lines
• Automated machine systems
• Process equipment
• Rotating machinery
• Material-transfer applications

In systems with substantial mechanical inertia, controlled acceleration and deceleration can help minimize abrupt changes in mechanical loading. For process applications, adjustable motor speed can also help synchronize equipment with upstream and downstream production stages.

Core Advantages for Industrial Motor Control

Configurable drive performance
The PowerFlex 700 platform allows the motor-control profile to be configured around the connected motor and machine. This gives engineers more flexibility when commissioning equipment with different operating requirements.

Smooth speed transitions
Properly selected acceleration and deceleration parameters can provide controlled changes in motor speed, which is useful for conveyors, rotating equipment, and machinery with sensitive mechanical components.

Designed for automation integration
The drive can be incorporated into an industrial control architecture where motor commands and speed references are coordinated with PLC logic, operator controls, process signals, and machine interlocks.

Comprehensive configuration environment
Drive parameters provide technicians with control over important operating characteristics, helping them tailor motor behavior to the application.

Maintenance-oriented diagnostics
Fault and status information can shorten the initial diagnostic process by giving maintenance personnel information about the operating condition when a problem occurs.

Suitable for industrial replacement programs
Where PowerFlex 700 drives are already established across a plant, retaining the same platform can simplify technician training, spare-parts management, and maintenance procedures.

Built around production requirements
Reliable motor control can have a direct impact on production throughput. A correctly selected and commissioned drive helps machinery achieve repeatable speed and controlled operation.

Technical FAQs

1. What is the Allen Bradley 20BB192A0ANNANC0 designed to do?
It is a PowerFlex 700 AC drive used for adjustable-speed control of industrial AC motors. The drive regulates motor operation according to the configured control method and applied commands.

2. What should be checked before commissioning the drive?
Check the power supply, motor wiring, grounding, control connections, motor nameplate data, command source, speed reference, and machine interlocks. The complete drive configuration should be reviewed before normal operation.

3. What are the consequences of incorrect motor parameters?
Incorrect motor information can result in poor control performance, unexpected current levels, reduced torque response, or protective faults. Motor nameplate data should be entered carefully during setup.

4. Why might the drive trip on overcurrent during startup?
Possible causes include a heavily loaded machine, insufficient acceleration time, incorrect motor parameters, motor wiring problems, or mechanical resistance. The drive parameters and mechanical condition should be checked together.

5. What can cause an overvoltage fault during stopping?
A motor can return regenerative energy to the drive during deceleration. High-inertia loads and aggressive stopping profiles can increase DC-bus voltage and should be evaluated when repeated overvoltage faults occur.

6. Why does a motor sometimes fail to follow the commanded speed?
Check the active speed-reference source, signal scaling, programmed speed limits, control commands, motor parameters, and load behavior. The reference reaching the drive should be verified before assuming that the drive hardware has failed.

7. How should recurring faults be investigated?
Record the exact fault condition, operating speed, motor current, load state, temperature, and recent system changes. Reviewing the conditions surrounding the fault is generally more useful than repeatedly resetting the drive.

8. What should be checked if the drive communicates intermittently with the controller?
Inspect the communication hardware, network connections, addressing, controller configuration, drive communication settings, and command/reference sources. It is also useful to determine whether the drive operates correctly using an appropriate local control method.

9. Should the existing parameter configuration be saved before drive replacement?
Yes. Recording the drive configuration can significantly simplify replacement and recommissioning. However, saved parameters should be reviewed against the replacement unit rather than transferred without verification.

10. What is important when selecting a replacement for the 20BB192A0ANNANC0?
The complete catalog number, electrical characteristics, motor requirements, installed options, I/O configuration, communication architecture, and application parameters should be checked. Product-family similarity alone does not guarantee interchangeability.
