Brand:Allen Bradley PLC Item No.:MPL-A310P-HK72AA Product Origin:USA Product Dimensions:Frame Size: 100 mm Product Weight:2.7 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

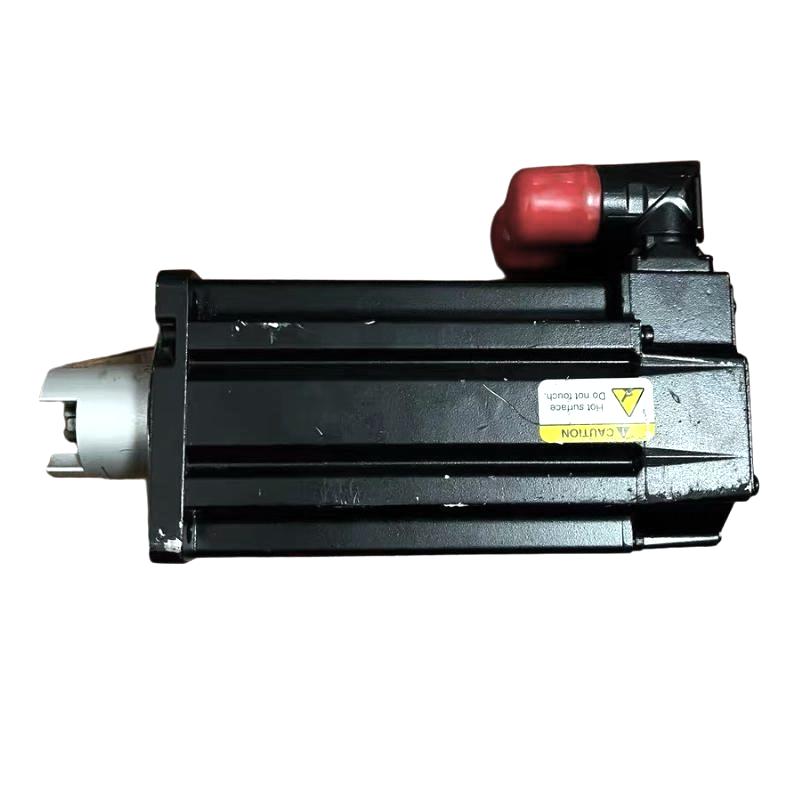

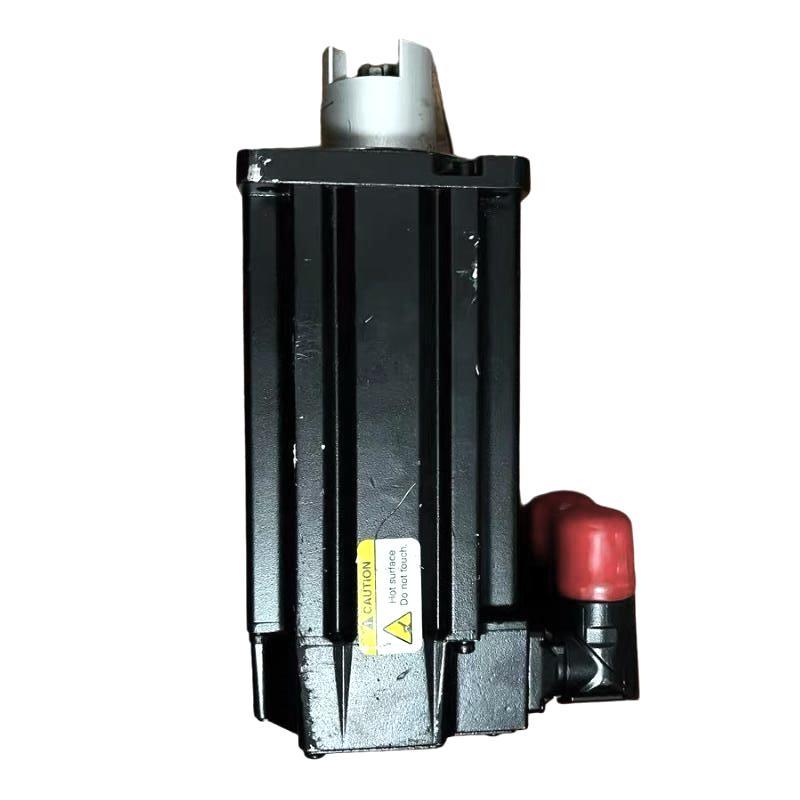

The Allen Bradley MPL-A310P-HK72AA Servo Motor is designed for high-response industrial motion applications where accurate and repeatable movement is essential to machine performance.
Its MP-Series MPL architecture combines low-inertia operation with high-speed capability. The motor's 25.4 mm magnet stack and 5000 RPM class make it appropriate for applications involving frequent acceleration and deceleration, while the 2000-line incremental encoder supports closed-loop position and speed control.

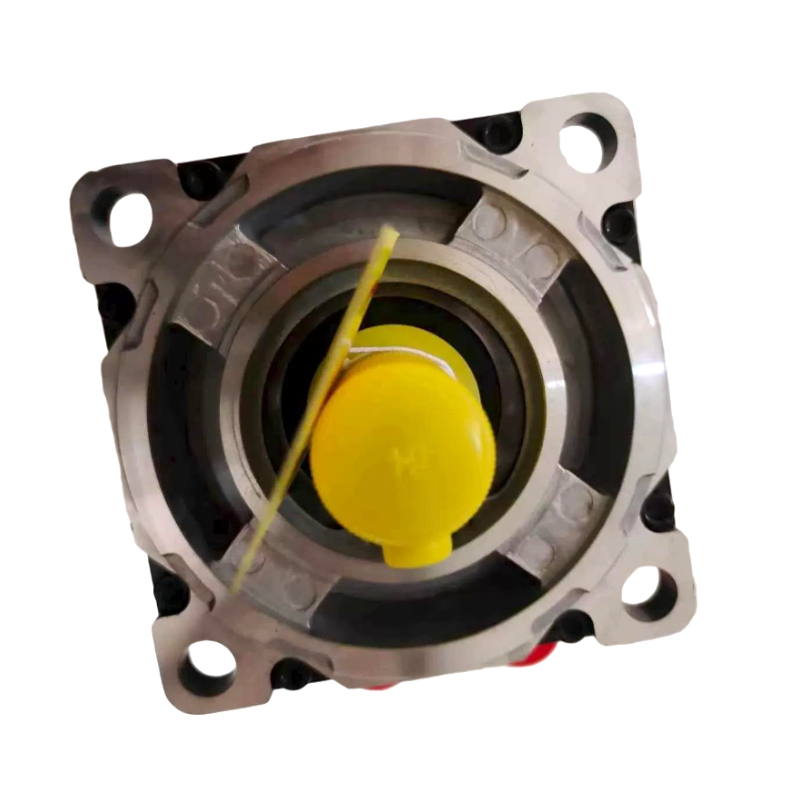

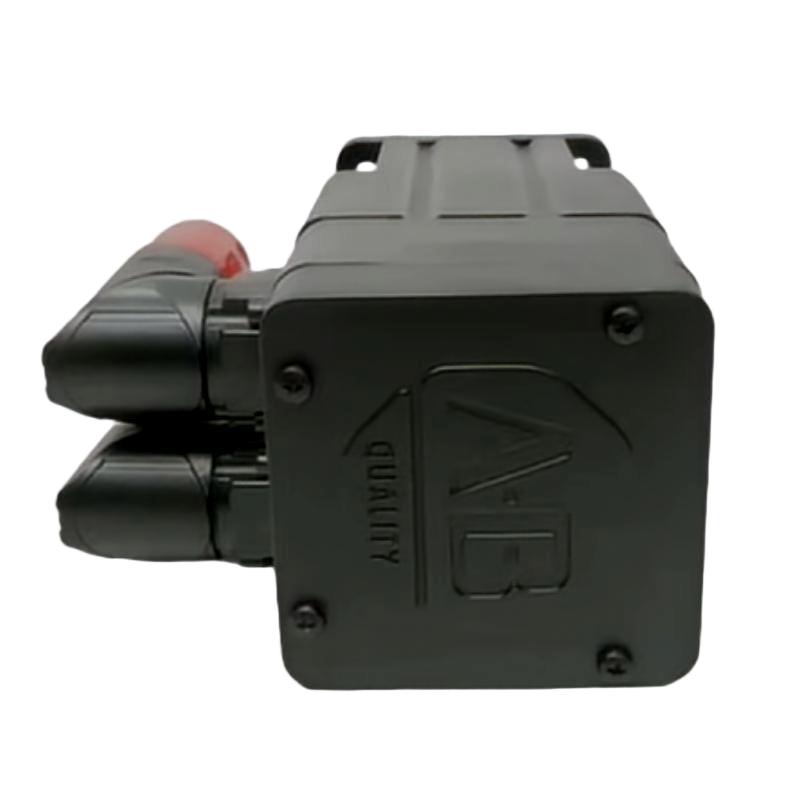

The 100 mm frame size allows the motor to be incorporated into relatively compact machine assemblies. Its keyless shaft arrangement can be paired with suitable couplings, while the right-angle rotatable connector provides additional flexibility for motor-cable routing.
The MPL-A310P-HK72AA should always be identified using its complete catalog number. Other MPL motors can have similar frame sizes but different feedback systems, shaft configurations, connector arrangements, speeds, or brake options.
For OEMs, system integrators, and maintenance teams working with Allen Bradley motion-control equipment, this servo motor offers a practical solution for high-cycle positioning, indexing, packaging, and automated handling applications.
Technical Specifications
Parameter
Specification
Brand
Allen Bradley
Model
MPL-A310P-HK72AA
Product Family
MP-Series MPL
Product Type
AC Rotary Servo Motor
Motor Technology
Low-Inertia Brushless Servo Motor
Voltage Class
230 V AC
Frame Size
100 mm
Magnet Stack Length
25.4 mm
Rated Speed
5000 RPM
Continuous Torque
1.58 Nm
Peak Torque
3.61 Nm
Feedback
2000-Line Incremental Encoder
Shaft Configuration
Keyless Shaft Extension
Connector
SpeedTEC DIN, Right Angle, 180° Rotatable
Brake
No Brake
Mounting
IEC Metric, Free Mounting Holes
Application
Industrial Motion Control
Weight
2.70 kg (5.95 lb)
Frame Size: 100 mm Weight: 2.70 kg (5.95 lb)
Proper installation requires secure mounting, accurate shaft alignment, a compatible coupling, appropriate grounding, and correctly routed motor and feedback cables. The machine's duty cycle and thermal environment should also be considered during commissioning.
Recommended Related Models
Model
Product Type
Application Relationship
MPL-A310P-HK72AA
MP-Series Servo Motor
Primary model
MPL-A310P-HK74AA
MP-Series Servo Motor
Closely related configuration
MPL-A310P-HJ72AA
MP-Series Servo Motor
Related high-speed configuration
MPL-A310P-HJ74AA
MP-Series Servo Motor
Related high-speed configuration
MPL-A310P-MK72AA
MP-Series Servo Motor
Related 100 mm MP-Series configuration
These models are useful for comparison within the MPL-A310P family, but their feedback, shaft, brake, connector, and other configuration characteristics should be checked before considering replacement.
Popular Related Models
MPL-A310P-HK74AA — MP-Series MPL Servo Motor
MPL-A310P-HJ72AA — MP-Series MPL Servo Motor
MPL-A310P-HJ74AA — MP-Series MPL Servo Motor
MPL-A310P-MK72AA — MP-Series MPL Servo Motor
MPL-A310P-SK72AA — MP-Series MPL Servo Motor
For replacement projects, the complete catalog number should be matched against the existing motor and servo system. Speed, feedback, shaft configuration, connector type, brake requirements, and drive compatibility should all be confirmed before installation.
Industrial Motion Applications
The Allen Bradley MPL-A310P-HK72AA Servo Motor is an MP-Series low-inertia brushless AC servo motor developed for automated equipment requiring responsive acceleration, repeatable positioning, and controlled high-speed motion.
This configuration combines a 100 mm frame size, 25.4 mm magnet stack, 5000 RPM speed class, 2000-line incremental encoder, keyless shaft extension, and a right-angle rotatable SpeedTEC DIN connector. It is particularly suitable for machines where rapid cyclic motion and compact mechanical integration are important.
Typical applications include:
High-speed packaging equipment
Automated assembly machinery
Indexing and feeding systems
Pick-and-place equipment
Printing and converting machinery
Labeling systems
Precision material handling
Automated inspection machines
Machine tools
General industrial motion-control systems
The low-inertia design is well suited to applications that repeatedly accelerate, decelerate, and reposition the driven mechanism.
Motion-Control Advantages
High-speed response
The MPL-A310P-HK72AA belongs to the 5000 RPM class, making it suitable for applications where rapid motor response can contribute to shorter machine cycles.
Low-inertia construction
A low-inertia rotor can respond quickly to changes in the commanded motion profile. This is valuable in high-cycle positioning and indexing applications.
Incremental encoder feedback
The 2000-line incremental encoder provides feedback for closed-loop servo control, allowing the motion system to monitor motor movement and regulate operation.
Compact 100 mm frame
The 100 mm frame size offers a useful combination of servo capability and compact mechanical integration for automated equipment.
Keyless shaft design
The keyless shaft extension provides flexibility when selecting compatible couplings and mechanical transmission components.
Flexible connector orientation
The right-angle SpeedTEC DIN connector supports 180-degree rotational adjustment, helping simplify cable routing in space-constrained machine designs.
Brake-free configuration
This particular configuration does not include an integrated brake. Applications requiring positive load holding must therefore incorporate an appropriate external mechanical solution.
Designed for demanding automation
The combination of high speed, low inertia, feedback control, and compact construction makes this motor suitable for production equipment where motion performance directly influences cycle time.
Technical FAQs
1. What type of servo motor is the MPL-A310P-HK72AA?
It is an Allen Bradley MP-Series MPL low-inertia brushless AC rotary servo motor designed for industrial motion-control applications.
2. What is the motor's speed rating?
The MPL-A310P-HK72AA belongs to the 5000 RPM servo-motor class. Actual operating speed should be established according to the compatible drive, load, motion profile, and machine requirements.
3. What type of feedback does this model use?
The motor uses a 2000-line incremental encoder. The feedback system allows the servo drive to monitor motor movement as part of closed-loop control.
4. Why is feedback configuration important when selecting a replacement?
The servo drive must be configured to recognize and process the motor's feedback correctly. A motor with a different feedback arrangement may not operate correctly even if its mechanical dimensions appear similar.
5. What can cause a following error during rapid acceleration?
Potential causes include excessive load inertia, aggressive acceleration settings, insufficient servo tuning, mechanical backlash, coupling problems, or feedback abnormalities.
6. Why might the motor vibrate at certain speeds?
Speed-dependent vibration may be associated with mechanical resonance, shaft misalignment, coupling problems, mounting conditions, or inappropriate control-loop tuning. Both the mechanical axis and servo configuration should be evaluated.
7. Does this motor have an integrated holding brake?
No. The MPL-A310P-HK72AA is a brake-free configuration. If the machine requires the axis to remain mechanically secured after power is removed, an appropriate external holding mechanism should be considered.
8. What should be checked when the motor does not move after servo enable?
Inspect active faults, servo-enable conditions, controller commands, feedback status, motor power connections, safety circuits, and the configured command source.
9. How can excessive motor temperature be investigated?
Check motor current, mechanical load, duty cycle, acceleration frequency, cooling conditions, alignment, and servo tuning. A motor that repeatedly operates near its limits may require a different sizing approach.
10. What should be done before commissioning a replacement motor?
Verify the complete catalog number, servo-drive compatibility, feedback configuration, power wiring, grounding, mechanical alignment, coupling, and control parameters. Begin with controlled low-speed testing before applying the full production motion profile.
