Product Introduction

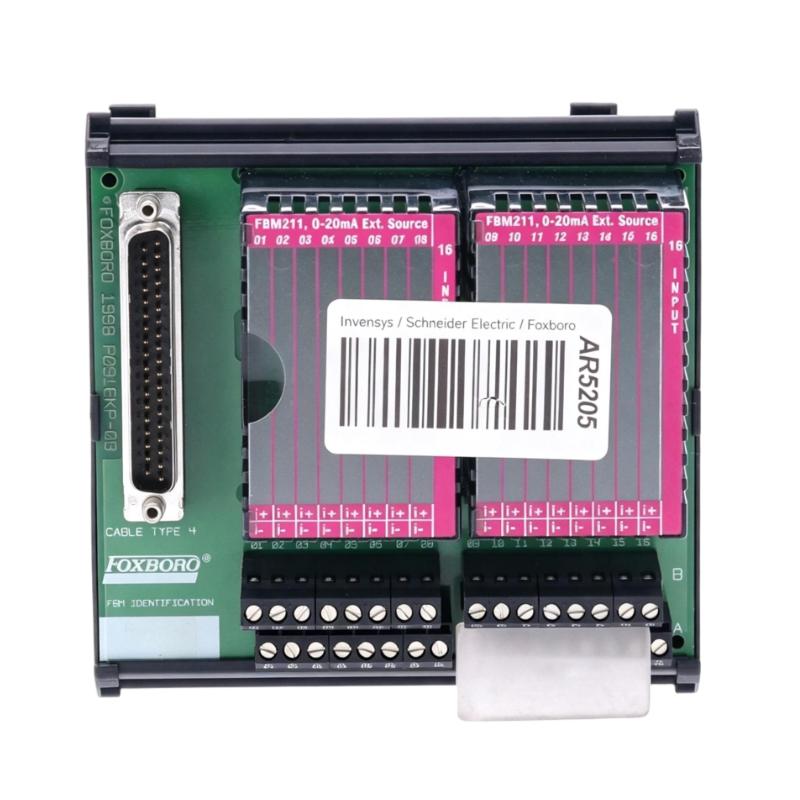

The Foxboro FBM211 P0916JT Compressed Terminal Components provide part of the physical wiring infrastructure required for industrial process-control installations.

In a distributed control system, reliable signal acquisition begins with reliable field connections. Signals generated by field devices must travel through cables and terminal points before reaching the associated interface and control hardware. A problem anywhere along this path can affect equipment monitoring and process operation.

Terminal components therefore deserve the same attention to installation quality as more sophisticated electronic modules. Correct conductor placement, secure termination, clear labeling, and appropriate maintenance practices help establish a stable field signal path.

The FBM211 P0916JT has supplied dimensions of 127 × 80 × 125 mm and a weight of 0.27 kg, providing a defined physical reference for installation and replacement planning.

For troubleshooting, terminal hardware should be considered whenever a field signal is intermittent, unexpectedly lost, or inconsistent with the actual equipment condition. Checking the physical connection before replacing electronic hardware can often narrow down the fault more efficiently.

The complete catalog designation FBM211 P0916JT should be used when sourcing replacement components. Similar-looking terminal components may not have the same physical arrangement or system compatibility.

Technical Specifications

Parameter	Specification
Brand	Foxboro
Model	FBM211 P0916JT
Product Type	Compressed Terminal Components
Function	Field Wiring / Terminal Connection
Application	Industrial Process Control
Installation	Control Cabinet / Field Interface Assembly
Dimensions	127 × 80 × 125 mm
Weight	0.27 kg (0.60 lb)

Dimensions: 127 × 80 × 125 mm
Weight: 0.27 kg (0.60 lb)

Before installation, verify the terminal arrangement and field wiring against the approved system documentation. Ensure conductors are correctly identified and securely terminated, and inspect the completed assembly before energizing the associated equipment.

Recommended Related Models

Model	Product Type	Application Relationship
FBM211 P0916JT	Compressed Terminal Components	Primary model
FBM211 RH914TN	Input Interface Module	Related FBM211 configuration
FBM207c P0917MF	Compressed Terminal Components	Related terminal hardware
FBM207c P0917GY	Contact Sensor Input Interface Module	Related field-interface hardware
FBM207b P0916JS	Contact Sensor Input Interface Module	Related FBM field-interface configuration

The related products may perform different functions and should not be treated as direct replacements solely because they belong to the same FBM family. Always verify the complete hardware and wiring requirements.

Popular Related Models

FBM211 RH914TN — Input Interface Module
FBM207c P0917MF — Compressed Terminal Components
FBM207c P0917GY — Contact Sensor Input Interface Module
FBM207c RH917GY — Contact Sensor Input Interface Module
FBM207b P0916JS — Contact Sensor Input Interface Module

For replacement work, confirm the complete catalog designation and compare the terminal arrangement, wiring requirements, physical configuration, and control-system compatibility before installation.
