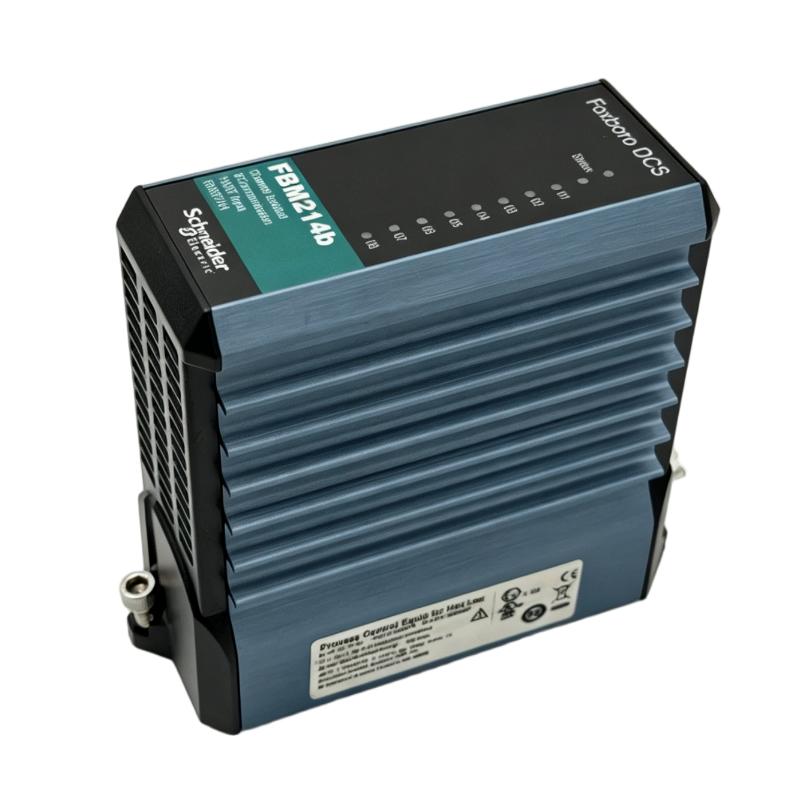

Foxboro FBM214b RH927AH Communication Input Interface Module

Industrial Communication and Input Applications

The Foxboro FBM214b RH927AH Communication Input Interface Module is designed for process-control installations where field information must be reliably integrated into a distributed automation environment.

In a modern process plant, input data does more than simply indicate an operating condition. It can support process monitoring, equipment diagnostics, alarm handling, sequencing, and control decisions. A dependable interface between field information and the control architecture is therefore essential.

The FBM214b RH927AH is suitable for applications such as:

• Distributed control system installations
• Process automation systems
• Field input integration
• Industrial communication interfaces
• Process equipment monitoring
• Control-system expansion
• Plant instrumentation systems
• Equipment status acquisition
• Process diagnostics
• Automation system maintenance and retrofit

Its compact form factor makes it a practical choice for organized control-system assemblies where available installation space needs to be used efficiently.

Designed for Stable System Integration

Dedicated communication input interface
The FBM214b RH927AH provides an interface point for integrating compatible input information into the industrial control architecture.

Supports distributed process control
The module can form part of a distributed arrangement in which field information is acquired and transferred through dedicated interface hardware.

Improves process visibility
Reliable input integration allows control applications and operator interfaces to receive the information needed for equipment and process supervision.

Compact installation profile
Measuring 114 × 45 × 104 mm, the module occupies a defined and manageable space within a control-system installation.

Useful for maintenance diagnostics
When communication or input information becomes unavailable, the module provides a logical point for checking hardware status, connections, and signal paths.

Suitable for retrofit projects
For established Foxboro systems, accurately matched interface modules can help maintenance teams maintain or restore existing control infrastructure.

Clear product identification
The complete FBM214b RH927AH designation should be retained in maintenance records and purchasing documentation to avoid confusion with other FBM214-series configurations.

Practical industrial value
Reliable field-to-control communication supports stable plant operation and gives automation personnel a stronger foundation for monitoring and troubleshooting.

Technical FAQs

1. What is the purpose of the FBM214b RH927AH?
It is a communication input interface module intended to integrate compatible field input information into an industrial process-control system.

2. Why is input communication important in a distributed control system?
Control applications depend on timely and reliable field information. If input data is unavailable or incorrect, operators and control logic may not have an accurate representation of the process.

3. What can cause a communication input to become unavailable?
Potential causes include wiring problems, loose connections, incorrect configuration, communication interruptions, hardware faults, or problems elsewhere in the associated control architecture.

4. What should be checked when communication is intermittent?
Inspect physical connections first, then examine wiring, module status, configuration, and available system diagnostics. Monitoring the fault while it occurs can help distinguish a physical connection problem from a configuration issue.

5. Why does correct module configuration matter?
The control system needs to recognize the installed hardware and interpret its information correctly. Incorrect configuration can result in missing channels, invalid data, or diagnostic alarms.

6. What should be investigated if received input information appears incorrect?
Check the field source, wiring, terminals, module condition, signal configuration, and associated control parameters. Compare the actual field condition with the value displayed by the control system.

7. Can poor grounding affect communication or input performance?
Improper grounding can contribute to electrical noise, unstable signals, and communication problems. Grounding should therefore follow the requirements of the complete control-system installation.

8. Should technicians replace the module immediately after a communication fault occurs?
No. Field wiring, connectors, configuration, communication paths, and related equipment should be checked before concluding that the interface module has failed.

9. What precautions are recommended during module replacement?
Follow approved electrical isolation and maintenance procedures, identify the correct hardware, document existing connections, and verify system configuration before installing the replacement.

10. How can the module be validated after installation?
Confirm physical installation and wiring, verify that the control system recognizes the module, check communication diagnostics, validate incoming information, and perform controlled functional testing before returning the system to normal operation.
