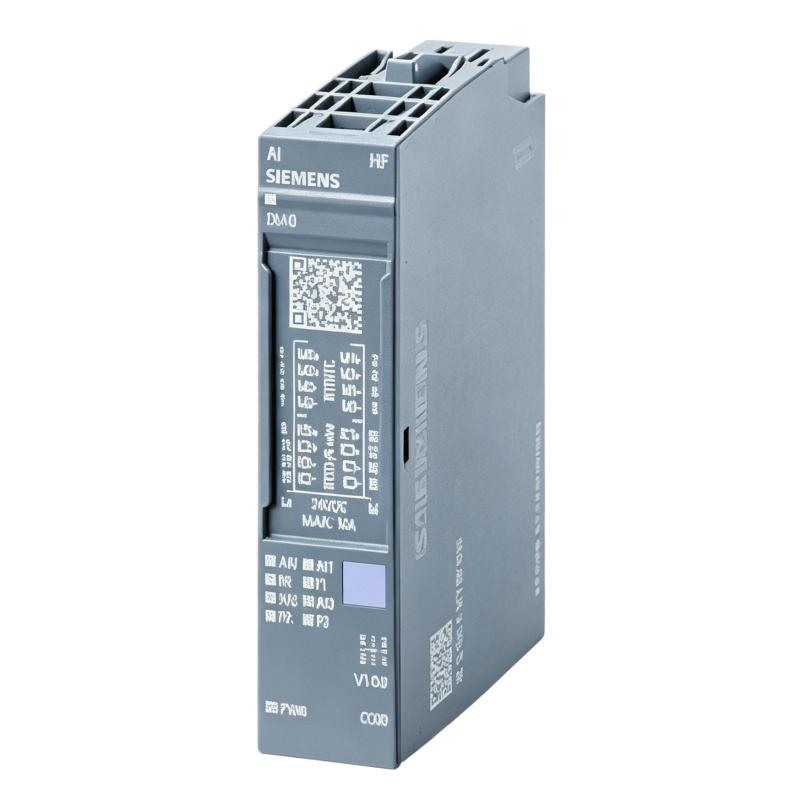

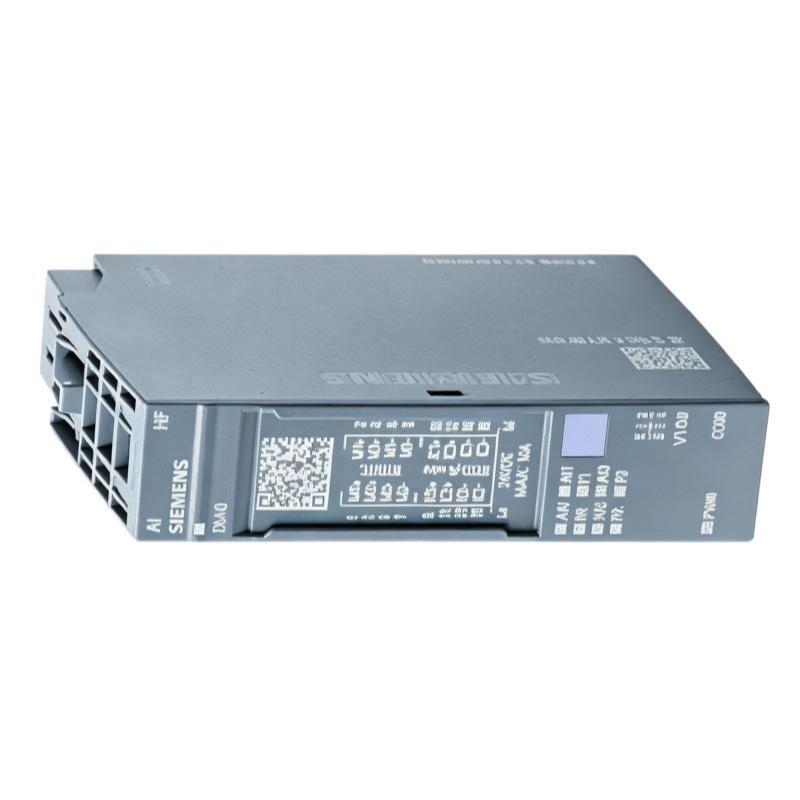

Siemens 6AG1134-6JD00-2CA1 Analog Input Module

Precision Analog Signal Acquisition Applications

The Siemens 6AG1134-6JD00-2CA1 Analog Input Module is designed for automation systems that need to acquire analog signals from field instruments and make process data available to the control program.

Analog input channels are commonly used for measuring continuously varying process values rather than simple ON/OFF states. In practical automation projects, this can include temperature, pressure, level, flow, position, or other process variables represented by compatible analog signals.

Typical applications include:

• Industrial process monitoring
• Machine automation
• Temperature measurement
• Pressure and level monitoring
• Flow measurement
• Sensor signal acquisition
• Closed-loop control
• Equipment condition monitoring
• Siemens distributed I/O installations
• Factory automation systems

Accurate analog acquisition provides the controller with usable process information for regulation, alarming, visualization, and automated decision-making.

Why This Module Fits Demanding Automation Tasks

Reliable analog acquisition
The module provides an organized interface for bringing compatible analog field signals into the automation system.

Suitable for continuous process values
Unlike discrete inputs, analog channels allow the control system to work with continuously changing measurements, supporting more detailed process supervision and control.

Compact SIMATIC design
With dimensions of 15 × 73 × 58 mm, the module is suited to installations where control-panel space needs to be used efficiently.

Straightforward system integration
Once the correct signal type and channel configuration are established, the module can become a practical part of a structured Siemens automation architecture.

Useful for closed-loop applications
Accurate analog feedback is important for applications in which the controller continuously compares measured values with target values.

Maintenance-friendly diagnostics
When an analog value becomes unstable or implausible, technicians can investigate the sensor, wiring, channel configuration, and module systematically.

Efficient replacement option
The complete order number 6AG1134-6JD00-2CA1 provides an exact reference when identifying the required module for maintenance or replacement work.

Built for professional automation
For OEM machines, production equipment, and industrial process applications, dependable analog signal acquisition helps maintain consistent monitoring and control performance.

Technical FAQs

1. What is the function of the Siemens 6AG1134-6JD00-2CA1?
It is an analog input module used to acquire compatible analog field signals and make the resulting process information available to the automation controller.

2. What types of field devices are commonly connected to analog input modules?
Depending on the supported signal configuration, typical applications can involve temperature transmitters, pressure transmitters, level instruments, flow transmitters, position sensors, and other analog measurement devices.

3. Why is correct analog input configuration important?
The controller must interpret the incoming electrical signal using the correct measurement range and signal characteristics. Incorrect configuration can produce scaling errors or misleading process values.

4. What can cause an analog value to remain at zero?
Possible causes include a disconnected sensor, broken field wiring, incorrect channel configuration, missing loop power where applicable, terminal problems, or an input-channel fault.

5. Why might an analog reading fluctuate unexpectedly?
Potential causes include electrical interference, unstable sensor output, poor connections, grounding problems, damaged wiring, or an incorrectly configured measurement range.

6. How should an unexpectedly high analog value be investigated?
Check the actual field process value, sensor output, wiring polarity and continuity, terminal connections, and configured measurement range. Compare the field signal with the value interpreted by the controller.

7. Can long sensor cables affect analog measurements?
Long cable runs can increase susceptibility to electrical interference and signal degradation. Proper cable selection, routing, shielding, and grounding are important for maintaining measurement quality.

8. What should be checked before replacing the input module?
Verify the sensor, field wiring, terminals, signal configuration, controller diagnostics, and channel behavior first. This prevents a wiring or instrumentation problem from being incorrectly diagnosed as a module failure.

9. How should an analog channel be commissioned?
Verify the field wiring and signal type, configure the channel correctly, apply a known input condition, and compare the resulting engineering value in the control system with the expected measurement.

10. Can an analog input module be used for safety functions?
A standard analog input should not automatically be treated as a safety-rated device. Safety-related measurement requires hardware, architecture, diagnostics, and engineering practices specifically designed and approved for the intended safety function.
