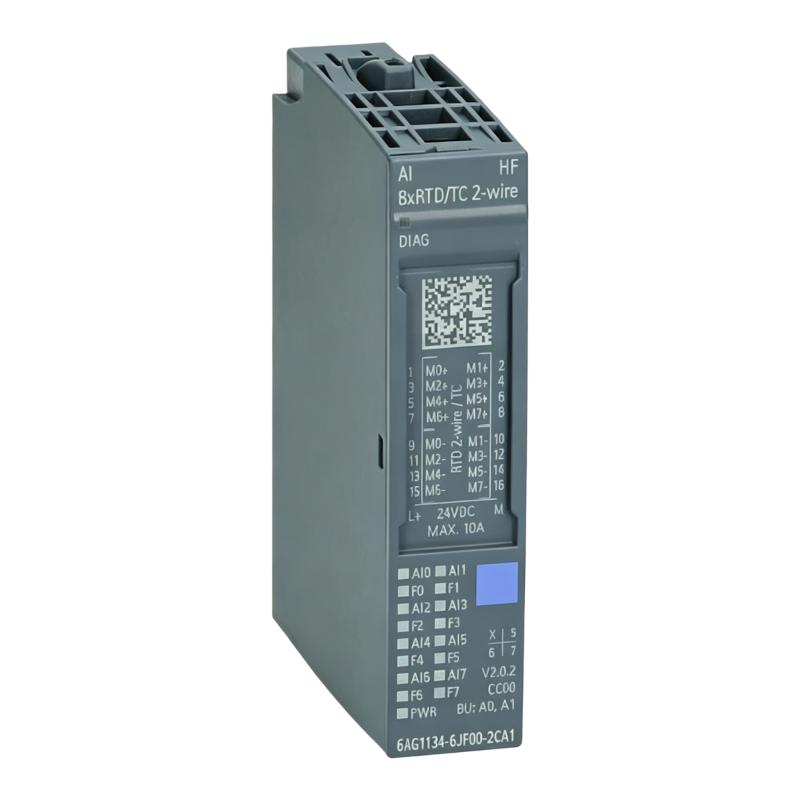

Siemens 6AG1134-6JF00-2CA1 Analog Input Module

Analog Measurement Applications

The Siemens 6AG1134-6JF00-2CA1 Analog Input Module is intended for automation systems that need to bring continuously varying field measurements into the controller.

Analog acquisition is fundamental when a machine or process needs more information than a simple ON/OFF status. Temperature, pressure, flow, level, position, and other continuously changing variables can be monitored through suitable analog field instruments and processed by the automation system.

Typical applications include:

• Industrial process measurement
• Machine automation
• Sensor and transmitter integration
• Temperature and pressure monitoring
• Level and flow measurement
• Process feedback
• Closed-loop regulation
• Equipment monitoring
• Production machinery
• Siemens automation and I/O systems

With the right field instrumentation and configuration, an analog input module can turn real-world process conditions into useful control data for visualization, alarming, regulation, and diagnostics.

Key Advantages for Automation Engineers

Compact analog I/O solution
The 6AG1134-6JF00-2CA1 provides a compact way to incorporate compatible analog measurement signals into a Siemens automation architecture.

Designed for continuous measurements
Analog acquisition allows the control system to work with changing process values rather than only binary states, making it suitable for measurement and regulation applications.

Efficient cabinet utilization
At 15 × 73 × 58 mm, the module occupies a small physical footprint, which is valuable in densely populated control cabinets.

Supports process feedback
Reliable analog feedback allows controllers to compare actual operating conditions against configured targets and respond accordingly.

Practical troubleshooting point
The input channel provides a useful location for checking whether a problem originates from the sensor, field wiring, configuration, or the I/O hardware.

Suitable for equipment upgrades
Its compact form makes it attractive for machine upgrades, control-panel modifications, and replacement projects where installation space is limited.

Clear replacement identification
Using the complete order number 6AG1134-6JF00-2CA1 helps maintenance teams identify the intended hardware configuration accurately.

Professional industrial application
For OEM machinery and process automation, dependable analog acquisition contributes to better process visibility and more consistent control performance.

Technical FAQs

1. What is the purpose of the Siemens 6AG1134-6JF00-2CA1?
It is an analog input module used to acquire compatible analog signals from field devices and provide the resulting measurement information to the automation system.

2. What field instruments are commonly connected to analog inputs?
Typical applications include pressure transmitters, temperature instruments, flow transmitters, level sensors, position transducers, and other compatible analog-output devices.

3. Why must the analog signal type be configured correctly?
The automation system needs to know how to interpret the electrical input. Incorrect signal configuration can result in incorrect engineering values, scaling problems, or diagnostic conditions.

4. What could cause an analog channel to read zero?
Possible causes include a disconnected instrument, broken conductor, incorrect wiring, missing transmitter supply where applicable, incorrect configuration, or a defective input channel.

5. What can cause an analog value to fluctuate?
Unstable instrumentation, electrical noise, poor connections, grounding issues, damaged cables, or an unsuitable signal configuration can produce unstable measurements.

6. How should an incorrect analog value be diagnosed?
Compare the controller's displayed value with the actual field condition and, where appropriate, measure the field signal using approved test equipment. Then check wiring, terminals, configuration, and the input channel.

7. Can cable routing influence analog signal quality?
Yes. Analog circuits can be sensitive to electromagnetic interference. Keeping signal wiring appropriately separated from high-power conductors and applying suitable shielding and grounding practices can help maintain signal integrity.

8. What should be checked before replacing the module?
Inspect the field instrument, wiring, terminal connections, configuration, controller diagnostics, and channel behavior first. A module should not be assumed to be defective simply because the process value is incorrect.

9. How should a new analog input channel be commissioned?
Confirm the field wiring and signal characteristics, configure the channel correctly, apply a known input condition, and verify that the controller displays the expected value.

10. Is the module automatically suitable for safety-related measurements?
No. A standard analog input module should not be assumed to provide a safety-rated function. Safety applications require appropriately certified hardware, architecture, diagnostics, and engineering procedures.
