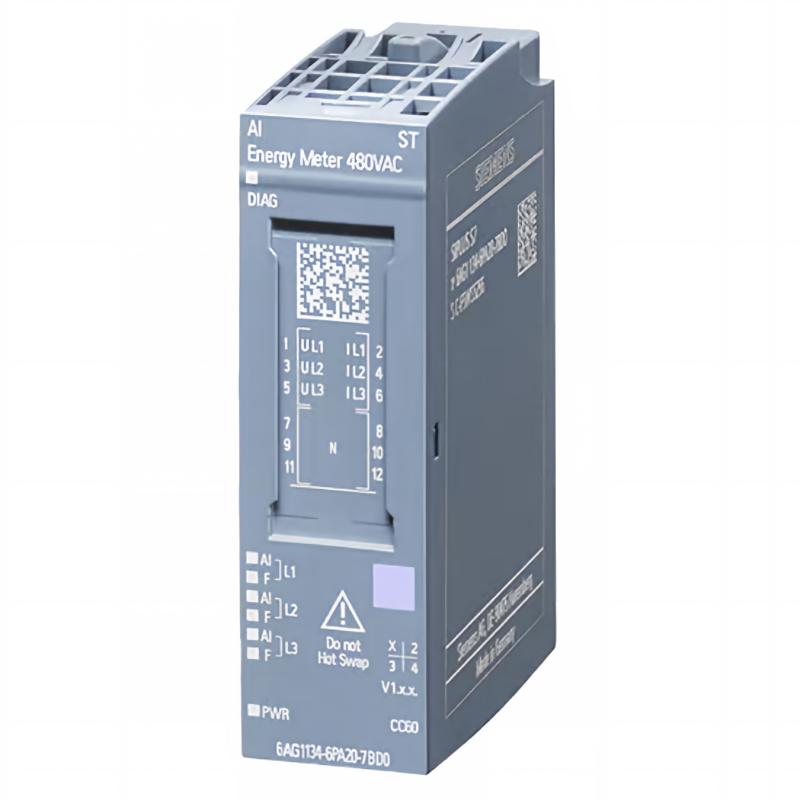

Siemens 6AG1134-6PA20-7BD0 Analog Input Module

Process Measurement and Analog Acquisition Applications

The Siemens 6AG1134-6PA20-7BD0 Analog Input Module is designed for automation systems that need to capture analog information from field instruments and deliver usable measurement data to the control application.

Analog signals are particularly important when a machine or process needs to know not only whether something is active, but also how much, how fast, or how far. Depending on the compatible field configuration, analog acquisition can support process variables such as temperature, pressure, flow, level, position, and other continuously changing measurements.

Typical applications include:

• Industrial process monitoring
• Machine automation
• Sensor and transmitter integration
• Continuous process measurement
• Equipment condition monitoring
• Closed-loop control
• Production-line automation
• Control cabinet installations
• Process instrumentation
• Siemens I/O system applications

For automation engineers, the value of an analog input module lies in converting field-level measurement information into dependable data that can be used by PLC programs, visualization systems, alarms, and control functions.

Engineering Benefits and Integration Value

Compact analog signal interface
The 6AG1134-6PA20-7BD0 provides a practical interface for integrating compatible analog measurement signals into a Siemens automation environment.

Designed for continuous process data
Analog acquisition allows the controller to work with changing measurement values, making it suitable for applications that require more detailed feedback than discrete status information can provide.

Space-efficient installation
With dimensions of 20 × 73 × 58 mm, the module can be integrated into compact automation assemblies where cabinet space is an important consideration.

Useful for closed-loop applications
Accurate analog feedback gives the controller the information required to compare actual process conditions with target values and adjust equipment operation accordingly.

Supports transparent troubleshooting
When an analog value is incorrect, the signal path can be examined from the field instrument through wiring and terminals to the input channel and control-system configuration.

Suitable for machine and plant upgrades
Its compact design makes the module practical for control-panel modifications, system expansion, and replacement projects where efficient use of installation space is required.

Clear product identification
The complete order number 6AG1134-6PA20-7BD0 should be retained in purchasing and maintenance records to ensure the correct hardware is selected.

Professional automation component
Reliable analog acquisition provides a strong foundation for process visualization, alarming, regulation, and equipment supervision.

Technical FAQs

1. What is the main function of the Siemens 6AG1134-6PA20-7BD0?
It is an analog input module intended to acquire compatible analog signals from field devices and make the resulting measurement information available to the automation system.

2. What types of instruments are normally connected to analog input modules?
Depending on the module's supported signal characteristics, typical applications can include temperature transmitters, pressure instruments, flow transmitters, level devices, position sensors, and other analog-output field equipment.

3. Why is correct signal configuration important?
The controller must interpret the electrical input according to the correct signal type and measurement range. Incorrect configuration can produce inaccurate engineering values or channel diagnostics.

4. What could cause an analog input to remain at zero?
Possible causes include a disconnected field instrument, broken cable, loose terminal, incorrect wiring, missing instrument supply where applicable, incorrect configuration, or an input-channel problem.

5. Why might the measured value fluctuate even when the process is stable?
Electrical interference, unstable instrumentation, poor connections, grounding issues, damaged cables, or incorrect signal configuration can introduce fluctuations.

6. How should an unexpectedly high input value be investigated?
First compare the controller reading with the actual process condition. Then inspect the transmitter output, wiring, terminals, configured measurement range, and input channel to determine where the discrepancy occurs.

7. Can electromagnetic interference affect analog input signals?
Yes. Analog circuits can be affected by nearby power equipment and unsuitable cable routing. Appropriate separation, shielding, grounding, and installation practices can help maintain signal integrity.

8. What should be checked before replacing an analog input module?
Check the field instrument, signal wiring, terminal connections, channel configuration, controller diagnostics, and actual input signal before replacing the hardware.

9. How should a newly installed analog channel be commissioned?
Verify the field wiring and signal characteristics, configure the channel correctly, apply a known input condition, and confirm that the controller displays the expected process value.

10. Can a standard analog input module be used directly for a safety function?
A standard analog input module should not automatically be considered safety-rated. Safety-related functions require suitable certified hardware, architecture, diagnostics, and engineering procedures.
